JSD6226

Product Overview

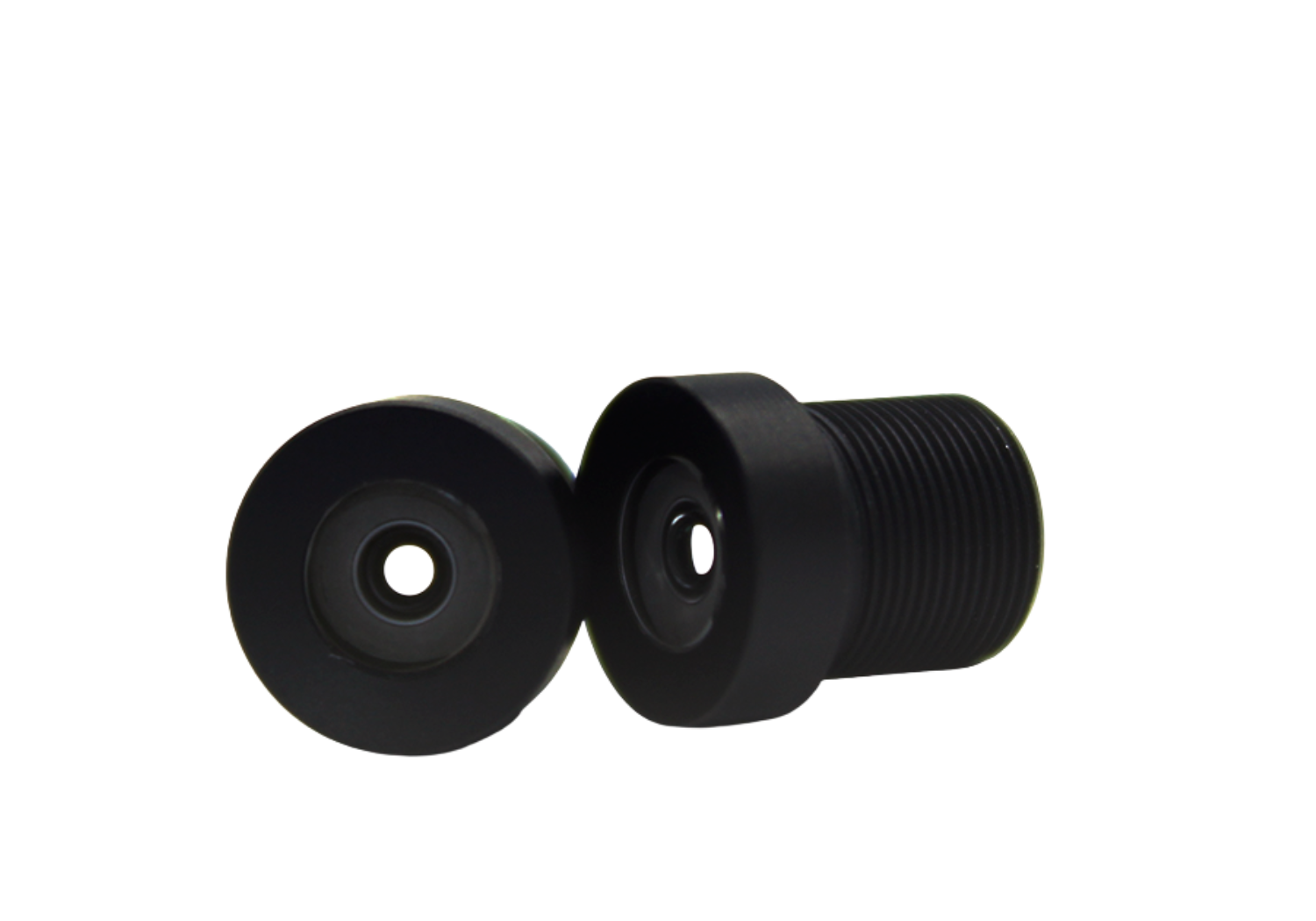

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and expansive coverage for advanced imaging applications. With a 4.26mm focal length and F2.8 aperture, it provides a wide 93° field of view, making it ideal for broad-area surveillance, environmental monitoring, and panoramic scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this wide-angle lens ensures superior image sharpness and ultra-low distortion across diverse lighting conditions.

Key Features & Benefits

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20, SONY IMX334), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Balanced Aperture Performance: Optimized F2.8 aperture provides versatile light gathering for both indoor and outdoor environments, ensuring consistent image quality.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Ultra-Low Distortion Optics: Advanced optical design minimizes distortion across the entire field of view, maintaining geometric accuracy and true-to-life image representation.

True 8MP Resolution: Delivers exceptional, high-definition imaging with outstanding detail reproduction, ensuring crisp visuals for advanced imaging applications.

Versatile Wide-Angle Applications: Suited for wide-range monitoring, facility surveillance, industrial inspection, and machine vision tasks requiring extensive field coverage.

Wide-Angle 93° FOV: Provides an expansive wide field of view ideal for broad-area surveillance, environmental monitoring, and large scene coverage with minimal blind spots.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Technical Specifications

Applications

Facility Surveillance: Interior monitoring of large rooms, open area security assessment, and structured environment observation with comprehensive coverage.

Perimeter Security: Enhanced coverage for site boundaries, fence lines, and extended security perimeters with broader visibility and wide-angle field.

Environmental Assessment: Panoramic scene capture, landscape monitoring, and situational awareness for comprehensive analysis with maximum field coverage.

Ultra-Low Distortion Imaging: Precision optical design maintains geometric accuracy with ultra-low distortion, ensuring true-to-life image representation across the entire 93° field of view.

Industrial Inspection: Medium to long-range component examination, equipment monitoring, and quality control assessments with ultra-low distortion and wide field of view.

Traffic Analysis: Vehicle tracking across multiple lanes, intersection coverage, and traffic flow observation with enhanced peripheral vision and wide field awareness.

Crowd Monitoring: Effective tracking of group movements in medium to large density areas, gathering analysis, and expanded people monitoring with wide perspective.

Wide-Angle Imaging: Exceptional coverage for spacious environments with 93° FOV, providing expansive scene capture and broad field observation with minimal blind spots.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
