JSD6628

Product Overview

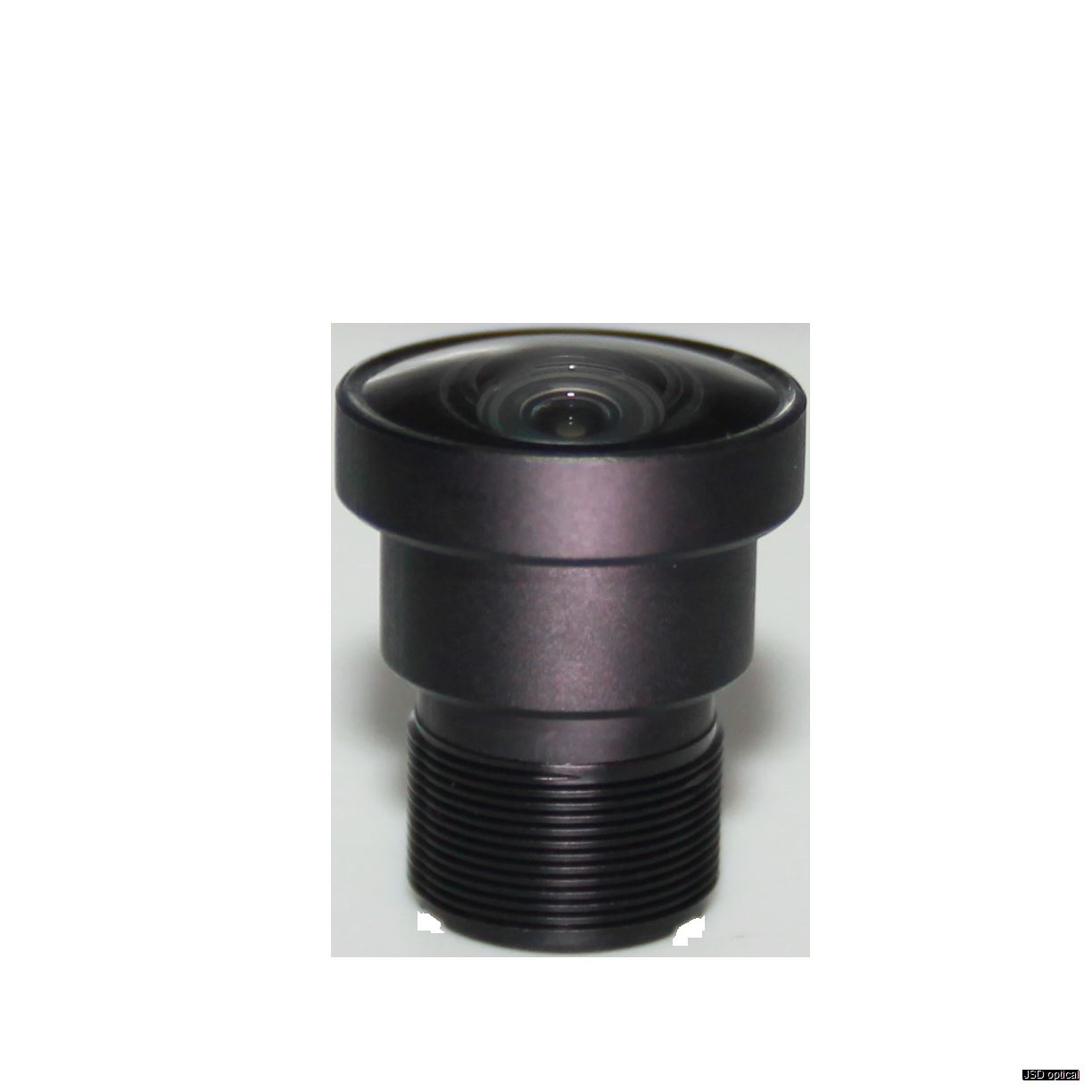

This ultra-high-resolution M16 mount fixed focal lens (PN: JSD6628) is expertly engineered for large 1-inch image sensors, delivering professional-grade clarity and optical precision. With a 6.6mm focal length and F2.8 aperture, it provides a wide 102° field of view, making it perfect for high-end surveillance, industrial inspection, and precision machine vision. Boasting an impressive 50MP resolution and controlled distortion (<-3%), this lens ensures superior image sharpness and accurate spatial representation across the entire image circle, optimized for demanding imaging environments.

Key Features & Benefits

Ultra-High 50MP Resolution:Delivers cutting-edge 50MP imaging capabilities, capturing intricate details with exceptional sharpness, ideal for applications requiring pixel-level analysis.

Optimized for 1" Sensors:Designed specifically to cover a large 1-inch image circle, maximizing the performance of high-end sensors while ensuring uniform brightness and edge-to-edge clarity.

Wide 102° Field of View:Offers a broad 102° viewing angle, enabling comprehensive scene coverage for surveillance and monitoring without the need for multiple cameras.

Low Distortion (<-3%):Advanced optical engineering maintains optical distortion below -3%, ensuring straight lines remain straight and providing true-to-life dimensional accuracy.

Robust M16 Mount Design:Features a durable M16 thread and a TTL (Total Track Length) of 34.49mm, providing a stable and reliable optical interface for industrial and commercial hardware.

Superior Optical Performance:The F2.8 aperture combined with the 6.6mm focal length strikes a balance between light intake and depth of field, suitable for diverse lighting conditions.

Applications

High-End Intelligent Transportation Systems (ITS)

Industrial Machine Vision & Defect Inspection

High-Resolution Security & Surveillance

Aerial Mapping & Drone Imaging

Smart City Monitoring

Biometric Recognition Systems

Broadcast & Sports Imaging

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
