JSD9332

Product Overview

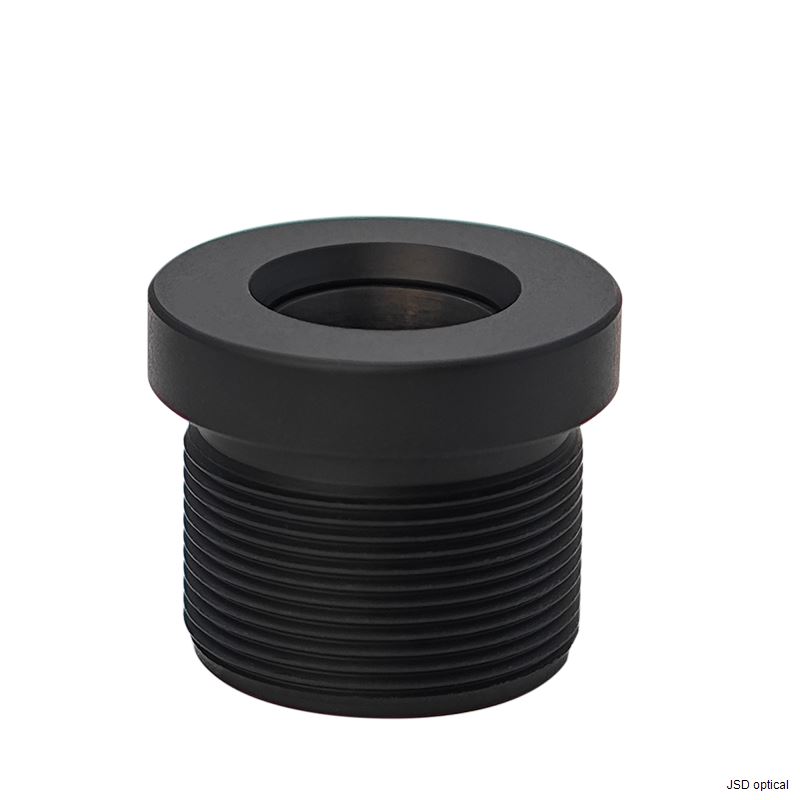

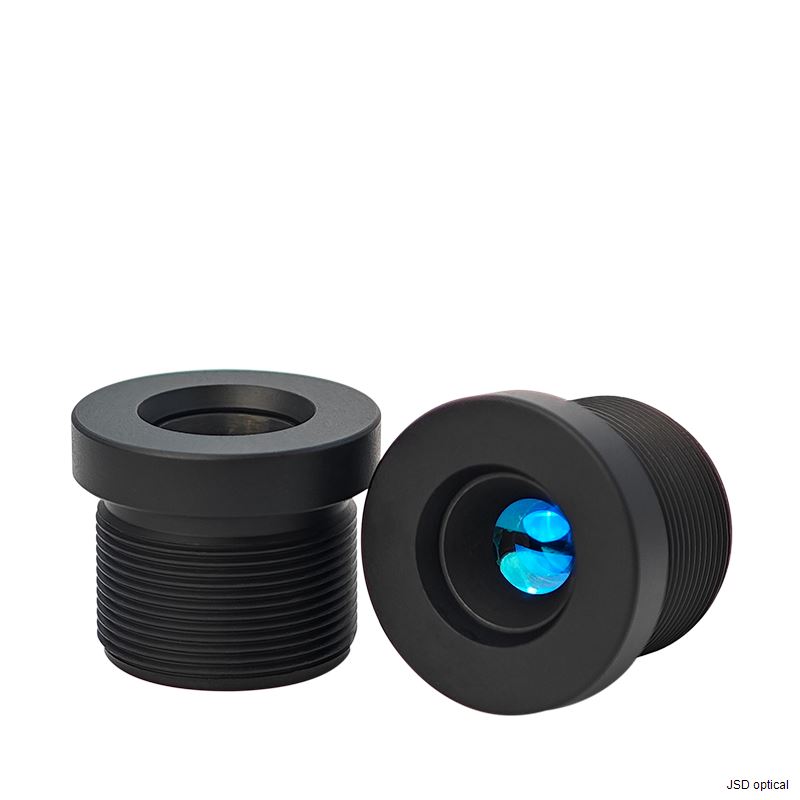

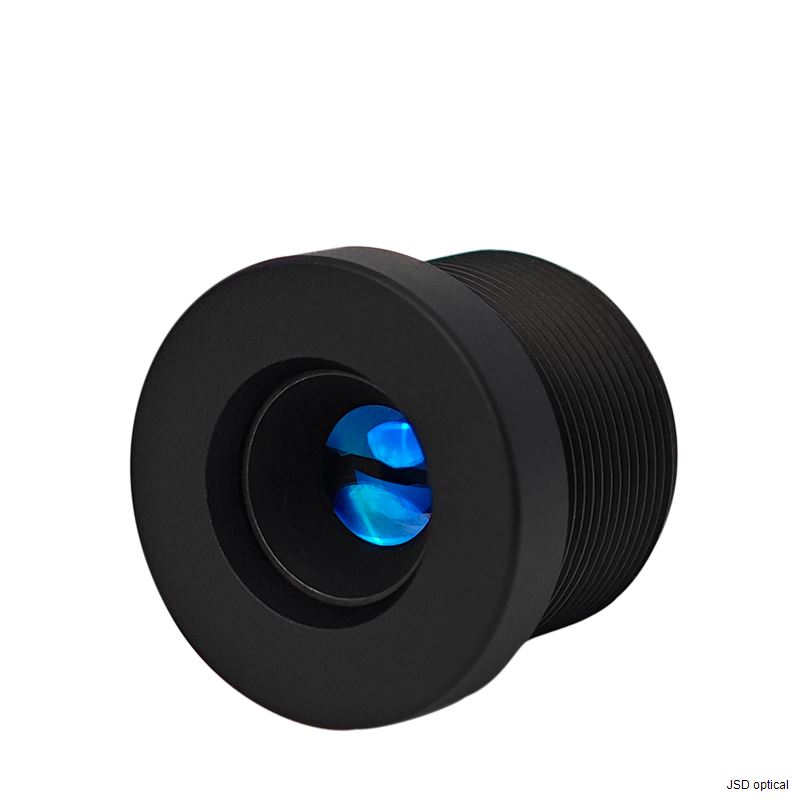

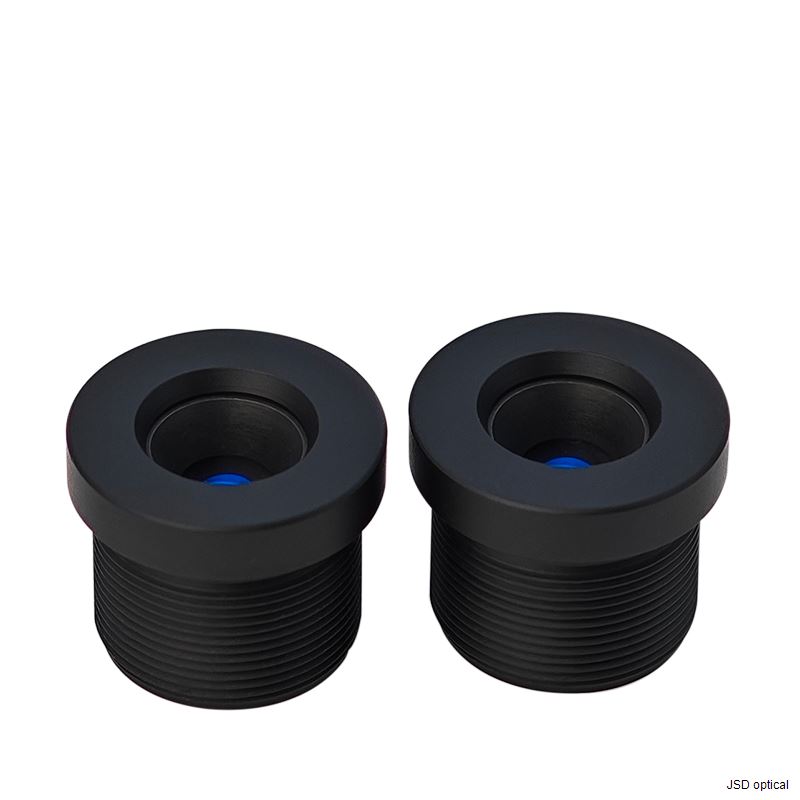

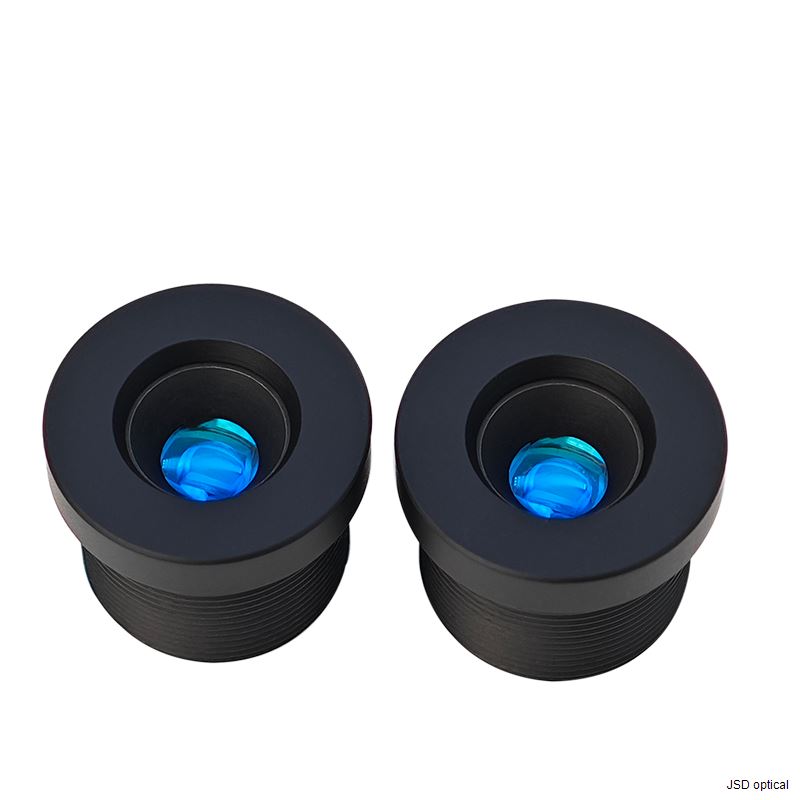

This professional-grade M12 mount fixed focal length lens is engineered for 1/4.5-inch sensors, delivering VGA resolution with zero distortion for applications requiring precise image accuracy. Featuring a 9.3mm focal length and an F3.2 aperture, it provides a 21° field of view, making it well-suited for focused monitoring, detailed scene observation, and capturing specific targets at longer distances. The combination of all-glass lenses and manual focus ensures fundamental image control for reliable performance in various lighting conditions

Key Features & Benefits

Precise Sensor Compatibility: Engineered specifically for 1/4.5" image sensors, this lens ensures optimal compatibility to fully utilize the sensor's imaging area. This precise matching helps prevent vignetting and guarantees that the projected image circle is perfectly tailored to the sensor's dimensions

True Zero-Distortion Optics: The lens is designed with a zero-distortion optical formula, which is crucial for applications demanding high geometric accuracy. This design ensures that the captured image is a true-to-life representation of the scene, preserving straight lines and accurate proportions without the need for software correction

All-Glass Construction & M12 Mount: Featuring a robust construction built exclusively with all-glass lens elements, this lens offers superior durability, chemical stability, and resistance to thermal deformation compared to resin-based alternatives

The compact M12 mount facilitates easy integration into space-constrained devices, making it suitable for long-term use in various operating environments

Technical Specifications

Applications

Precision Inspection & Measurement: The 21° field of view and zero distortion characteristics are engineered for high-accuracy tasks such as industrial inspection and measurement. This lens provides a highly accurate, narrow perspective essential for applications where geometric precision is critical, enabling reliable analysis of components and assemblies without optical aberrations.

Industrial Automation & Robotics: Ideal for integration into automated systems and robotics, this lens offers a focused view for tasks like part positioning, verification, and guidance. The manual focus allows for fine-tuning to specific working distances, ensuring sharpness for detailed machine vision analysis on assembly lines or within compact robotic cells.

Long-Range Focused Observation: With its 9.3mm focal length, this lens is suited for scenarios requiring detailed observation of a specific, narrower area from a distance. It is applicable in specialized security or monitoring tasks where targeted oversight, rather than wide-area coverage, is the priority, providing a magnified and distortion-free view of the point of interest.

Specialized Imaging & Instrumentation: The combination of all-glass construction for superior optical clarity, a VGA-resolution compatible design, and minimal distortion makes this lens a strong candidate for integration into specialized instruments like microscopes or analytical probes. It supports applications demanding a clear, precise image from a constrained field of view.

Customizable OEM Solutions: As part of the standardized M12 (S-Mount) lens family, this component is designed for seamless integration into OEM products. Its compact size and manual focus mechanism offer a foundation for customization, allowing for tailored solutions in medical devices, specialized sensor systems, and other applications where specific focal distances and form factors are required

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
