JSD1940

Product Overview

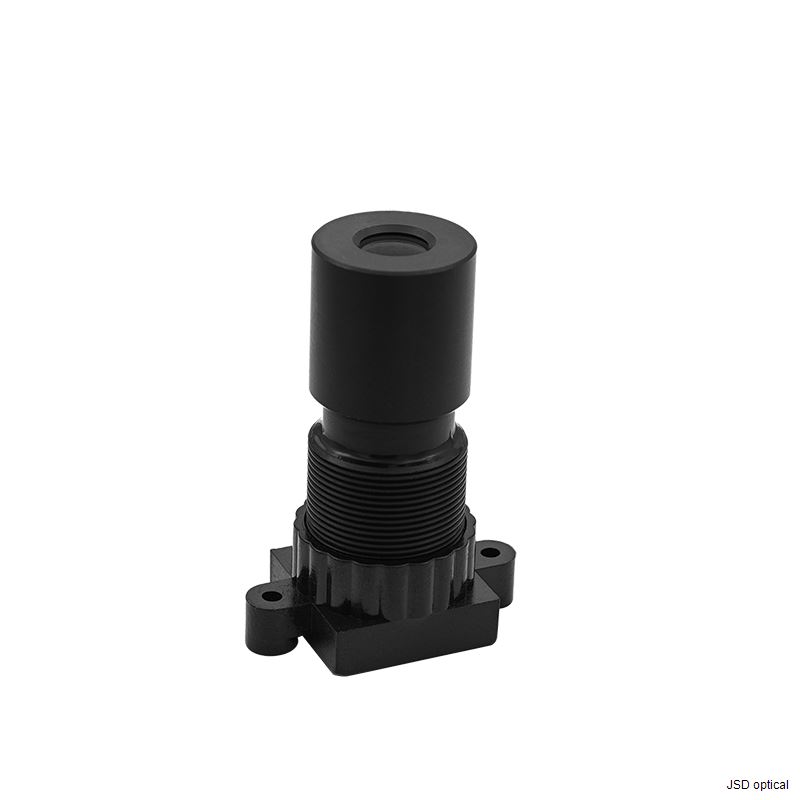

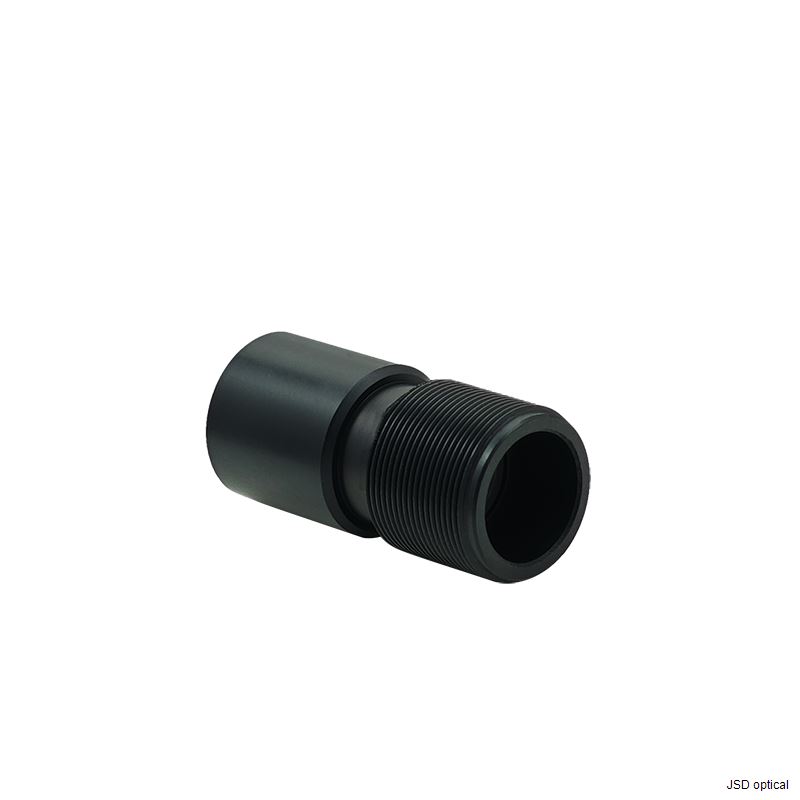

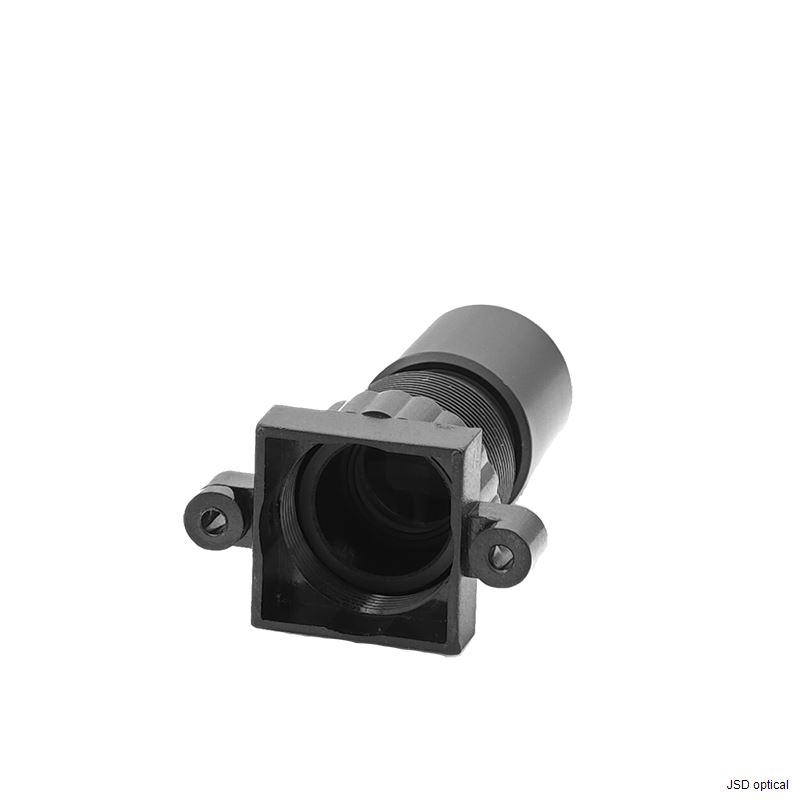

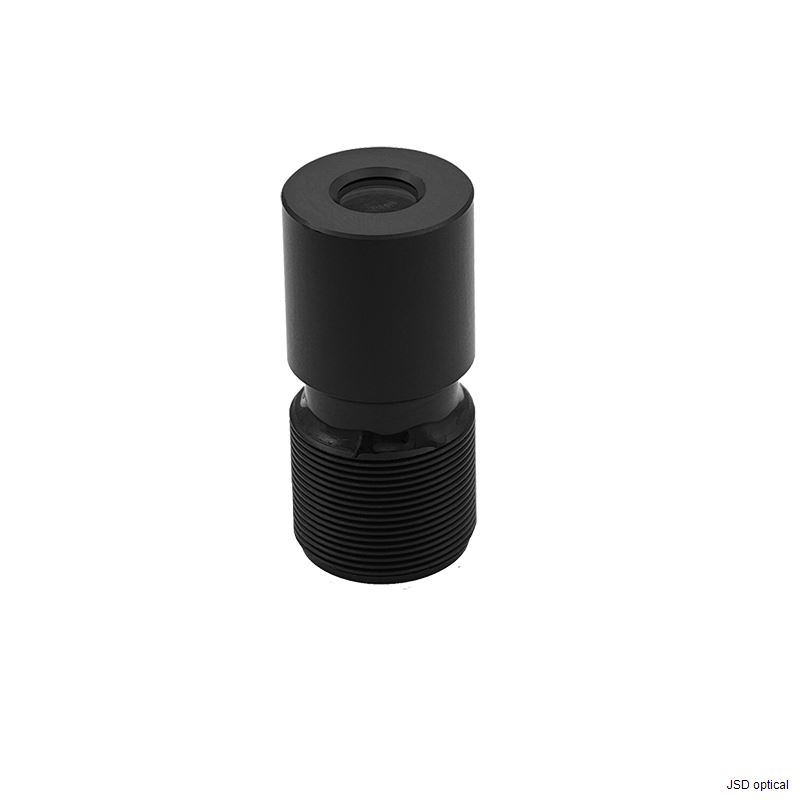

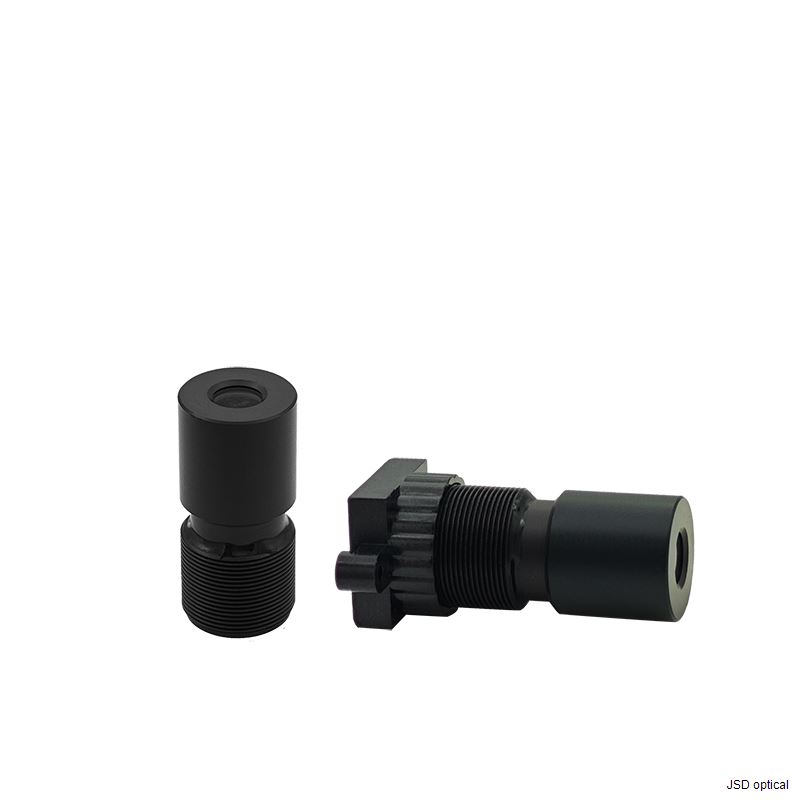

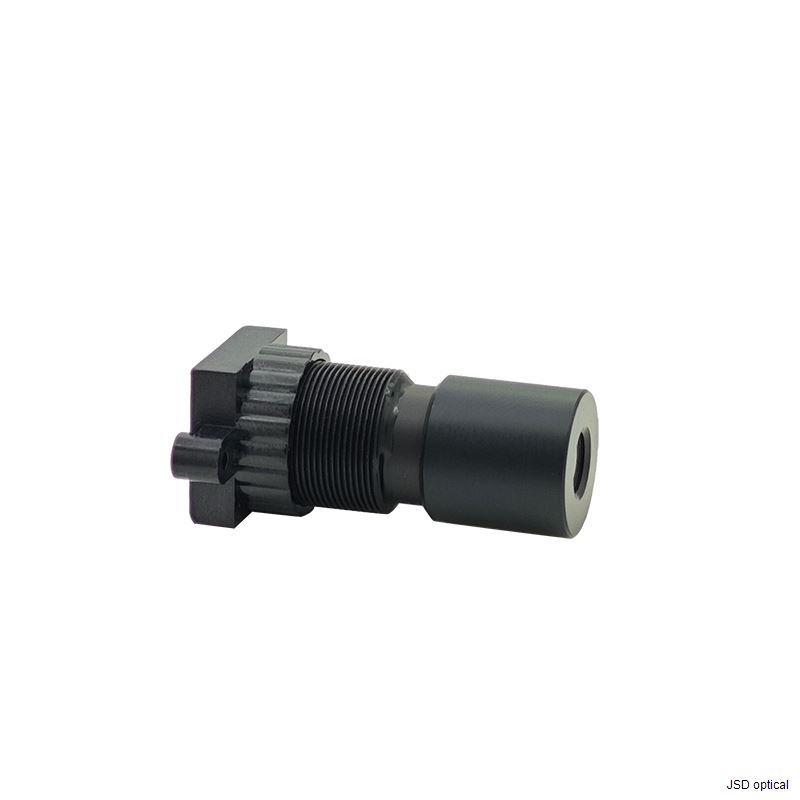

This high-performance telephoto M12 mount lens is precision-engineered for 1/2.65-inch image sensors, offering an exceptional focal reach for specialized long-range imaging. Featuring a powerful 19.94mm focal length and an F5.0 aperture, it delivers a concentrated 12° field of view, making it an ideal solution for applications requiring high magnification and the ability to capture distant subjects with superior clarity. With a low distortion rating of < -0.32% and a 34.45mm Total Track Length (TTL), this lens ensures professional-grade accuracy and high-fidelity visual data for industrial and commercial vision systems.

Perfectly compatible with the GalaxyCore GC5603 and other 1/2.65" sensors.

Key Features & Benefits

• Low Geometric Distortion (< -0.32%): Expertly controlled optical design ensures straight lines and accurate proportions, which is essential for measurement-critical tasks and automated recognition.

• Telephoto 19.94mm Focal Length: Provides significant magnification, allowing for clear detail acquisition of distant objects that standard lenses cannot resolve.

• Focused 12° Field of View: Delivers a narrow, high-intensity perspective that isolates the target subject, reducing background noise and peripheral clutter.

• Optimized for 1/2.65" Sensors: Specifically designed to match the 1/2.65" sensor format, maximizing optical resolution and ensuring edge-to-edge sharpness across the frame.

• Slim & Robust Profile: With a narrow Φ7.0mm diameter and a 34.45mm TTL, this lens offers a balanced, space-efficient form factor for specialized hardware integration.

• Universal M12 Standard: Features the industry-standard M12*P0.5 thread, ensuring seamless compatibility with a wide range of professional camera modules and AIoT devices.

Applications

• Precision Industrial Inspection: High-detail monitoring of small components or distant machinery.

• Long-Range Automated Optical Inspection (AOI): Ensuring accuracy in quality control processes from a distance.

• Traffic & ALPR Systems: Capturing license plates and vehicle details in specific lanes with high magnification.

• Medical & Scientific Imaging: Specialized diagnostic tools requiring a narrow, high-clarity field of vision.

• Remote Security & Surveillance: Targeted monitoring of high-value assets or distant perimeter points.

• Metrology & Measurement: Reliable visual data for calculating dimensions with minimal geometric error.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
