JSD2726

Product Overview

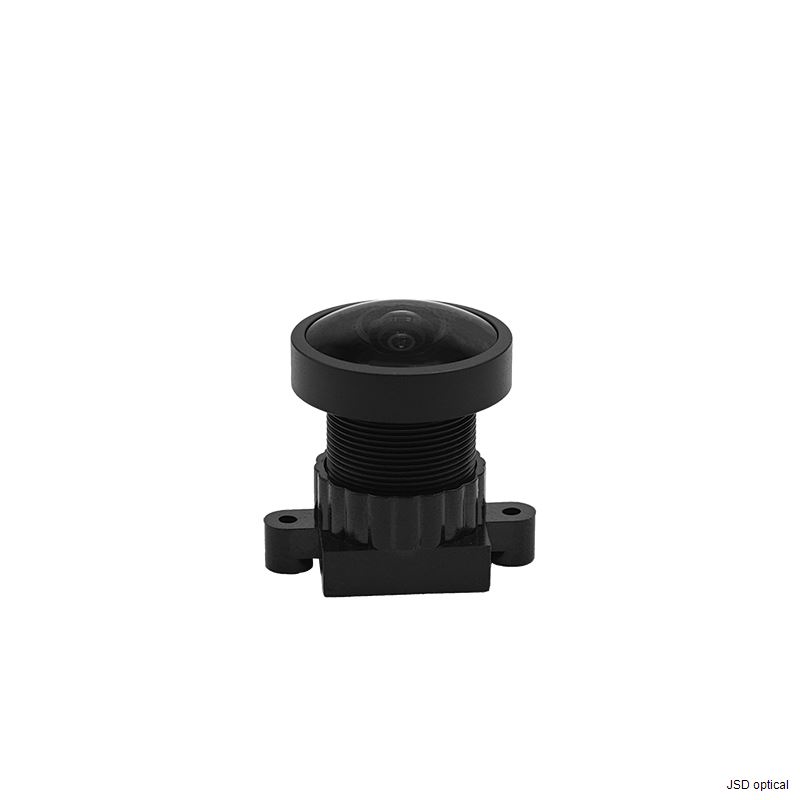

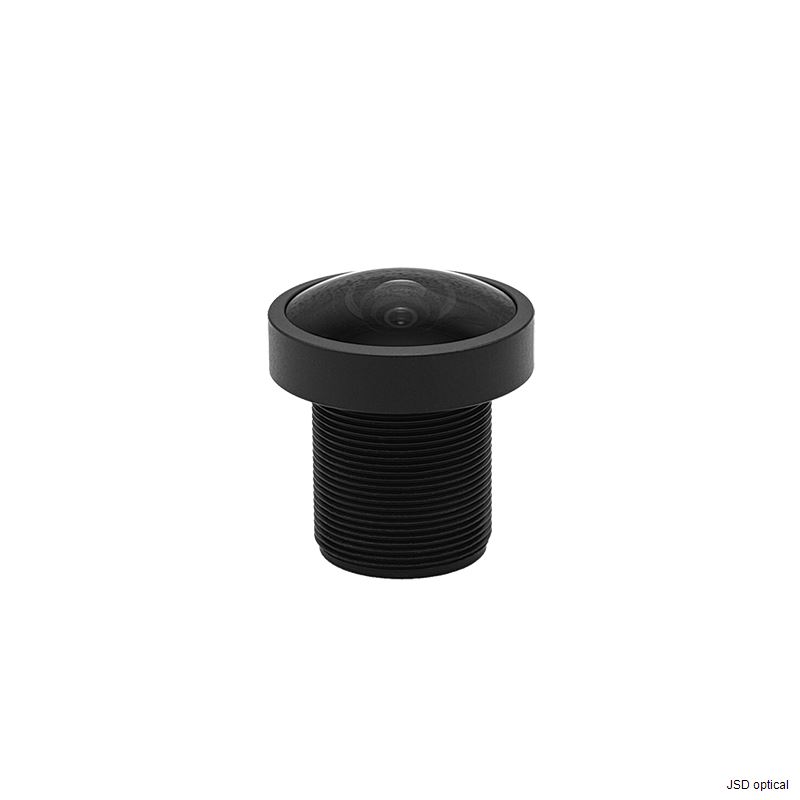

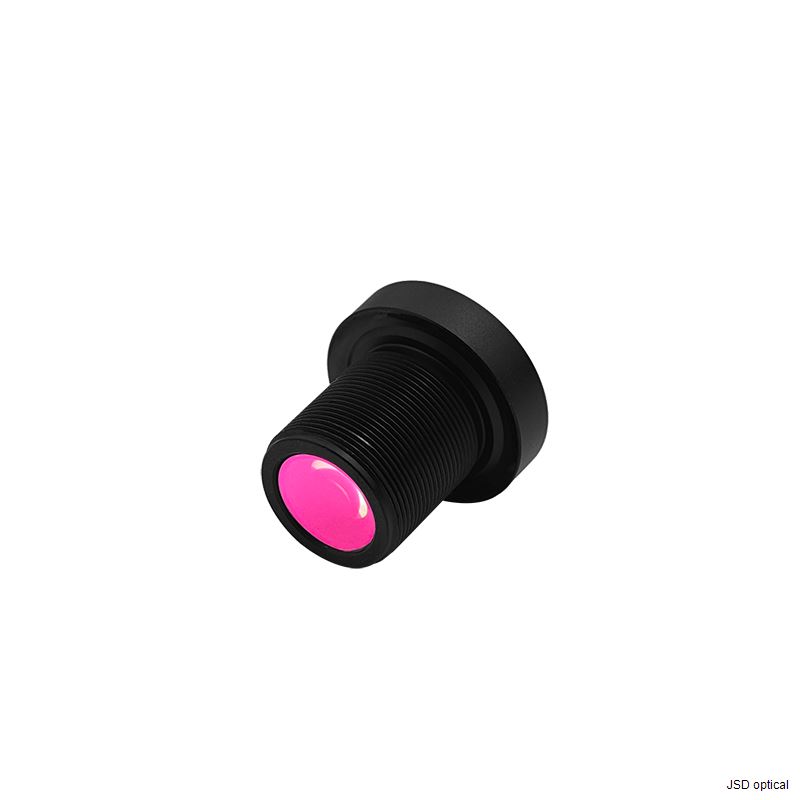

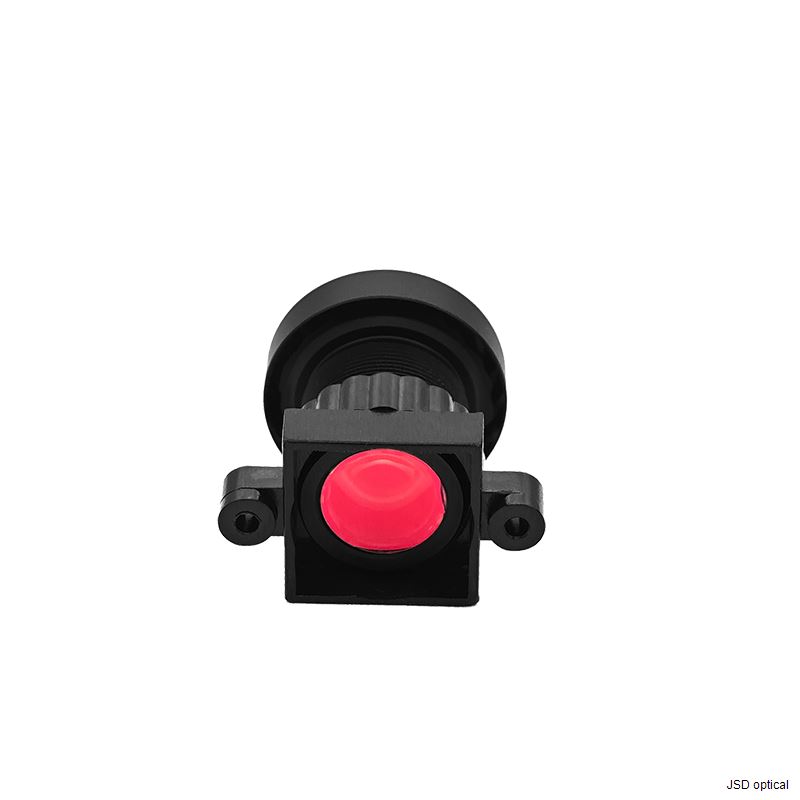

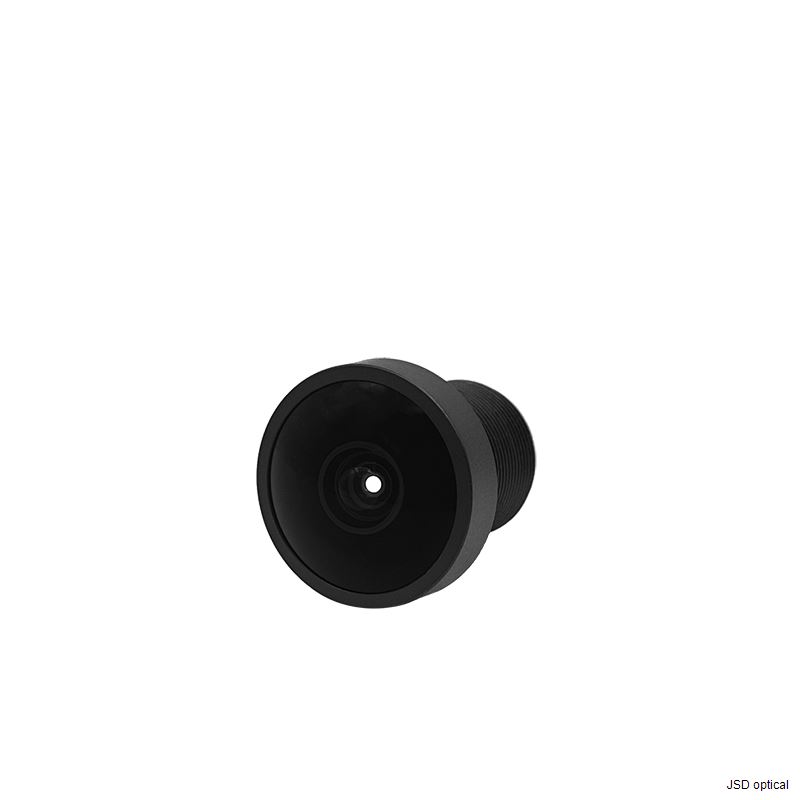

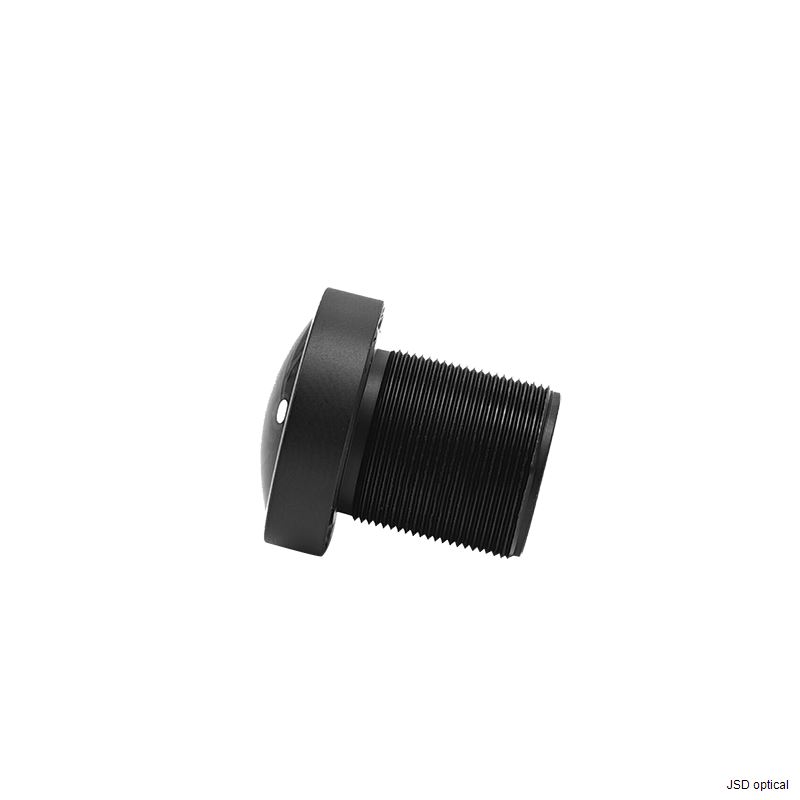

This ultra-wide-angle fisheye M12 mount lens is a high-performance optical solution engineered for 1/2.3-inch image sensors, providing an immersive, hemispherical field of view. Featuring a short 2.73mm focal length and an F2.5 aperture, it delivers an expansive 182° field of view, enabling total situational awareness by capturing an entire environment in a single frame. With a compact 22mm Total Track Length (TTL) and a slim Φ8.0mm diameter, this lens is the definitive choice for applications requiring maximum coverage, such as 360° surveillance, automotive safety, and robotic navigation.

Perfectly compatible with the SONY IMX377 and other 1/2.3'' sensors.

Key Features & Benefits

• Ultra-Panoramic 182° Field of View: Provides a complete "fisheye" perspective that exceeds the human eye's periphery, eliminating blind spots and maximizing spatial data acquisition.

• Large 1/2.3" Sensor Compatibility: Optimized for larger 1/2.3" sensors to ensure high light-gathering efficiency and superior resolution, even at the extreme edges of the wide-angle frame.

• F2.5 Bright Aperture: Offers a balanced aperture that ensures clear imaging and consistent performance across various lighting conditions.

• Ultra-Compact Mechanical Profile: With a 22mm TTL and a Φ8.0mm diameter, this lens provides a minimalist footprint, making it ideal for integration into slim housings and portable devices.

• Optimized Optical Depth: The 2.73mm design offers an extensive depth of field, keeping almost all objects from the foreground to the horizon in functional focus simultaneously.

• Industry-Standard M12 Mount: Features the universal M12*P0.5 thread, ensuring seamless plug-and-play compatibility with a vast ecosystem of industrial camera modules and smart vision systems

Applications

• 360° Panoramic Surveillance: Full-room monitoring with a single camera installation.

• Automotive Surround View & ADAS: Critical for blind-spot detection and bird's-eye view parking systems.

• Robotics & VR/AR: Providing wide-field spatial mapping and SLAM (Simultaneous Localization and Mapping) capabilities.

• Smart Home Video Doorbells: Capturing a head-to-toe view of visitors and the surrounding porch area.

• Drones & UAV Action Cameras: Immersive aerial cinematography and obstacle avoidance.

• Industrial Wide-Area Monitoring: Real-time oversight of large-scale production floors and warehouses.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
