JSD3422

Product Overview

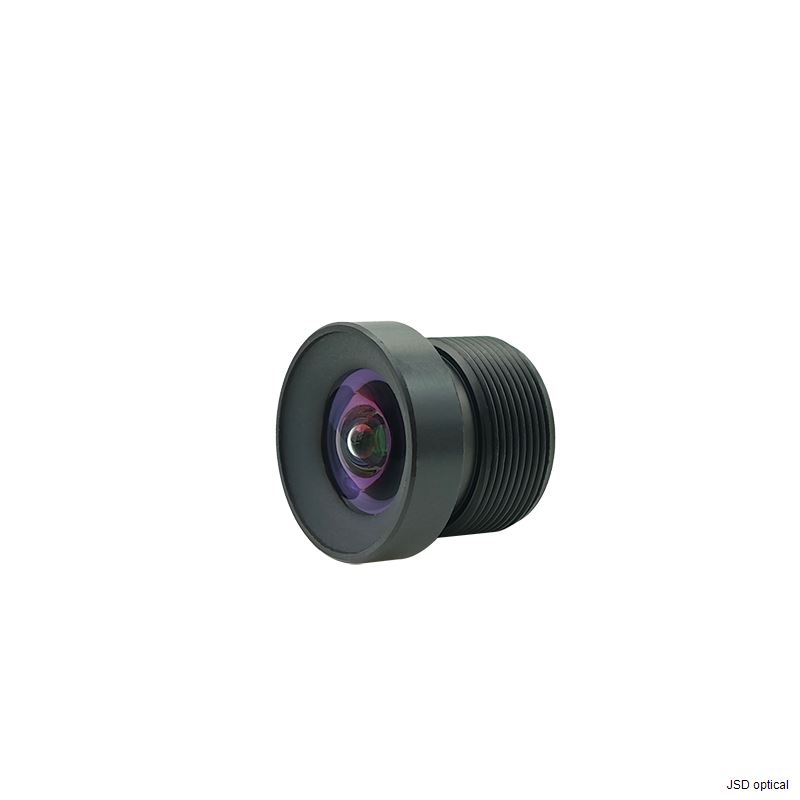

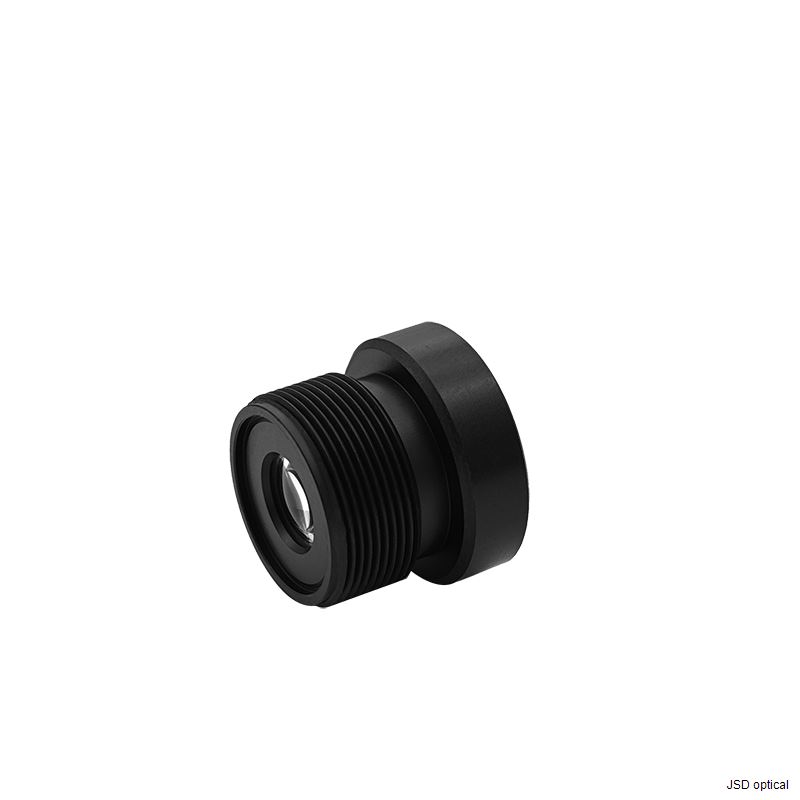

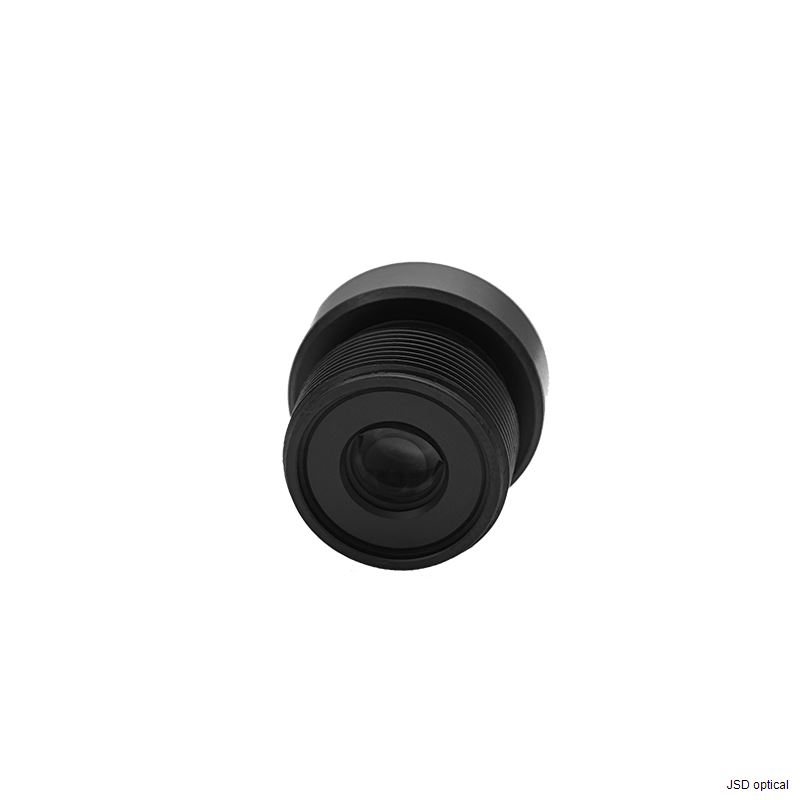

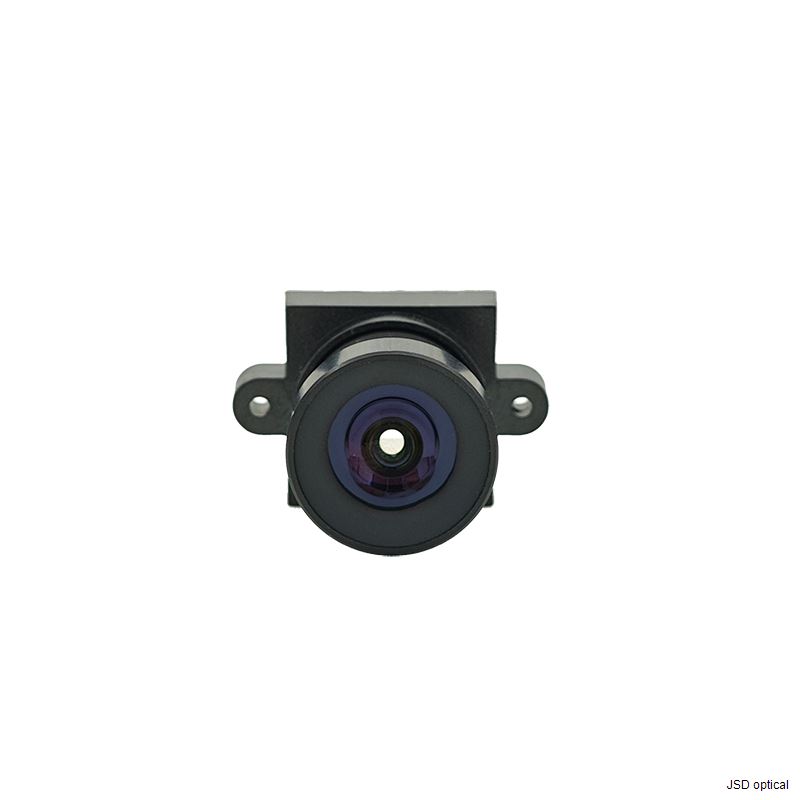

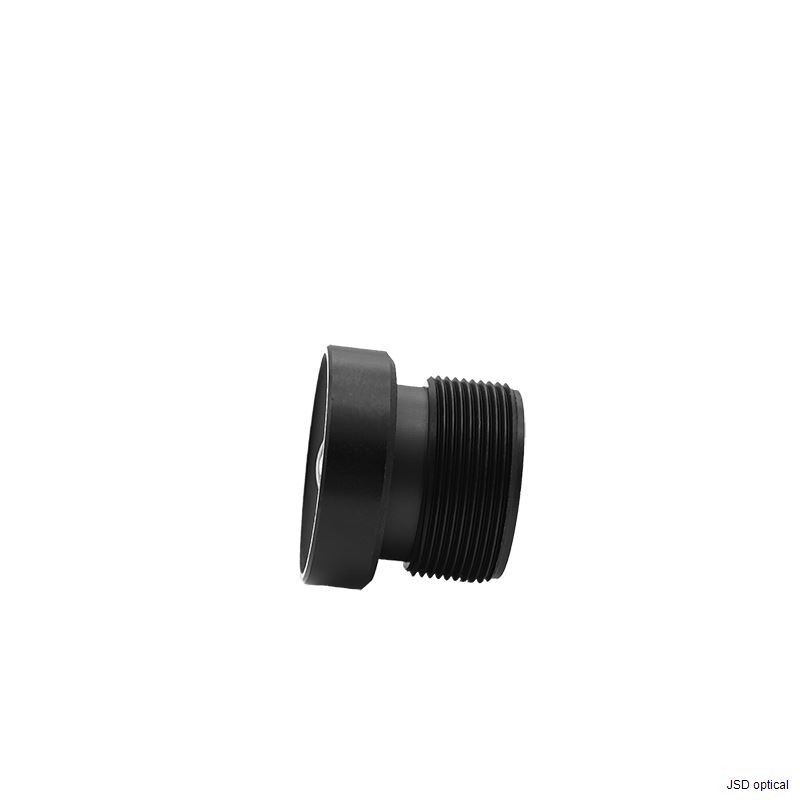

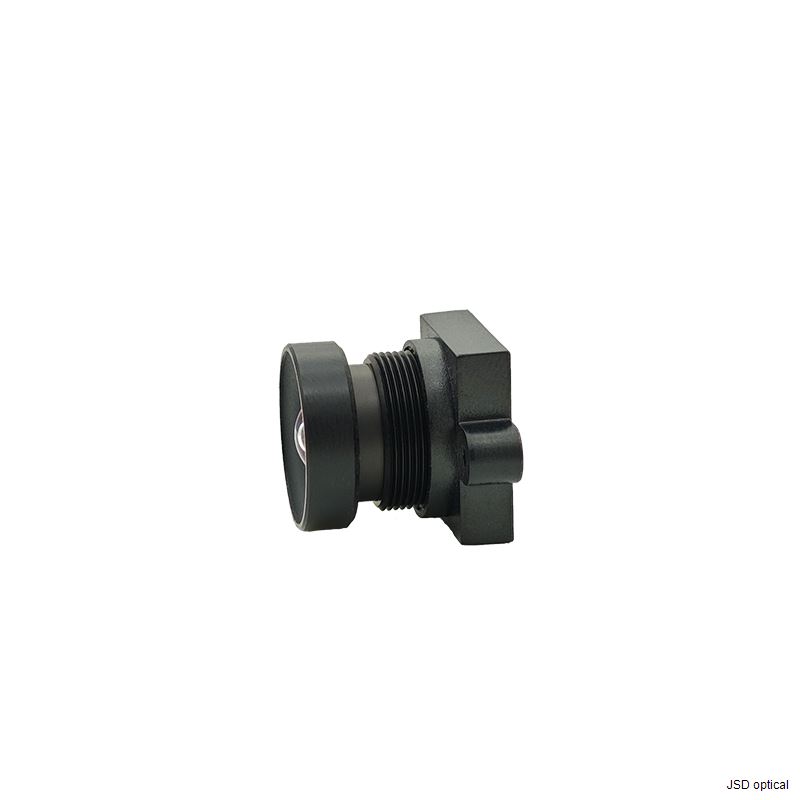

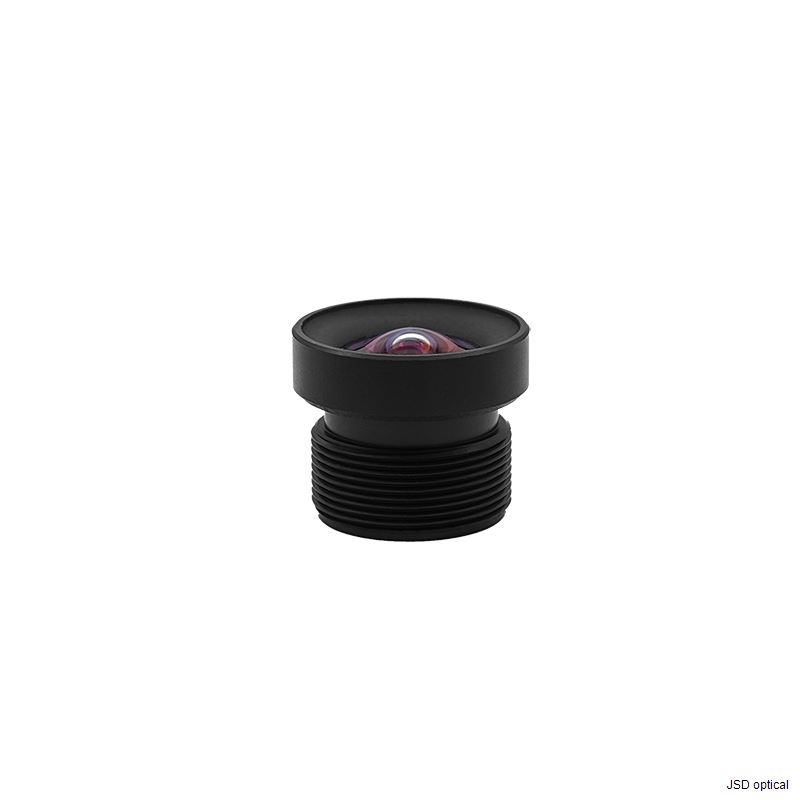

This ultra-compact, high-fidelity M12 mount fixed focal lens is expertly engineered for 1/2.9-inch image sensors, delivering a superb balance of wide-angle coverage and geometric precision. Featuring a 3.45mm focal length and a bright F2.2 aperture, it provides a versatile 84° field of view, making it an ideal choice for mainstream vision applications where clarity and minimal distortion are essential. With a low distortion rating of < -0.73% and an incredibly short 14.51mm Total Track Length (TTL), this lens ensures professional-grade imaging for streamlined industrial and consumer hardware.

Perfectly compatible with the GalaxyCore GC2053 and other 1/2.9" sensors.

Key Features & Benefits

• Low Geometric Distortion (< -0.73%): Advanced optical suppression ensures straight lines remain accurate, making it highly reliable for scanning, document capture, and facial recognition.

• Ultra-Compact "Micro" Form Factor: At just 14.51mm TTL and a slim Φ6.6mm diameter, this is one of the most space-efficient lenses in its class, perfect for ultra-thin devices and hidden installations.

• Enhanced F2.2 Bright Aperture: Allows for superior light transmission, ensuring crisp and clear image quality even in indoor or moderately low-light environments.

• Versatile 84° Perspective: Offers a natural wide-angle view that captures significant environmental context without the "fisheye" effect, ideal for general surveillance and communication.

• Optimized for 1/2.9" Sensors: Specifically calibrated to match the 1/2.9" sensor format, ensuring edge-to-edge sharpness and excellent pixel-level detail.

• Standard M12 Compatibility: Utilizes the industry-standard M12*P0.5 thread, offering seamless integration with a wide array of AIoT, security, and industrial camera modules.

Applications

• Smart Video Doorbells & Home Security: Capturing clear porch views with a natural perspective.

• Ultra-Thin Laptop & Tablet Cameras: Fitting high-quality optics into space-constrained bezels.

• High-Precision QR & Barcode Scanning: Reliable data capture with minimal edge warping.

• Facial Recognition & Access Control: Clear, undistorted biometric data for security terminals.

• Industrial Vision & IoT Sensors: Compact visual monitoring for automated production lines.

• Wearable Tech & Action Cameras: Lightweight optics for portable video recording devices.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
