JSD5426

Product Overview

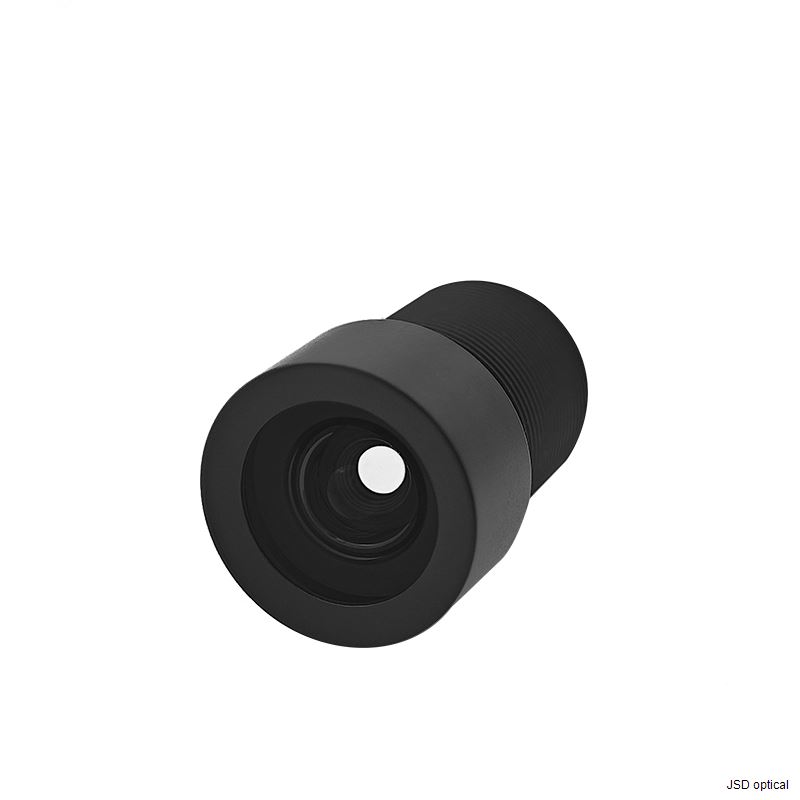

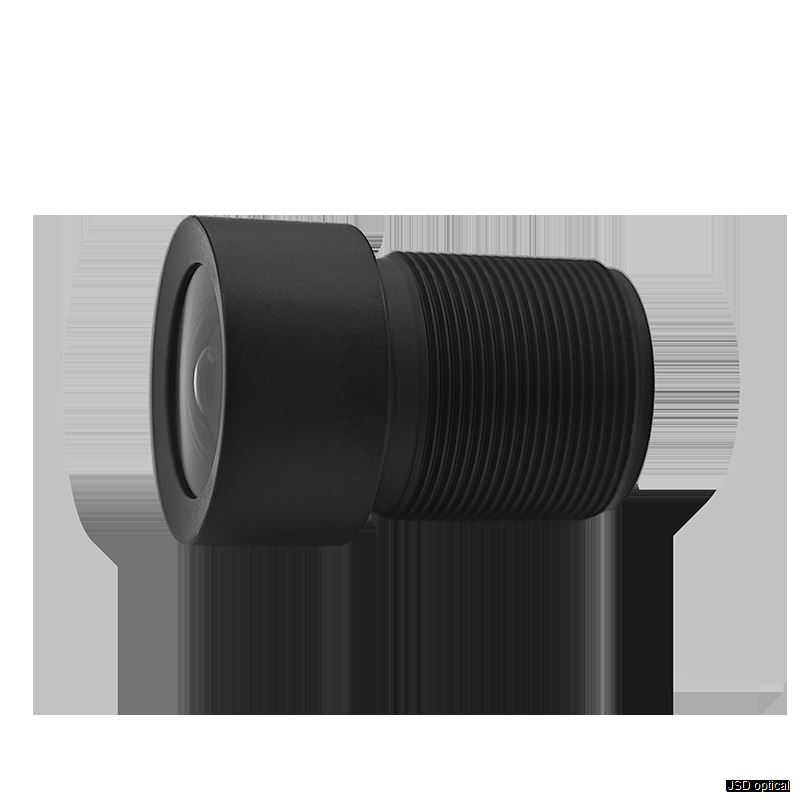

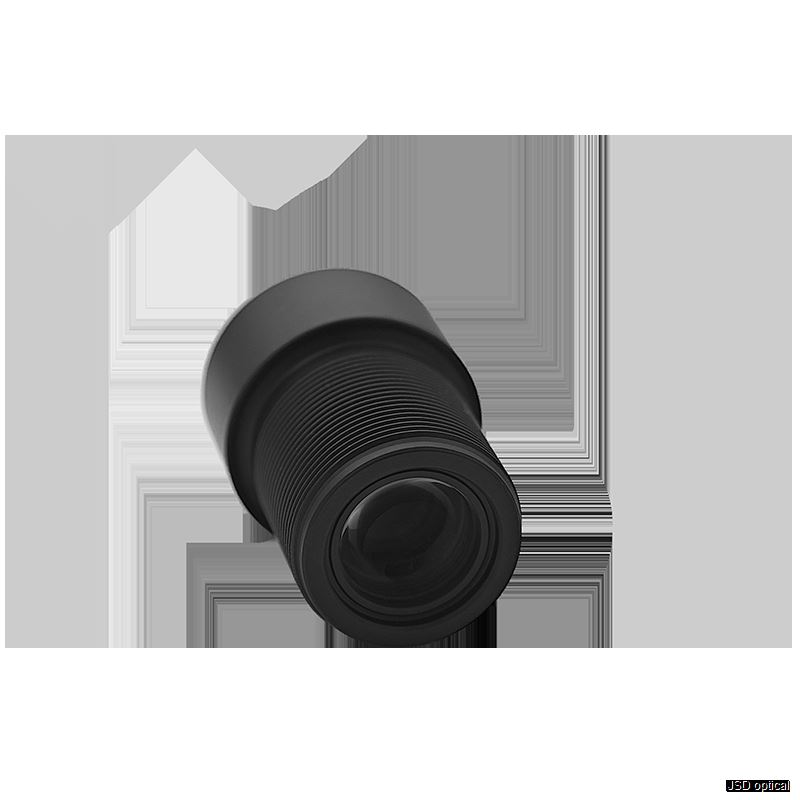

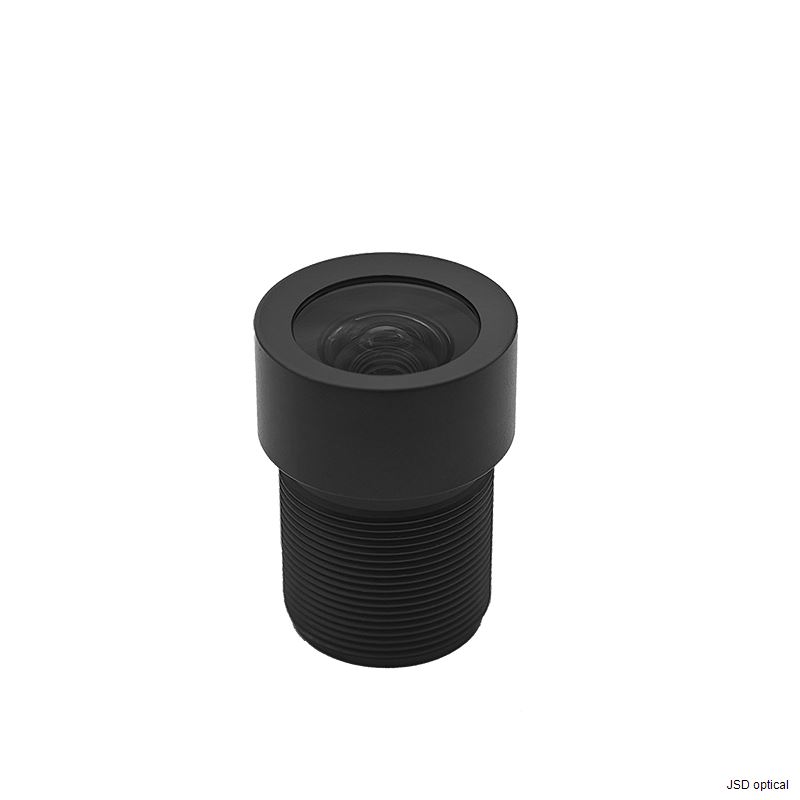

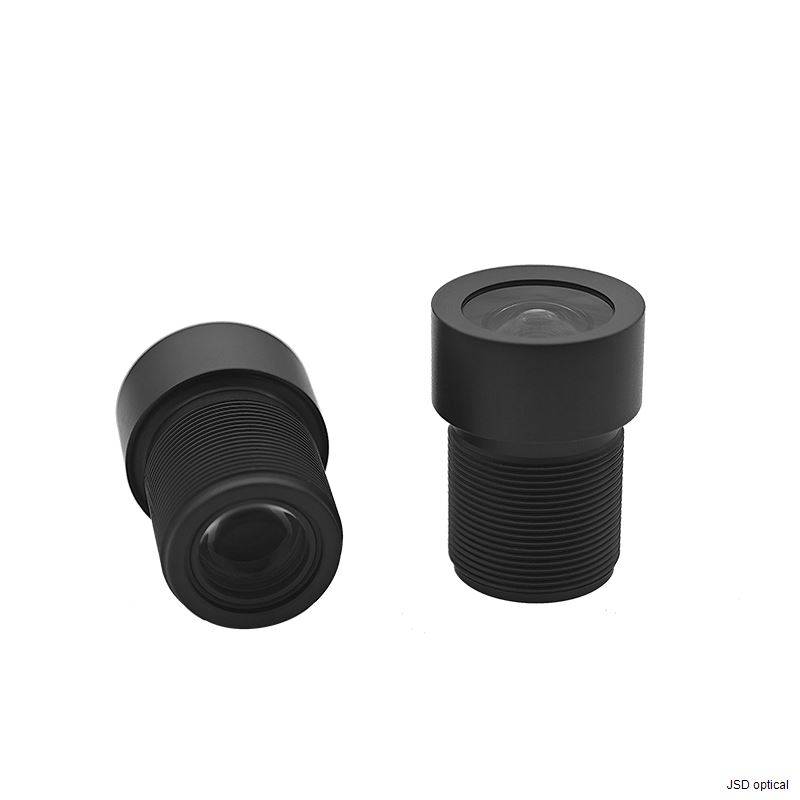

This professional-grade M12 mount fixed focal lens is engineered for 1/2.5-inch image sensors, delivering a refined balance of wide-angle coverage and high-resolution clarity. Featuring a 5.4mm focal length and an F2.6 aperture, it offers a versatile 68° field of view, making it an excellent solution for high-precision imaging where capturing a broader perspective without sacrificing detail is essential. With a low-distortion rating of < -0.53% and a compact 23.55mm Total Track Length (TTL), this lens is built to meet the rigorous demands of modern AIoT and industrial vision applications.

Perfectly compatible with the STMicroelectronics VB1940 and other 1/2.5" sensors.

Key Features & Benefits

• Low Geometric Distortion (< -0.53%): Optimized optical architecture ensures minimal image warping, providing the high level of accuracy required for precision scanning and spatial analysis.

• Optimized for 1/2.5" Sensors: Specifically designed to utilize the larger 1/2.5" sensor format, ensuring edge-to-edge sharpness and maximum light intake for superior performance in varying conditions.

• Versatile 68° Field of View: Provides an expansive wide-angle perspective, ideal for monitoring larger areas or capturing more contextual data in a single frame.

• High-Resolution 5.4mm Optics: Delivers consistent, crisp image quality across the entire frame, tailored for high-megapixel camera modules and high-fidelity video streams.

• Ultra-Compact Form Factor: Measuring just Φ9.0mm in diameter with a 23.55mm TTL, the slim profile allows for seamless integration into sleek, space-efficient hardware designs.

• Standard M12 Thread: Features a universal M12*P0.5 mount, ensuring robust compatibility and easy installation across a wide range of industrial and commercial camera platforms.

Applications

• Smart Retail & Automated Checkout: Capturing wide-area product data with high precision.

• Advanced Industrial Inspection: Reliable visual data for quality control and part sorting.

• Biometric Security & Facial Recognition: Wide-angle capture for entry points and high-traffic areas.

• Intelligent Traffic Systems (ITS): Efficient monitoring for parking management and urban traffic flow.

• Robotics & Navigation: Providing wide-field spatial awareness for autonomous mobile robots (AMR).

• Professional Video Conferencing: Wide-angle optics for huddle rooms and collaborative workspaces.

• Medical Diagnostic Equipment: High-clarity imaging for compact medical instruments.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
