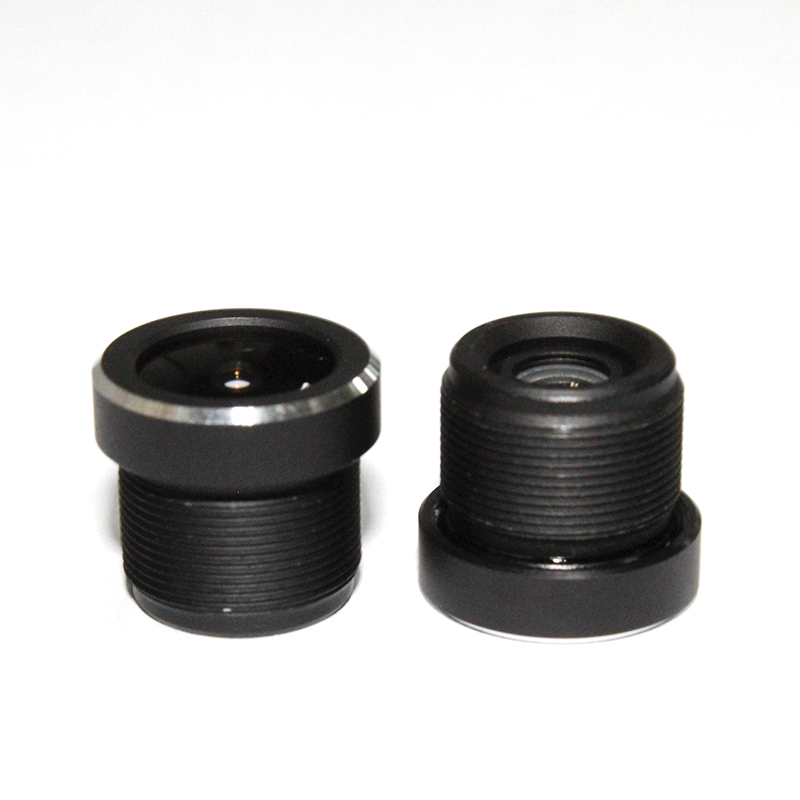

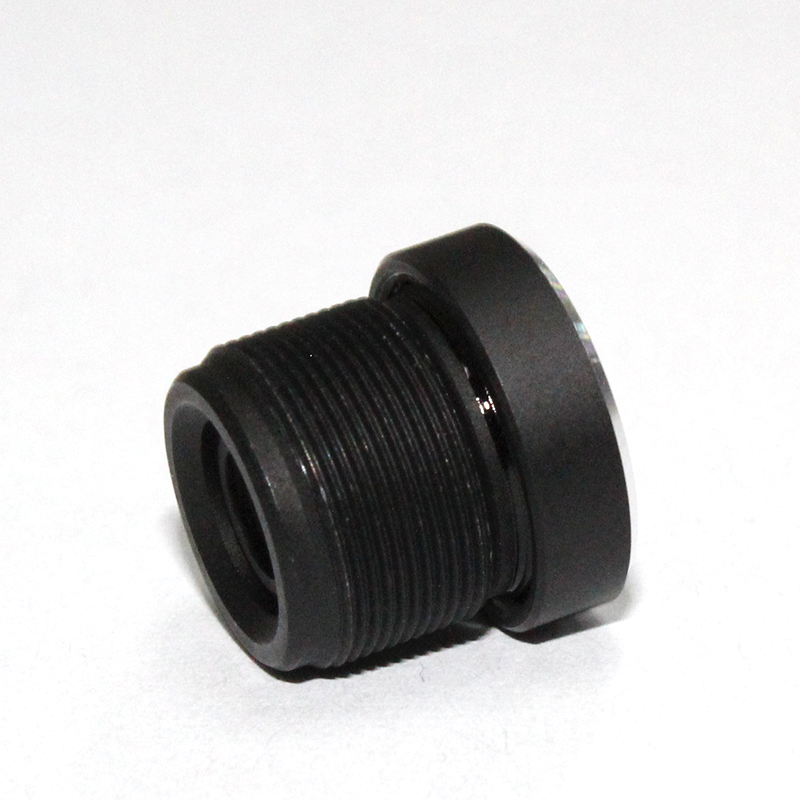

3MP 1/3" 5G Full Glass Wide Angle Lens JSD3135 126° DFOV M12 Mount 3mm EFL
M12 S mount lens ultra wide angle lens large aperture
PN: JSD3135
HFOV 114°
Max image circle 7mm
Operating temperature from 20℃ to 85℃
- Information
- Related Products
Description
The JSD3135 has image circle 7.2mm support up to 1/3’ sensor, HFOV on 1/2.8” sensor all glass and aluminium exterior make thermal stability
Perfectly compatible with the onsemi AR0330 and other 1/3" sensors.
Application
l DVR
l Mobile Robotics
l Security & Surveillance
Specification
|
| |
Model | JSD3135 | |
Image sensor | 1/2.8” | |
Image Circle | 7.2mm | |
Resolution | 5MP | |
Focal Length | 3mm | |
Aperture | F2.2 | |
TTL | 16.71mm | |
FOV | DFOV 138° HFOV 114° VFOV 60° | |
Mount | M12 | |
drawing
