JSD1537

Product Overview

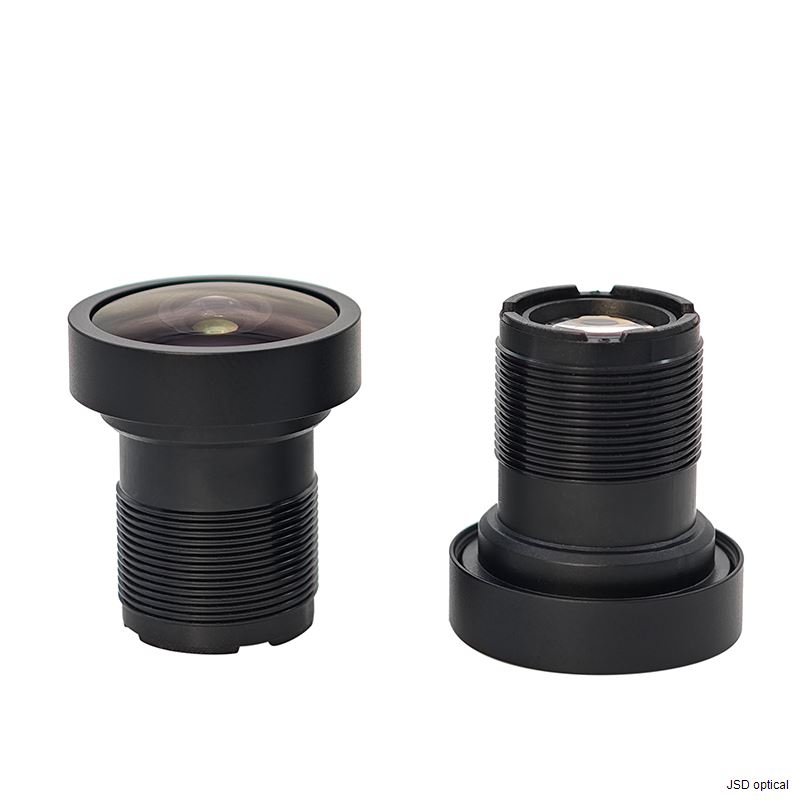

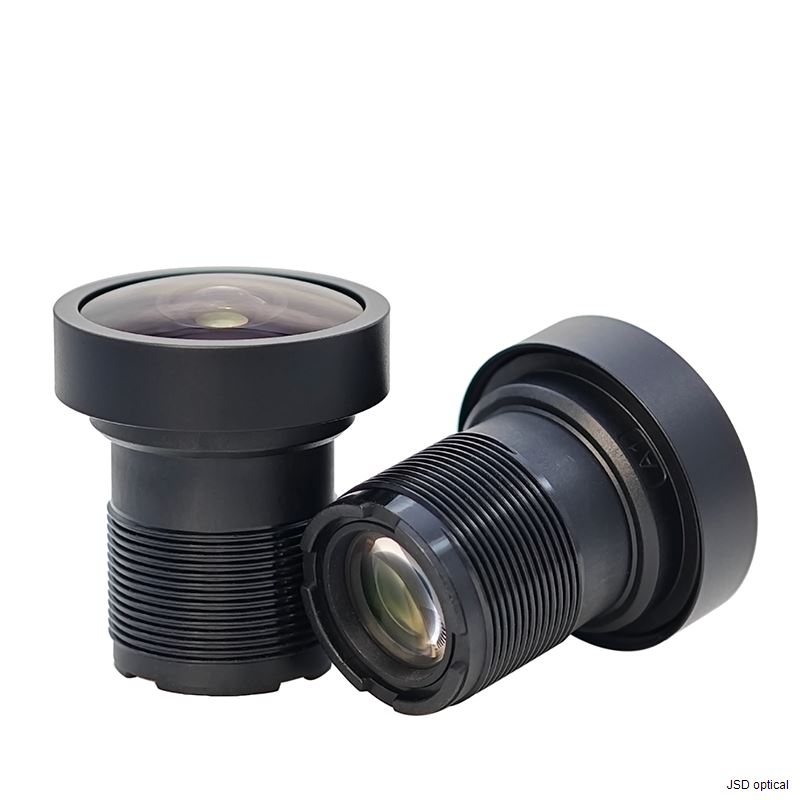

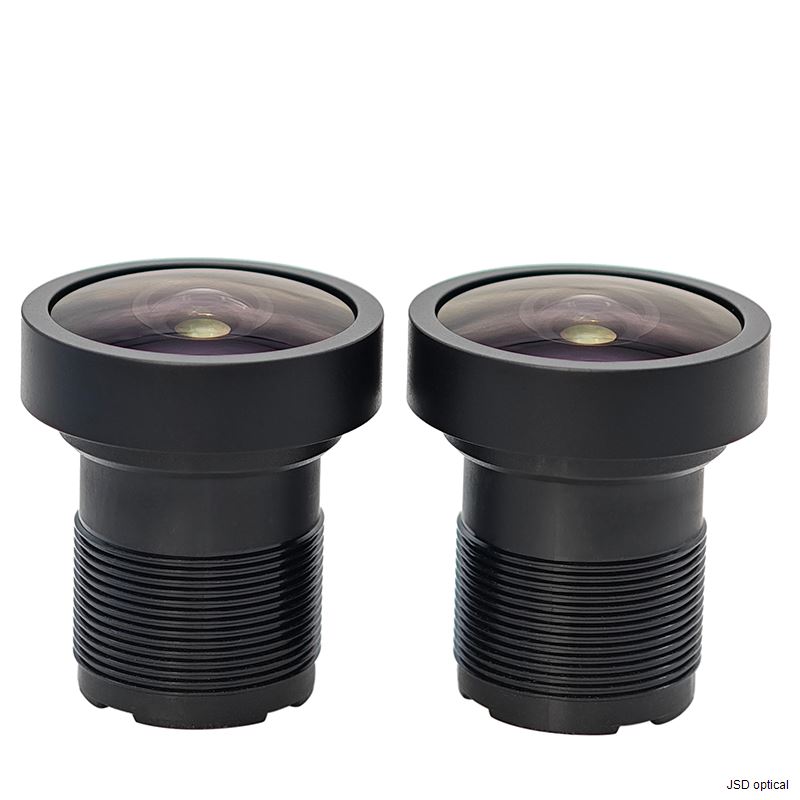

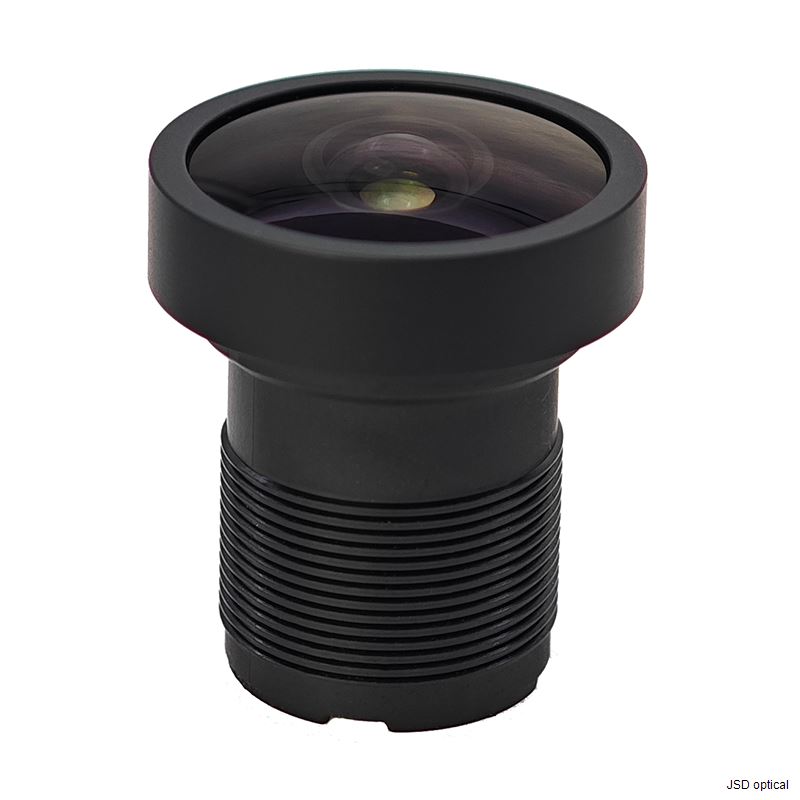

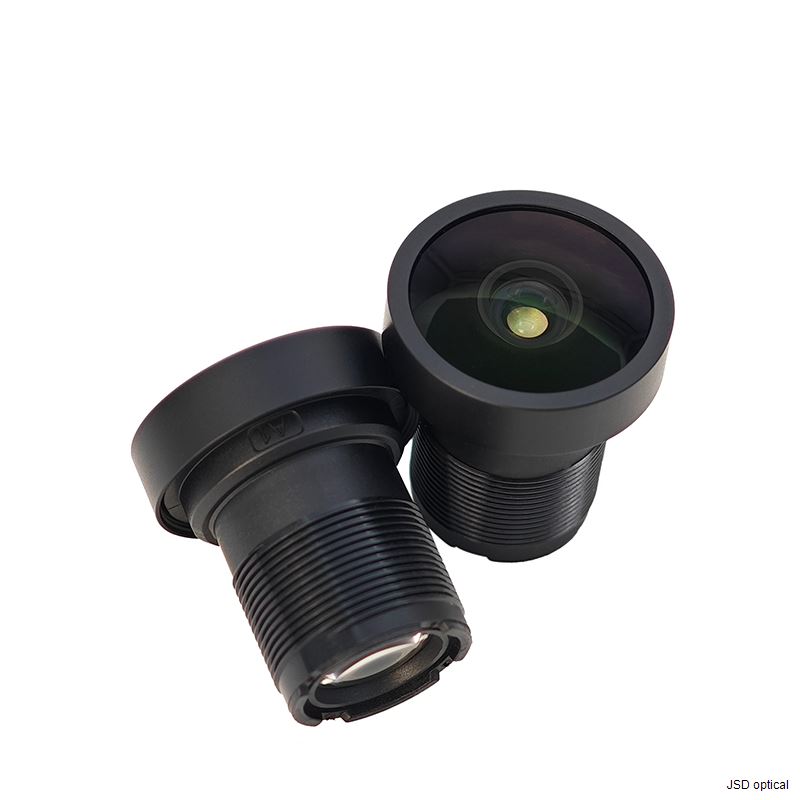

This high-performance M12 mount fixed focal lens is expertly engineered for 1/1.8-inch sensors, delivering exceptional clarity and immersive fisheye perspective for advanced imaging applications. With a 3.8mm focal length and F1.5 aperture, it provides an ultra-wide 146° field of view, making it ideal for panoramic surveillance, full-room monitoring, and 360° scene capture. Featuring True 8MP resolution and manual focus for precise imaging control, this fisheye lens ensures superior image sharpness and maximum peripheral visibility across diverse lighting conditions.

Perfectly compatible with the SONY IMX678 and other 1/1.8" sensors.

Key Features & Benefits

Enhanced Low-Light Performance: Exceptional F1.5 aperture gathers more light, delivering superior image quality in low-light conditions and enhancing visibility in challenging environments.

Compact & Robust Build: Standard M12*P0.5 thread and optimized TTL design ensure seamless integration into space-constrained devices while maintaining exceptional durability.

Manual Focus Control: Precise manual adjustment enables accurate focal tuning to match specific object distances, optimizing sharpness for critical applications.

Perfect Sensor Match: Engineered specifically for 1/1.8" sensors (e.g., ONSemi OS08A20), featuring a compatible image circle that eliminates vignetting and fully utilizes sensor capabilities.

Ultra-Wide 146° FOV: Provides an exceptionally wide fisheye field of view ideal for panoramic surveillance, broad environmental monitoring, and maximized area coverage with minimal blind spots.

True 8MP Resolution: Delivers crisp, high-definition 4K UHD imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Versatile Fisheye Applications: Suited for expansive area monitoring, security surveillance, immersive machine vision, and 360° scene analysis requiring maximum field coverage.

Technical Specifications

Applications

Ultra-Fisheye Wide-Angle Surveillance: Exceptional 146° FOV coverage for complete 360° environment immersion, extreme corner-to-corner visibility, and maximized scene capture with true fisheye perspective.

Crowd Dynamics Analysis: Superior tracking of large group movements, mass gathering analysis, and ultra-high-density area surveillance with minimal occlusion.

Comprehensive Traffic Monitoring: Ultra-wide vehicle tracking across multiple lanes, complete intersection coverage, and panoramic traffic pattern observation with single-lens solution.

Perimeter Security Enhancement: Holistic site boundary coverage, extensive fence line monitoring, and maximized security perimeter protection with 360° visibility.

Facility Wide-Area Management: Complete interior monitoring, extra-large room coverage, and broad open area security assessment with seamless corner-to-corner visibility.

Environmental Panoramic Assessment: Maximum panoramic scene capture, wide landscape monitoring, and enhanced field situational awareness for comprehensive analysis.

Intrusion Detection System Optimization: Enhanced peripheral vision with maximum radial coverage, extended boundary monitoring, and broadened threat detection across all angles.

Immersive Machine Vision: Complete scene acquisition for panoramic inspection, full-field measurement, and 360° defect detection capabilities.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
