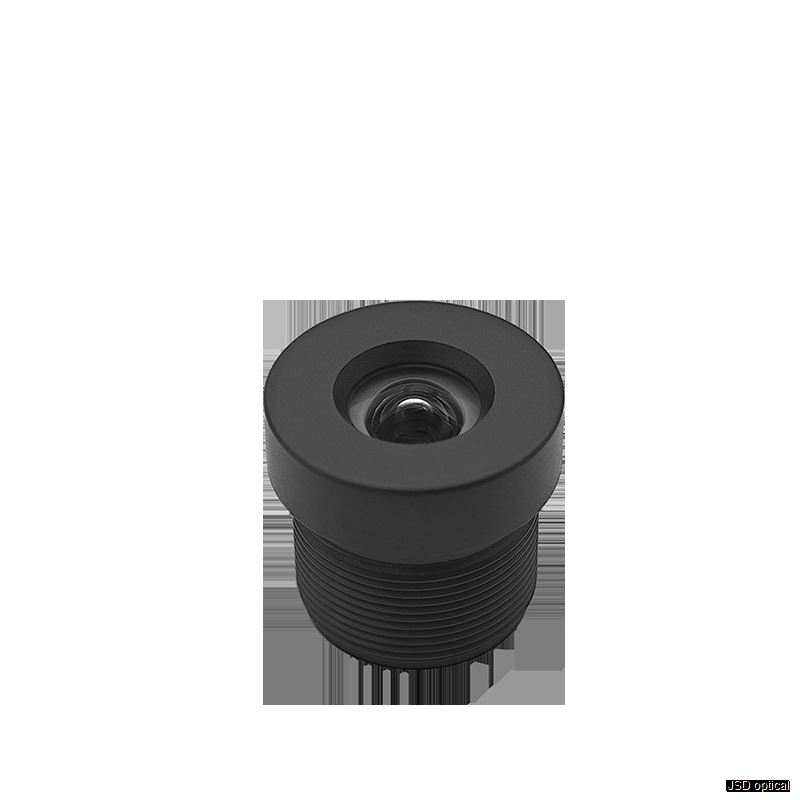

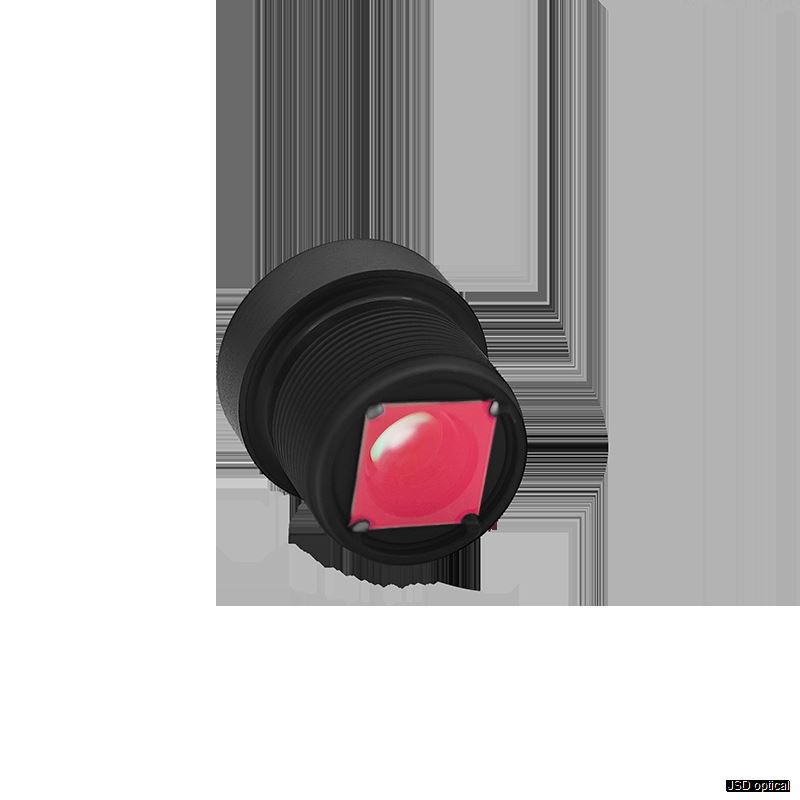

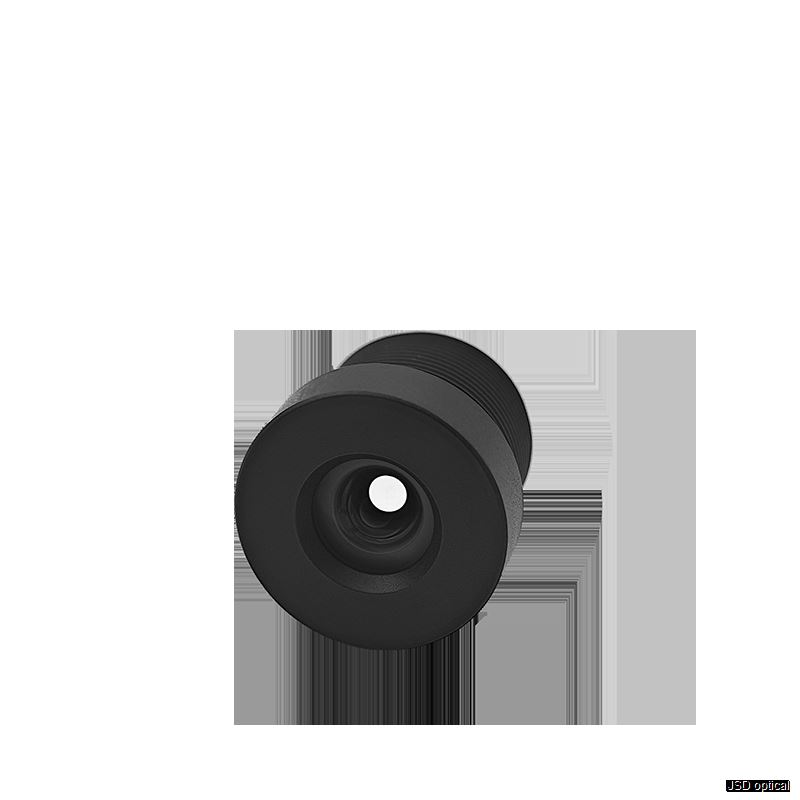

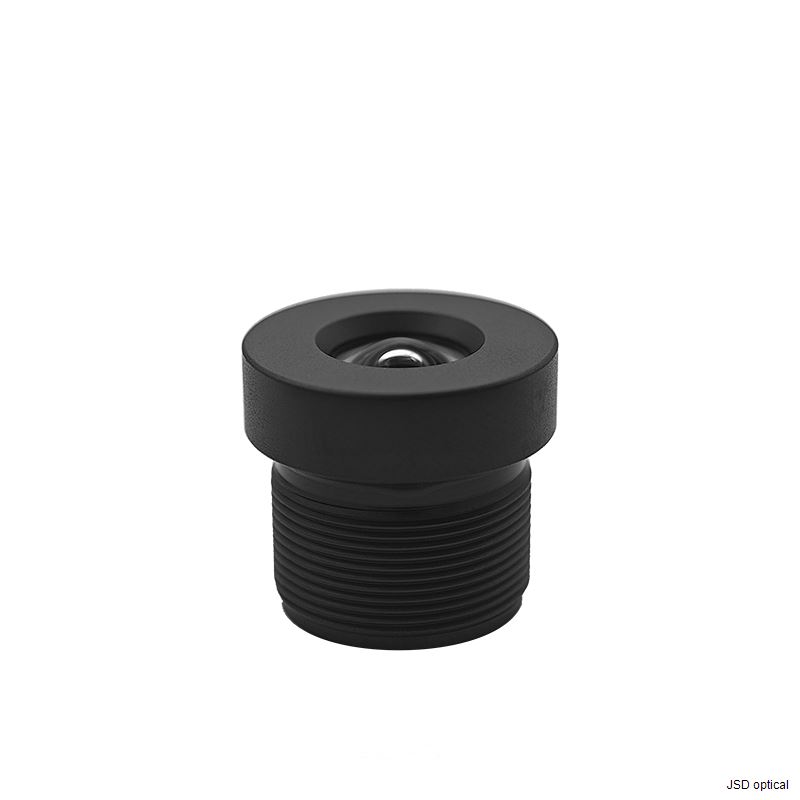

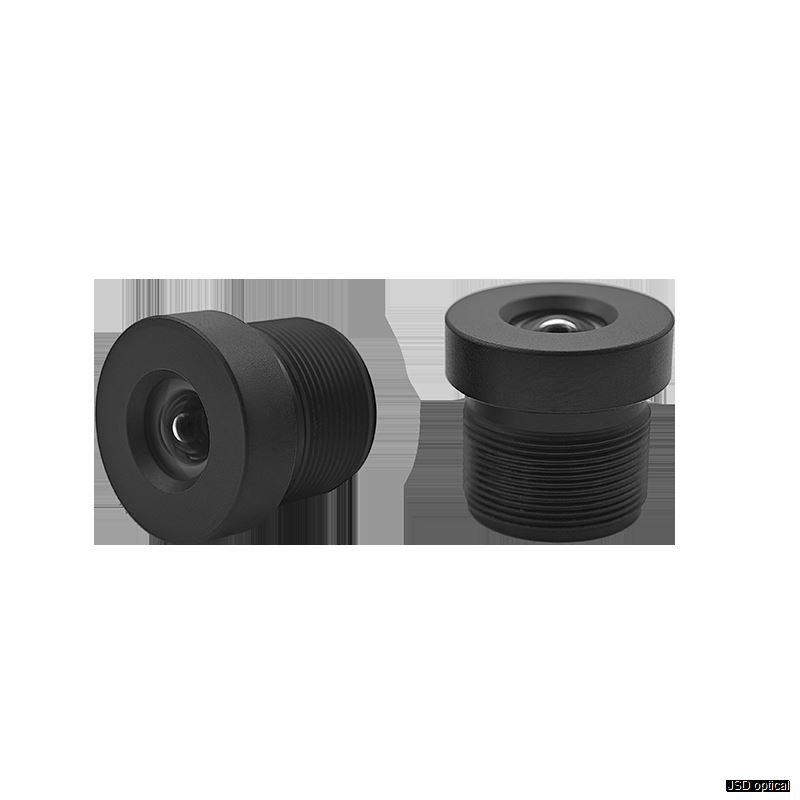

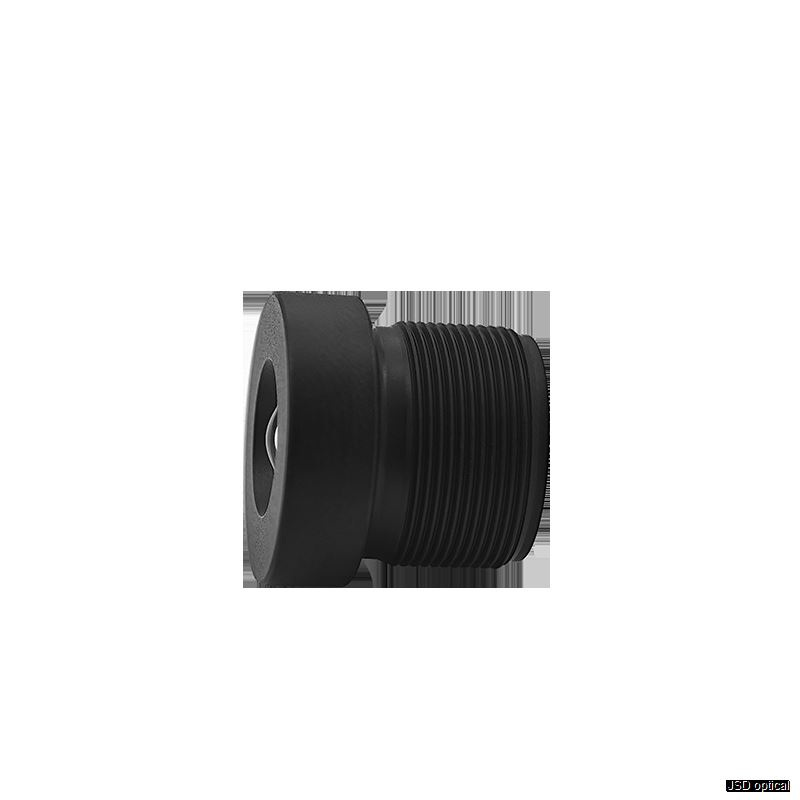

5MP 71° DFOV Low Distortion <0.52% Lens JSD3523 1/2.7" M12
M12 S mount lens wide angle lens large aperture
PN: JSD3523
EFL 4.5mm
HFOV 64°
Distortion 0.5%
1/2.7" format
TTL 14mm
- Information
- Related Products
Description
The ultra short TTL 4.5mm lens is designed for 1/2.7 sensor, compatible with ICR switcher
Perfectly compatible with the OmniVision OV2735 and other 1/2.7" sensors.
Specification
|
| |
Model | JSD3523 | |
Image sensor | 1/2.7” | |
Image Circle | 6.9mm | |
Resolution | 5MP | |
Focal Length | 4.5mm | |
Aperture | F2.6 | |
TTL | 14.5mm | |
FOV | DFOV 71° HFOV 64° VFOV 38° | |
Distortion | 0.5% | |
