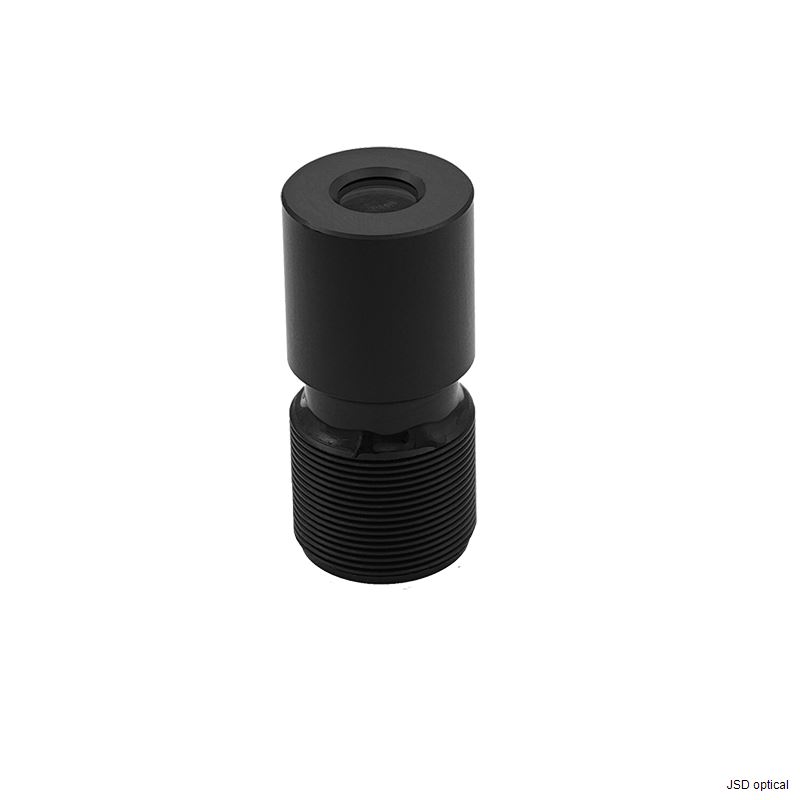

JSD9820

Product Overview
This professional-grade, high-aperture M18 mount fixed focal lens is expertly engineered for large 1/1.7-inch image sensors, offering a premium balance of wide-angle coverage and high-resolution performance. Featuring a 7.35mm focal length and a bright F2.0 aperture, it provides a natural 67° field of view, making it an ideal choice for high-end vision systems where light sensitivity and image fidelity are paramount. With a low distortion rating of < -1.12% and a 29.02mm Total Track Length (TTL), the JSD9820 ensures professional-grade imaging for specialized industrial, broadcast, and security applications.

Perfectly compatible with the Gpixel GMAX4002 and other 1/1.7" sensors.

Key Features & Benefits

• Superior Low-Light Performance (F2.0): The large F2.0 aperture allows for exceptional light intake, ensuring bright, high-contrast imagery even in challenging or low-illumination environments.

• Optimized for Large 1/1.7" Sensors: Specifically designed to cover 1/1.7" sensor formats, maximizing pixel usage and ensuring superior edge-to-edge sharpness with minimal vignetting.

• Balanced 67° Field of View: Provides a mid-range perspective that captures significant contextual detail with high clarity, perfect for targeted identification and monitoring.

• Advanced Optical Design (< -1.12% Distortion): High geometric accuracy ensures straight lines remain true, critical for scanning, recognition, and precision monitoring tasks.

• Robust M18 Standard Mount: Features a larger M18*P0.5 thread, providing a more stable optical platform and higher light throughput compared to standard M12 lenses.

• Precision Build: Measuring Φ11.42mm in diameter with a 29.02mm TTL, this lens offers a solid, industrial-grade form factor suitable for high-end camera modules and robust hardware.

Applications

• High-End Security & Smart City Surveillance: Exceptional performance in varied lighting conditions for urban monitoring.

• Professional Broadcast & Video Conferencing: Delivering high-fidelity video with a natural, undistorted perspective.

• Industrial Vision & Quality Inspection: Reliable visual data for automated production lines and sorting.

• AIoT Edge Computing & Facial Recognition: High-resolution capture for biometric access control and smart terminals.

• Autonomous Mobile Robots (AMR): Providing precise visual mapping and environmental awareness.

• Medical Imaging Devices: Clear, high-contrast imaging for compact diagnostic equipment.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Drawing

If you would like to customize a lens, please send an email to: info@jsdoptical.com
