JSD9820

Product Overview

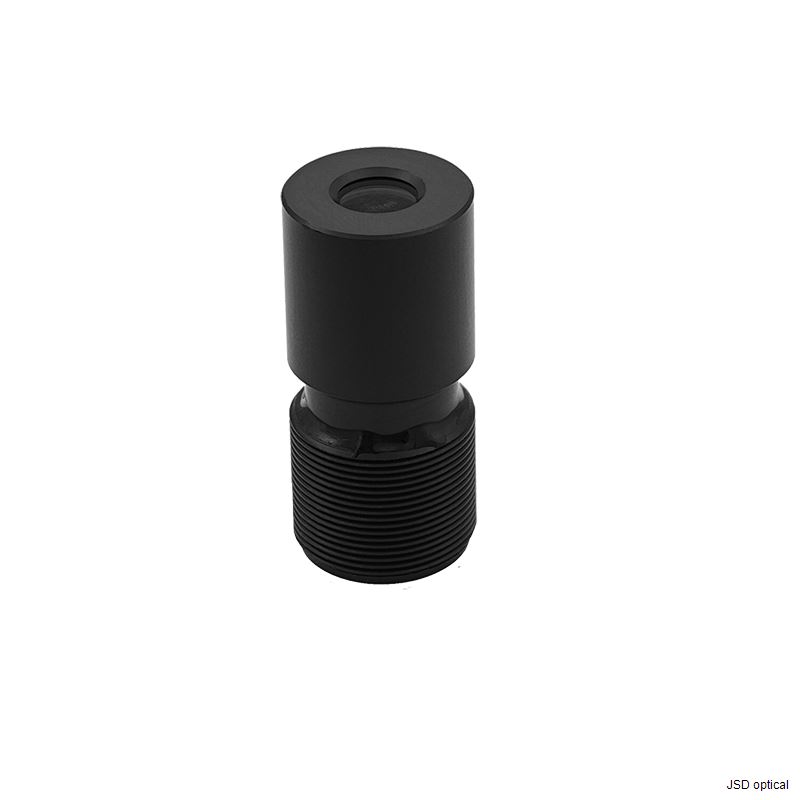

TThis professional-grade, high-aperture M18 mount fixed focal lens is a high-resolution optical solution engineered for large 2/3-inch image sensors, delivering a refined balance of expansive coverage and precision. Featuring a 7.35mm focal length and a bright F2.0 aperture, it provides a versatile 76° field of view, making it an ideal choice for 5-megapixel imaging systems where light sensitivity and clarity are paramount. With a low distortion rating of < -1.74% and a 29.02mm Total Track Length (TTL), this lens ensures professional-grade visual performance for specialized industrial and commercial vision hardware.
Perfectly compatible with the Gpixel GMAX3405 and other 2/3" sensors.

Key Features & Benefits

• 5MP High-Resolution Clarity: Optimized to resolve fine details for 5-megapixel modules, providing crisp, high-fidelity imagery across the entire frame.

• Superior Low-Light Performance (F2.0): The large F2.0 aperture maximizes light throughput, ensuring clear, low-noise performance in indoor or challenging low-illumination environments.

• Large 2/3" Sensor Compatibility: Specifically calibrated to match the expansive 2/3" sensor format, ensuring full-frame coverage with edge-to-edge sharpness and zero vignetting.

• Balanced 76° Field of View: Provides a natural wide-angle perspective, capturing significant environmental context while maintaining high detail for target identification.

• Robust M18 Standard Mount: Features a larger M18*P0.5 thread, offering a more stable optical platform and higher light gathering capability compared to standard M12 lenses.

• Advanced Optical Suppression (< -1.74% Distortion): High geometric accuracy ensures minimal warping, critical for automated recognition, scanning, and precision monitoring.

Applications

• Industrial Machine Vision: High-speed inspection and quality control on automated production lines.

• High-End Security & Urban Surveillance: Reliable monitoring for smart city infrastructure with wide-area coverage.

• Intelligent Traffic Systems (ITS): Multi-lane monitoring and license plate recognition requiring high resolution.

• Biometric Access Control: High-fidelity capture for facial recognition and secure entry terminals.

• Automated Retail & Smart Checkout: Precision visual data for item recognition and inventory management.

• Medical & Laboratory Imaging: Clear, high-contrast imaging for diagnostic equipment and research tools.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Drawing
