JSD2917

Product Overview

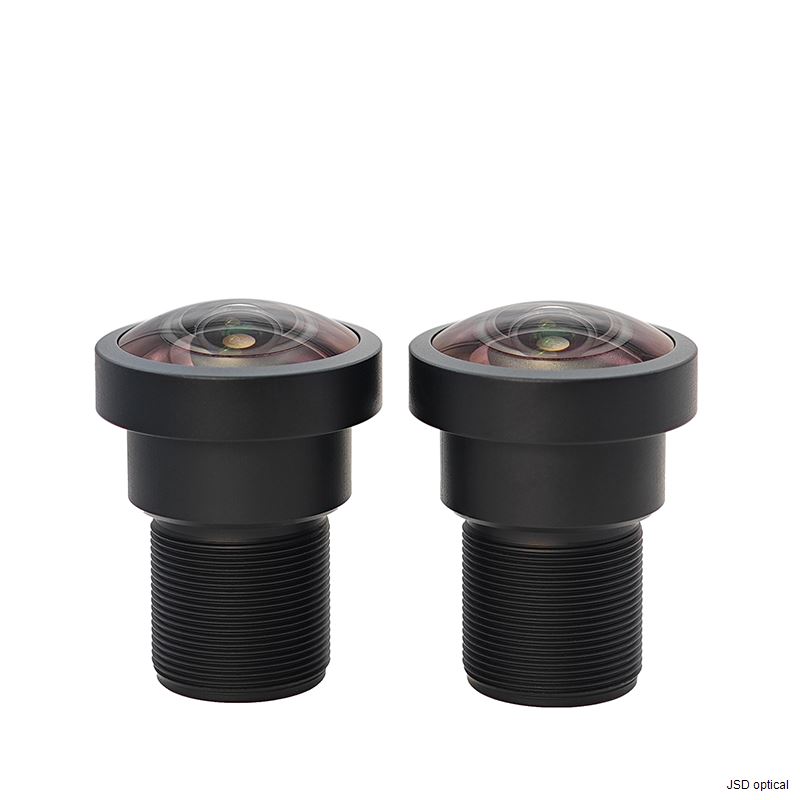

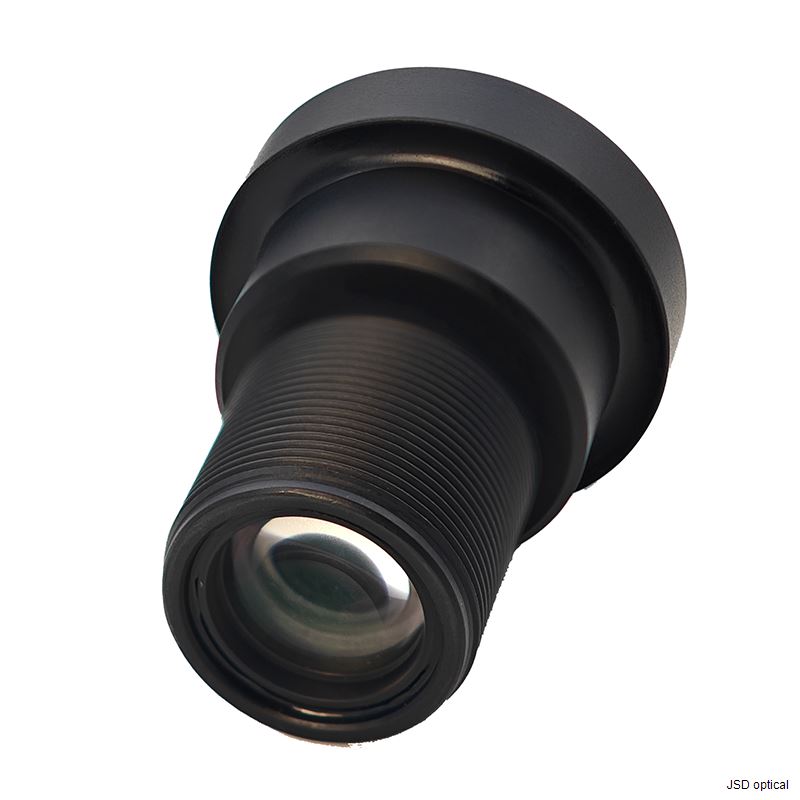

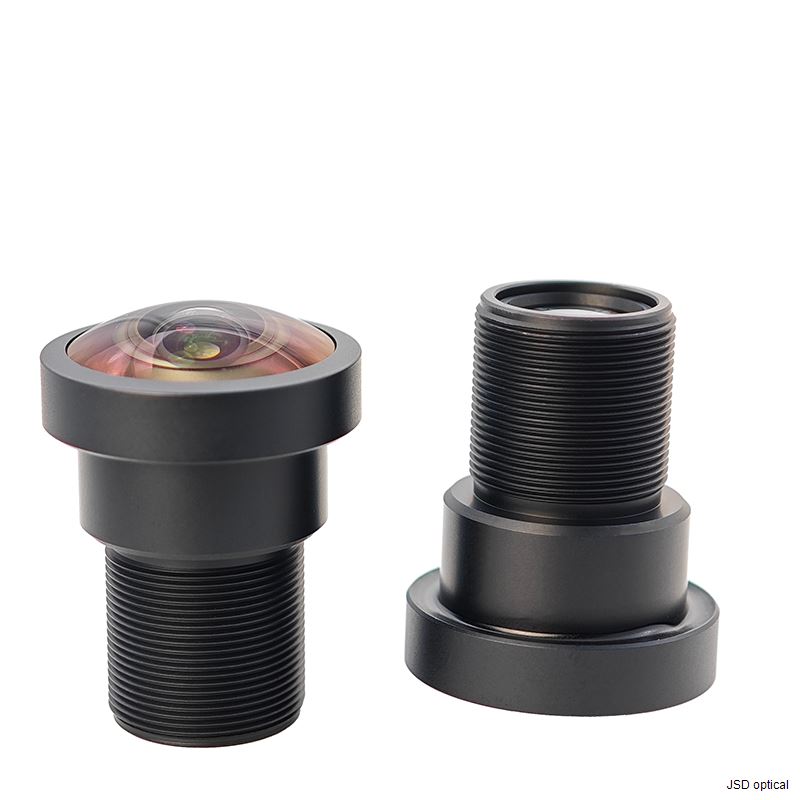

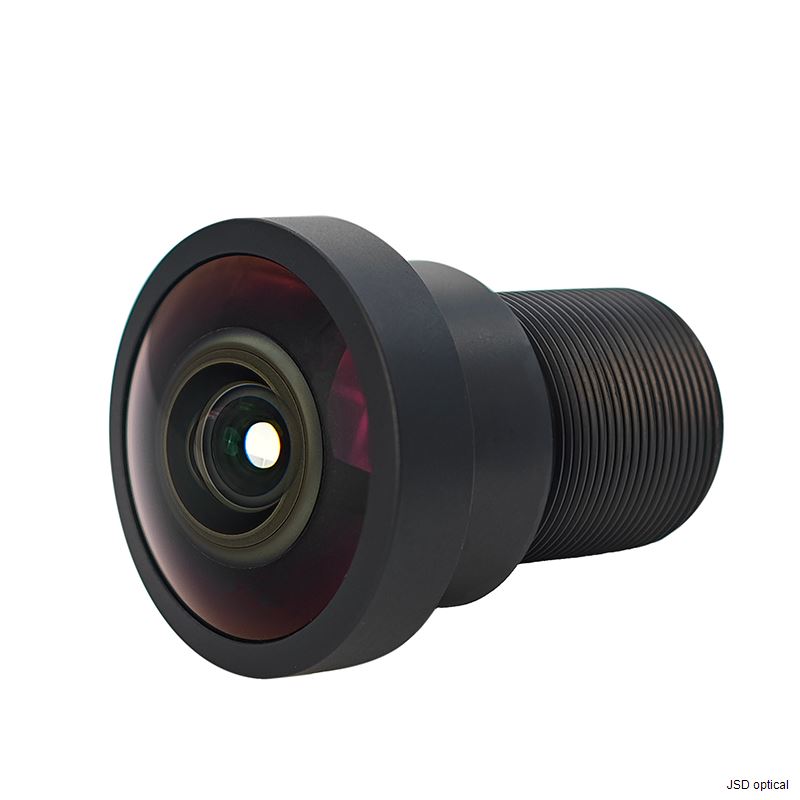

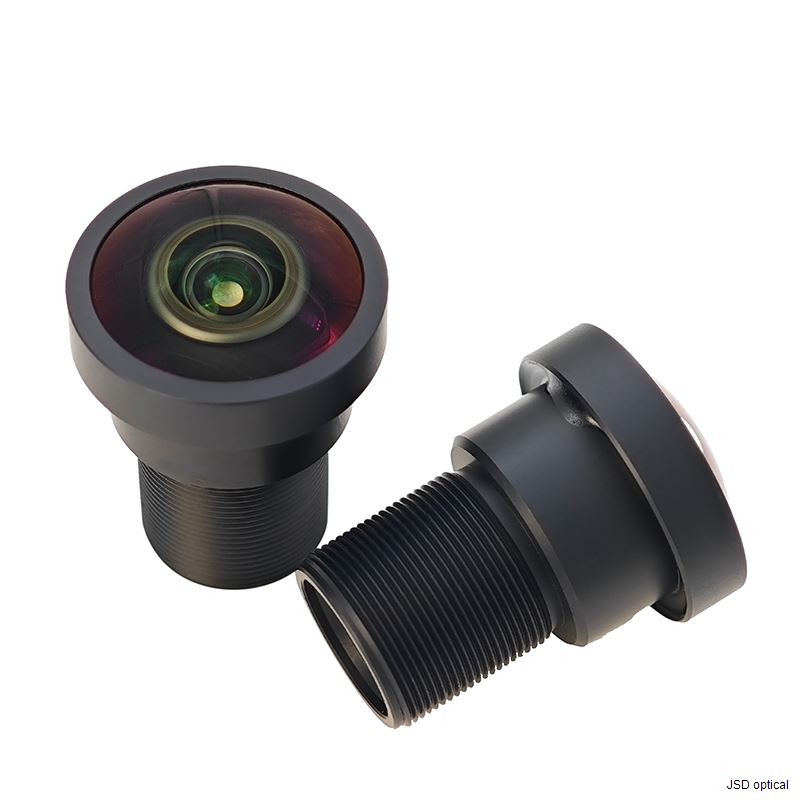

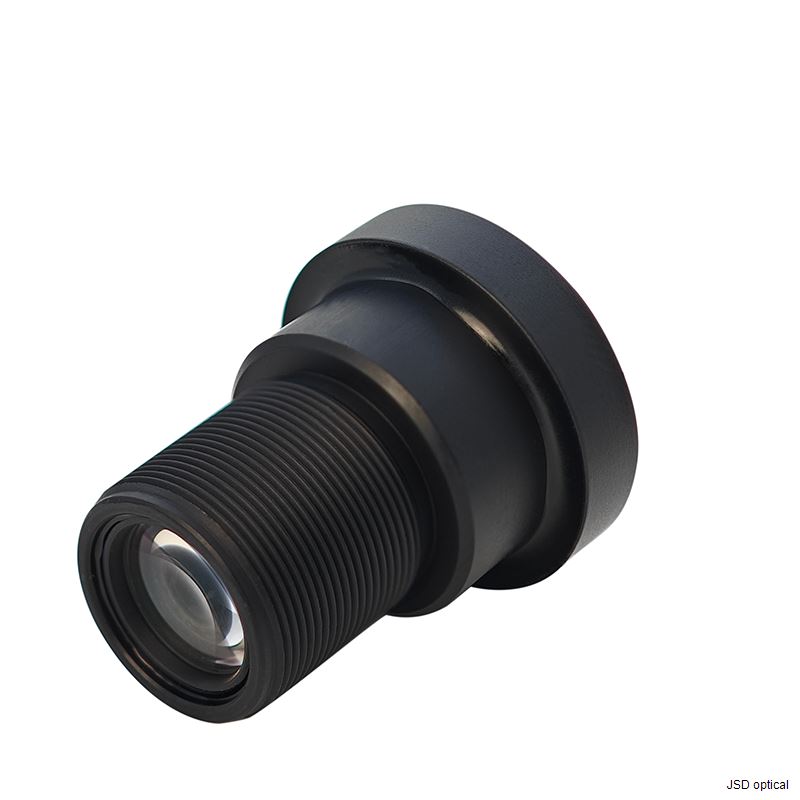

This professional-grade M12 mount fixed focal length lens is precisely engineered for 1/1.8-inch sensors, delivering high-resolution imaging with notably low distortion for ultra-wide-angle applications. With a 2.6mm focal length and a large F1.6 aperture, it offers an expansive 196° field of view, making it exceptionally suited for panoramic surveillance, immersive environment monitoring, and capturing extremely broad areas in a single frame. The combination of True 8MP resolution and manual focus allows for precise image control, ensuring superior sharpness and consistent performance across a variety of lighting conditions.

Key Features & Benefits

True 8MP Resolution: Engineered to deliver sharp high-definition imaging, this lens fully leverages the capabilities of 8-megapixel sensors, ensuring exceptional detail capture for high-resolution applications such as 4K UHD video

Manual Focus Control: The manual focus design provides users with precise control over the focal distance, allowing for fine-tuning to achieve optimal image sharpness for specific working distances and scene requirements

Perfect Sensor Match: Designed specifically for 1/1.8" image sensors, the lens features an image circle that is fully compatible with this format, effectively eliminating vignetting and ensuring the sensor's imaging area is fully utilized for corner-to-corner clarity

Ultra-Wide 196° FOV: With an extreme 196-degree field of view, this lens offers hemispheric, near-panoramic coverage. This makes it ideal for applications demanding maximum scene capture with minimal blind spots, such as immersive monitoring and panoramic imaging

Low Distortion Design: Incorporating advanced optical optimization, this lens significantly reduces distortion across its entire ultra-wide field of view. This ensures geometric accuracy, which is crucial for applications requiring precise measurement and true-to-life representation

Large F1.6 Aperture: The fast F1.6 aperture enables superior light-gathering capability, making this lens highly effective for capturing clear images in low-light conditions. This feature supports enhanced performance in various lighting environments without necessarily requiring increased sensor gain

Compact & Robust Build: Featuring a standard M12x0.5 thread mount, this lens is designed for seamless integration into compact and space-constrained devices. Its robust construction ensures durability and reliability in diverse operating conditions

Versatile Application Performance: The combination of an ultra-wide field of view, high resolution, and low distortion makes this lens exceptionally suited for demanding applications such as panoramic surveillance, immersive machine vision, environmental monitoring, and any scenario requiring maximum coverage with high fidelity

Technical Specifications

Applications

Ultra-Wide Area Surveillance: Comprehensive coverage for open-space monitoring, large environment observation, and expansive area security.

Perimeter Protection Systems: Wide-angle monitoring for facility boundaries, property line coverage, and broad threat detection.

Environmental Monitoring: Full-scene capture for situational awareness, large-area event observation, and panoramic scene analysis.

Intelligent Transportation Systems (ITS): Intersection monitoring, traffic flow analysis, and wide-road vehicle detection.

Drone & Aerial Imaging: Broad field-of-view capture for aerial reconnaissance, wide-area mapping, and large-scale scene documentation.

Smart City Applications: Cityscape monitoring, public space surveillance, and infrastructure observation from elevated positions.

Intrusion Detection Systems: Maximum coverage for perimeter security, boundary monitoring, and unauthorized activity detection across wide areas.

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
