JSD1006

Description

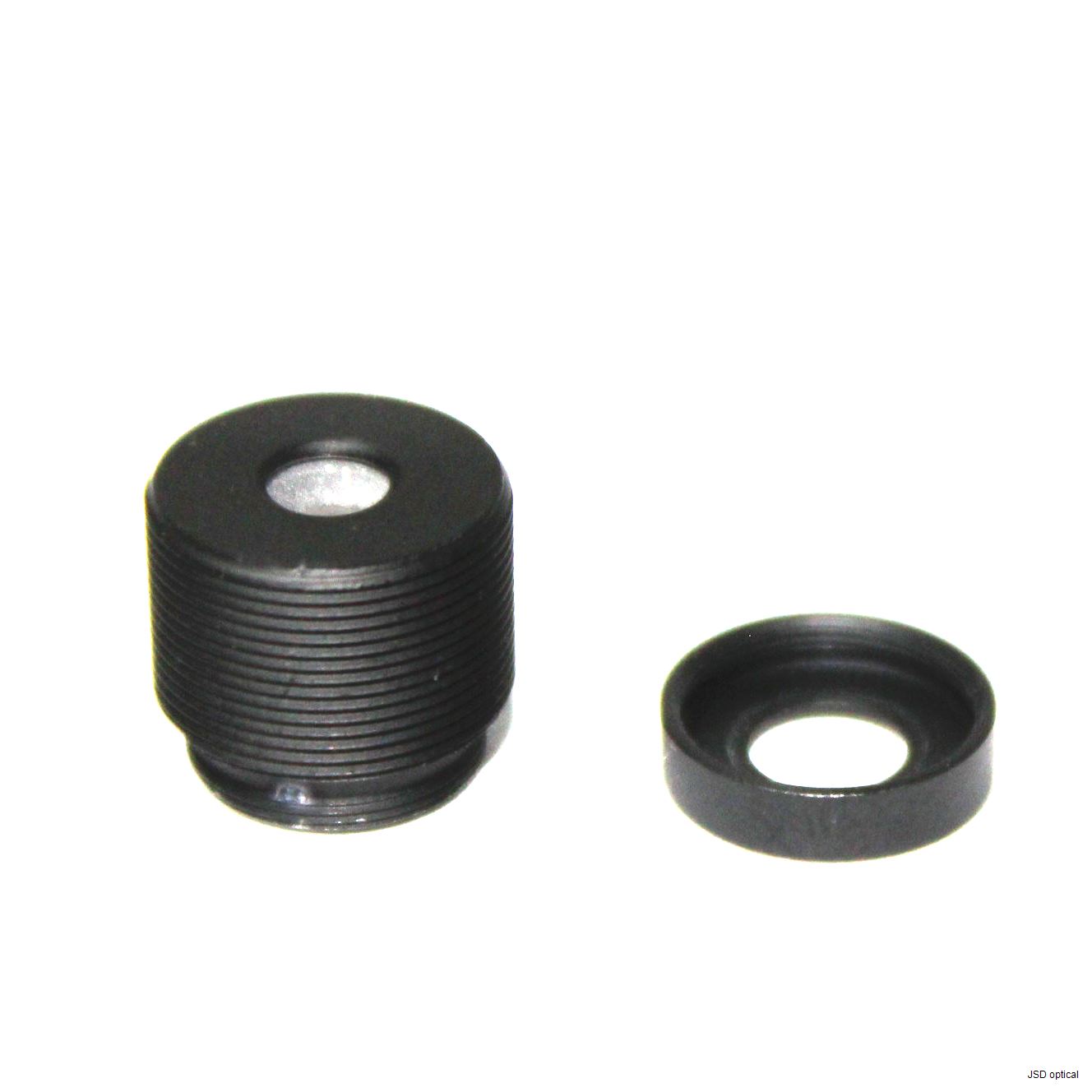

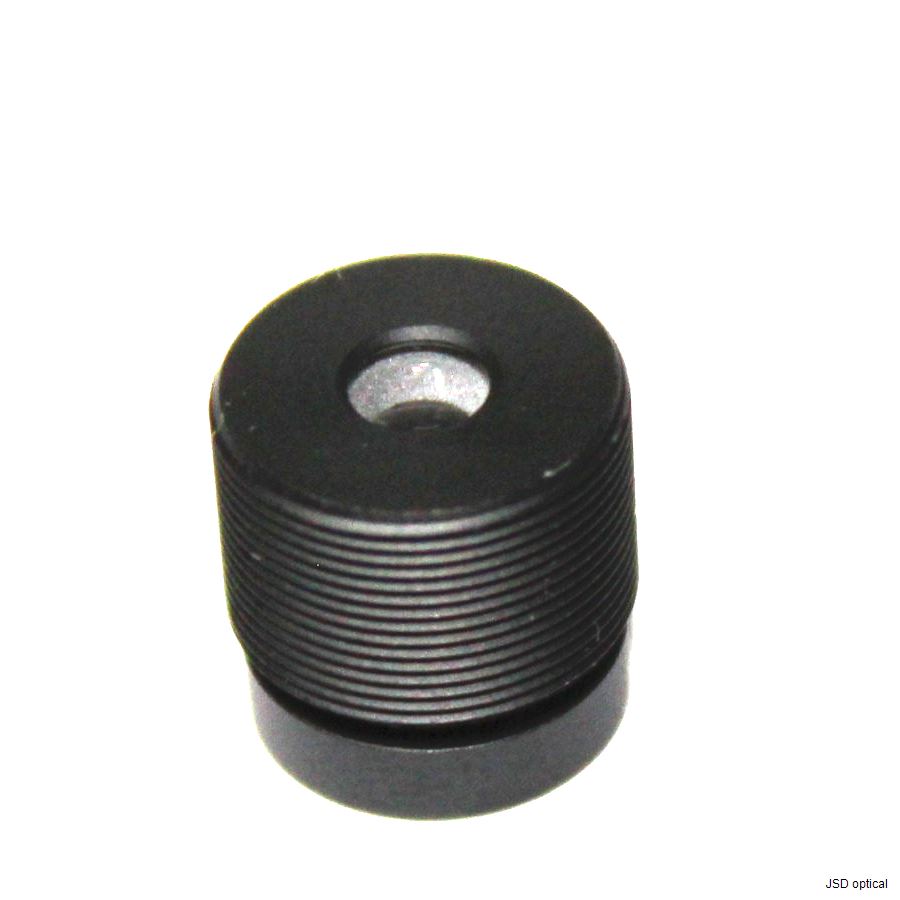

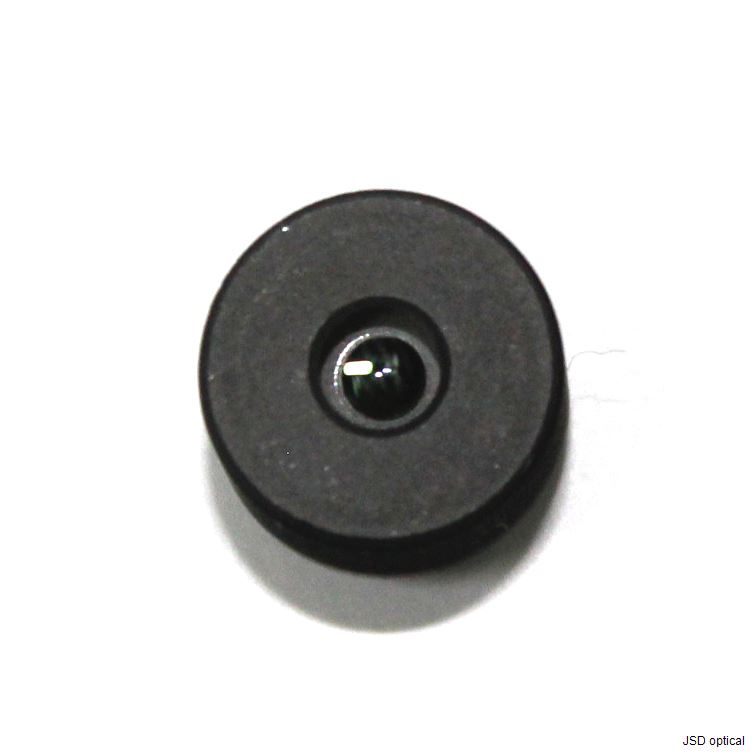

The JSD1006 is a compact fixed-focus lens with a total track length (TTL) of only 13.29 mm, making it compatible with 1/2.8-inch image sensors. It features a fixed F4.0 aperture design, ensuring stable light intake. With a horizontal field of view (HFOV) of 26°, the lens offers a relatively narrow perspective, making it more suitable for observing mid-to-long-distance details. Its exceptional optical performance is demonstrated by extremely low distortion (< 0.2%), ensuring high geometric fidelity in images and making it highly suitable for precise visual measurement applications. The lens is equipped with a standard M12 threaded interface for easy installation and integration

Application

Industrial Inspection and Machine Vision: Used for dimensional measurement of precision parts, surface defect inspection, positioning, etc.

Security and Surveillance: Suitable for monitoring points requiring clear identification of mid-to-long-distance details, such as license plate recognition and facial recognition (at specific focal lengths).

Intelligent Transportation Systems (ITS): Integrated into traffic flow monitoring or violation capture devices to capture clear images.

Document Scanning and Digitization: Used in high-precision scanners to ensure distortion-free document reproduction.

Other Measuring Instruments: Integrated into inspection equipment requiring compact vision systems and high precision.

Specification
