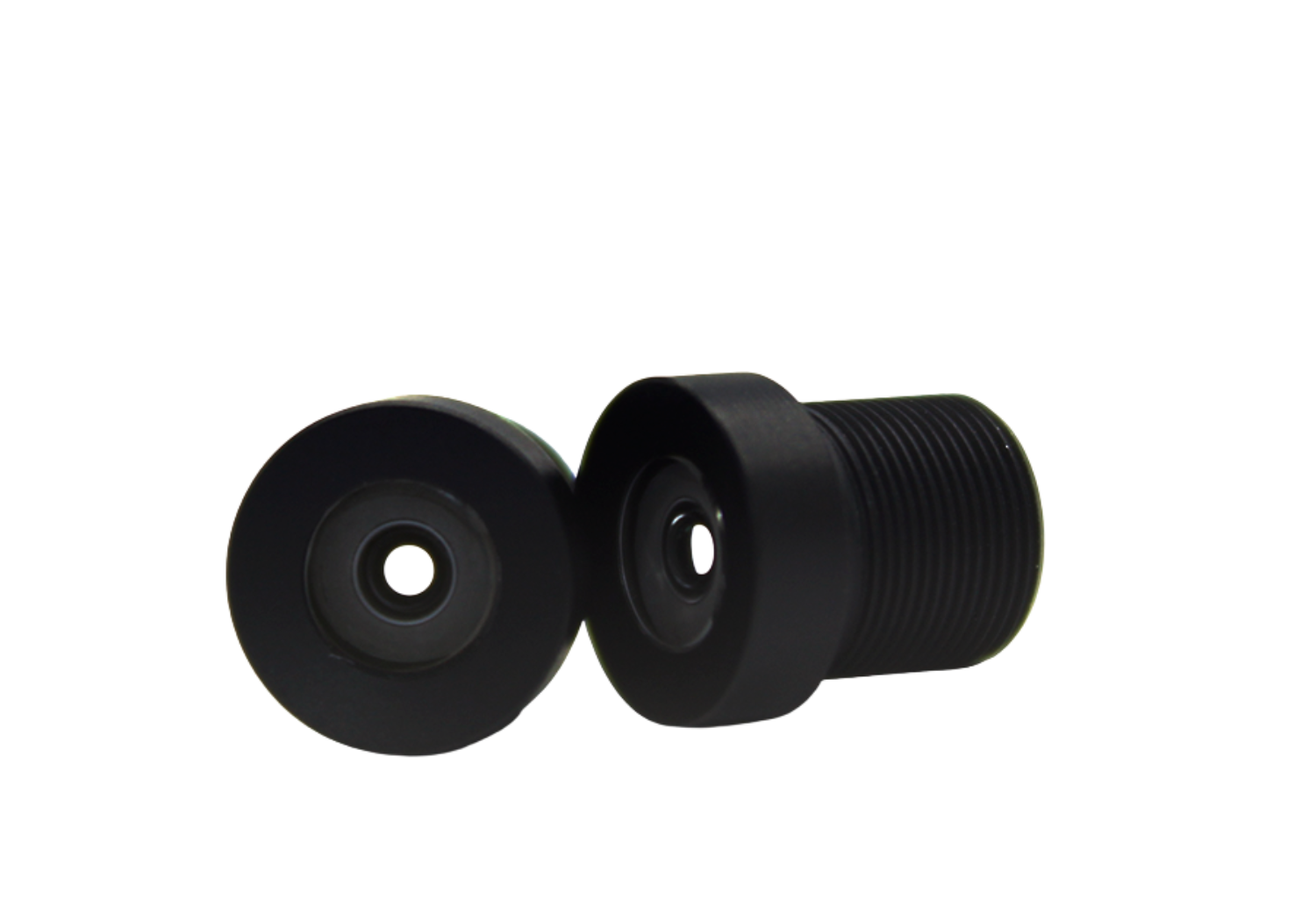

JSD1660

S mount lens

PN: JSD1660
F6.0
HFOV 19.9°

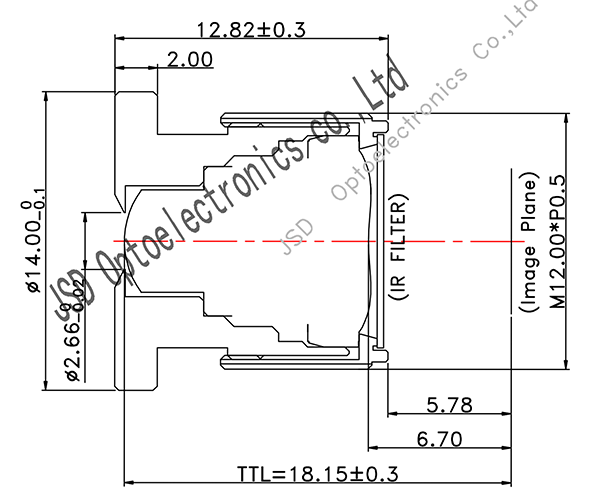

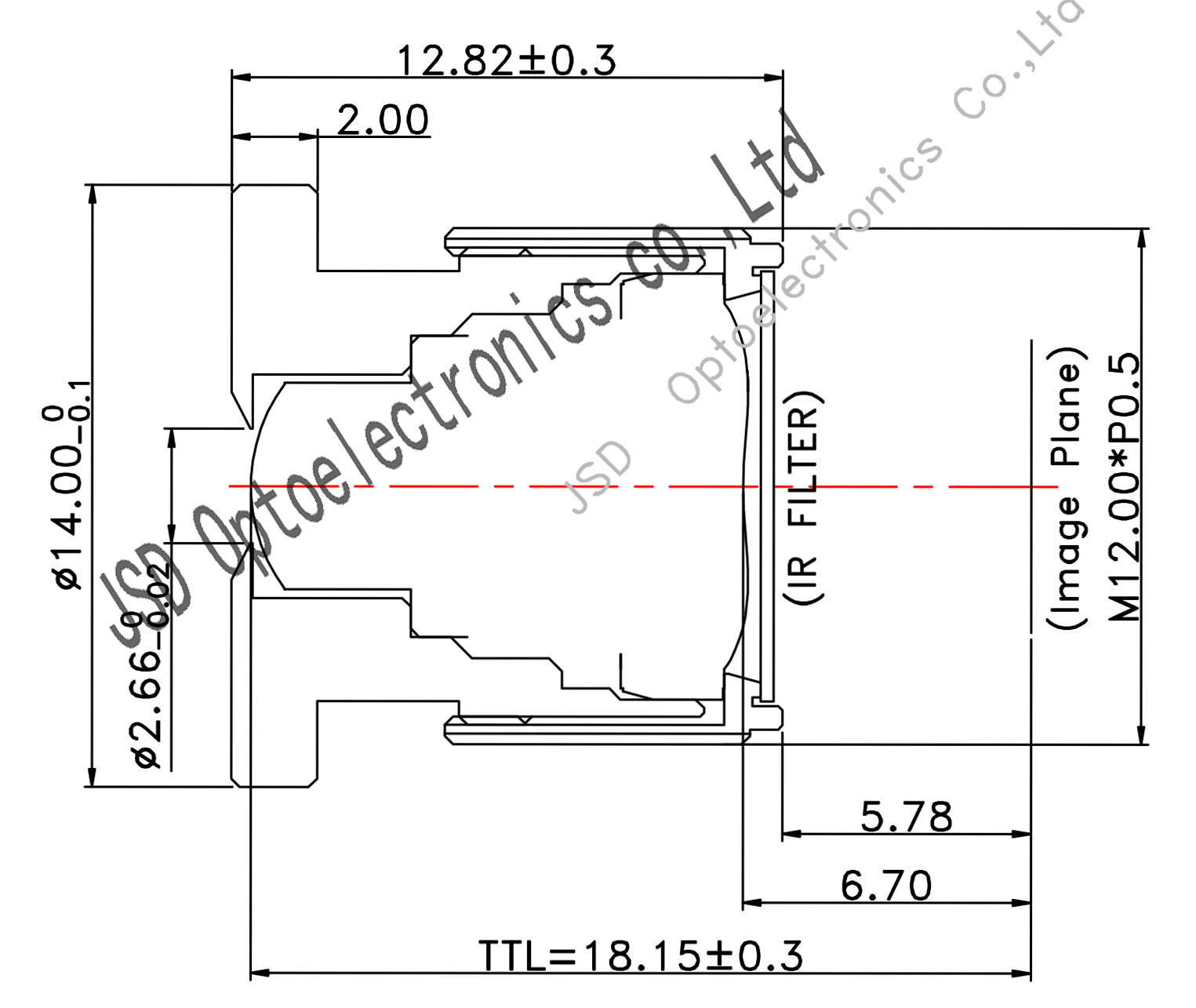

TTL 18.15mm
Thread M12
Distortion <-0.73%
Image Sensor 1/2.8"

Products inquiry

Information
Related Products

Description

The industrial lens model JSD1660 has a focal length of 15.91mm and an aperture of F6.0, classifying it as a medium focal length lens. It offers a horizontal field of view (HFOV) of 19.9°, providing a relatively concentrated and magnified viewing perspective. With a compact design, the lens has a total track length (TTL) of 18.15mm and features a universal M12 interface for easy integration and installation. It exhibits minimal optical distortion (<-0.73%), effectively reducing edge deformation and significantly improving measurement and recognition accuracy. Matched with a 1/2.8-inch image sensor, it is well-suited for machine vision applications that require high observation precision and image authenticity.

Application

Security Monitoring: Its wide field of view is particularly suitable for scenarios requiring coverage of large areas, such as parking lots, warehouses, and traffic intersections. A single device can achieve large-area surveillance

Industrial Inspection: In production lines, it can be used for appearance inspection, positioning, or process monitoring of large-sized products or components, for example, detecting the presence/absence or general distribution of entire products

Smart Terminal and IoT Devices: Its compact size makes it an ideal choice for consumer and commercial devices like smart home doorbells and video conference cameras, enabling a wide shooting angle within a small form factor

Specification


Model	JSD1660
Image sensor	1/2.8"
Image Circle	6.8mm
Resolution	5MP
Focal Length	15.91mm
Aperture	F6.0
Distortion	<-0.73%
FOV	DFOV 23° HFOV 19.9° VFOV 11.2°
