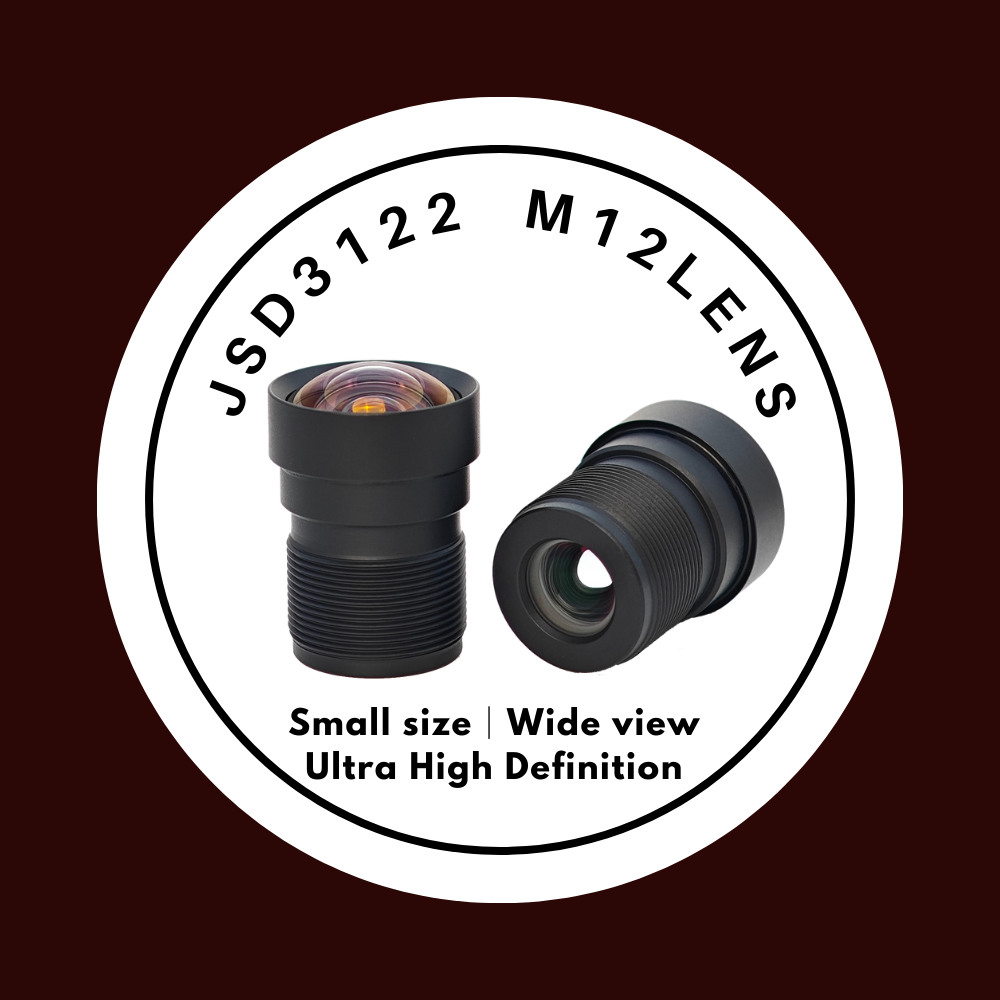

Are you still hauling around bulky M16 lenses for your industrial setups? It’s 2025—time to slim down without sacrificing a single pixel of performance! Today, we’re shaking up the "M16 Lens Selection" discussion by introducing a challenger that punches way above its weight class. Meet the JSD3122, an M12 lens that delivers the heavy-duty specs you’d expect from larger glass, all in a compact, cost-effective package.

Let’s be clear right out of the gate: This lens is NOT for your average consumer camera. You won't find this on a holiday snapper. This is a precision optical instrument designed for the rigors of machine vision, security surveillance, and high-end commercial sensing.

Here is why the JSD3122 is disrupting the selection process and why it deserves the spotlight in our performance analysis.

1. The "Impossible" Spec: 1/2" Sensor in an M12 Body

Usually, when you need to cover a massive 1/2" Image Circle, you are forced to step up to larger M16 or C-mount lenses. The JSD3122 changes the game. It successfully covers a 1/2" sensor format while maintaining the standard M12 thread (S-Mount).

The Benefit: You get the light-gathering capability and wide field of view of a large sensor, but your camera module stays compact and lightweight. It’s the ultimate space-saver for tight industrial housings.

2. Crystal Clear 12MP Resolution

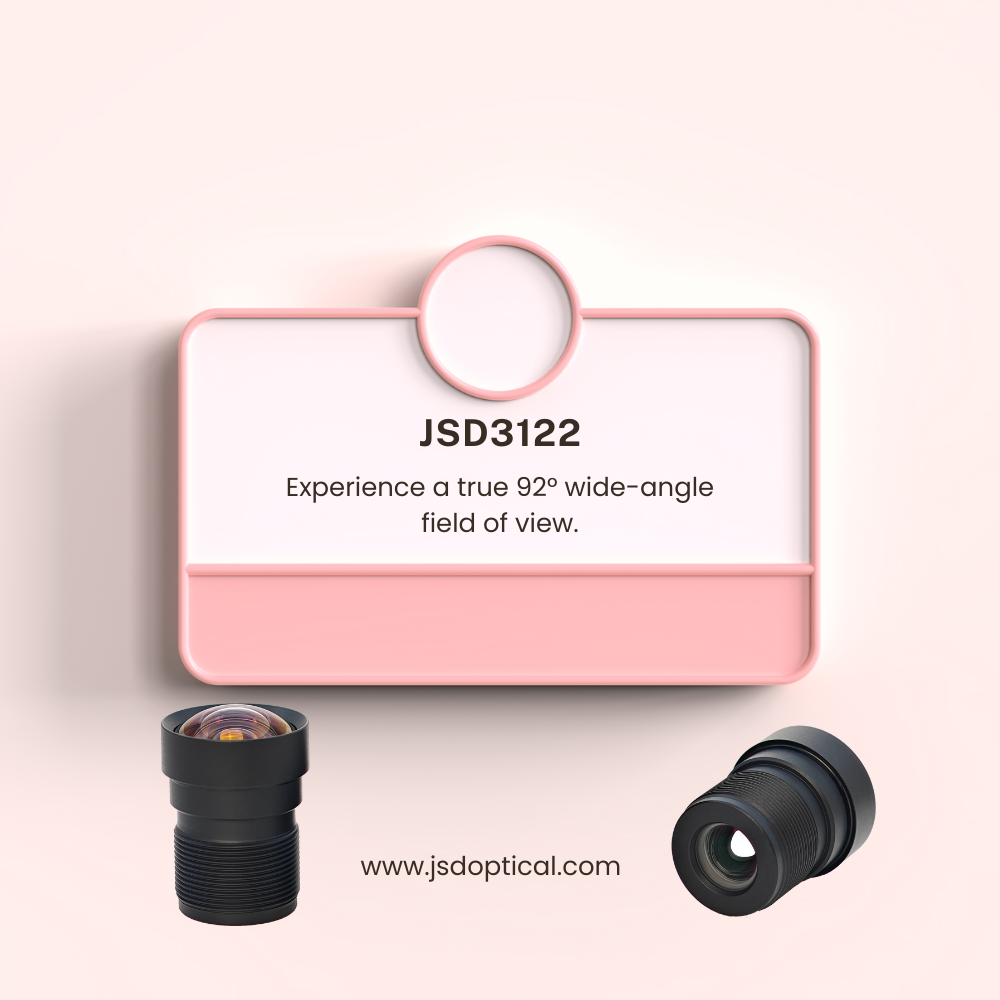

Forget "HD." In the world of automated inspection and detailed surveillance, pixel density is king. The JSD3122 is rated for 12MP resolution, ensuring that every corner of that 92° Field of View (FOV) is razor-sharp. Whether you are reading license plates or detecting microscopic defects on a production line, this lens resolves the details that cheaper lenses blur out.

3. Precision Geometry: Distortion < -1.54%

Wide-angle lenses often suffer from the dreaded "fisheye" look, bending straight lines into curves.That’s a nightmare for measurement algorithms. The JSD3122 boasts an optical distortion of less than -1.54%.

Real-World Application: When your AI needs to recognize a square box, it sees a square box. This "Linear" performance reduces the load on your software, eliminating the need for heavy image de-warping processing.

4. Fast & Bright: F/2.2 Aperture

Lighting conditions in warehouses and factories are rarely perfect. With a fast F/NO of 2.2, the JSD3122 allows ample light to hit the sensor, keeping exposure times short and noise low. Combined with its short TTL (Total Track Length) of just 20.49mm, it is an optical marvel of efficiency.

Technical Snapshot: JSD3122

Model (PN): JSD3122

Focal Length (EFL): 3.94mm

Aperture (F/NO): 2.2

Field of View (FOV): 92° (Wide and clear!)

Distortion: <-1.54% (Low distortion)

Mount: M12 (Compact standard)

TTL: 20.49mm

Image Circle: 1/2" (Big sensor support!)

Resolution: 12MP

Why pay a premium for larger, heavier M16 optics when the JSD3122 delivers professional 12MP performance on a 1/2" sensor in a standard M12 form factor? For engineers and integrators looking to maximize performance while minimizing size and cost, the JSD3122 is the smart, future-proof choice.

Stop over-engineering with bulk. Start optimizing with the JSD3122.
