In the high-speed world of logistics and automated sorting, "tunnel vision" is a killer.

If your scanning system has a narrow field of view, you are forced to place cameras high above the conveyor belt (wasting vertical space) or install multiple cameras just to cover the width of a single large package. That means more hardware, more cabling, and more complex software integration.

It’s time to widen your perspective.

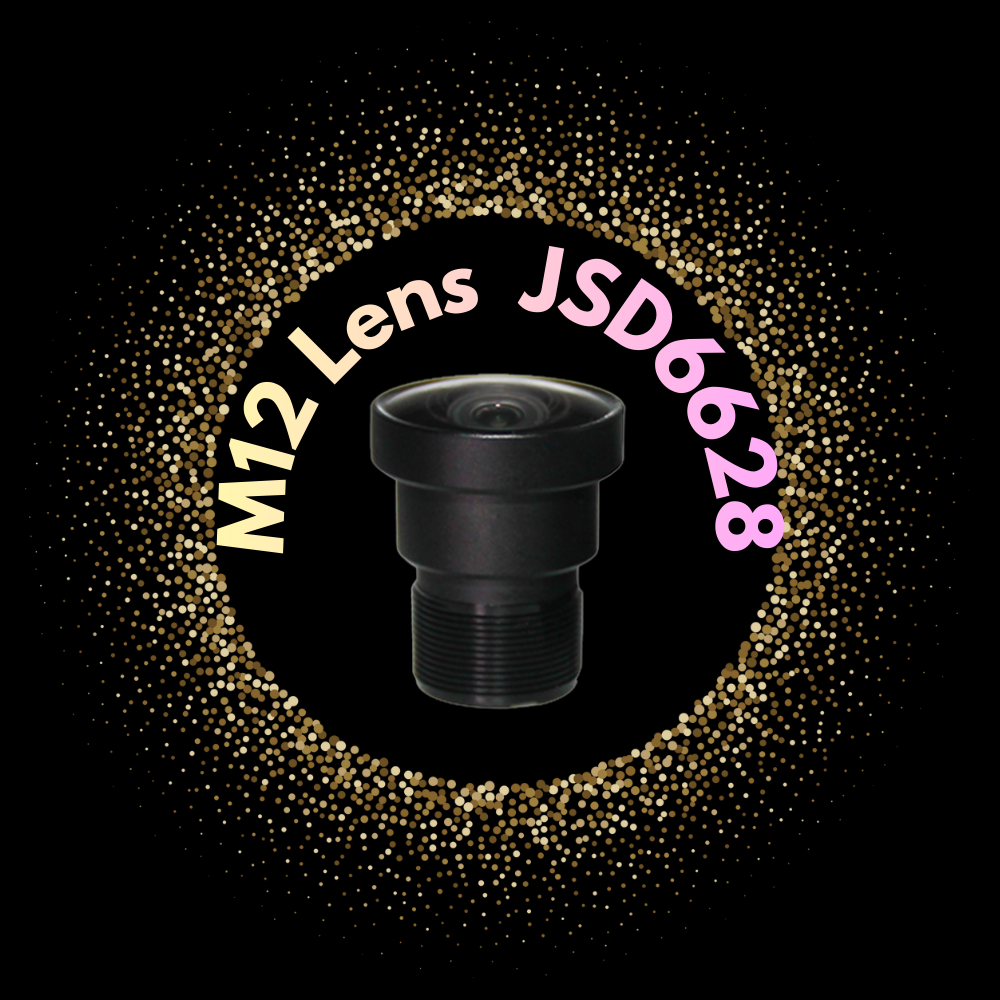

The JSD6628 is a specialized industrial lens designed to tackle exactly this problem. By combining a massive 102° field of view with ultra-high resolution, it is rewriting the rules of wide-format recognition. Here is how this lens turns optical specs into operational efficiency.

1. The 102° Advantage: See More, Pay Less

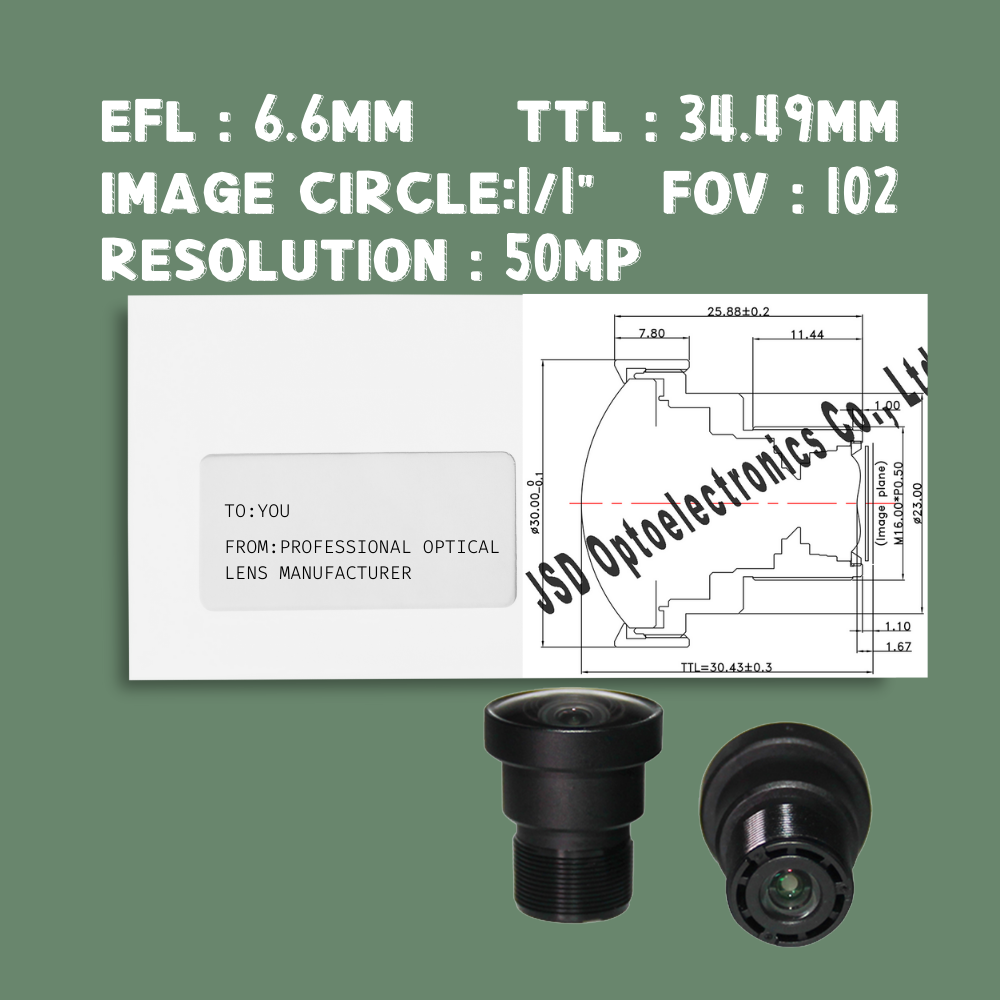

At the heart of the JSD6628 is a short 6.6mm Effective Focal Length (EFL), creating a sweeping 102° Field of View (FoV).

The Efficiency Boost: Instead of stitching images from two or three narrow cameras to see a wide conveyor belt, the JSD6628 covers the entire width in a single shot.

The Result: You slash hardware costs and simplify your image processing pipeline. One lens, one camera, total coverage.

2. Distortion Control: Because Barcodes Don't Bend

Usually, "wide-angle" is synonymous with "fisheye." If you try to scan a QR code at the edge of a standard wide lens, the curvature makes it unreadable for OCR software.

The JSD6628 is engineered with <3% optical distortion. This keeps straight lines straight, even at the edges of the frame. Your recognition algorithms get clean, flat data across the entire 102° spread, drastically reducing "no-read" errors and manual resorting.

3. 50MP Resolution: Small Codes, Big Picture

Here is the challenge with wide-angle scanning: when you zoom out to see the whole belt, you usually lose detail. A tiny barcode becomes a blur.

This is where the 50MP resolution and 1/1" (1-inch) Image Circle come into play.

Massive Sensor Coverage: Unlike standard lenses designed for smaller chips, the JSD6628 covers a large 1-inch sensor, capturing significantly more data.

Pixel Density: With 50 megapixels of resolving power, you can capture a wide area and still have enough pixel density to resolve a small shipping label or Data Matrix code. It’s the best of both worlds: wide coverage and high detail.

4. Fast & Compact (F/2.8 & M16)

Speed is everything. The F/2.8 aperture allows sufficient light intake to support fast shutter speeds—essential for freezing the motion of packages whizzing by on a belt.

Furthermore, despite its heavy-duty performance, the lens maintains a Total Track Length (TTL) of just 34.49mm and uses a standard industrial M16 thread. It’s compact enough to fit into low-profile barcode scanners and rugged enough to withstand the vibrations of an industrial facility.

The JSD6628 is not a consumer gadget; it is a productivity engine for the logistics and automation sector.

By leveraging its 102° wide angle and 50MP clarity, you can scan wider parcels, reduce camera counts, and improve recognition rates instantly.

Don't let narrow vision slow down your line. Upgrade to the JSD6628 and capture the full picture.
