In the world of optics, there is an old assumption: "If you want high performance, you need big glass."

We are here to shatter that assumption.

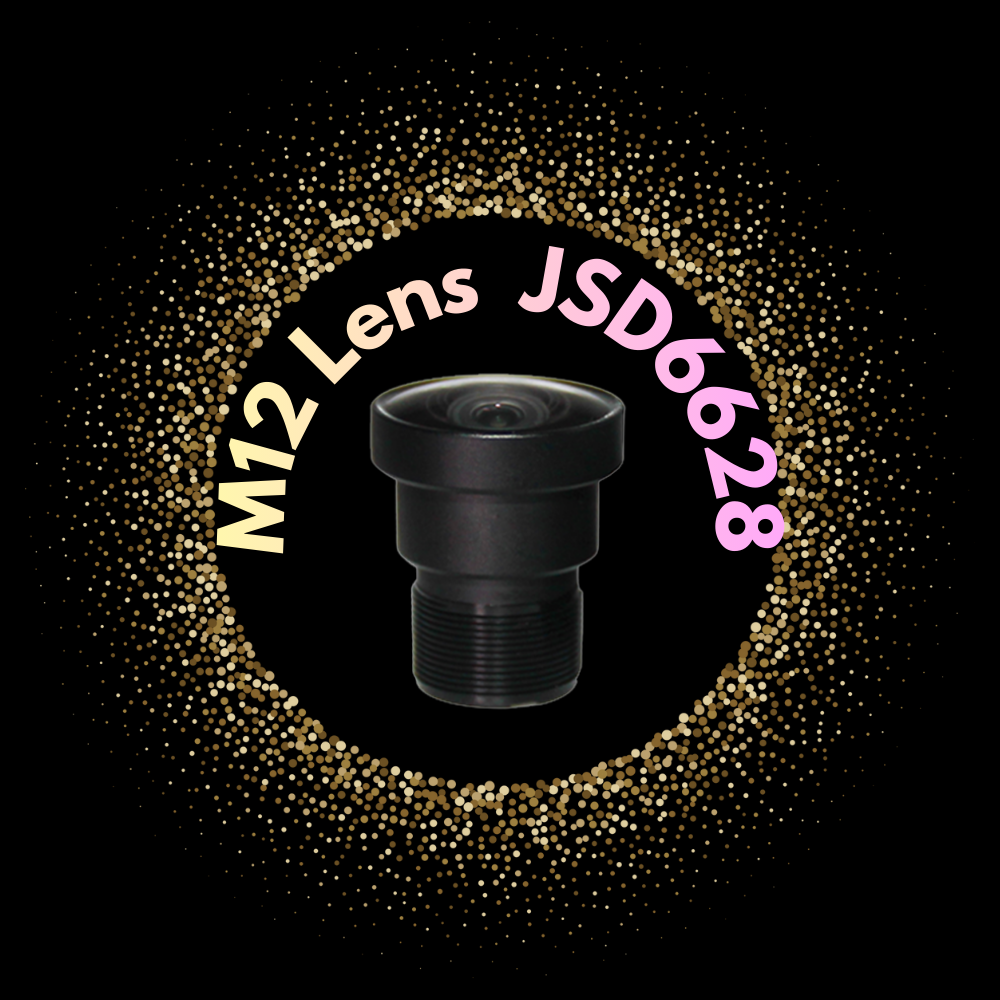

Meet the JSD6628. It is a marvel of modern engineering that packs the power of a studio lens into a form factor that fits in the palm of your hand. This isn't just a lens; it is a piece of optical aesthetics designed for the rigorous, space-constrained world of machine vision and industrial drones.

Forget consumer cameras. This is precision hardware for professionals who need a "Small Body" with a "Big Vision."

1. The "Small Body": A Masterpiece of Miniaturization

Space is the ultimate luxury in industrial design. Whether you are building a handheld 3D scanner, a compact drone, or an embedded vision system, every millimeter counts.

The JSD6628 is the answer to your space constraints.

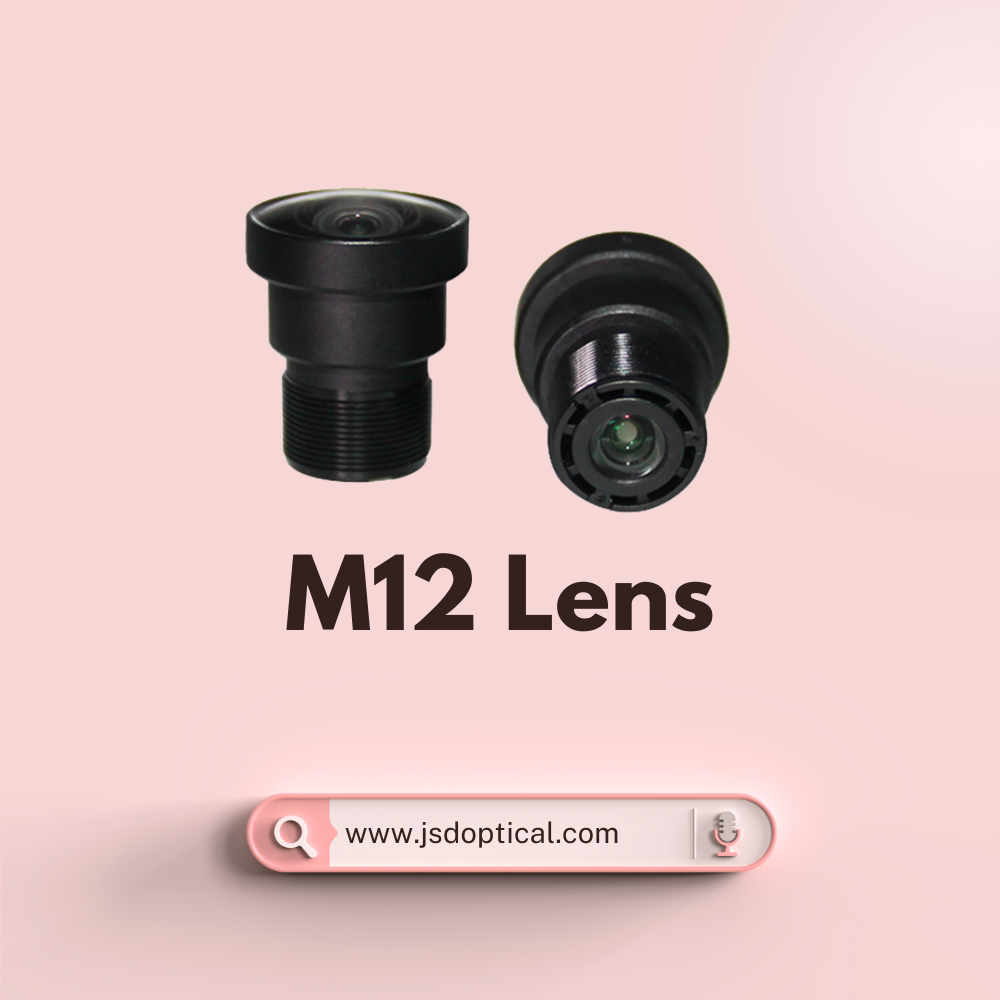

Thread: It uses a compact M16 mount, significantly smaller than bulky C-mount or F-mount lenses.

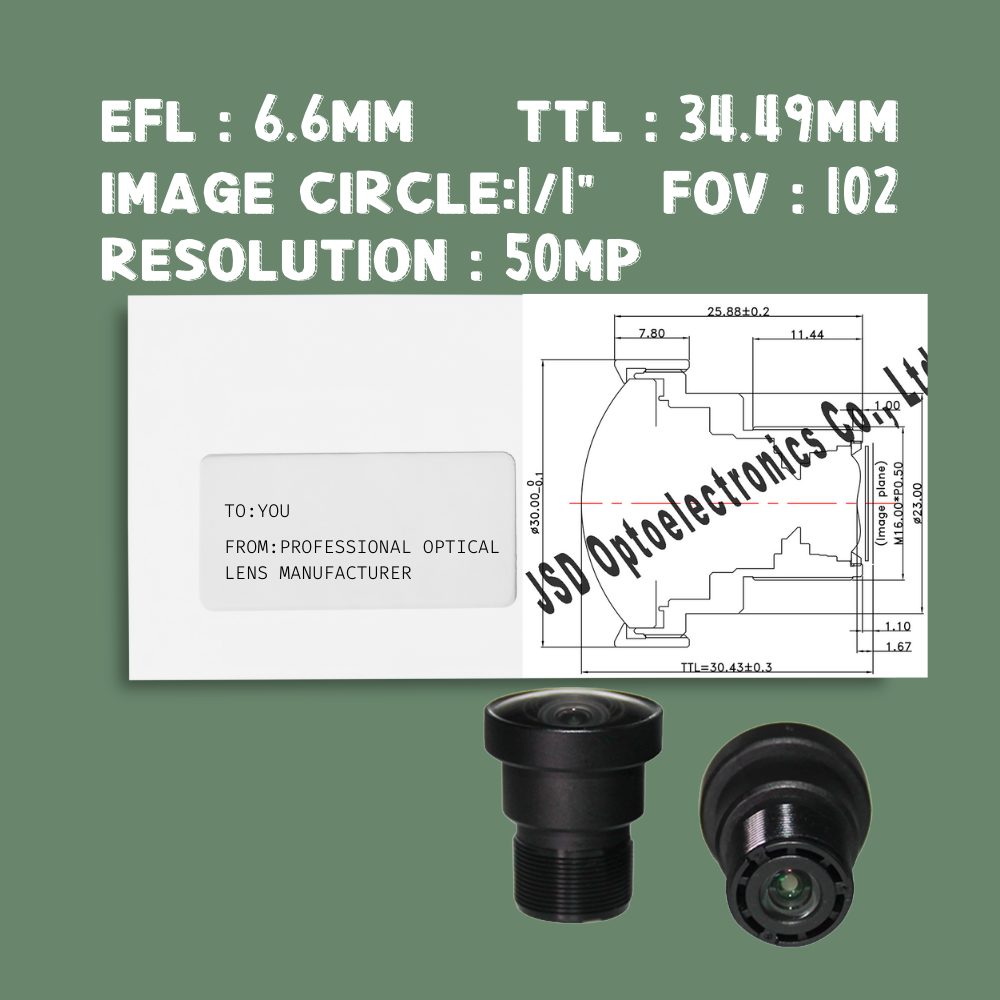

TTL (Total Track Length): At just 34.49mm, this lens keeps your device profile low and sleek. It is "stealth mode" for your vision system.

2. The "Big Vision": 1-Inch Sensor Support

Here is where the JSD6628 defies logic. Usually, M16 lenses are designed for small, 1/3" or 1/2.3" sensors.

Not this one. The JSD6628 projects a massive 1-inch (1/1") Image Circle.
It allows compact devices to utilize high-end, large-format sensors. This means better light sensitivity, better dynamic range, and professional-grade image quality in a package that shouldn't be physically possible.

3. 50MP: Beauty in the Details

"Small" doesn't mean "blurry." This lens is a resolution beast.
Optimized for 50MP, the JSD6628 resolves fine details that standard lenses miss completely. It turns the raw data from your large sensor into crisp, sharp images. It is the perfect marriage of glass and silicon.

4. The Wide-Angle Aesthetic: 102° Without the Warping

The true "aesthetic" of a lens lies in how it renders the world.
With a 6.6mm EFL, the JSD6628 offers a sweeping 102° Field of View (FoV). But unlike cheaper wide lenses that turn the world into a fishbowl, this lens maintains <3% optical distortion.

The Result: You get the immersive width of a wide-angle lens with the geometric integrity of a portrait lens. Straight lines remain straight. It is optical purity at its finest.

The JSD6628 is proof that you don't have to sacrifice performance for size.

It brings together a compact M16 body and a massive 1-inch, 50MP vision, creating a new standard for industrial optical aesthetics.

If you are building the next generation of compact, high-performance machines, don't weigh them down with heavy glass. Choose the JSD6628: Small body, limitless vision.
