Let’s be real for a moment. In the world of industrial optics, "good enough" is usually code for "blurry corners."

When you are dealing with a massive 1-inch (1/1") sensor, finding a compact lens that maintains sharpness from the center all the way to the edge is the ultimate optical challenge. Most lenses give you a sharp center and a mushy mess at the borders.

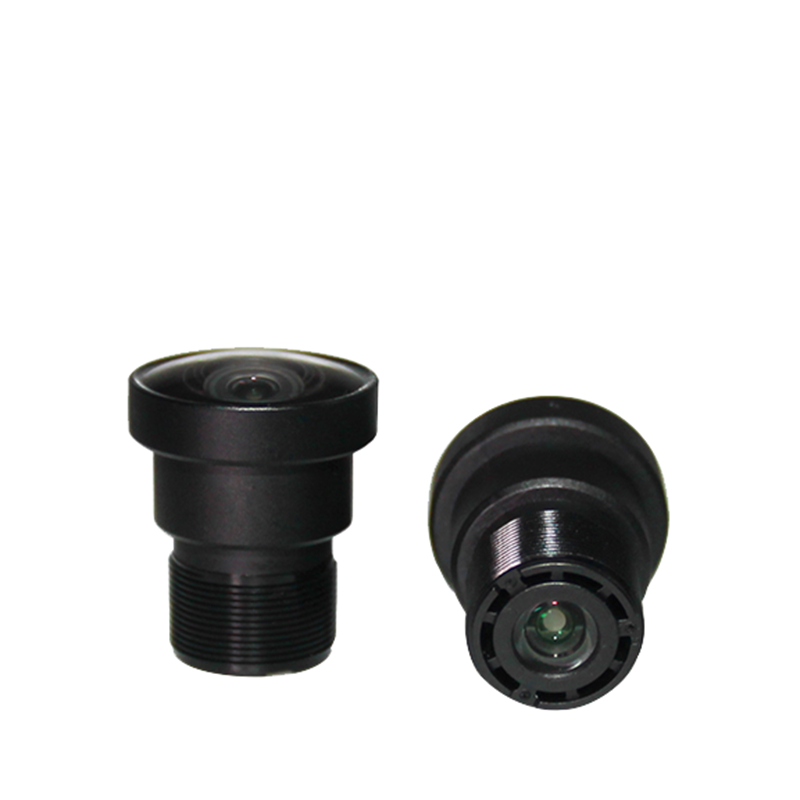

But the JSD6628 isn't most lenses. It is a professional optical tool designed to solve the two biggest headaches in machine vision: Low Light and Edge Degradation.

Here is the full optical breakdown of this M16 powerhouse.

1. F/2.8: The Need for Speed (and Light)

In industrial inspection or drone mapping, lighting is rarely perfect. You are either dealing with fast-moving conveyor belts or variable outdoor conditions.
The F/2.8 Aperture on the JSD6628 is the sweet spot.

It’s Fast: It allows enough light in to keep exposure times short, freezing motion without motion blur.

It’s Clean: By gathering more light optically, you don't have to crank up the sensor gain, keeping your images free of digital noise.

It’s Sharp: Unlike "ultra-fast" lenses that get soft when wide open, the F2.8 here is optimized for peak sharpness.

2. The Edge-to-Edge Revolution (1" Image Circle)

This is the headline feature. The JSD6628 is engineered with a 1/1" Image Circle.
If you put a standard lens on a 1-inch sensor, you get "tunnel vision"—black corners (vignetting) or severe distortion at the edges.
The JSD6628 offers High Edge Image Quality. Whether you are inspecting a PCB board or scanning a document, the data at the very corner of the frame is just as crisp and reliable as the data in the center.

3. 50MP Resolution: Seeing the Unseen

A big sensor needs a lens that can resolve fine details. The JSD6628 is rated for 50MP Resolution.
This isn't just a marketing number. It means the glass is polished and aligned to handle extremely high pixel density. Combined with the 6.6mm EFL, it captures a massive amount of information in a single shot, allowing for digital zooming and cropping without losing fidelity.

4. 102° of Straight Lines (Low Distortion)

With a Field of View (FOV) of 102°, this is a wide-angle lens. Usually, wide angles bend the world like a fishbowl.
However, the JSD6628 keeps Distortion under 3%.
This optical correction is vital. It means straight lines stay straight. For measurement systems and robot guidance, this reduces the heavy lifting your software has to do to "un-warp" the image.

5. Engineered for Reality (M16 & TTL)

This performance is packed into a remarkably tight form factor.

Thread: The M16 mount provides a rigid, stable platform that holds the larger glass elements securely—far superior to the wobblier M12 standard.

Size: With a TTL of 34.49mm, it fits easily into compact housings where space is at a premium.

The Verdict

The JSD6628 is not for your vacation camera; it’s for your vision system.

By combining a bright F/2.8 aperture with 50MP resolving power and genuine 1-inch sensor coverage, it eliminates the weak edges that plague other compact lenses. If your application demands precision across the entire frame, the JSD6628 is the optical upgrade you’ve been looking for.
