Precision isn't just a preference. In the industrial world, it’s the law.

When you are automating an assembly line or measuring components down to the micron, "close enough" doesn't cut it. A warped image means bad data. Bad data means rejected parts and lost money.

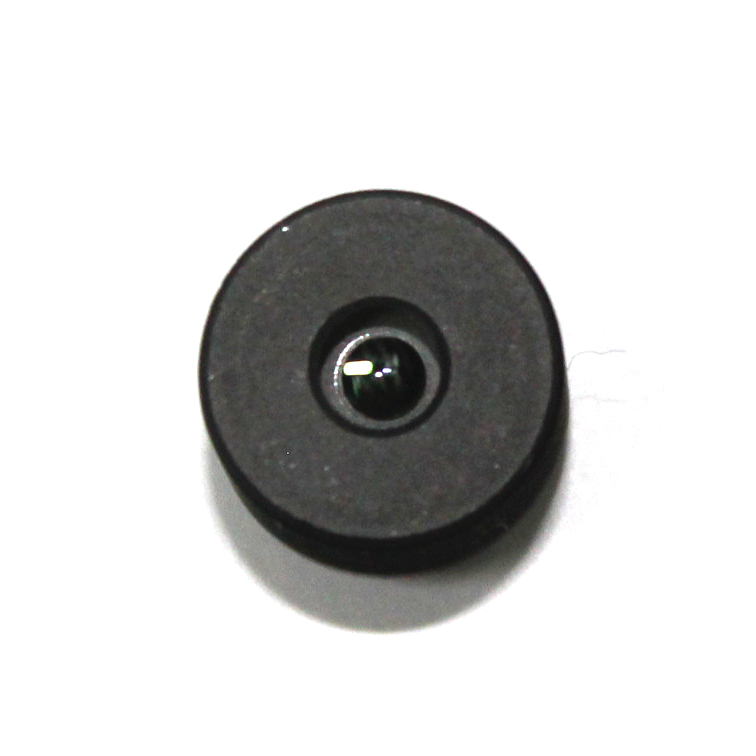

Stop gambling with your optics. It’s time to equip your machines with the JSD9932—the industrial lens that treats accuracy as a religion.

The "Straight Edge" Standard (< 0.1% Distortion)

If you are doing dimensional measurement or AOI (Automated Optical Inspection), distortion is your worst nightmare.
The JSD9932 is engineered with < 0.1% Optical Distortion.
What does that mean? It means a straight line on your conveyor belt looks like a straight line on your monitor. No barrel effect, no pincushioning. Just pure, unadulterated geometric truth.

Ideal for: Gauging, alignment, and defect detection.

Telephoto Precision (9.3mm EFL & 21° FoV)

Wide-angle lenses are great for surveillance, but terrible for inspection. You don't need to see the factory floor; you need to see the product.
With a 9.3mm Effective Focal Length designed for a 1/4.5" Image Circle, the JSD9932 offers a narrow, focused 21° Field of View.

The Benefit: It maximizes your 2MP (Megapixel) resolution over a smaller area, giving you higher pixel density and sharper details for your algorithms to process.

Compact Power (M12 & TTL 12.42mm)

Industrial sensors are getting smaller, and your optics need to keep up.
The JSD9932 packs this high-end optical performance into a tiny package with a Total Track Length (TTL) of just 12.42mm.
Using the standard M12 Thread, it screws directly into your board cameras, saving you space and mechanical headaches.

Professional Only: No Consumer Fluff

This isn't for taking selfies. This lens features an F/3.2 Aperture tailored for controlled lighting environments found in factories. It provides the stability and consistency required for:

Robotic Guidance Systems

PCB Inspection

Bottling and Packaging Lines

Automated Metrology

Your software is smart, but it can only process what it sees. Give it the clearest, most accurate image possible with the JSD9932.

Ready to upgrade your machine vision system?
For custom lens solutions, please contact us at info@jsdoptical.com. We look forward to your inquiry!
