Ever tried to scan a contract, a receipt, or an ID card, only to find that the straight lines look curved and the corners are a blurry mess? We know the struggle. In the world of document archiving and high-speed scanning (Gaopaiyi), precision is everything.

If you are building the next generation of document scanners or OCR (Optical Character Recognition) devices, you don’t need a fancy portrait lens—you need a workhorse.

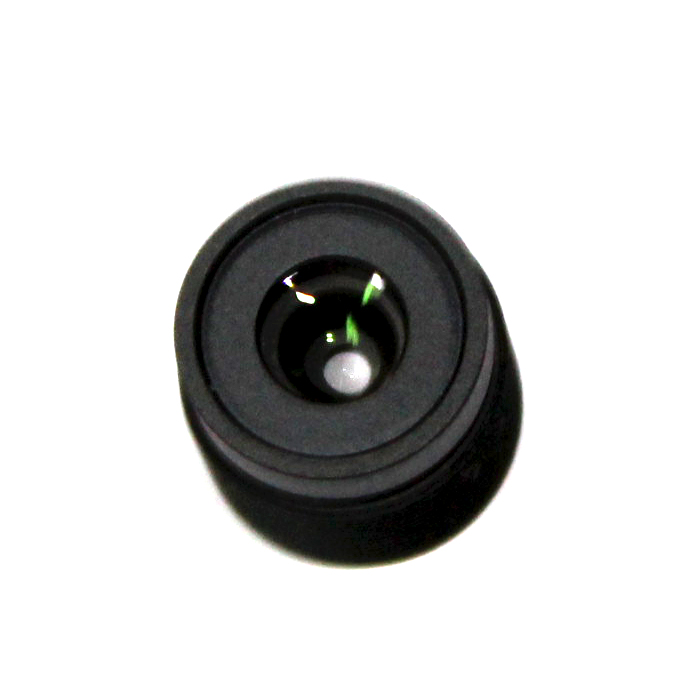

Say hello to the JSD9932. It’s small, it’s sharp, and it hates distortion even more than you do.

Say Goodbye to the "Fish-Eye" Effect

The number one enemy of data recognition is distortion. If your lens bends the image, your software can't read the text.
The JSD9932 boasts a distortion rate of <0.1%. That is virtually non-existent! Whether you are scanning barcodes, dense text, or architectural drawings, straight lines stay straight. This makes it the ultimate choice for high-precision OCR applications.

Sharpness from Center to Edge

Many lenses are great in the middle but fall apart at the corners. Not this one.
Optimized for a 1/4.5" Image Circle, this 2MP lens ensures that the text at the very edge of the page is just as crisp as the text in the center. Your algorithms will thank you.

Compact and Ready to Integrate

Space is always tight in modern hardware. With a standard M12 Thread and a Total Track Length (TTL) of just 12.42mm, the JSD9932 fits perfectly into compact document scanners, portable "high-speed photographic apparatus," and desktop scanning kiosks.

The Specs at a Glance (For the Tech Geeks):

Model (PN): JSD9932

Resolution: 2 Mega Pixels (Crystal clear for docs)

Focal Length (EFL): 9.3mm

Aperture (F/No): 3.2 (Great depth of field)

Field of View (FOV): 21° (Narrow and focused)

Distortion: < 0.1% (The star of the show!)

Mount: M12 x 0.5

TTL: 12.42mm

Not Just Another Camera Lens

Please note: This is NOT for your consumer DSLR or action camera. This is an industrial-grade optical tool designed specifically for flat-field document capturing. It is engineered to turn physical paper into digital data with zero errors.

Ready to upgrade your scanning equipment?
Equip your device with the JSD9932 and give your users the perfect scan, every single time. Clear edges, zero curves, total perfection.

For custom lens solutions, please contact us at info@jsdoptical.com. We look forward to your inquiry!
