AR0234 Global Shutter Sensor: Why It Must Be Paired with Low-Distortion Industrial Lenses
In applications such as high-speed motion capture, factory automation inspection, and robotic navigation (SLAM), the Onsemi AR0234—with its unique Global Shutter technology—completely eliminates the "Jello Effect" (rolling shutter distortion) common in traditional sensors. However, to achieve high-precision visual measurement and recognition, a powerful sensor model is only half the battle; it must be paired with an industrial-grade Low-Distortion M12 Lens.
1. The "Precision Conflict" Between Global Shutter and Distortion
The core value of the AR0234 lies in its ability to expose all pixels simultaneously, capturing a moment that is physically real and free of motion-induced deformation. However, light must still pass through the lens:
Risk of Geometric Distortion: If the lens possesses significant barrel or pincushion distortion, straight physical edges will appear curved in the image.
Algorithmic Cost: While software "de-warping" can correct distortion, it involves pixel stretching and interpolation at the edges. This results in a loss of raw resolution and increased processing latency, which can be fatal in high-speed identification scenarios.

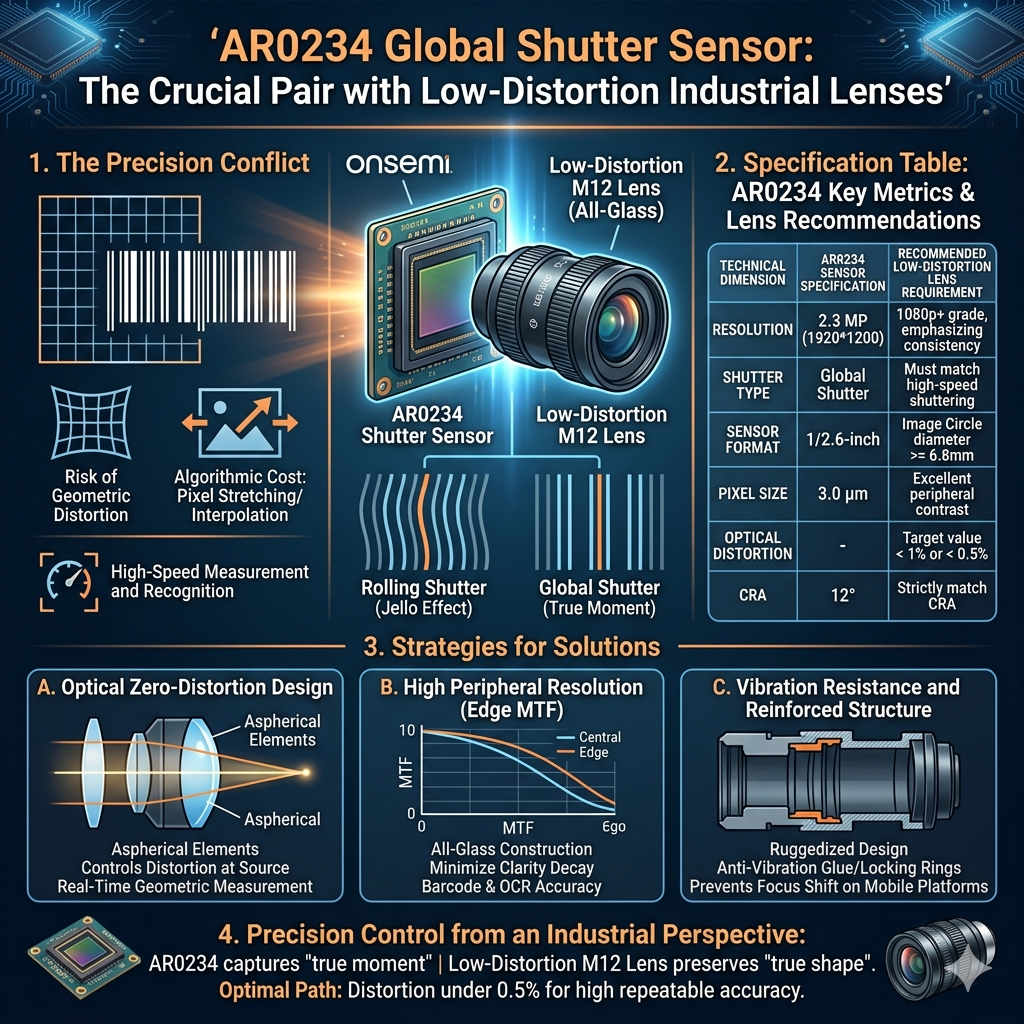

2. Specification Table: AR0234 Key Metrics & Low-Distortion M12 Lens Recommendations
Technical Dimension | AR0234 Sensor Specification | Recommended Low-Distortion Lens Requirement |
Resolution | 2.3 MP (1920 * 1200) | 1080p+ grade, emphasizing consistency in resolving power |
Shutter Type | Global Shutter | Must match optical flux for high-speed shuttering |
Sensor Format (Type) | 1/2.6-inch | Image Circle diameter ≥ 6.8mm |
Pixel Size | 3.0 μm * 3.0 μm | Large pixel design requires excellent peripheral contrast |
Optical Distortion | - | Target value < 1% or < 0.5% |
Chief Ray Angle (CRA) | 12° | Lens CRA must strictly match to prevent color shifting |
3. Strategies for Low-Distortion Industrial Lens Solutions
When selecting an M12 lens for the Onsemi AR0234, the following technical features are critical:
A. "Optical Zero-Distortion" Design
Unlike standard security lenses that prioritize a wide Field of View (FOV), industrial M12 lenses utilize Aspherical Elements to control distortion at the source. This allows the AR0234 to output raw images that can be used directly for geometric measurement without secondary software correction, significantly improving real-time system response.
B. High Peripheral Resolution (Edge MTF)
The AR0234 is frequently used for barcode scanning or OCR. A low-distortion lens must ensure both shape integrity and edge sharpness. Utilizing an All-Glass M12 construction ensures minimal clarity decay from the center to the corners, maintaining the accuracy of recognition algorithms in complex industrial environments.
C. Vibration Resistance and Reinforced Structure
Global shutter sensors are often deployed on mobile platforms (drones, AMR robots). The matching M12 lens should feature a ruggedized design, paired with industrial-grade holders equipped with anti-vibration glue or locking rings. This prevents optical axis shift or defocusing under high-vibration conditions, ensuring that every frame captured by the AR0234 provides high repeatability and consistency.
4. Precision Control from an Industrial Perspective
The Onsemi AR0234 captures "the true moment," while a Low-Distortion M12 Lens preserves "the true shape." In precision measurement and high-speed identification solutions, investing in a professional industrial lens with distortion controlled under 0.5% is the optimal path to reducing system complexity and enhancing production efficiency.
