In high-performance vision applications, the Sony IMX477—with its 12.3-megapixel (12.3MP) high resolution and Back-Illuminated (BSI) stacked architecture—has become the core of the Raspberry Pi HQ Camera, high-end aerial photography, and industrial inspection equipment. However, many developers find that while the center image is sharp, the edges often suffer from blurring or stretching when adapted to an M12 Lens. This occurs because the high pixel density of the IMX477 places a nearly "luxury" demand on a lens’s peripheral resolving power.

1. The "Pixel Pitch" Challenge Brought by High Resolution

The IMX477 features a physical resolution of 4056 * 3040. Within its specific sensor format, this means each individual pixel is extremely minute.

High Resolving Power Requirement: A 12MP resolution requires a lens capable of distinguishing very fine line pairs. If the lens's MTF (Modulation Transfer Function) curve drops significantly at the edges, peripheral detail is lost, creating a "sharp center, blurry corners" effect.

Image Plane Flatness: For a miniature M12 lens, maintaining uniform light distribution and precise focus across a 1/2.3-inch image plane is a massive optical engineering challenge.

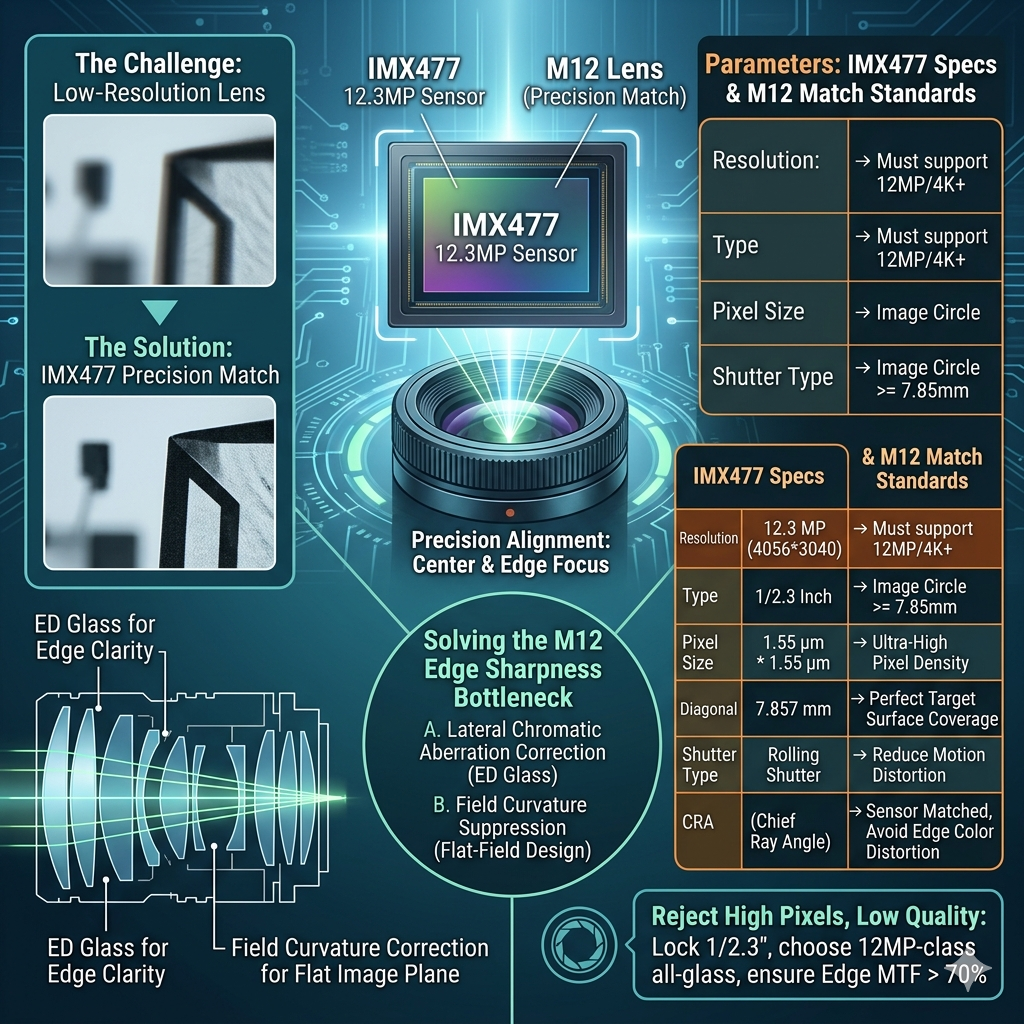

2. Specification Table: IMX477 Key Metrics & M12 Lens Matching Standards

To avoid wasting the 12.3MP potential of the IMX477, refer to the following precision matching table during selection:

3. Overcoming Peripheral Resolution Bottlenecks in M12 Lenses

When expanding solutions for the IMX477, focus on these three critical factors:

A. Eliminating Lateral Chromatic Aberration: Since the pixel size is only 1.55 μm, any slight dispersion is magnified at 12 megapixels. Premium M12 lenses utilize ED (Extra-low Dispersion) glass to ensure light converges precisely even at the sensor edges, eliminating purple or green fringing at high-contrast boundaries.

B. Suppressing Field Curvature: Traditional lenses often have an arched focal plane, causing the edges to be out of focus when the center is sharp. For the IMX477, you must select M12 lenses with a "Flat-Field Design." These lenses use complex element combinations to ensure the entire sensor—from the center to the diagonal corners—sits on the same focal plane.

4. Rejecting "High Pixels, Low Quality"

The Sony IMX477 is a sensor model with an exceptionally high performance ceiling. If paired with a low-cost M12 lens of insufficient resolving power, the actual output quality may be inferior to that of a 5MP setup.

The key to achieving a successful precision fit is to lock in the 1/2.3" format, prioritize 12MP-grade All-Glass lenses, and ensure the peripheral MTF values remain above 70%.
