Onsemi AR2020 Lens Selection Guide: JSD3840 3.8mm M12 Low Distortion Lens for 1/1.8" Camera Modules

Selecting the right imaging lens for an industrial camera module requires more than simply matching focal length and sensor size. Optical performance factors including image circle coverage, distortion control, field of view, resolution capability and mechanical integration all influence the final imaging quality.

The Onsemi AR2020 is a high-resolution 1/1.8" CMOS image sensor widely used in industrial vision, robotics, embedded cameras and intelligent inspection systems. For camera manufacturers developing AR2020-based modules, JSD Optics provides the JSD3840 3.8mm M12 low distortion imaging lens, offering a compact optical solution with wide field of view, controlled distortion and reliable mechanical integration.

This article explains the key lens selection considerations for AR2020 sensor applications, introduces the optical advantages of JSD3840, and describes JSD Optics' custom lens development capability for special industrial vision requirements.

1. Lens Selection Principles for Onsemi AR2020 Sensor Applications

A high-performance CMOS sensor can only achieve its expected imaging capability when paired with a properly matched optical system. For AR2020 camera modules, engineers should evaluate multiple optical parameters instead of selecting lenses only by focal length.

1.1 Key Optical Parameters to Consider

Important lens selection factors for AR2020-based imaging systems include:

• Sensor format compatibility: The lens image circle should fully cover the 1/1.8" sensor format.

• Resolution capability: The lens optical performance should match the imaging requirements of the camera system.

• Distortion control: Low distortion is important for machine vision measurement and object recognition applications.

• Field of view requirements: Lens selection should consider working distance and target scene coverage.

• Mechanical compatibility: M12 S-mount design enables integration with common camera module structures.

1.2 Why Lens-Sensor Matching Matters

Poor lens and sensor matching can introduce problems such as corner image degradation, uneven illumination, increased calibration requirements and reduced image accuracy.

For industrial vision systems, optical characteristics including image circle coverage, distortion performance and mechanical tolerance directly influence camera module reliability during mass production.

2. JSD3840 3.8mm M12 Low Distortion Lens for AR2020 Camera Modules

JSD3840 is a compact M12 imaging lens designed for 1/1.8" sensor applications. With a 3.80mm effective focal length, wide-angle optical design and low distortion performance, it provides a practical solution for embedded vision and industrial camera applications.

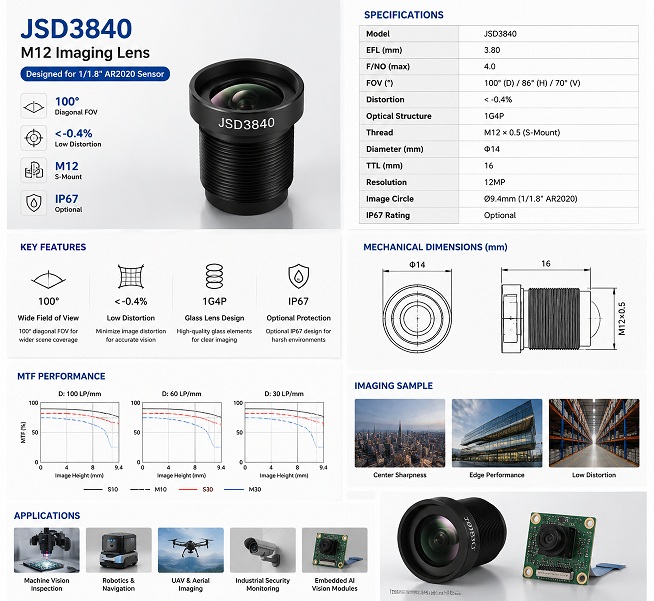

2.1 JSD3840 Optical Specification

2.2 Main Advantages of JSD3840 Lens

• Ultra-low distortion design: With distortion below -0.4%, JSD3840 helps reduce image deformation and improves accuracy in machine vision applications.

• Wide field of view capability: The 100° diagonal FOV design enables larger scene coverage for robotics and embedded vision systems.

• Compact M12 structure: The Φ14mm diameter and 16mm TTL design simplify integration into small camera modules.

• Industrial application flexibility: Optional IP67 protection supports outdoor and industrial environments requiring additional protection.

3. Why Choose a Low Distortion Lens for AR2020 Vision Systems?

In industrial imaging applications, lens distortion directly affects measurement accuracy, object recognition and image processing performance. Compared with general-purpose M12 lenses, low distortion lenses provide more reliable image geometry for machine vision systems.

3.1 Common Problems Caused by Unsuitable Lenses

4. Applications of JSD3840 + Onsemi AR2020 Camera Modules

The combination of AR2020 sensor platform and JSD3840 M12 low distortion lens is suitable for various industrial and embedded vision applications where compact design and stable optical performance are required.

4.1 Machine Vision Inspection

Low distortion imaging helps maintain accurate object shape and position information, making JSD3840 suitable for automated inspection systems, quality control equipment and industrial measurement applications.

4.2 Robotics Vision Systems

The wide 100° field of view allows robots to capture a larger surrounding area, supporting navigation, object recognition and intelligent perception functions.

4.3 Embedded AI Vision Modules

The compact M12 mounting structure and small optical dimensions make JSD3840 suitable for space-limited embedded camera designs used in AI vision devices.

4.4 Industrial Security and Monitoring Cameras

With optional IP67 protection capability, JSD3840 can be integrated into industrial monitoring systems requiring additional environmental protection.

5. Custom Lens Development for Onsemi AR2020 Projects

While JSD3840 provides a standard optical solution for many AR2020-based camera modules, some projects require customized optical designs due to special field of view, mechanical dimensions or environmental requirements.

5.1 When Custom Lens Design Is Required

JSD Optics provides customized lens development when customers require:

• Customized focal length or field of view

• Special working distance requirements

• Smaller mechanical package limitations

• Higher resolution optical requirements

• IR correction or special optical coating

• Waterproof or industrial protection requirements

5.2 JSD Custom Lens Development Workflow

1. Analyze customer sensor specifications, application environment and optical requirements

2. Complete optical simulation and mechanical design based on project parameters

3. Manufacture prototype lenses and perform optical testing including MTF, distortion and image evaluation

4. Validate lens performance with customer camera modules

5. Support mass production with consistent quality control

FAQ

Q1: Is JSD3840 compatible with Onsemi AR2020 sensor applications?
       A1: JSD3840 is designed for 1/1.8" sensor applications and provides a Ø9.4mm image circle suitable for AR2020-based camera module designs. Final system compatibility depends on the complete camera optical and mechanical design.

Q2: What are the main specifications of JSD3840 M12 lens?
       A2: JSD3840 features a 3.80mm focal length, F4.0 aperture, 100° diagonal field of view, < -0.4% distortion, M12 mount, Φ14mm diameter, 16mm TTL and Ø9.4mm image circle.

Q3: Why is low distortion important for industrial cameras?
       A3: Low distortion helps maintain accurate image geometry, reducing correction workload and improving reliability in applications such as machine vision inspection, robotics and measurement systems.

Q4: Can JSD Optics customize lenses for AR2020 camera projects?
       A4: Yes. JSD Optics provides customized optical development services including focal length adjustment, FOV customization, mechanical optimization, optical simulation and prototype validation.

Conclusion

For camera manufacturers developing systems based on the Onsemi AR2020 1/1.8" sensor, selecting a properly matched M12 lens is essential for achieving stable imaging performance.

JSD3840 provides a compact and reliable optical solution with:

• 3.80mm effective focal length

• 100° wide field of view

• Less than -0.4% distortion performance

• Ø9.4mm image circle for 1/1.8" sensor applications

• Compact M12 S-mount mechanical design

For projects requiring special optical specifications, JSD Optics also provides complete custom lens development services from optical design and prototype evaluation to mass production support.

CTA: Contact JSD Optics engineering team for professional lens selection support and customized optical solutions for your Onsemi AR2020 camera module project.
