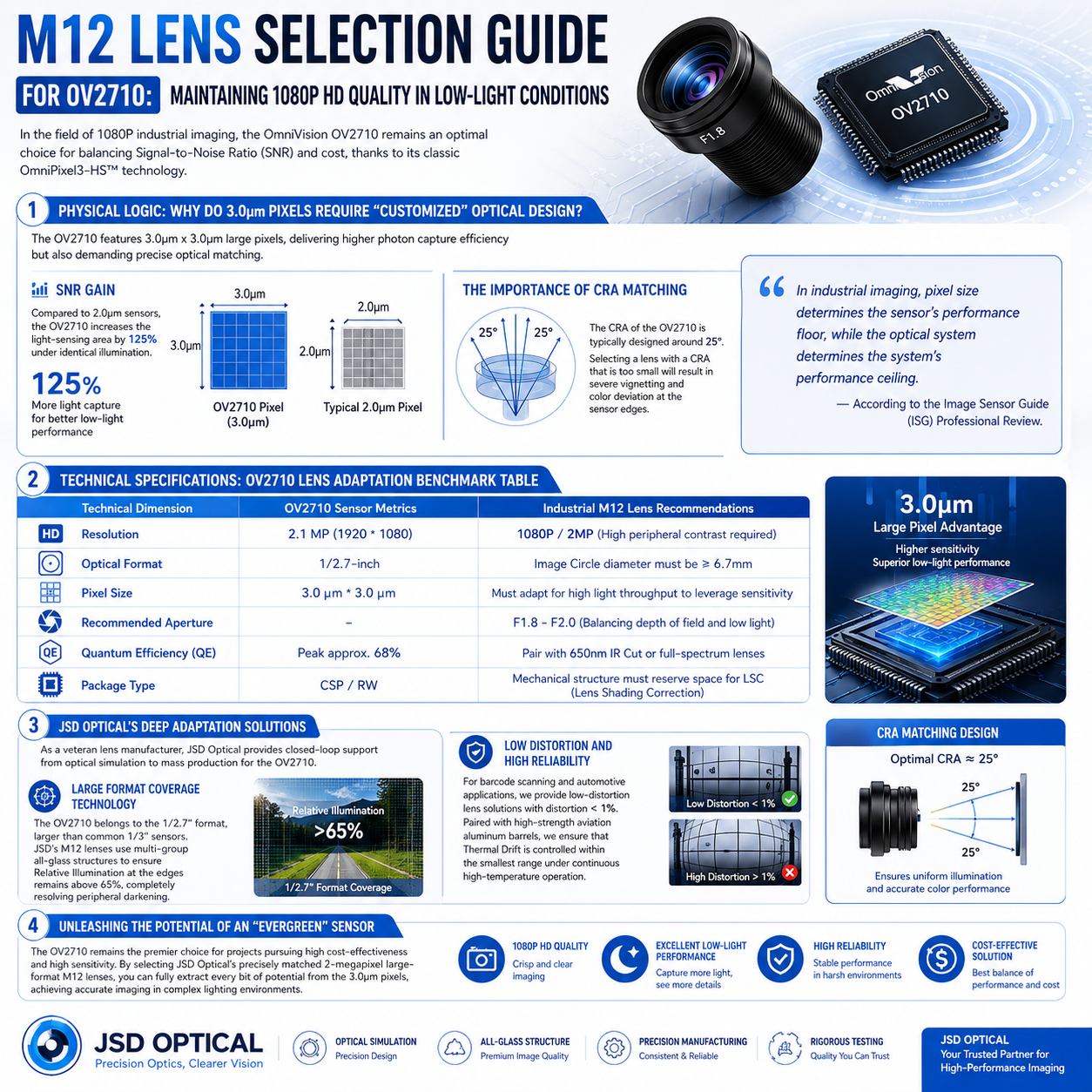

M12 Lens Selection Guide for OV2710: Maintaining 1080P HD Quality in Low-Light Conditions
In the field of 1080P industrial imaging, the OmniVision OV2710 remains an optimal choice for balancing Signal-to-Noise Ratio (SNR) and cost, thanks to its classic OmniPixel3-HS™ technology. For engineers, the core challenge of adapting this 1/2.7" sensor lies in leveraging its 3.0µm large pixel advantage through optical lenses to achieve extreme low-light performance.
1. Physical Logic: Why do 3.0µm Pixels Require "Customized" Optical Design?
The pixel size of the OV2710 is 3.0µm x 3.0µm, which is significantly larger than the pixel area of mainstream 5MP/8MP sensors. This implies higher photon capture efficiency but also extreme sensitivity to Chief Ray Angle (CRA) matching.
SNR Gain: Compared to 2.0µm sensors, the OV2710 increases the light-sensing area by 125% under identical illumination. If the lens aperture (F-number) is selected improperly, the low-noise advantages of large pixels cannot be realized.
The Importance of CRA Matching: The CRA of the OV2710 is typically designed around 25°. Selecting a lens with a CRA that is too small will result in severe vignetting and color deviation at the sensor edges.
"In industrial imaging, pixel size determines the sensor's performance floor, while the optical system determines the system's performance ceiling." — According to the Image Sensor Guide (ISG) Professional Review.
2. Technical Specifications: OV2710 Lens Adaptation Benchmark Table
Based on official OmniVision OV2710 technical manual data, the following M12 lens selection references are recommended:
Technical Dimension | OV2710 Sensor Metrics | Industrial M12 Lens Recommendations |
Resolution | 2.1 MP (1920 * 1080) | 1080P / 2MP (High peripheral contrast required) |
Optical Format | 1/2.7-inch | Image Circle diameter must be ≥ 6.7mm |
Pixel Size | 3.0 μm * 3.0 μm | Must adapt for high light throughput to leverage sensitivity |
Recommended Aperture | - | F1.8 - F2.0 (Balancing depth of field and low light) |
Quantum Efficiency (QE) | Peak approx. 68% | Pair with 650nm IR Cut or full-spectrum lenses |
Package Type | CSP / RW | Mechanical structure must reserve space for LSC (Lens Shading Correction) |
3. JSD Optical’s Deep Adaptation Solutions
As a veteran lens manufacturer, JSD Optical provides closed-loop support from optical simulation to mass production for the OV2710:
Large Format Coverage Technology: The OV2710 belongs to the 1/2.7" format, which is larger than the common 1/3" sensors. M12 lenses developed by JSD utilize multi-group all-glass structures to ensure that Relative Illumination at the edges remains above 65%, completely resolving the issue of peripheral darkening.
Low Distortion and High Reliability: For barcode scanning and automotive applications, we provide low-distortion lens solutions with distortion < 1%. Paired with high-strength aviation aluminum barrels, we ensure that Thermal Drift is controlled within the smallest range under continuous high-temperature operation.
4. Unleashing the Potential of an "Evergreen" Sensor
The OV2710 remains the premier choice for projects pursuing high cost-effectiveness and high sensitivity. By selecting JSD Optical's precisely matched 2-megapixel large-format M12 lenses, you can fully extract every bit of potential from the 3.0µm pixels, achieving accurate imaging in complex lighting environments.
