SC2235 Adaptation Guide: How to Create a Cost-Effective M12 Lens Combination
In the development of 1080p security surveillance and Internet of Things (IoT) devices, the SmartSens SC2235 is an indispensable core component. According to SmartSens technical manuals, this sensor performs exceptionally well in low-light environments thanks to its 3.0μm large pixel design. However, if the lens selection is improper, more than half of its performance advantages may be lost.

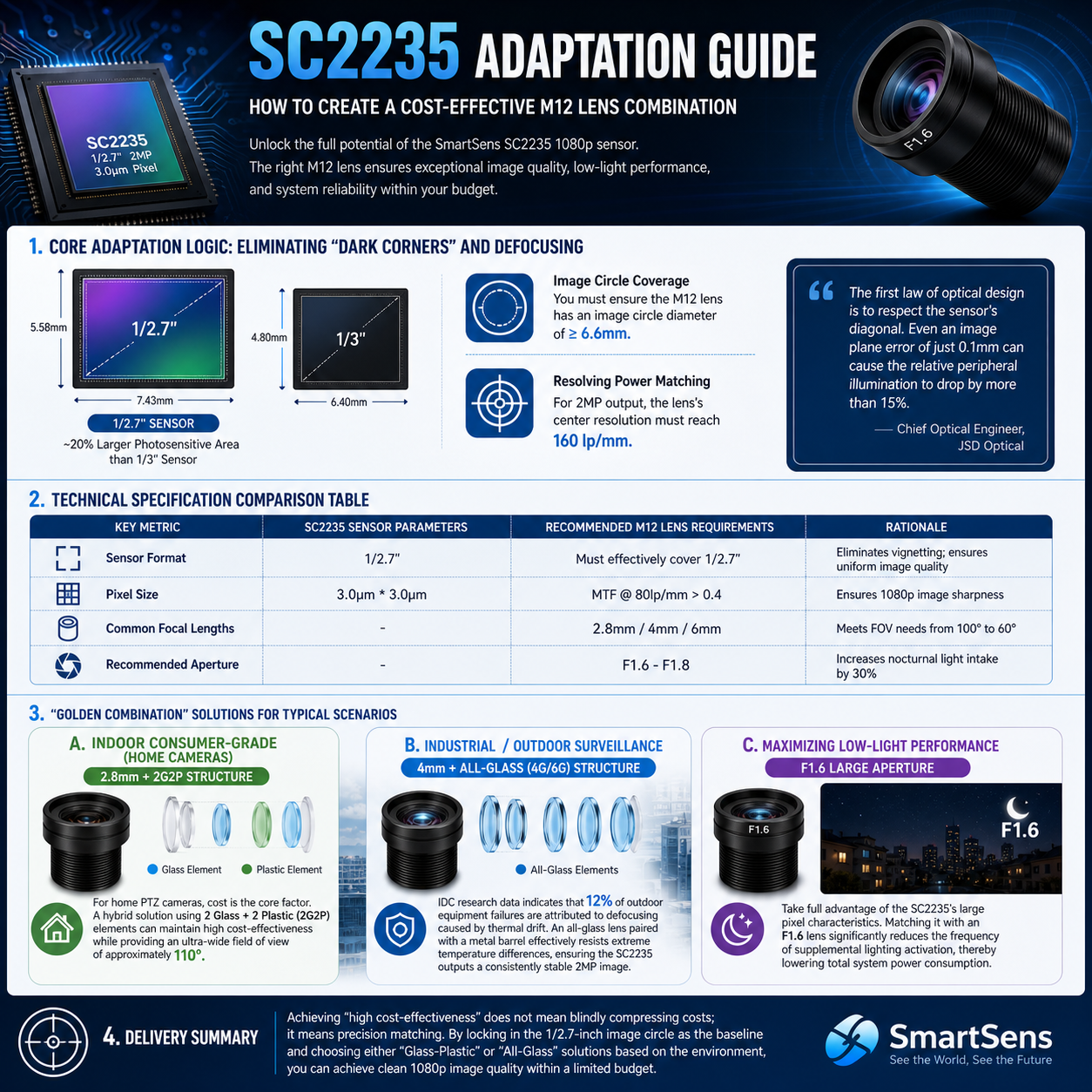

1. Core Adaptation Logic: Eliminating "Dark Corners" and Defocusing
The SC2235 utilizes a 1/2.7” specification, meaning its photosensitive area is approximately 20% larger than traditional 1/3” sensors.
"The first law of optical design is to respect the sensor's diagonal. Even an image plane error of just 0.1mm can cause the relative peripheral illumination to drop by more than 15%." — Chief Optical Engineer, JSD Optical
Image Circle Coverage: You must ensure the M12 lens has an image circle diameter of ≥ 6.6mm.
Resolving Power Matching: For 2MP output, the lens's center resolution must reach 160 lp/mm.
2. Technical Specification Comparison Table
Key Metric | SC2235 Sensor Parameters | Recommended M12 Lens Requirements | Rationale |
Sensor Format | 1/2.7" | Must effectively cover 1/2.7" | Eliminates vignetting; ensures uniform image quality |
Pixel Size | 3.0μm * 3.0μm | MTF @ 80lp/mm > 0.4 | Ensures 1080p image sharpness |
Common Focal Lengths | - | 2.8mm / 4mm / 6mm | Meets FOV needs from 100° to 60° |
Recommended Aperture | - | F1.6 - F1.8 | Increases nocturnal light intake by 30% |
3. "Golden Combination" Solutions for Typical Scenarios
A. Indoor Consumer-Grade (Home Cameras): 2.8mm + 2G2P Structure For home PTZ cameras, cost is the core factor. A hybrid solution using 2 Glass + 2 Plastic (2G2P) elements can maintain high cost-effectiveness while providing an ultra-wide field of view of approximately 110°.
B. Industrial/Outdoor Surveillance: 4mm + All-Glass (4G/6G) Structure IDC research data indicates that 12% of outdoor equipment failures are attributed to defocusing caused by thermal drift. An All-Glass lens paired with a metal barrel effectively resists extreme temperature differences, ensuring the SC2235 outputs a consistently stable 2MP image.
C. Maximizing Low-Light Performance: F1.6 Large Aperture Take full advantage of the SC2235's large pixel characteristics. Matching it with an F1.6 lens significantly reduces the frequency of supplemental lighting activation, thereby lowering total system power consumption.
4. Delivery Summary
Achieving "high cost-effectiveness" does not mean blindly compressing costs; it means precision matching. By locking in the 1/2.7-inch image circle as the baseline and choosing either "Glass-Plastic" or "All-Glass" solutions based on the environment, you can achieve clean 1080p image quality within a limited budget.
