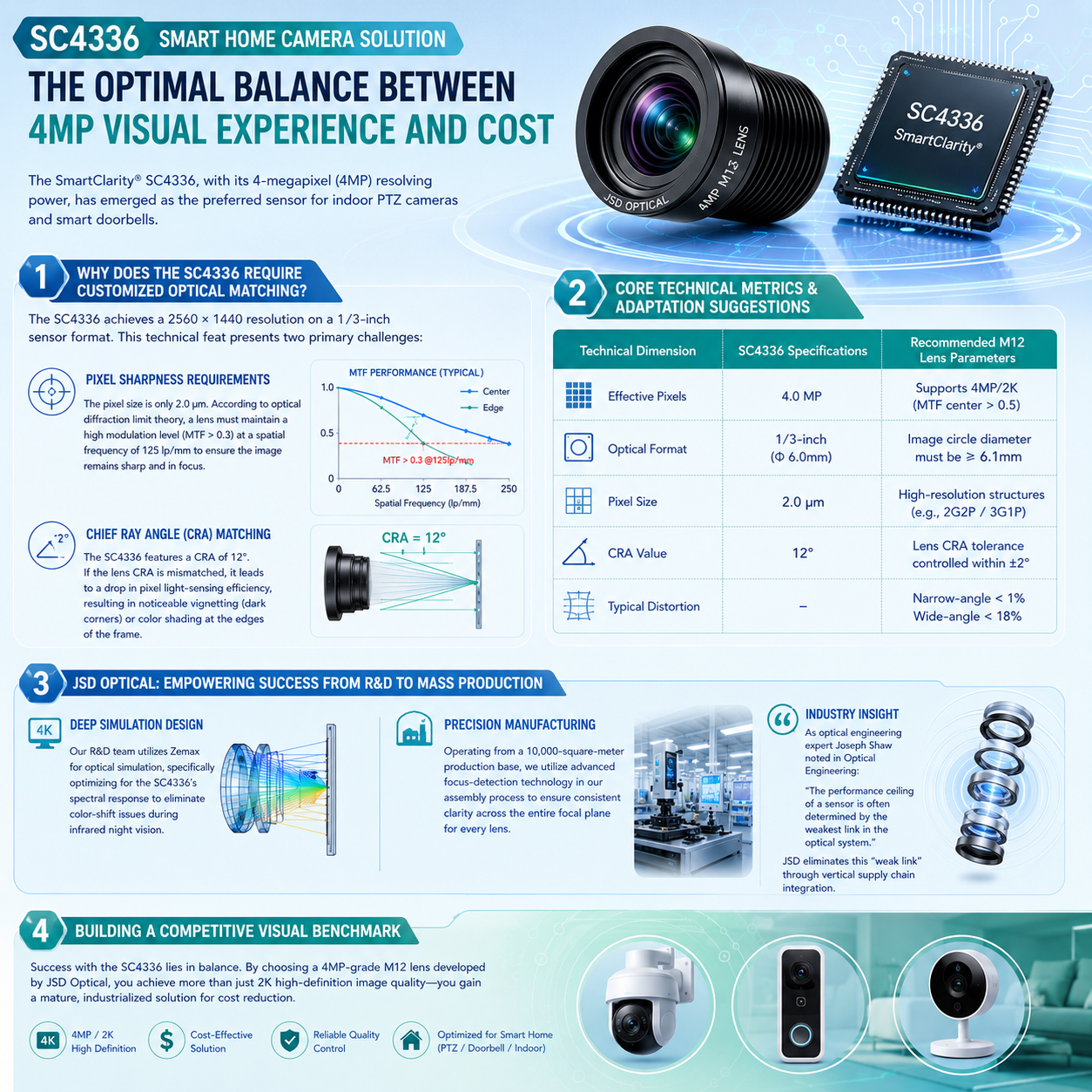

SC4336 Smart Home Camera Solution: The Optimal Balance Between 4MP Visual Experience and Cost
In the smart home market, developers are navigating a rigorous balancing act between high performance and low cost. The SmartClarity® SC4336, with its 4-megapixel (4MP) resolving power, has emerged as the preferred sensor for indoor PTZ cameras and smart doorbells. According to research data from Strategy Analytics, global demand for smart home monitoring at 2K (4MP) resolutions and above is growing by more than 20% annually. To fully unlock the potential of the SC4336, precise matching with the M12 lens is essential.
1. Why Does the SC4336 Require Customized Optical Matching?
The SC4336 achieves a 2560 * 1440 resolution on a 1/3-inch sensor format. This technical feat presents two primary challenges:
Pixel Sharpness Requirements: The pixel size is only 2.0 μm. According to optical diffraction limit theory, a lens must maintain a high modulation level (MTF > 0.3) at a spatial frequency of 125 lp/mm to ensure the image remains sharp and in focus.
Chief Ray Angle (CRA) Matching: The SC4336 features a CRA of 12°. If the lens CRA is mismatched, it leads to a drop in pixel light-sensing efficiency, resulting in noticeable vignetting (dark corners) or color shading at the edges of the frame.
2. Core Technical Metrics & Adaptation Suggestions
The following adaptation guide is based on measured data from JSD Optical:
Technical Dimension | SC4336 Specifications | Recommended M12 Lens Parameters |
Effective Pixels | 4.0 MP | Supports 4MP/2K (MTF center > 0.5) |
Optical Format | 1/3-inch (Φ 6.0mm) | Image circle diameter must be ≥ 6.1mm |
Pixel Size | 2.0 μm | High-resolution structures (e.g., 2G2P / 3G1P) |
CRA Value | 12° | Lens CRA tolerance controlled within ±2° |
Typical Distortion | - | Narrow-angle < 1%; Wide-angle < 18% |
3. JSD Optical: Empowering Success from R&D to Mass Production
As a manufacturer with 17 years of expertise in the optical field, Shenzhen JSD Optical Co., Ltd. offers distinct advantages in adapting solutions for the SC4336:
Deep Simulation Design: Our R&D team utilizes Zemax for optical simulation, specifically optimizing for the SC4336’s spectral response to eliminate color-shift issues during infrared night vision.
Precision Manufacturing: Operating from a 10,000-square-meter production base, we utilize advanced focus-detection technology in our assembly process to ensure consistent clarity across the entire focal plane for every lens.
Industry Insight: As optical engineering expert Joseph Shaw noted in Optical Engineering: "The performance ceiling of a sensor is often determined by the weakest link in the optical system." JSD eliminates this "weak link" through vertical supply chain integration.
4. Building a Competitive Visual Benchmark
Success with the SC4336 lies in balance. By choosing a 4MP-grade M12 lens developed by JSD Optical, you achieve more than just 2K high-definition image quality—you gain a mature, industrialized solution for cost reduction.
