JSD1326

Product Overview

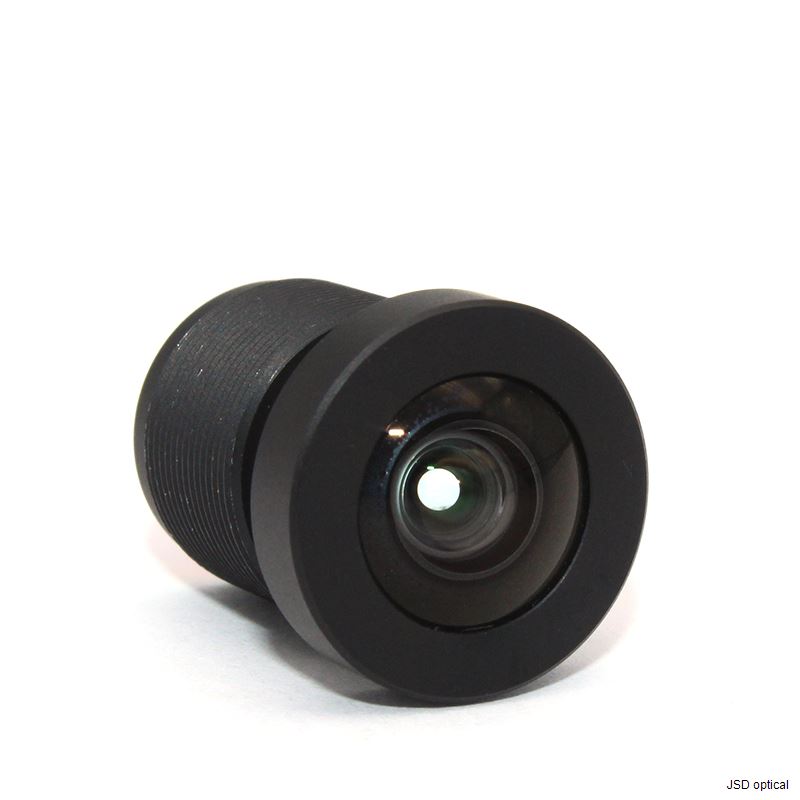

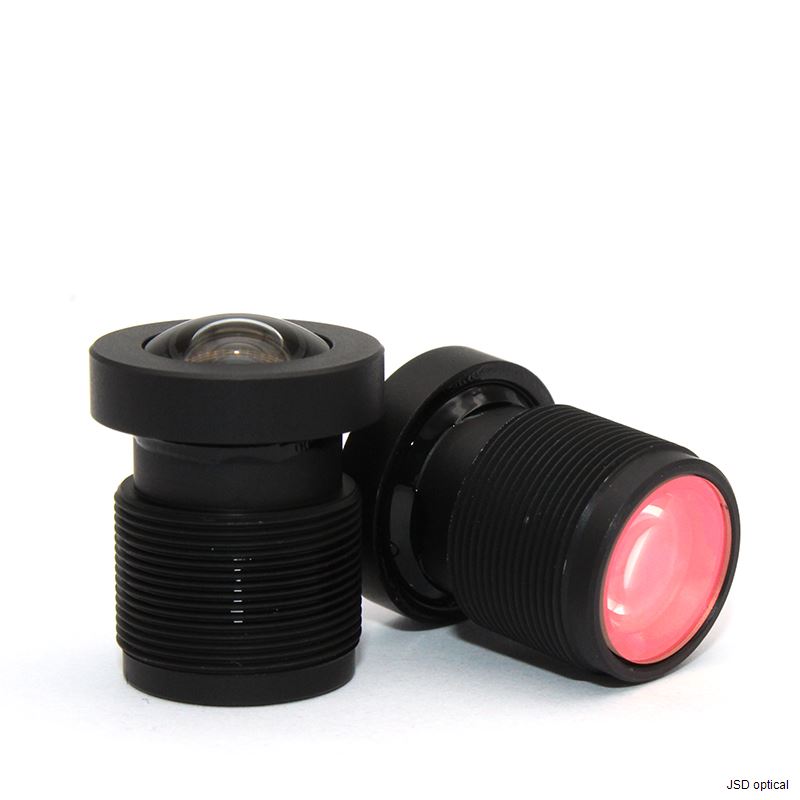

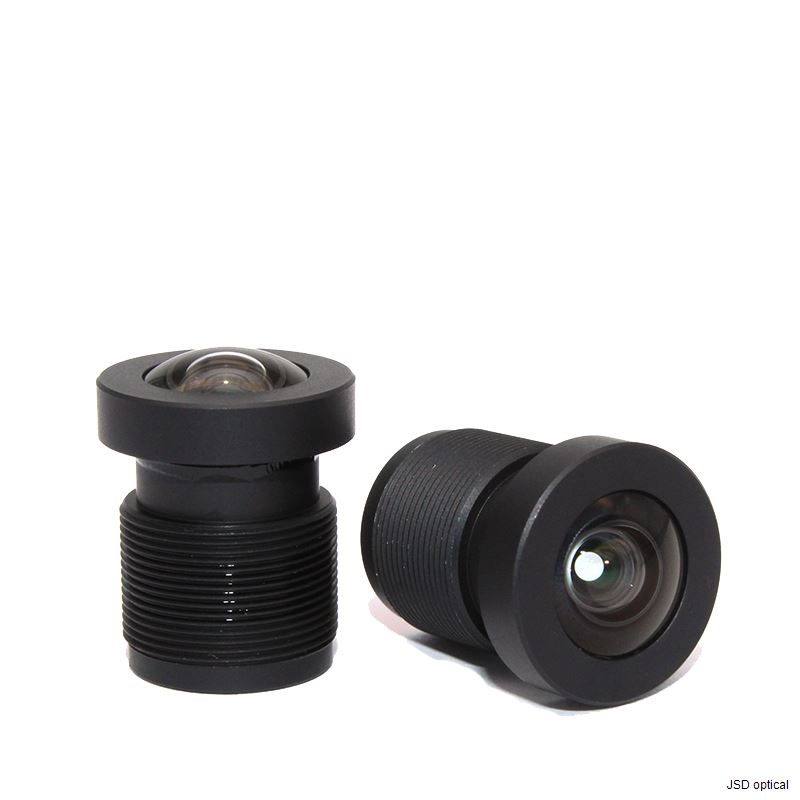

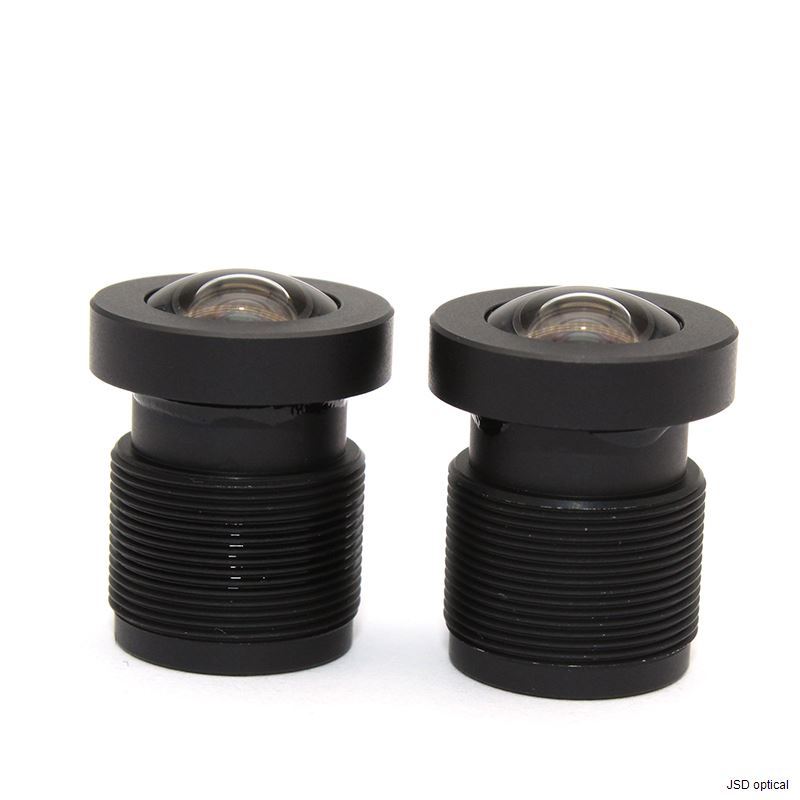

This high-performance M12 mount fixed focal lens (PN: JSD1326) is expertly engineered for 1/2.3-inch sensors, delivering reliable clarity and wide-area coverage for diverse imaging applications. With a 3.56mm focal length and F2.5 aperture, it provides a comprehensive 105° field of view, making it ideal for security monitoring, consumer electronics, and industrial vision systems. Featuring a robust optical design with a Total Track Length (TTL) of 22.8mm, this lens ensures stable image performance and consistent sharpness across the entire image circle.

Key Features & Benefits

Optimized for 1/2.3" Sensors: Specifically designed to match the 1/2.3" format image circle, ensuring maximum sensor utilization and uniform illumination from center to edge without vignetting.

Wide 105° Field of View: Offers a broad viewing angle that effectively captures large scenes, reducing the need for multiple cameras in surveillance and monitoring setups.

High-Definition Optical Design: Engineered to support high-resolution imaging, providing crisp details essential for object recognition and scene analysis.

Controlled Optical Distortion: With distortion controlled at <-16.5%, the lens balances wide-angle coverage with natural visual perception, suitable for standard wide-angle applications.

Standard Integration: Features a standard M12 (S-Mount) thread, allowing for easy integration into a wide variety of board cameras and housing modules.

Precise Mechanical Build: The 22.8mm TTL design ensures optical stability and precise alignment, making it a durable choice for both indoor and outdoor environments.

Applications

Security & Surveillance Cameras

Action Cameras & Sports DV

Video Conferencing Systems

Dash Cams & Automotive Imaging

Drone (UAV) Vision Systems

Smart Home Monitoring

Face Recognition Terminals

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
