JSD3026

Product Overview

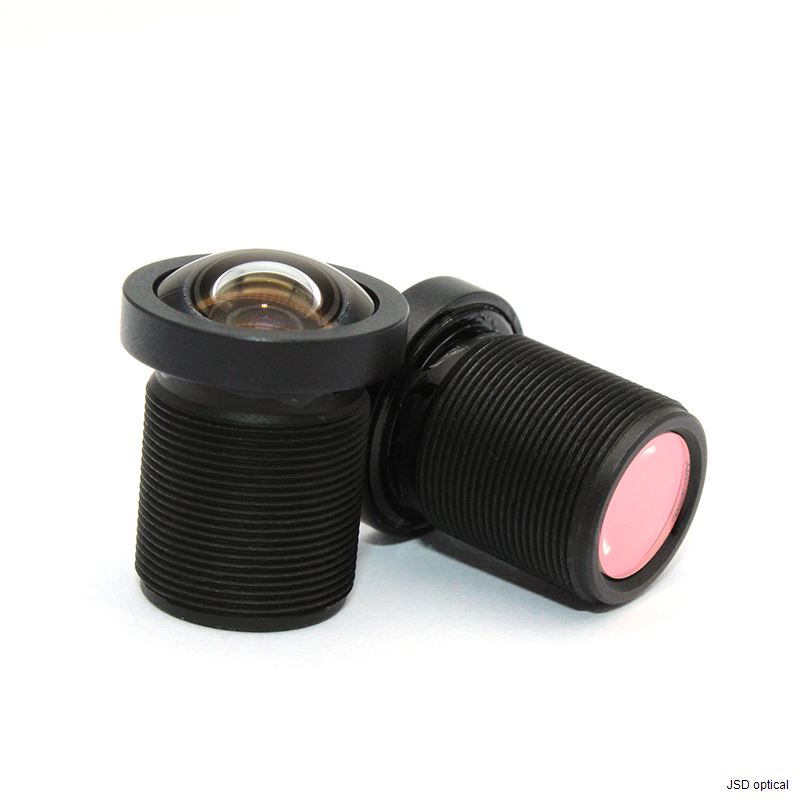

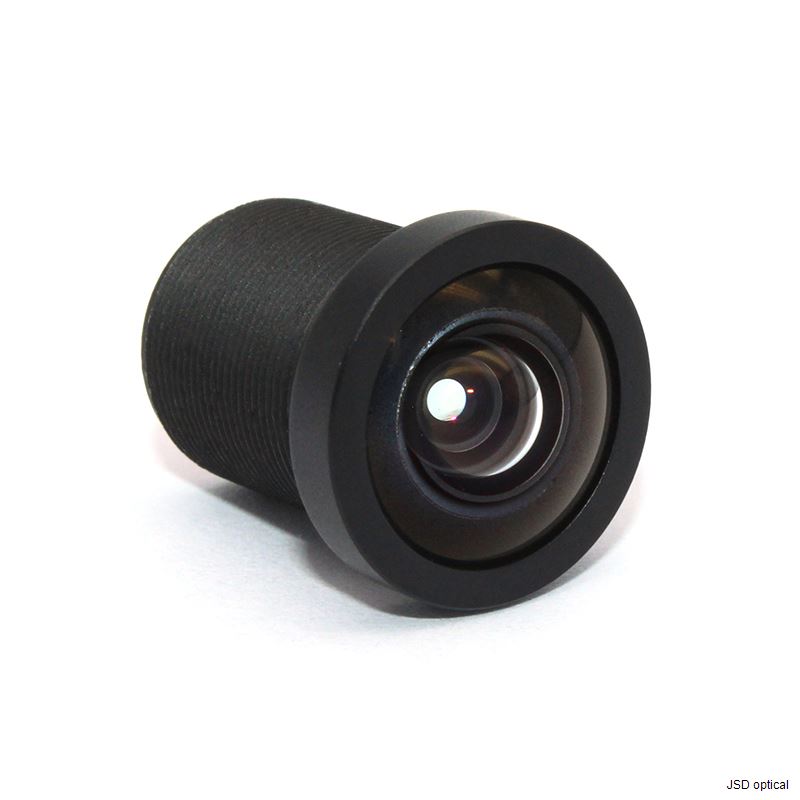

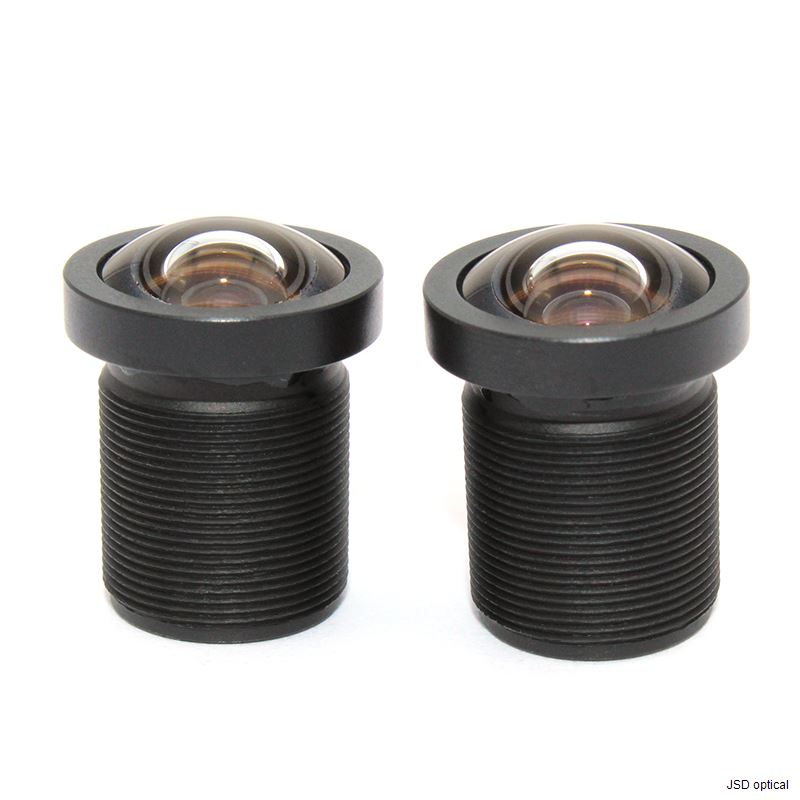

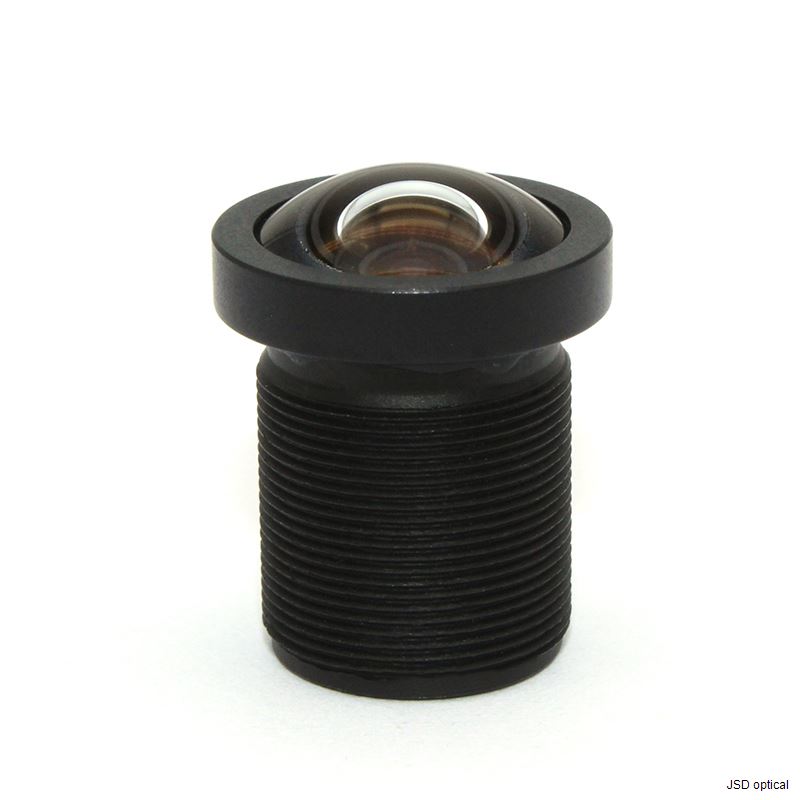

This high-quality M12 mount fixed focal lens (PN: JSD3026) is precision-engineered for 1/3-inch image sensors, delivering reliable performance for diverse imaging needs. With a 3.13mm effective focal length and a bright F1.9 aperture, it provides an expansive 124° field of view, making it an excellent choice for wide-area monitoring and security applications. Featuring 5MP resolution support, this lens ensures sharp image capture with controlled optical distortion (<18%), maintaining clarity across various lighting environments.

Key Features & Benefits

5MP High-Definition Resolution:Optimized to support 5 Megapixel sensors, delivering crisp, clear images with sufficient detail for security and monitoring tasks.

Superior Low-Light Performance:Boasting a fast F1.9 aperture, this lens allows more light intake compared to standard F2.0 lenses, ensuring better image quality in dim or challenging lighting conditions.

Optimized for 1/3" Sensors:Designed specifically to match the 1/3" image circle format, ensuring full sensor coverage without vignetting for compatible CMOS sensors.

Expansive 124° Wide FOV:Offers a broad 124° diagonal field of view, ideal for maximizing scene coverage in surveillance, video conferencing, and IoT devices.

Standard M12 Integration:Built with a standard M12 (S-Mount) thread and a Total Track Length (TTL) of 21.6mm, allowing for easy integration into standard board cameras and housings.

Controlled Optical Design:Engineered with distortion kept under 18%, balancing wide-angle coverage with natural image perspective

Applications

Security & Surveillance Cameras (CCTV)

Video Doorbells & Smart Home Devices

Dash Cams & Automotive Imaging

IoT & Embedded Vision Systems

Robotics & Obstacle Avoidance

Video Conferencing

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
