JSD3220

Product Overview

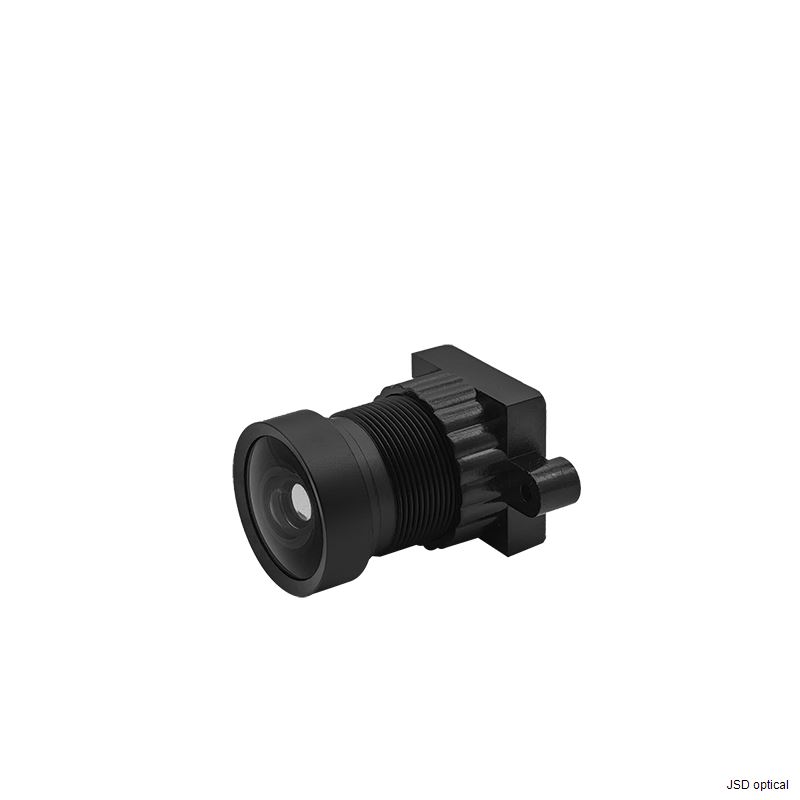

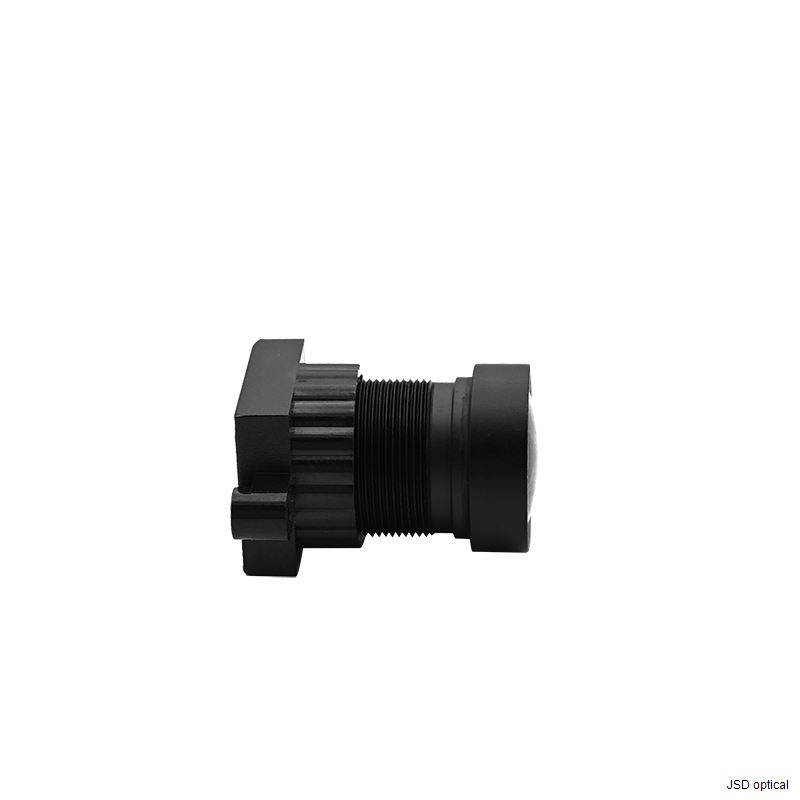

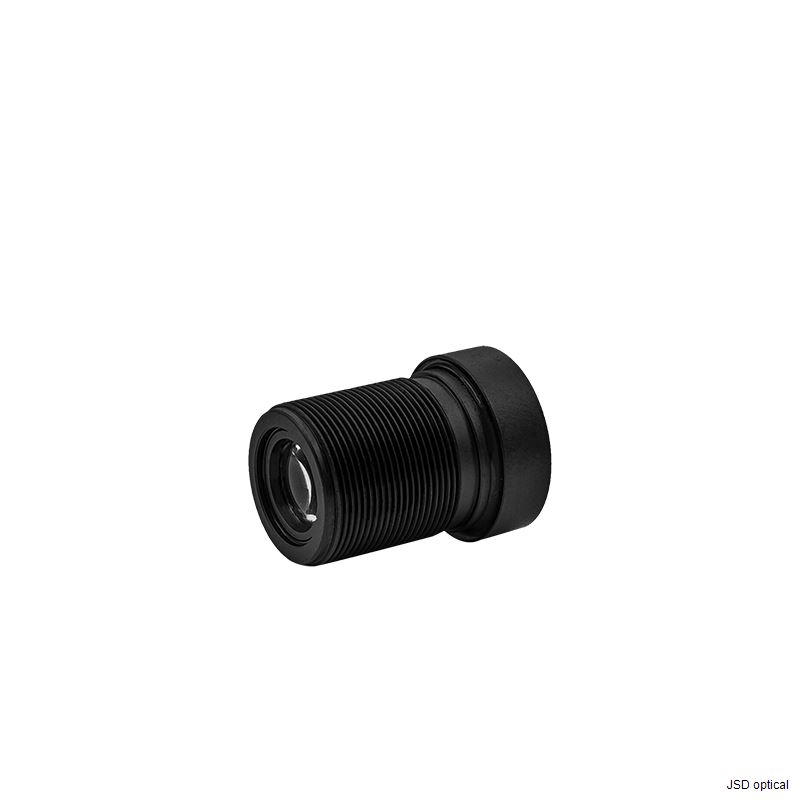

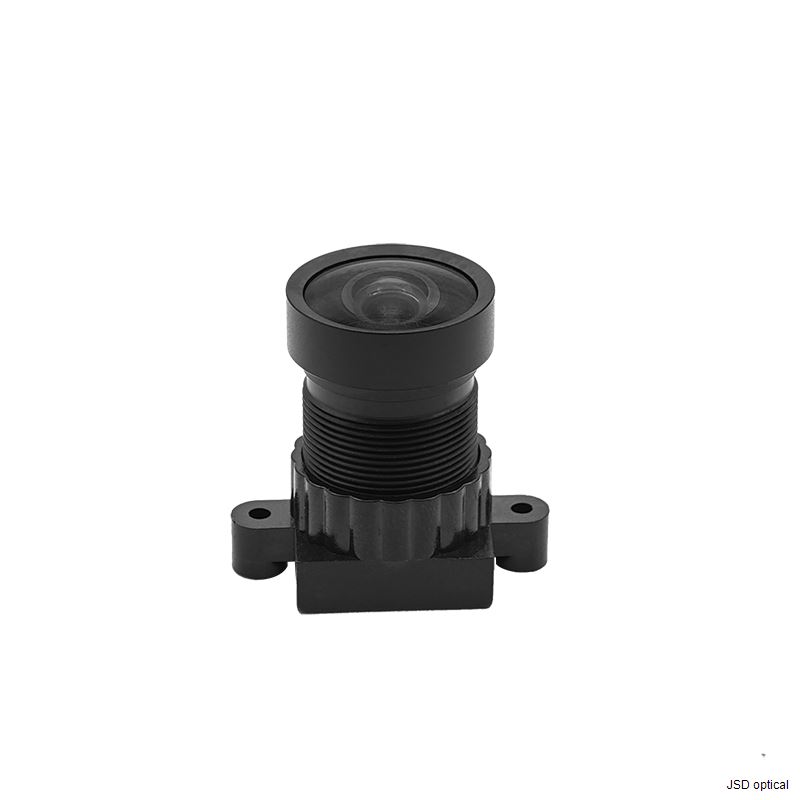

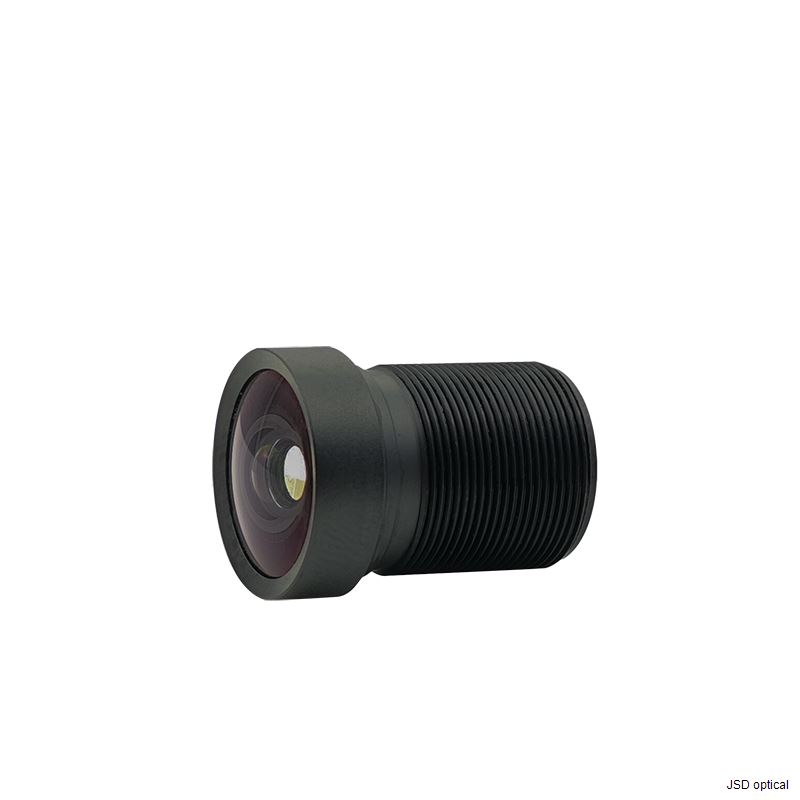

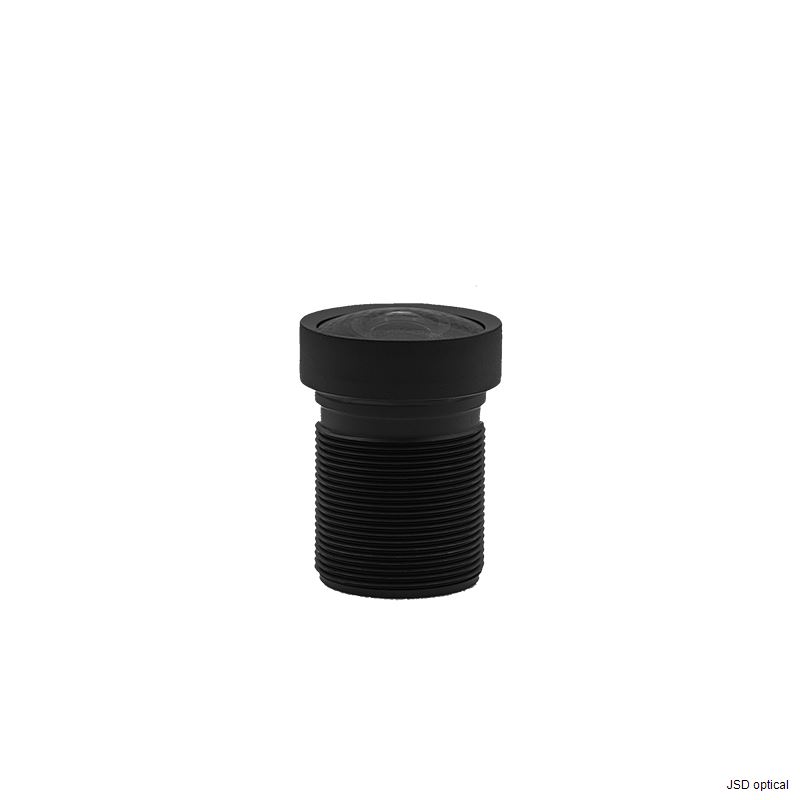

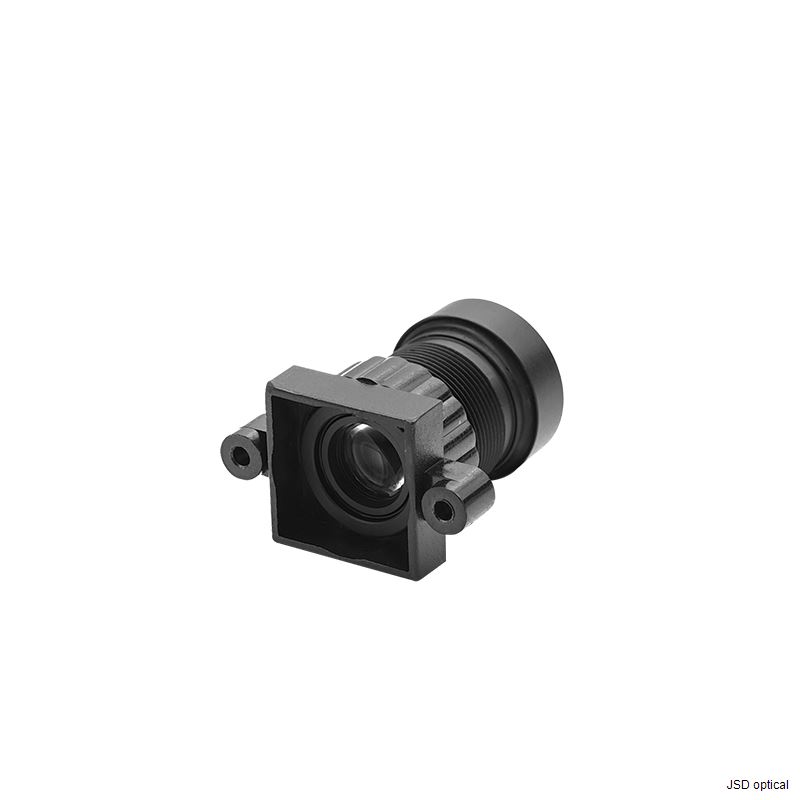

This high-performance ultra-wide-angle M12 mount lens is expertly engineered for 1/2.8-inch image sensors, offering an expansive field of view coupled with superior light-gathering capabilities. Featuring a 3.19mm focal length and a bright F2.0 aperture, it provides a broad 130° field of view, making it an outstanding choice for applications requiring comprehensive situational awareness in a compact form factor. With a 16.76mm Total Track Length (TTL) and an ultra-slim Φ6.6mm diameter, this lens delivers professional-grade, high-contrast imaging even in space-constrained hardware environments.

Perfectly compatible with the SONY IMX378 and other 1/2.3" sensors.

Key Features & Benefits

• Expansive 130° Ultra-Wide FOV: Delivers a panoramic perspective that captures significant environmental context, effectively reducing blind spots in monitoring and navigation tasks.

• Superior Low-Light Performance (F2.0): The large F2.0 aperture ensures maximum light intake, providing bright, clear, and low-noise imagery in indoor or challenging low-illumination settings.

• Optimized for 1/2.8" Sensors: Specifically calibrated to match the 1/2.8" sensor format, ensuring edge-to-edge resolution and high-fidelity video streams for modern camera modules.

• Ultra-Slim "Micro" Footprint: With a specialized Φ6.6mm diameter and a short 16.76mm TTL, this lens is designed for seamless integration into the most streamlined and thin-profile devices.

• Standard M12 Interoperability: Utilizes the industry-standard M12*P0.5 thread, offering robust compatibility across a vast range of industrial, commercial, and AIoT vision platforms.

• Wide-Area Depth of Field: The 3.19mm optical design ensures a deep focus range, keeping the majority of the scene sharp from the foreground to the distance.

Applications

• Smart Home Security & IP Cameras: Wide-area monitoring for rooms, entryways, and large yards.

• Automotive In-Cabin Monitoring: Capturing the entire interior of a vehicle for safety and driver assistance (DMS).

• Robotics & Vacuum Navigation: Providing wide-field spatial awareness for obstacle avoidance and SLAM mapping.

• Video Conferencing & Huddle Rooms: Ensuring all participants are visible within a single, ultra-wide frame.

• Wearable Body Cameras: Lightweight, panoramic recording for law enforcement and outdoor activities.

• AIoT Edge Vision: Providing reliable visual data for smart city sensors and industrial automation.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com
