JSD3024

Product Overview

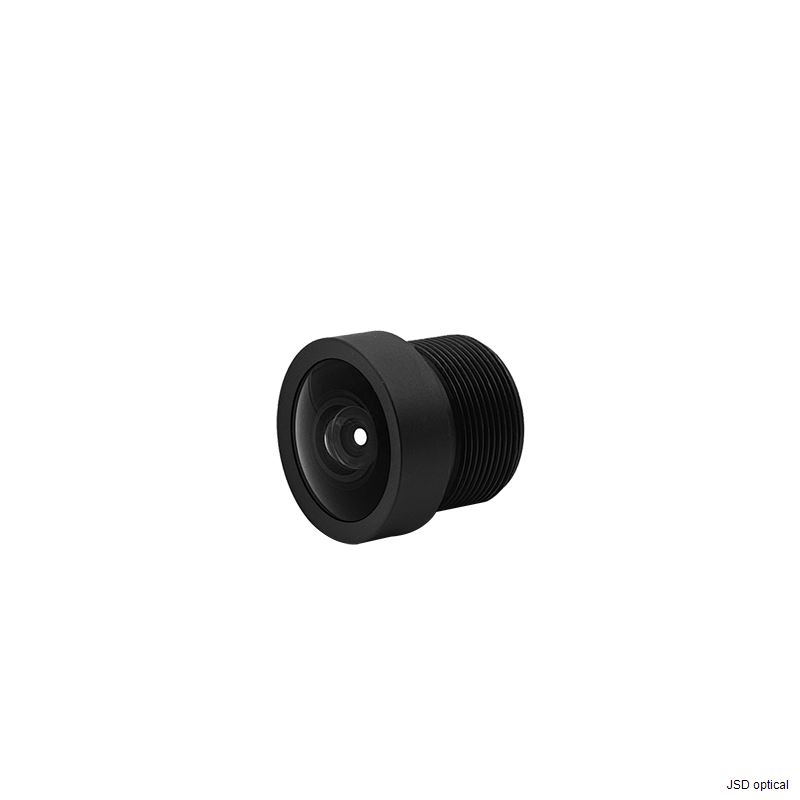

This ultra-compact 5-megapixel M12 mount lens is a marvel of optical miniaturization, specifically engineered for 1/2.8-inch image sensors. Featuring a 3.17mm focal length and an F2.4 aperture, it delivers a wide 114° field of view, providing a perfect balance between expansive coverage and image detail. The standout feature is its record-breaking 9.94mm Total Track Length (TTL), making it one of the shortest 5MP wide-angle lenses available. This lens is the definitive choice for next-generation hardware where vertical space is extremely limited but high-resolution performance is non-negotiable.

Perfectly compatible with the SONY IMX335 and other 1/2.8" sensors.

Key Features & Benefits

• 5MP High-Resolution Performance: Optimized to resolve fine details for 5-megapixel modules, ensuring crisp, professional-grade imaging for both human surveillance and AI analysis.

• Ultra-Short "Slim" TTL (9.94mm): The incredibly low profile allows for seamless integration into ultra-thin devices, such as slim-bezel laptops, tablets, and low-profile smart home sensors.

• Expansive 116° Wide-Angle FOV: Offers a broad perspective that captures extensive contextual data, making it ideal for monitoring large rooms or close-range wide-area sensing.

• Optimized for 1/2.8" Sensors: Precision-calibrated for the 1/2.8" format, maximizing light-gathering efficiency and ensuring consistent edge-to-edge sharpness.

• Refined Geometric Accuracy (<-9.11% Distortion): Despite its wide angle and ultra-short build, it maintains functional image integrity, reducing the fish-eye effect for more natural-looking visuals.

• Micro-Diameter Build (Φ6.8mm): With a sleek, miniature diameter, this lens supports the most discreet hardware designs without sacrificing optical quality.



Applications

• Ultra-Thin Laptops & Tablets: Providing high-resolution video conferencing in space-constrained bezels.

• Smart Home & IoT Sensors: Ideal for discrete video doorbells and hidden security cameras.

• Wearable Tech & Body Cams: Lightweight and low-profile optics for portable recording devices.

• Automotive Interior Monitoring: Discreetly capturing cabin activity for driver safety systems (DMS).

• Robotics & Miniature Drones: Providing high-res wide-angle vision for obstacle avoidance in small-scale hardware.

• Biometric Access Terminals: Slim-profile integration for facial recognition and secure entry points.

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Drawing

If you would like to customize a lens, please send an email to: info@jsdoptical.com
