Product Overview

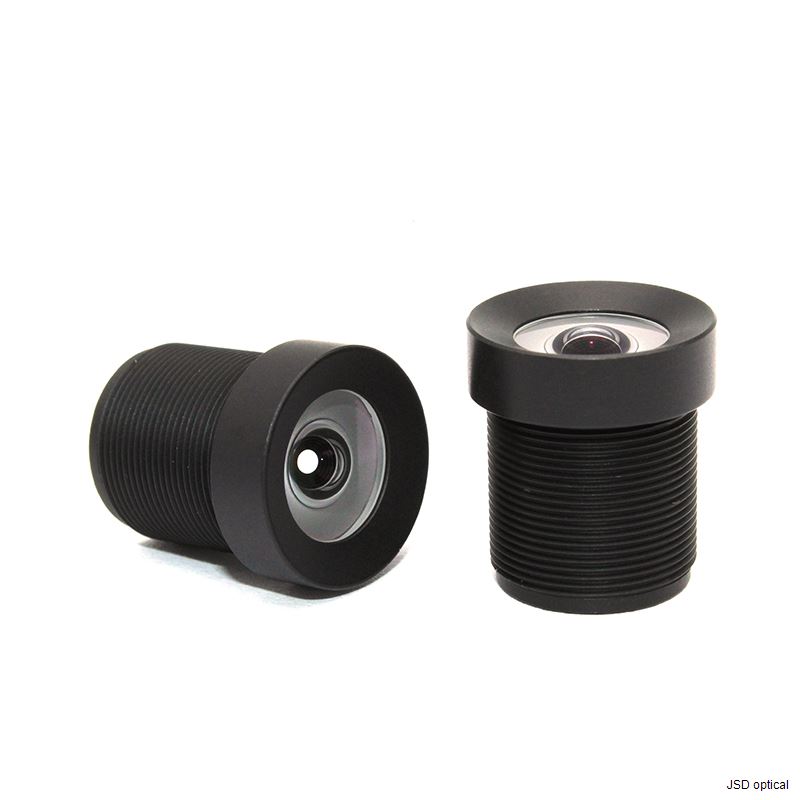

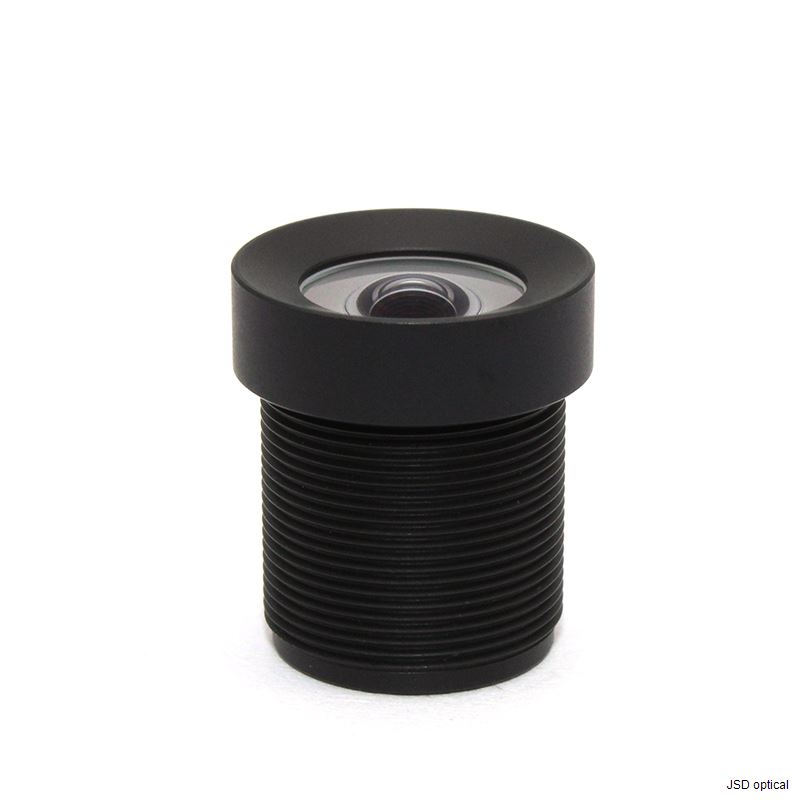

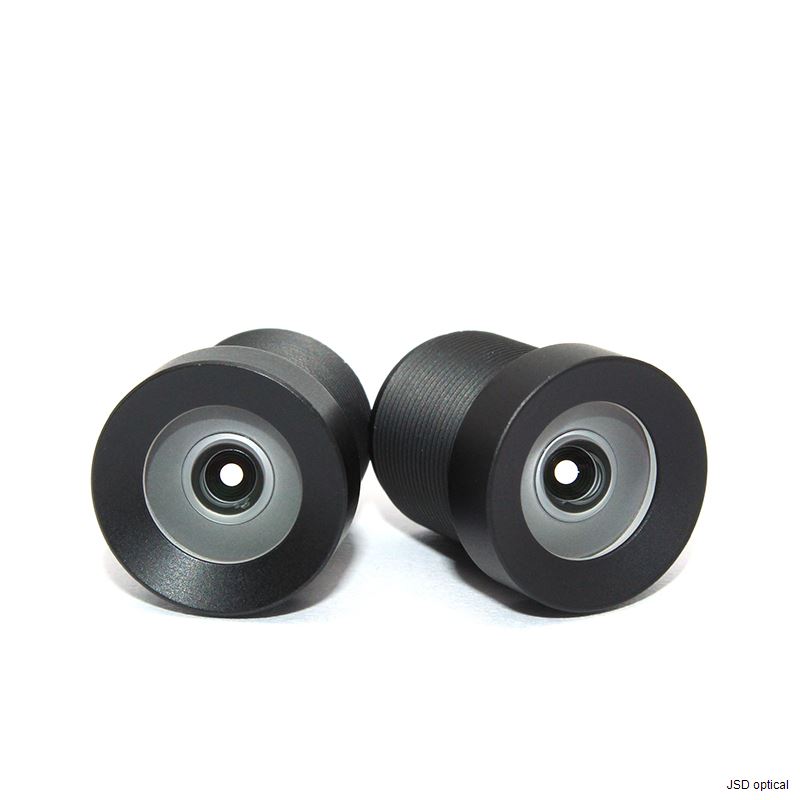

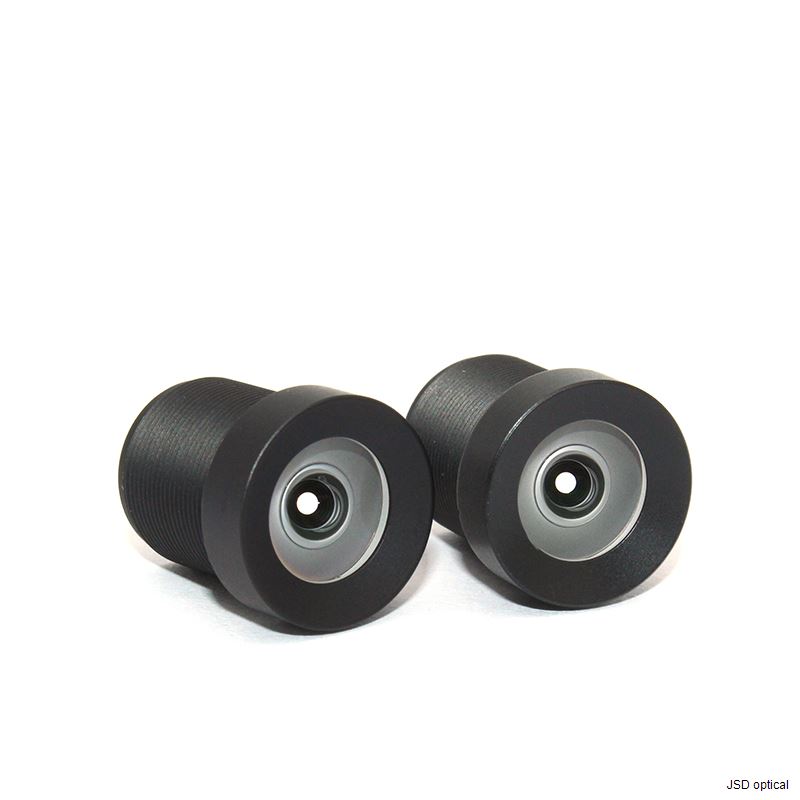

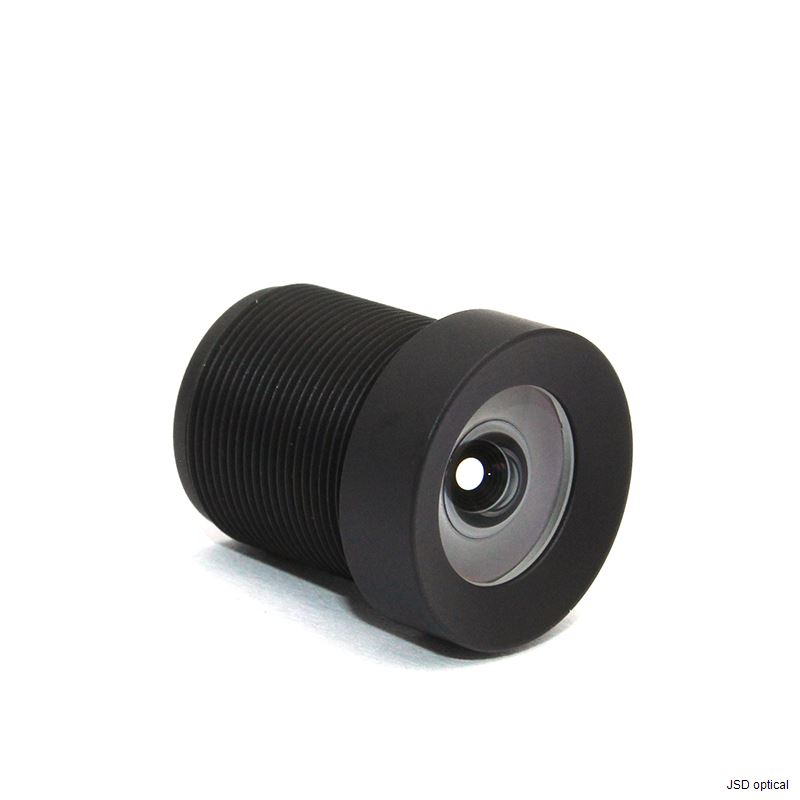

This high-performance M12 mount fixed focal lens (PN: JSD3925) is expertly engineered for high-definition imaging sensors, delivering exceptional clarity and controlled distortion for advanced imaging applications. With a 3.05mm focal length and F2.6 aperture, it provides an ultra-wide 122° field of view, making it ideal for broad-area surveillance, immersive machine vision, and panoramic scene capture. Featuring a low distortion design (<-10%) and a robust TTL 17mm structure, this lens ensures superior image sharpness and consistent performance across diverse lighting conditions.

Sensor

Compatible with the following sensors, this lens can also be deeply customized to align perfectly with your unique requirements.

OmniVision OX02B10 / OX02C10

Sony IMX390

Sony IMX385

SmartSens SC200AI

Onsemi AR0233AT

Key Features & Benefits

High-Definition Clarity: Delivers crisp, megapixel-class imaging with exceptional detail retention, ensuring clarity even in complex scenes.

Optimized Optical Specs: Features a fixed 3.05mm focal length and F2.6 aperture, providing a balanced depth of field and light intake suitable for various industrial and security environments.

Ultra-Wide 122° FOV: Provides an expansive field of view ideal for panoramic surveillance, environmental monitoring, and large-area scene capture with minimal blind spots.

Low Distortion Design: Advanced optical optimization achieves <-10% distortion, minimizing the "fish-eye" effect often found in wide-angle lenses and maintaining better straight-line accuracy.

Compact & Robust Build: Standard M12 Thread and a TTL (Total Track Length) of 17mm ensure seamless integration into space-constrained housings while maintaining mechanical durability.

Wide Application Versatility: Suited for broad-area monitoring, traffic scene analysis, indoor security, and machine vision tasks requiring wide coverage.

Applications

Wide-Area Surveillance

Intelligent Transportation Systems (ITS)

Machine Vision

Environmental Monitoring Systems

Smart City Applications

Drone & Aerial Imaging

Intrusion Detection Systems

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
