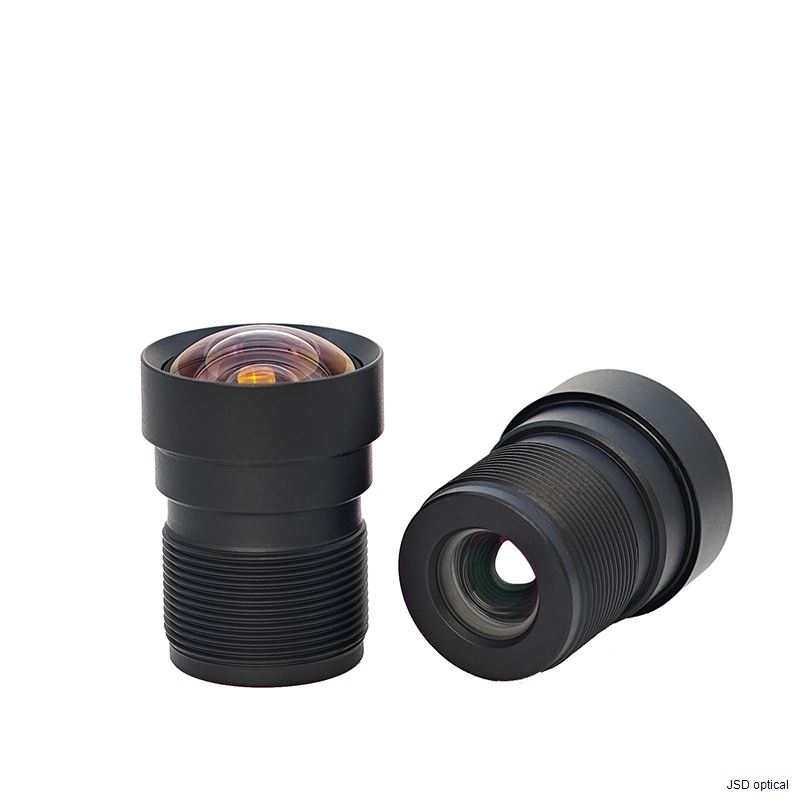

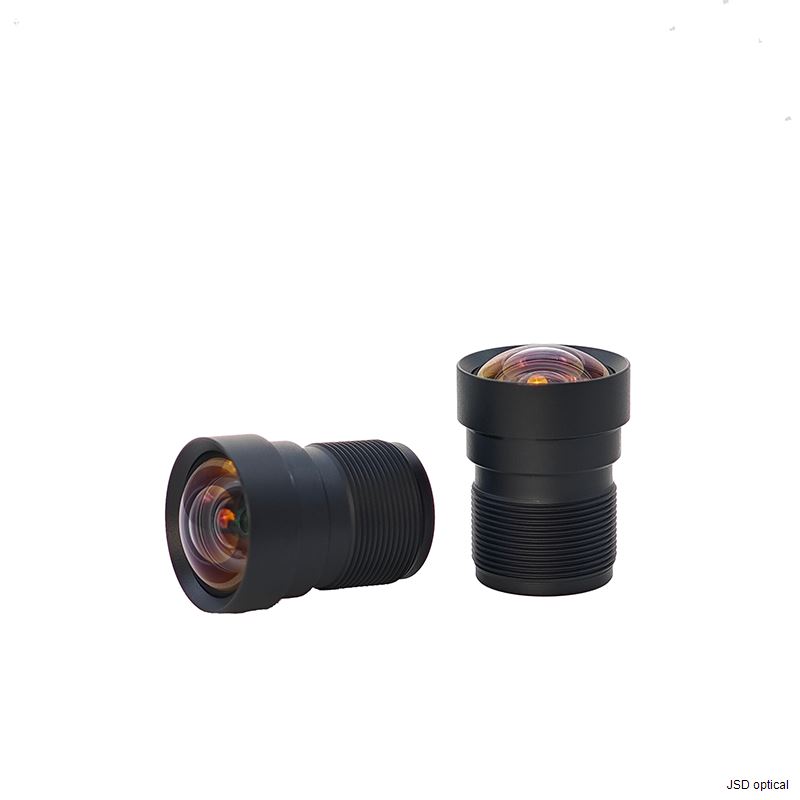

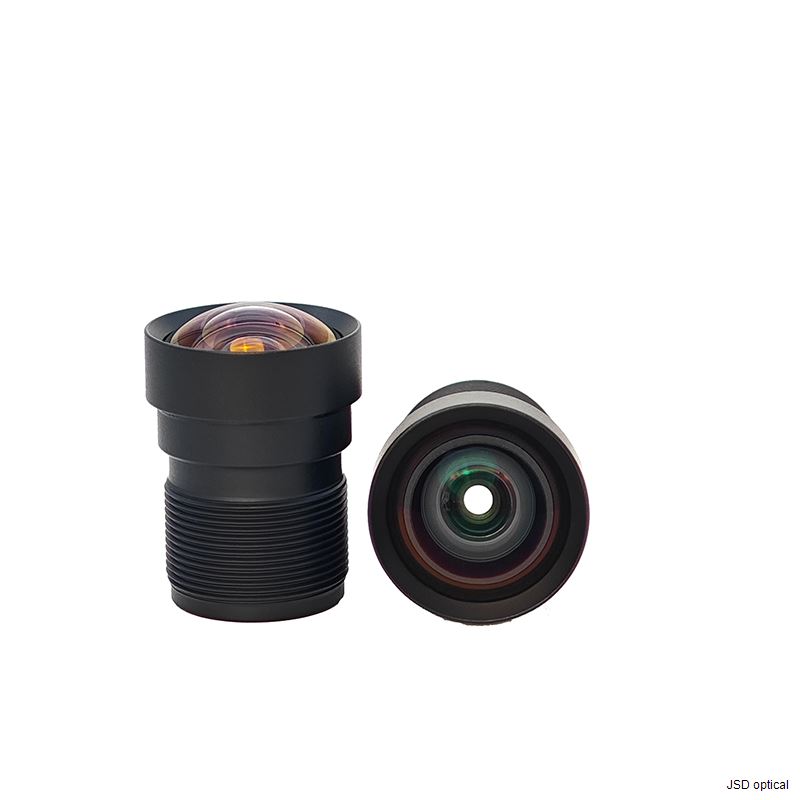

JSD3122 12MP Ultra HD Industrial Lens for 1/2" SONY IMX586 Sensor

Product Overview

A standout feature of the JSD3122 is its ultra-low distortion (<-1.54%), ensuring that straight lines remain straight and images are geometrically accurate.1 This makes it an excellent choice for precise machine vision, facial recognition, and high-quality surveillance where image fidelity is paramount. The lens features a robust mechanical design with a TTL of 20.49mm, ensuring reliable integration into various optical systems.

Sensor

Compatible with the following sensors, this lens can also be deeply customized to align perfectly with your unique requirements.

Sony IMX412

Sony IMX377

Sony IMX577

SmartSens SC1230

OmniVision OV12895

Key Features & Benefits

Exceptional Low Distortion (<-1.54%): Engineered with advanced optical correction to keep distortion below 1.54%, delivering true-to-life geometry essential for measurement, scanning, and precise recognition tasks.

Optimized for 1/2" Sensors: Featuring a 1/2" image circle, this lens perfectly matches larger format sensors, maximizing light intake and resolution potential without dark corners or vignetting.

Natural Wide-Angle Coverage (92° FOV): Offers a 92° diagonal field of view, providing broad scene monitoring capabilities while avoiding the "fisheye" look associated with wider lenses.

High-Definition Clarity: The F2.2 aperture combined with precision glass elements ensures sharp, high-contrast images across the entire frame, suitable for HD and Megapixel imaging.

Precise Mechanical Design: Built with a standard M12 x 0.5 thread and a Total Track Length (TTL) of 20.49mm, allowing for stable and accurate installation in housing and board cameras.

Versatile Focus Control: The standard thread mount allows for manual fine-tuning of the back focal length to achieve critical sharpness for specific working distances.

Applications

Precision Machine Vision

Biometrics & Face Recognition

Document Scanning & OCR

Commercial Surveillance

Video Conferencing

IoT & Smart Home Device

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
