JSD1822

Product Overview

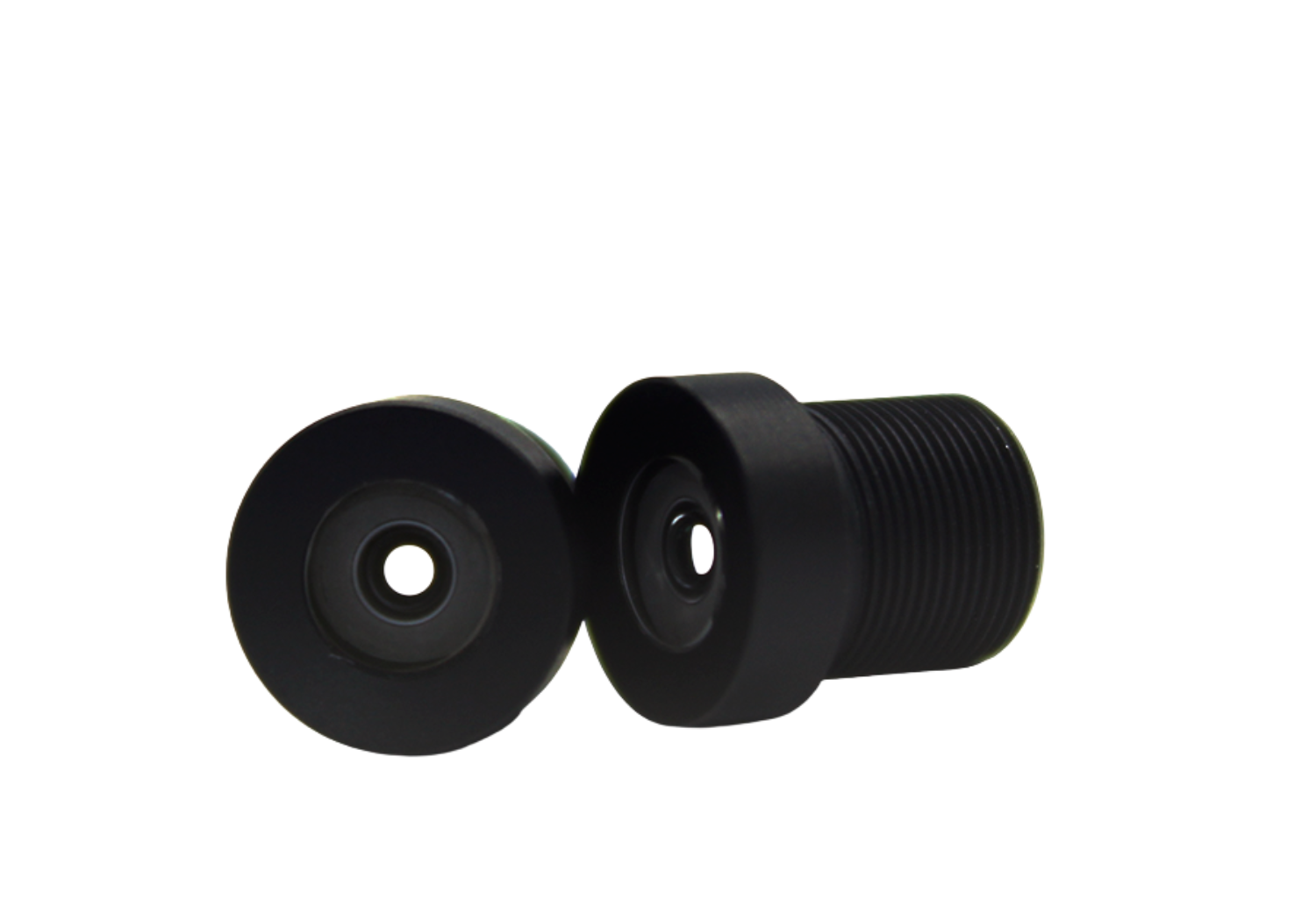

This ultra-compact M8 mount fixed focal lens (PN: JSD1822) is expertly engineered for 1/4-inch image sensors, delivering an immersive visual experience in a miniature package. With an ultra-short 1.38mm focal length and F2.2 aperture, it provides a massive 166° field of view, making it an excellent choice for panoramic surveillance, virtual reality (VR) inputs, and smart home devices requiring maximum coverage. Featuring 2MP resolution and a compact TTL of 9.9mm, this lens ensures reliable High-Definition imaging while easily integrating into space-constrained hardware.

Key Features & Benefits

Reliable 2MP Resolution: Delivers clear 2MP (HD) imaging performance, ensuring sufficient detail for video streaming, object detection, and general monitoring applications.

Ultra-Wide 166° Fisheye FOV:Offers an expansive 166° field of view, enabling panoramic scene capture and total situational awareness with a single lens, significantly reducing the need for multiple cameras.

Optimized for 1/4" Sensors:Designed specifically to cover the image circle of 1/4-inch sensors, ensuring optimal light distribution and preventing vignetting at the edges of the frame.

Immersive Fisheye Perspective:With a distortion profile of <-44%, this lens utilizes a fisheye projection to capture a vast area, providing the immersive, curved perspective essential for VR and broad environmental monitoring.

Compact M8 Mount Design:Featuring a standard M8 thread and a short TTL of 9.9mm, this lens is perfect for ultra-thin devices, wearables, and embedded IoT sensors where size is a critical constraint.

Bright F2.2 Aperture:The F2.2 aperture allows for effective light intake, ensuring good image quality in various lighting environments, from indoor rooms to outdoor daylight.

Cost-Effective Wide Coverage:Provides a high-value solution for applications that prioritize maximum viewing angle and compact design.

Applications

Smart Video Doorbells & Intercoms

Virtual Reality (VR) & 360° Cameras

Automotive Rear & Surround View

Miniature Drones (FPV)

IoT & Smart Home Monitoring

Robotics & Obstacle Avoidance

Wearable Action Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com

drawing
