JSD4012

Product Overview

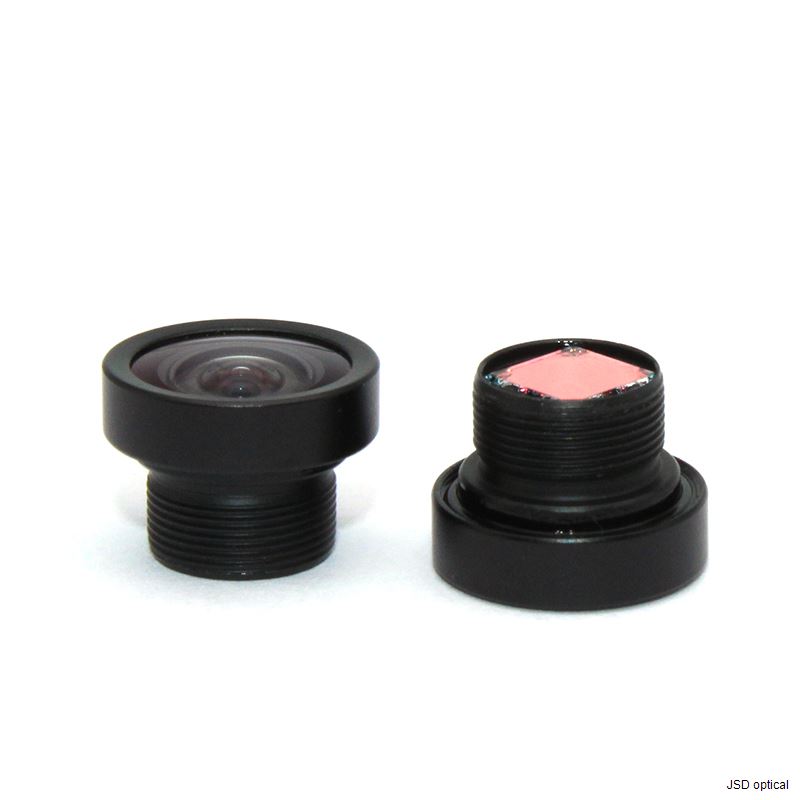

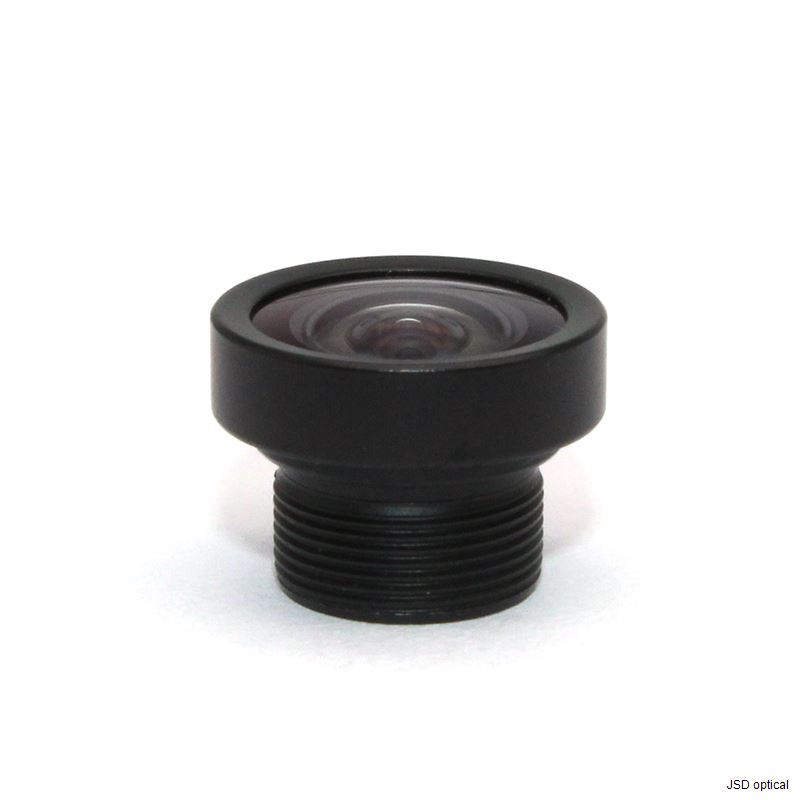

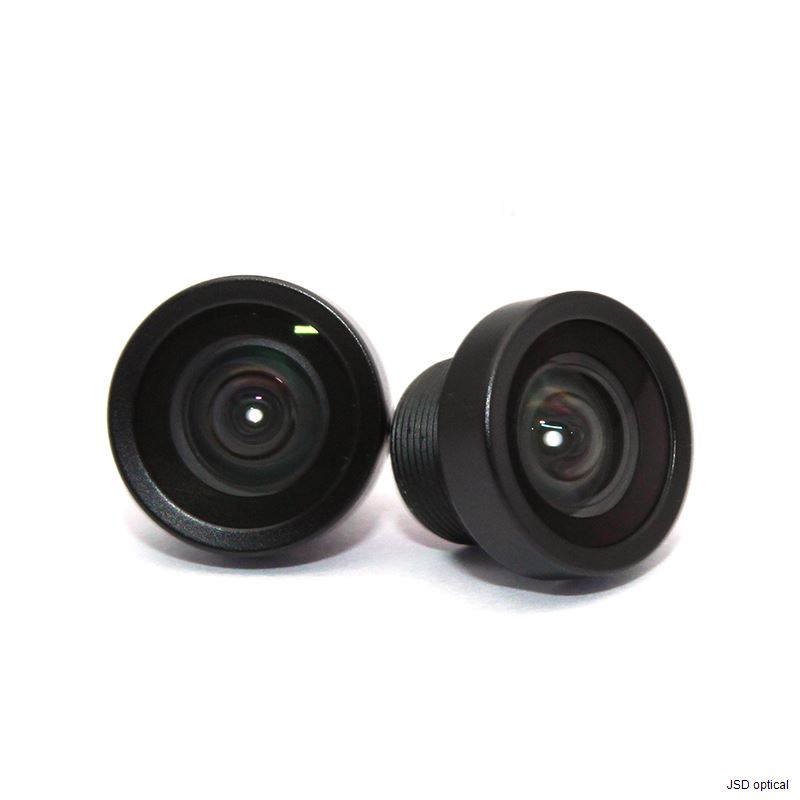

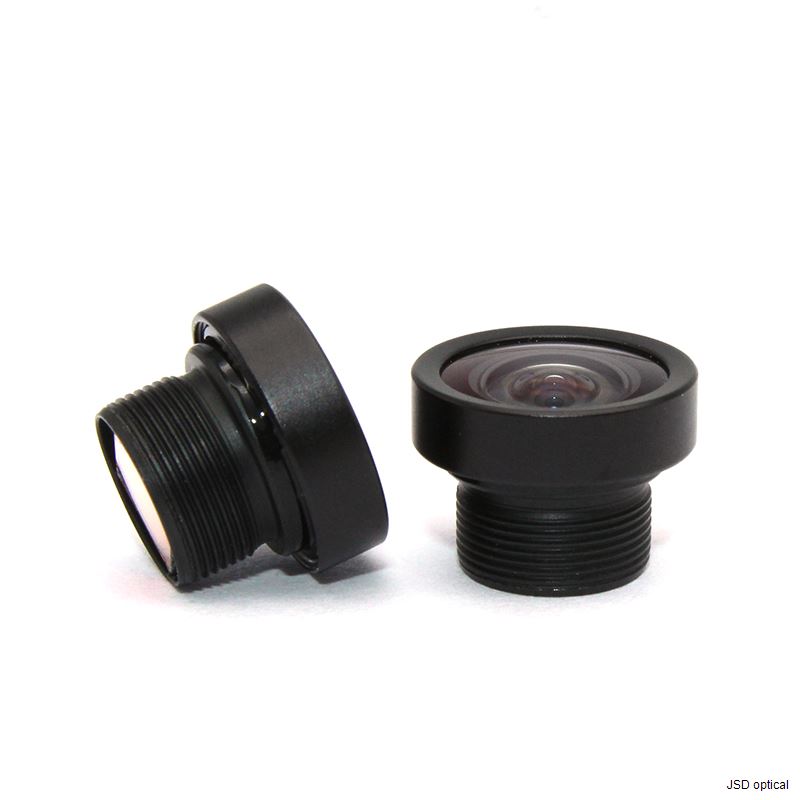

This ultra-miniature M7 mount fixed focal lens (PN: JSD4012) is expertly engineered for compact 1/4-inch image sensors, delivering reliable clarity in an incredibly small form factor. With a short 1.05mm focal length and F2.4 aperture, it provides an immersive, ultra-wide 145° field of view, making it ideal for applications requiring maximum coverage from a microscopic footprint. Featuring 2MP resolution and an ultra-short TTL of 8.69mm, this lens is perfect for integrating into lightweight, space-constrained devices such as wearables, medical equipment, and IoT sensors.

Key Features & Benefits

Reliable 2MP Resolution: Delivers clear High-Definition (HD) imaging, ensuring sufficient detail for monitoring, inspection, and video streaming applications on compact sensors.

Ultra-Wide 145° FOV: Provides an expansive 145° field of view, allowing for panoramic scene capture and broad situational awareness, significantly reducing blind spots in close-range monitoring.

Optimized for 1/4" Sensors:Engineered specifically to match the optical requirements of 1/4" sensors, eliminating vignetting and ensuring the sensor area is fully utilized for optimal image quality.

Miniature M7 Design:Featuring a standard M7 thread and a microscopicTTL (Total Track Length) of just 8.69mm, this lens allows for the creation of ultra-thin and lightweight camera modules.

Immersive Wide Perspective:With a distortion profile of <-30.55%, this lens utilizes a fisheye-style projection to capture a vast area, making it ideal for environmental monitoring and immersive viewing experiences.

Precise Focal Adjustment:The threaded M7 mount allows for fine manual tuning of the back focal length during assembly to ensure perfect sharpness for specific object distances.

Compact & Robust Build:Designed to withstand the rigors of portable and industrial use while maintaining the smallest possible physical profile.

Applications

Medical Endoscopes & Borescopes

Wearable Cameras (Body Cams, Smart Glasses)

Miniature IoT & Smart Home Devices

Pipe & Industrial Inspection

Compact Biometric Scanners

Miniature Drones (FPV)

Hidden/Covert Surveillance Systems

Specification
