JSD3006

Product Overview

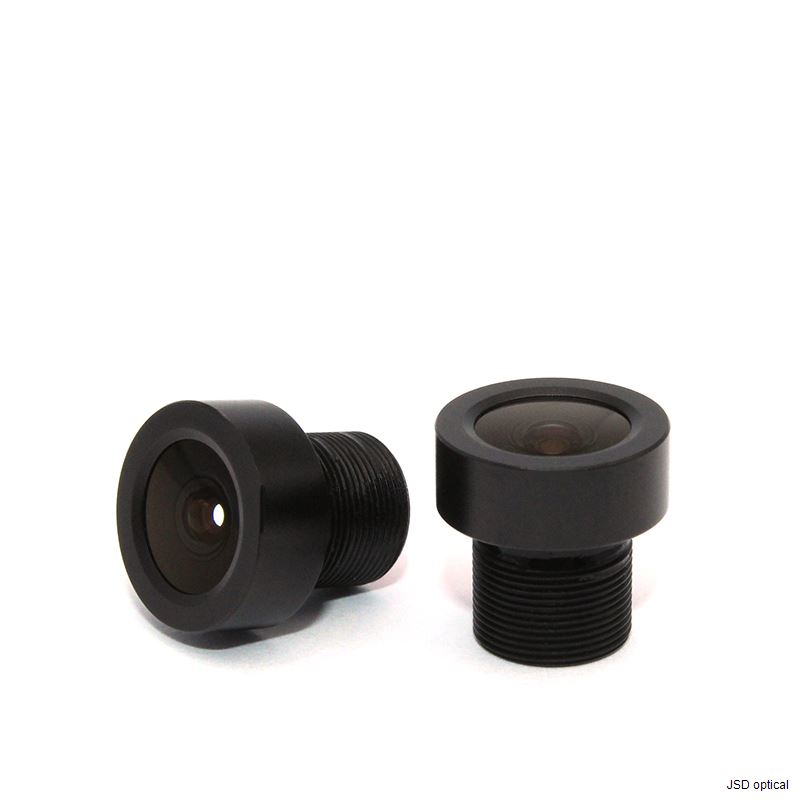

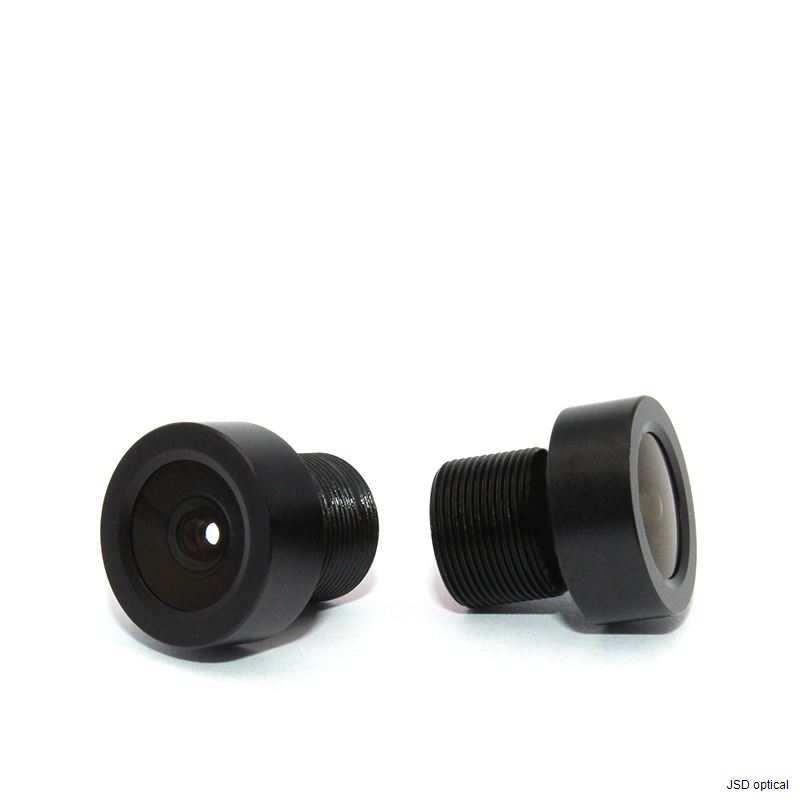

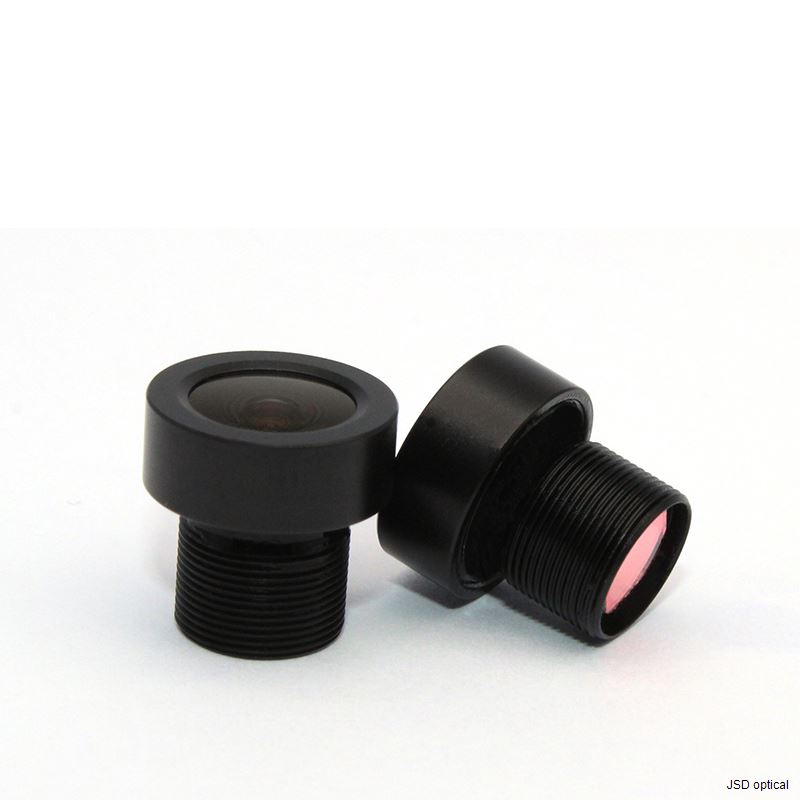

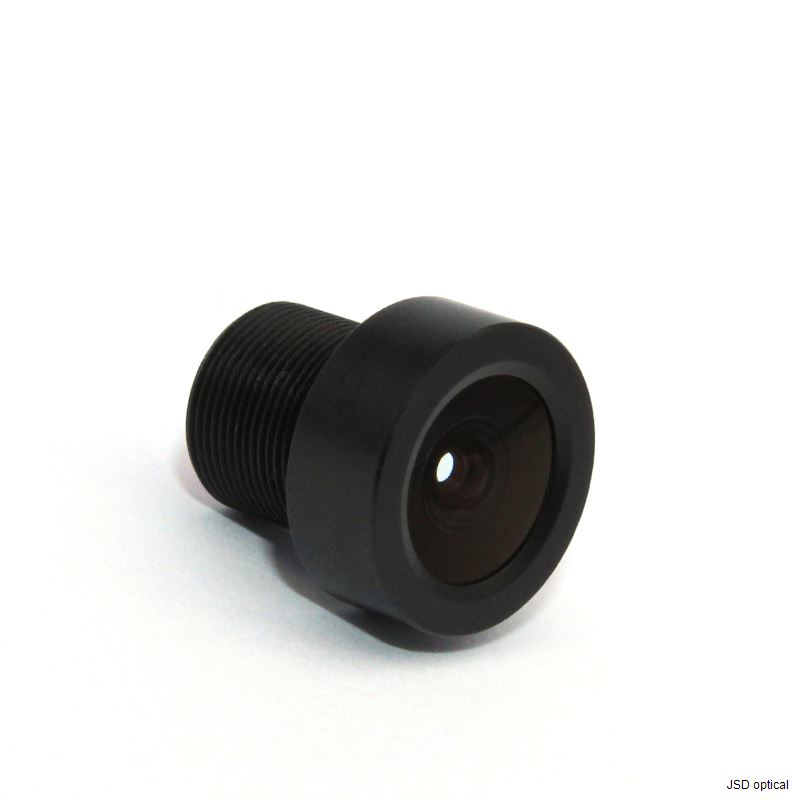

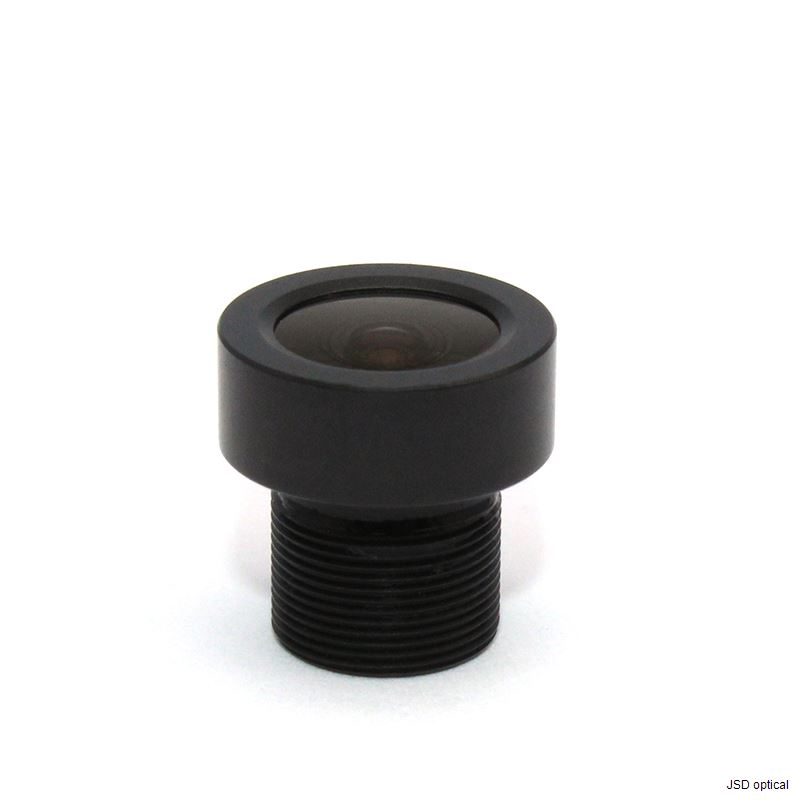

This lens is available in M7, M8, and M12 thread versions. This high-definition M8 mount fixed focal lens (PN: JSD3006) is expertly engineered for compact 1/4-inch sensors, delivering excellent clarity and broad coverage for advanced imaging applications. With a 2.26mm focal length and F2.4 aperture, it provides a wide 134° field of view, making it ideal for broad-area surveillance, smart home monitoring, and immersive scene capture. Featuring 5MP resolution, this lens ensures superior image sharpness and reliable performance across diverse lighting conditions, all within a compact form factor designed for modern integrated devices.

Key Features & Benefits

Crisp 5MP Resolution: Delivers sharp, high-definition 5MP imaging with excellent detail retention, ensuring clarity for video conferencing, security monitoring, and object recognition tasks.

Wide 134° FOV: Provides an expansive 134° field of view, ideal for capturing wide scenes in limited spaces, such as room monitoring or entrance surveillance, with reduced blind spots.

Optimized for 1/4" Sensors: Engineered specifically for 1/4" image sensors, featuring an image circle that fully utilizes the sensor capabilities while preventing vignetting.

Immersive Perspective:With a distortion profile of <-37.6%, this lens utilizes a fisheye-style projection to maximize the viewing area, providing an immersive perspective essential for situational awareness.

Manual Focus Capable:The threaded M8 design allows for precise back focal adjustment during assembly to match specific sensor distances, optimizing sharpness for the intended application.

Compact & Robust Build:Standard M8 thread and a TTL of 13.1mm ensure seamless integration into compact housings and space-constrained devices while maintaining durability.

Balanced Aperture:The F2.4 aperture offers a good balance between light intake and depth of field, ensuring subjects remain in focus across a reasonable range.

Applications

Smart Video Doorbells & Intercoms

Home Security & Pet Monitors

IoT & Embedded Vision Systems

Action Cameras & Wearables

Drone & Aerial Imaging

Automotive In-Cabin Monitoring

Video Conferencing Webcams

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
