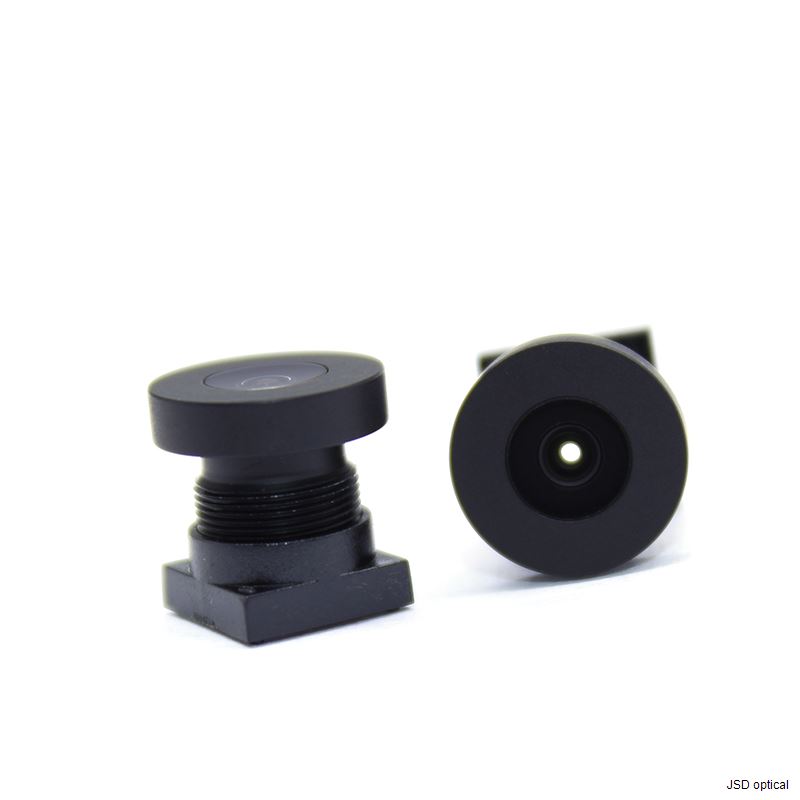

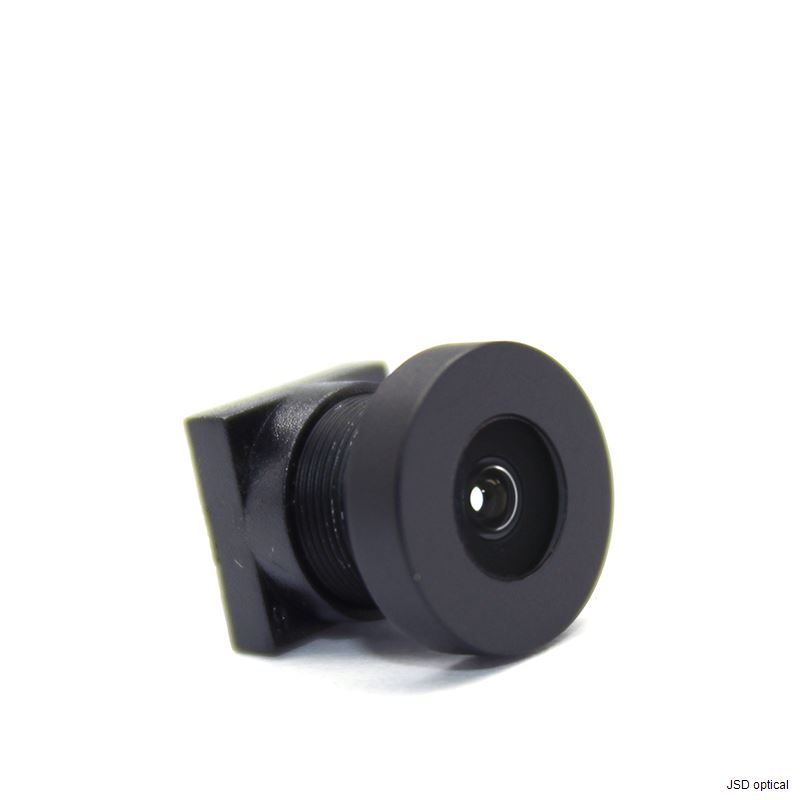

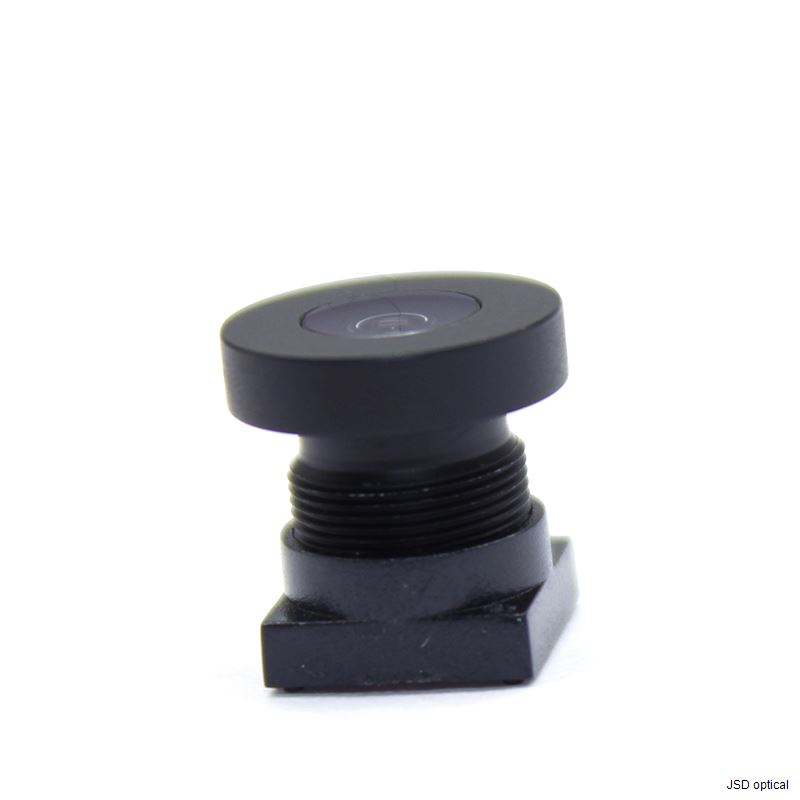

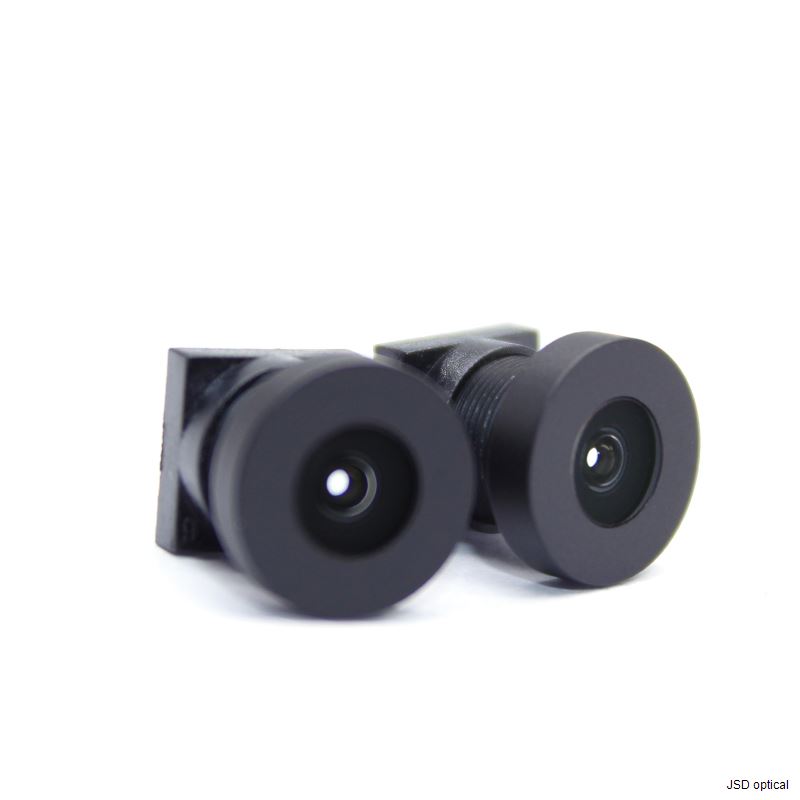

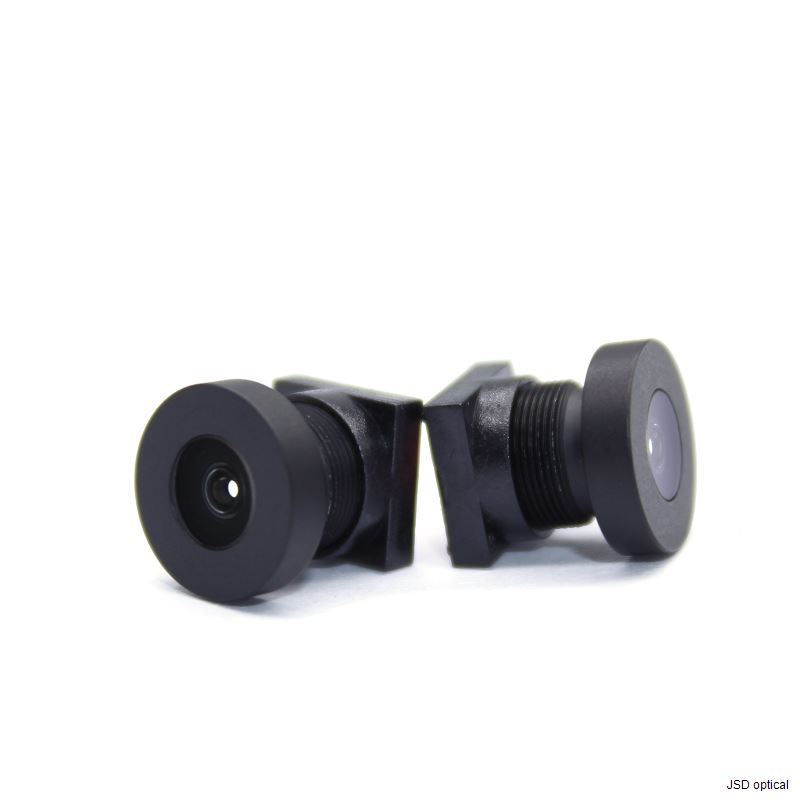

JSD2011

Product Overview

This lens is available in three thread versions: M7, M8, M10, and M12. This ultra-miniature M7 mount fixed focal lens (PN: JSD2011) is expertly engineered for compact 1/4-inch sensors, offering a perfect balance of size and performance for miniature imaging systems. With a 2.28mm focal length and F2.4 aperture, it provides a wide 130° field of view, making it ideal for medical imaging, wearable devices, and embedded IoT applications where space is critical. Featuring 2MP resolution and a highly compact TTL of 10mm, this lens ensures reliable image clarity and broad scene capture in an incredibly small form factor.

Key Features & Benefits

Reliable 2MP Resolution:Delivers clear High-Definition (HD) imaging, providing sufficient detail for inspection, monitoring, and video streaming applications on compact 1/4" sensors.

Wide 130° FOV:Provides an expansive 130° field of view, allowing for panoramic scene capture and broad situational awareness, significantly reducing blind spots in close-range applications.

Optimized for 1/4" Sensors:Engineered specifically to match the optical requirements of 1/4" sensors, ensuring the image circle fits perfectly to utilize the sensor's full potential without vignetting.

Immersive Wide Perspective:With a distortion profile of <-46%, this lens utilizes a fisheye-style projection to capture a vast area, making it ideal for environmental monitoring and immersive viewing experiences where coverage is priority.

Miniature M7 Mount Design:Featuring a standard M7 thread and a compact TTL of 10mm, this lens is designed for lightweight, portable, and wearable devices where every millimeter of space counts.

Precise Focal Adjustment:The threaded M7 mount allows for fine tuning of the back focal length during assembly, ensuring optimal sharpness for specific object distances.

Broad Application Versatility:Suited for tasks requiring wide-angle coverage in a tiny package, such as hidden surveillance, medical diagnostics, and consumer electronics.

Applications

Medical Endoscopes & Dental Cameras

Wearable Cameras (Body Cams, Smart Glasses)

Miniature IoT & Smart Home Devices

Pipe & Industrial Inspection (Borescopes)

Compact Biometric Scanners

Miniature Drones (FPV)

Hidden/Covert Surveillance Systems

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

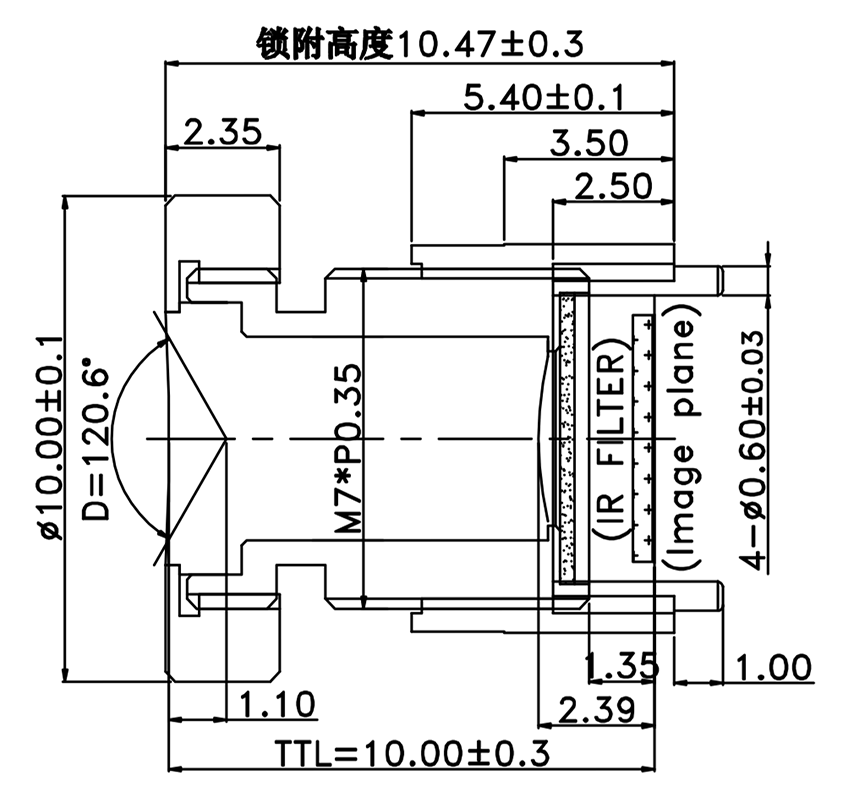

drawing
