JSD3528
M12 S mount lens ultra wide angle lens large aperture
PN: JSD3528
F2.4
HFOV 89° 82°
TTL 22mm
Thread M12
Distortion <3.9% <4%
Image Sensor 1/2.5" 1/2.8"
- Information
- Related Products
Description
The JSD3528 is designed for 1/2.8” image format with HFOV 89 degree on Sony IMX317. Have 650nm IRCF, 850nm IRCF and 940nm IRCF version, good choice for drone and robotic application.
Perfectly compatible with the SONY IMX415 and other 1/2.8" sensors.
Application
l Aerial Image
l Robotics
l Wearable Camera
l Video Conference Camera

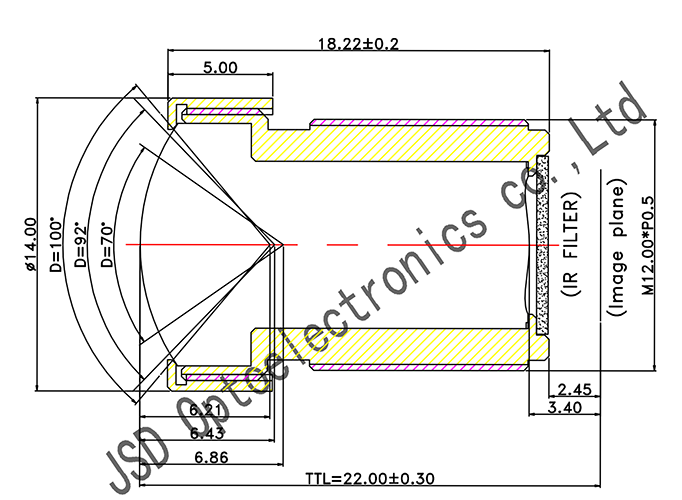

Specification
|
| |
Model | JSD3528 | |
Image sensor | 1/2.5” CMOS | |
Image Circle | 8 mm | |
Resolution | 12MP | |
Focal Length | 3.14mm | |
Aperture | F/2.4 | |
TTL | 22mm | |
FOV | DFOV100° HFOV89° VFOV57° | |
Distortion | 1.2% | |
