JSD1329

Product Overview

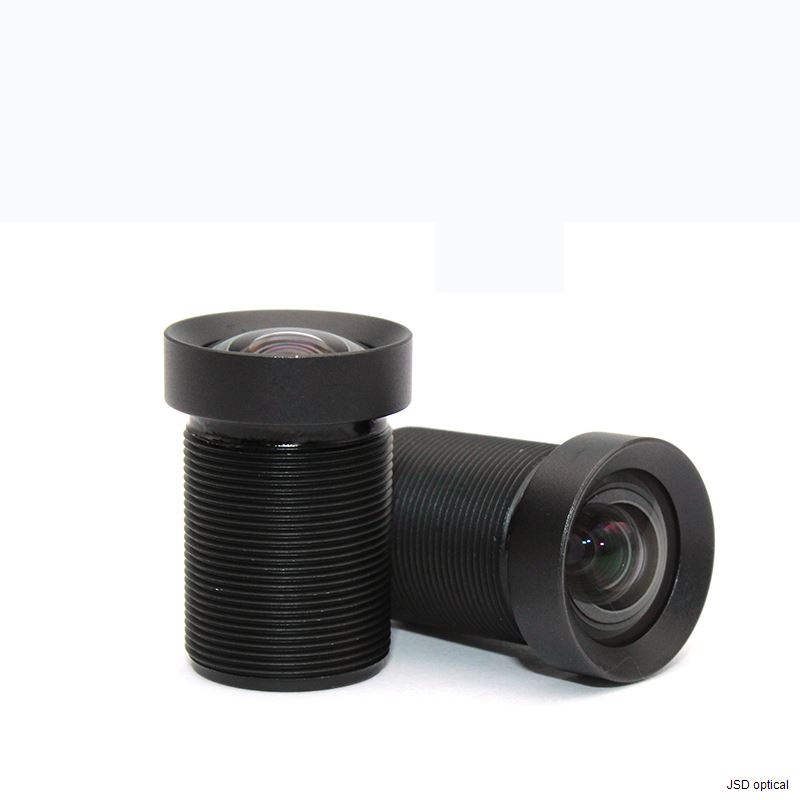

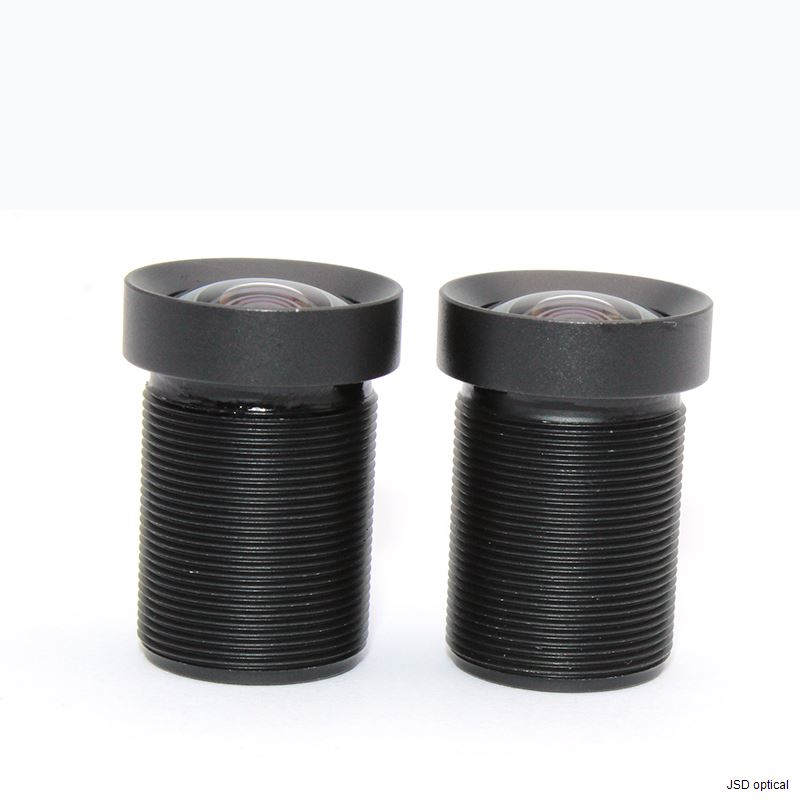

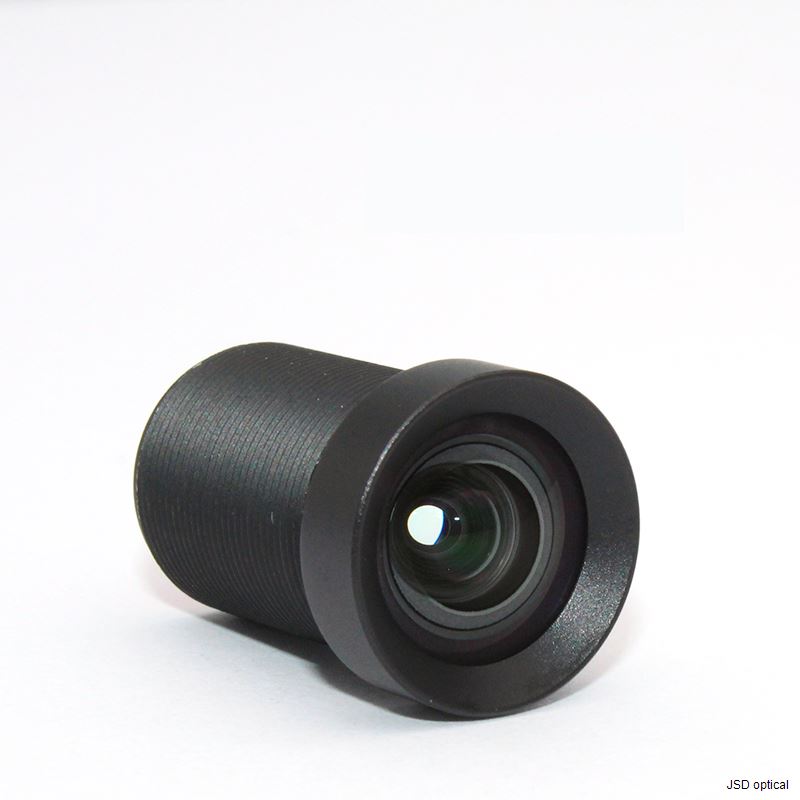

The JSD1329 is a precision-engineered M12 mount fixed focal lens, optimized specifically for 1/2.8-inch sensors. Distinguished by its optical fidelity, this lens features a 4.3mm effective focal length (EFL) and an F3.0 aperture, striking a refined balance between crisp resolution and a deep depth of field. Its standout feature is its ultra-low distortion (0.5%), ensuring geometrically accurate images with straight lines and true-to-life proportions. With a natural 82° diagonal field of view, it provides a professional-grade solution for applications requiring high-fidelity imaging without "fisheye" warping, such as document scanning, facial recognition, and high-precision industrial inspection.

Perfectly compatible with the SONY IMX415 and other 1/2.8“ sensors.

Key Features & Benefits

Ultra-Low Distortion (0.5%): Utilizes an advanced optical design that virtually eliminates barrel distortion. This ensures geometric integrity, making it critical for measurement, OCR (Optical Character Recognition), and high-accuracy vision systems.

Optimized for 1/2.8" Sensors: Specifically tailored for 1/2.8" sensor formats to provide edge-to-edge sharpness. This design maximizes the sensor's potential, ensuring clear image capture without vignetting.

Natural 82° Field of View: Offers a standard wide-angle perspective that captures a significant scene area while maintaining a natural, undistorted look—ideal for avoiding the extreme perspective warping of wider lenses.

High-Resolution Optics: The 22mm Total Track Length (TTL) indicates a sophisticated multi-element structure capable of resolving high-definition pixels with exceptional clarity across the entire frame.

Standard M12 Integration: Built with a universal M12 (S-Mount) thread, allowing for seamless integration into a wide variety of board cameras, compact industrial housings, and OEM devices.

Refined F3.0 Aperture: Delivers an extended depth of field, ensuring that subjects remain in sharp focus even at varying distances. This is a vital feature for kiosks, scanning devices, and automated inspection lines.

Applications

Document Scanning & OCR Devices

Face Recognition & Biometrics

Industrial Inspection & Machine Vision

Video Conferencing Systems

Drone Mapping (Photogrammetry)

Handheld Diagnostics Devices

Smart Home & Security Monitoring

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

Specification

drawing
