JSD2922

Product Overview

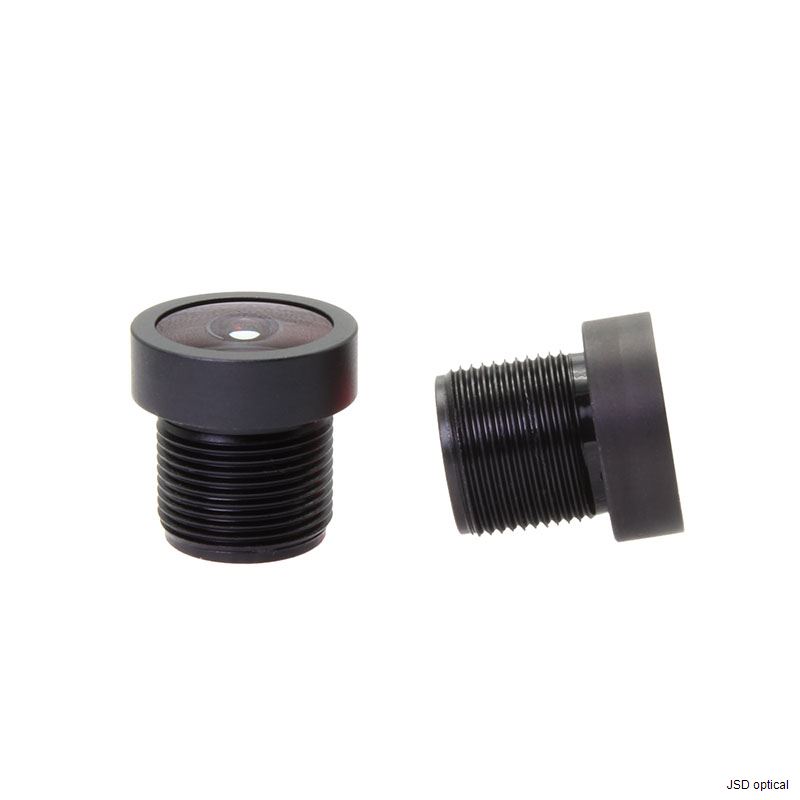

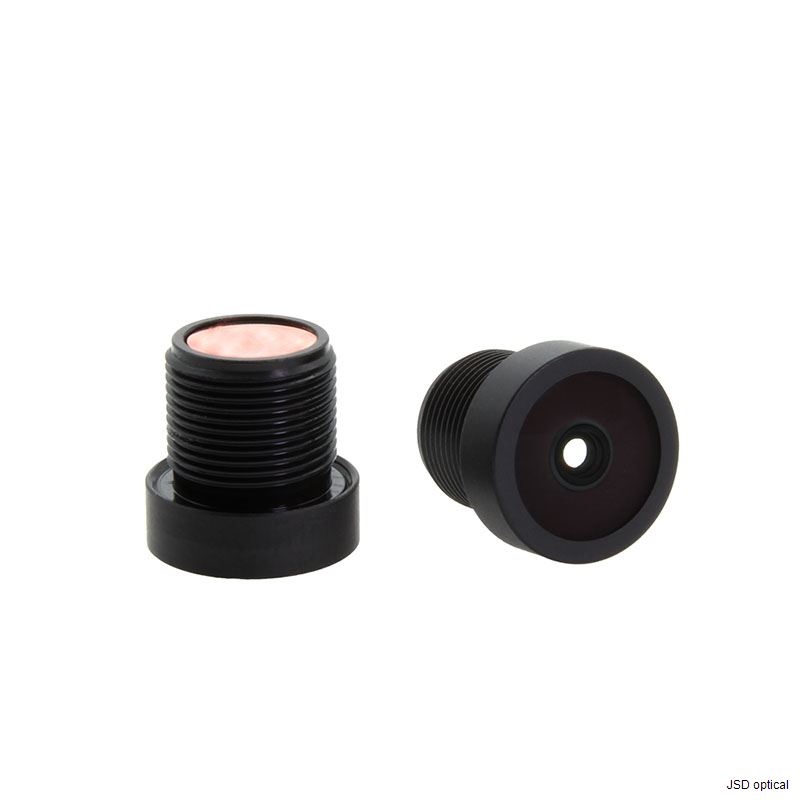

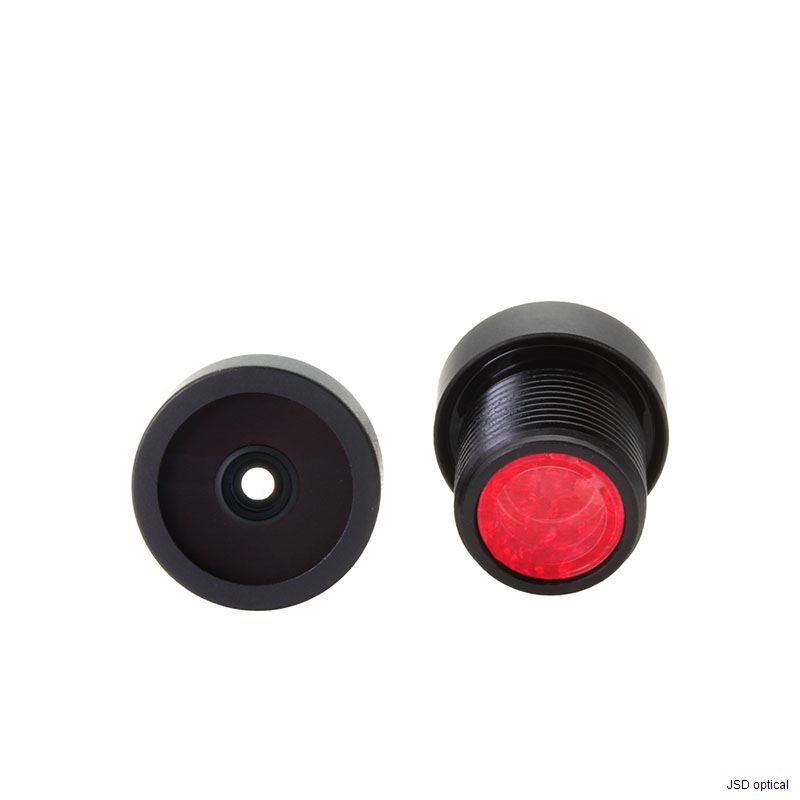

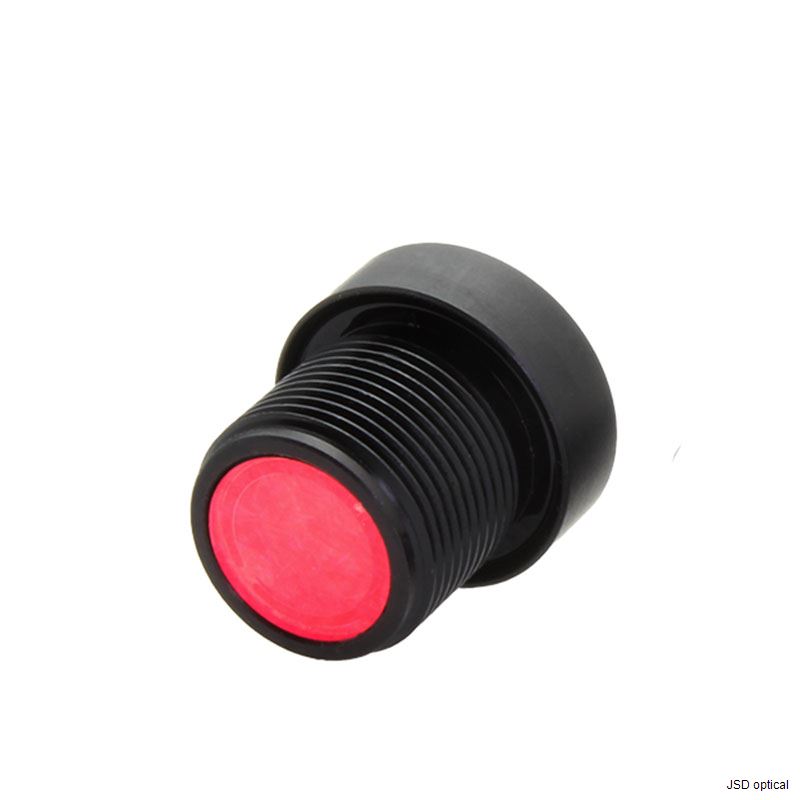

The JSD2922 is an ultra-compact M8 mount fixed focal lens, specifically engineered for the IMX335 1/2.8-inch image sensor. Distinguished by its miniaturized profile, this lens features an incredibly short 14mm Total Track Length (TTL) and a slim 10mm diameter, making it one of the most space-efficient optical solutions for high-performance imaging. Built with a full glass structure, the JSD2922 is designed to withstand demanding environments, maintaining optical integrity at operating temperatures up to 80°C. It is an ideal solution for applications requiring high-resolution output within extremely constrained hardware footprints, such as wearable tech and hidden surveillance.

Perfectly compatible with the SONY IMX335 and other 1/2.8" sensors.

Key Features & Benefits

Ultra-Compact Form Factor: With a 10mm diameter and a 14mm TTL, this lens is designed for integration into ultra-slim devices and low-profile housings where standard M12 lenses cannot fit.

Premium Full Glass Structure: Constructed entirely with high-quality glass elements, ensuring superior thermal stability, higher light transmission, and a longer lifespan compared to plastic hybrid alternatives.

High-Temperature Resilience: Rated for operating temperatures up to ~80°C, making it a reliable choice for industrial environments, automotive interiors, or continuous-duty hardware that generates significant heat.

Optimized for IMX335 (1/2.8"): Precisely matched to the popular IMX335 sensor, ensuring the optical center and image circle provide optimal coverage and maximize the sensor’s 5MP resolution potential.

Precision M8 Integration: Utilizes the smaller M8 (S-Mount) thread standard, facilitating the development of micro-camera modules without compromising on professional imaging standards.

Stable Optical Performance: The robust glass-only design virtually eliminates "focus shift" caused by thermal expansion, ensuring consistent sharpness from startup through peak operating temperatures.

 Applications

Miniaturized Security & Hidden Cameras

Wearable Body-Worn Cameras

IoT & Smart Home Micro-Devices

Industrial Endoscopy & Inspection

Medical Diagnostic Equipment

Drones & Compact Robotics

Automotive Internal Monitoring

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
