JSD1002

Product Overview

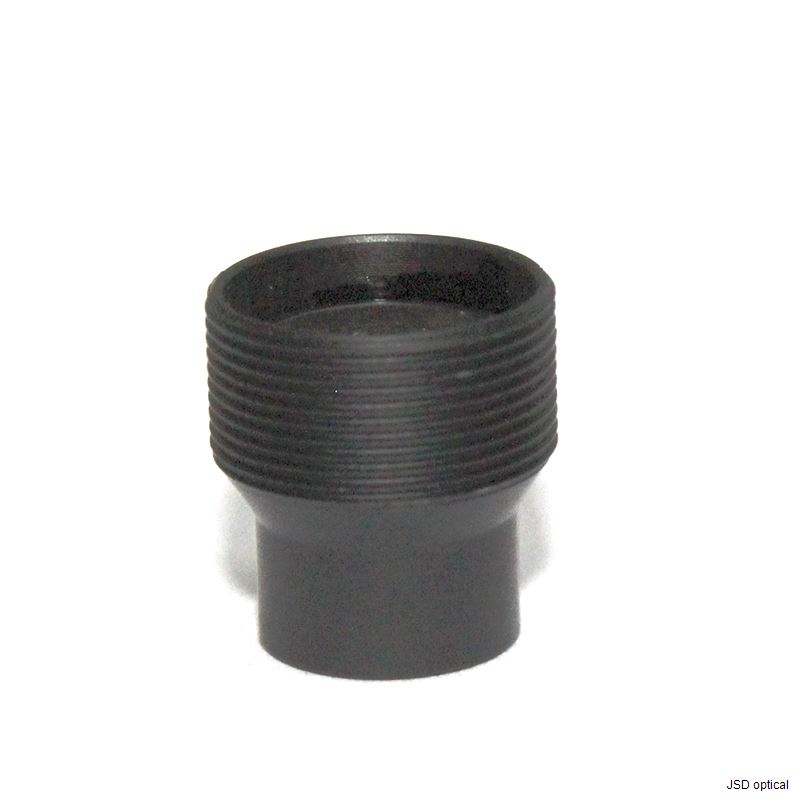

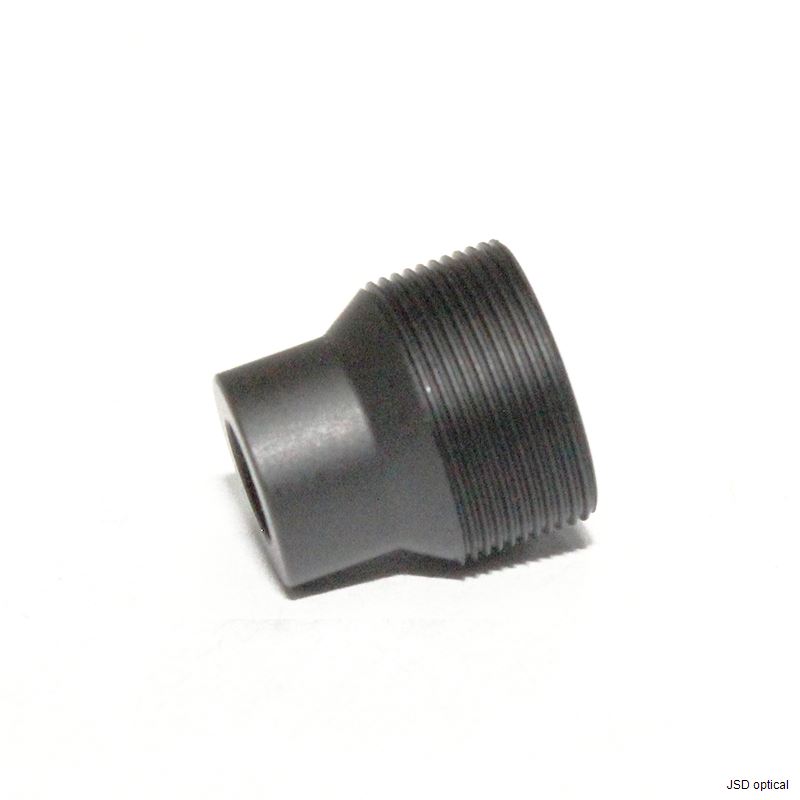

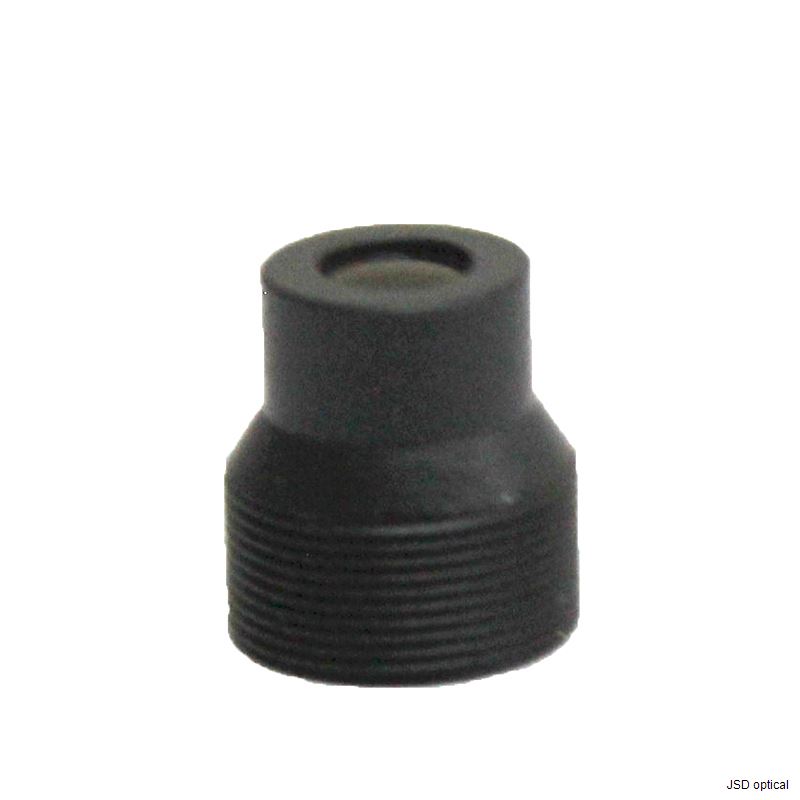

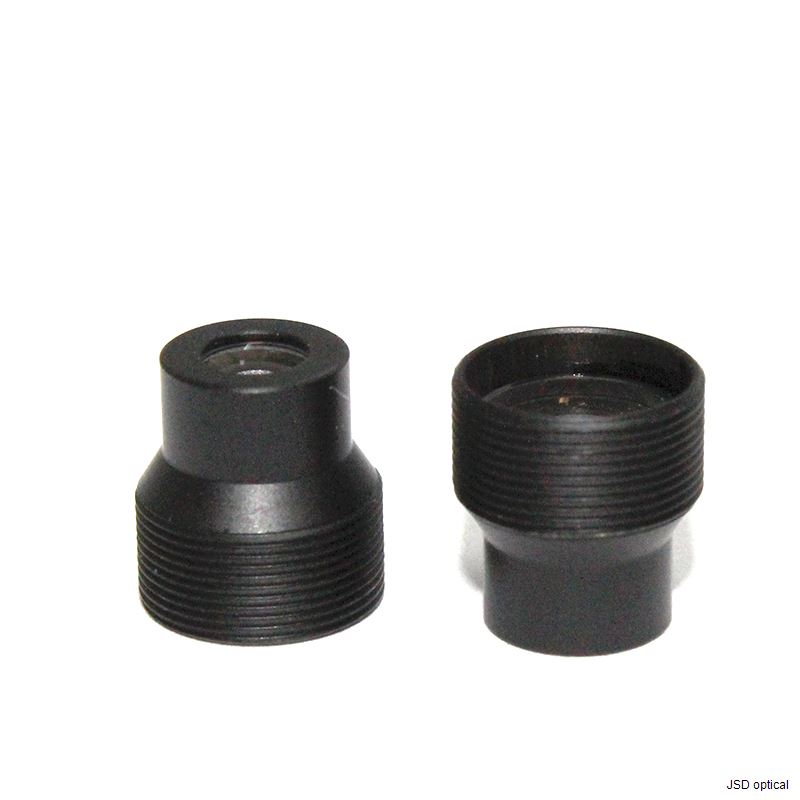

This precision-engineered M7 mount fixed focal lens (PN: JSD1002) is designed for 1/3-inch image sensors, delivering ultra-high-definition performance in a miniature form factor. With a long 10.36mm focal length and F3.0 aperture, it provides a focused 40° field of view, making it ideal for applications requiring detail capture, magnification, and subject isolation. Featuring True 8MP (4K) resolution support and an optical design with low distortion (<1%), this lens ensures exceptional sharpness and geometric accuracy for biometrics, industrial inspection, and precision imaging tasks.

Key Features & Benefits

True 8MP 4K Resolution:Delivers crystal-clear, high-definition imaging with superior detail retention, capable of resolving the fine textures required for 4K video and high-res snapshots.

Focused 40° FOV:Provides a narrow, targeted field of view that maximizes pixel density on the subject, ideal for facial recognition, object tracking, and capturing details at a distance.

Low Distortion Design (<1%):Advanced optical correction keeps distortion below 1%, ensuring straight lines remain straight and images are geometrically accurate, which is critical for measurement and scanning.

Optimized for 1/3" Sensors:Engineered specifically for the 1/3" optical format, ensuring the image circle is fully covered with edge-to-edge sharpness and no vignetting.

Miniature M7 Form Factor:Featuring a compact M7 thread and a Total Track Length (TTL) of 16.03mm, this lens is suitable for slim devices and embedded systems where space is at a premium.

Precise Optical Glass:Constructed with high-quality glass elements to minimize chromatic aberration and maximize contrast, ensuring true-to-life color reproduction.

High Magnification:The 10.36mm focal length acts as a telephoto lens relative to the sensor size, bringing subjects closer compared to standard wide-angle lenses.

Applications

Biometric Identification (Face Recognition/Iris Scanning)

Optical Character Recognition (OCR) & Document Scanning

Industrial Inspection & Quality Control

Medical Imaging Devices (Dermatology/Dental)

High-Resolution Webcams

Robotics (Object Sorting/Identification)

Compact Telephoto Surveillance

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

If you would like to customize a lens, please send an email to: info@jsdoptical.com

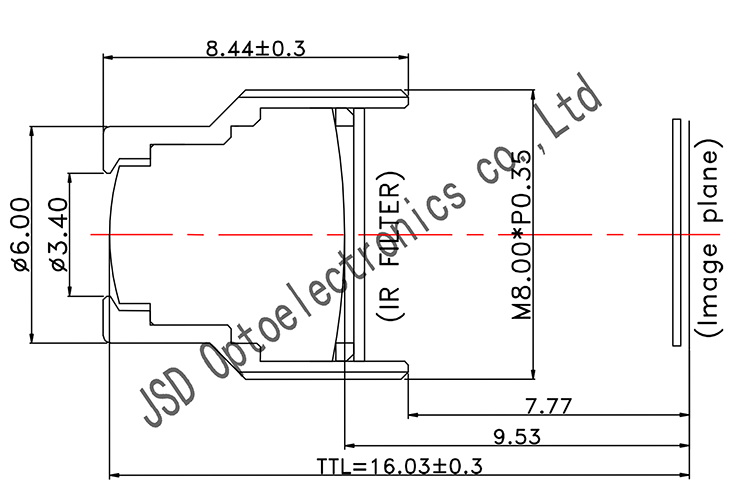

drawing
