JSD5011

Product Overview

This precision M7 mount fixed focal lens (PN: JSD5011) is expertly engineered for miniature 1/5-inch sensors, delivering high-quality imaging with remarkably low distortion for compact devices. With a 1.7mm focal length and a bright F2.0 aperture, it provides a wide 116° field of view without the heavy "fisheye" curvature often found in small lenses. Featuring 2MP resolution and a compact form factor, this lens is optimized for applications requiring accurate spatial representation and clarity in space-constrained environments.

Key Features & Benefits

2MP Resolution:Designed to support 2 Megapixel sensors, ensuring clear, high-definition video and image capture suitable for medical, industrial, and consumer electronics.

Low Distortion (<-3.5%):Features advanced optical correction to keep distortion below 3.5%, maintaining straight lines and realistic proportions—a rare feature for a wide-angle miniature lens.

Wide 116° FOV:Provides a broad field of view ideal for situation awareness and close-range monitoring, capturing a wide area while maintaining image edge quality.

Compact M7 Mount:Built with a standard M7 thread and a Total Track Length (TTL) of 10.31mm, allowing for easy integration into handheld devices, probes, and thin-profile housings.

Optimized for 1/5" Sensors:Precisely matched to the 1/5-inch image circle to maximize sensor performance and eliminate dark corners (vignetting).

Bright F2.0 Aperture:The large aperture ensures excellent light intake, providing brighter images and better performance in low-light indoor or enclosed environments.

Applications

Medical & Industrial Endoscopes

Biometric Identification (Face/Iris Recognition)

Wearable Cameras & Smart Glasses

IoT & Smart Home Sensors

Miniature Barcode Scanners

Dental Cameras

Compact Robotics & Machine Vision

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

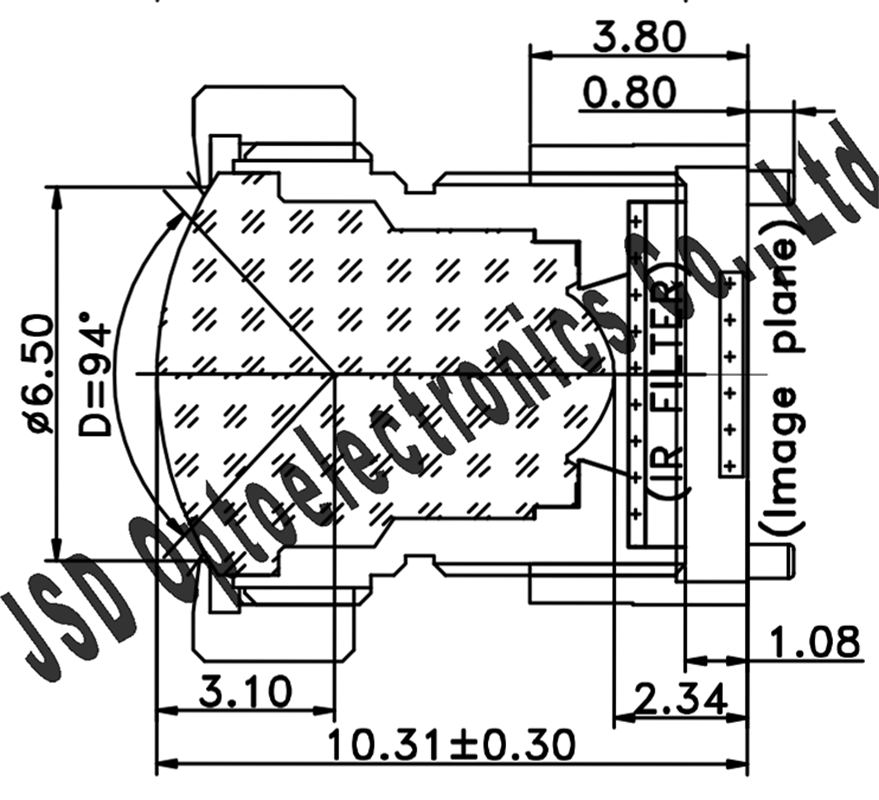

drawing
