JSD3028

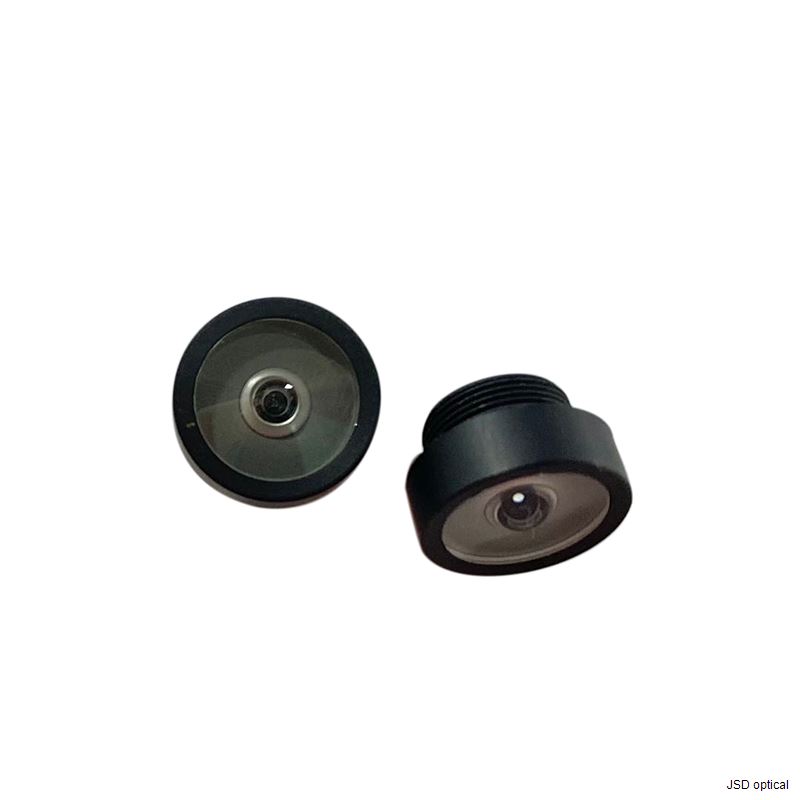

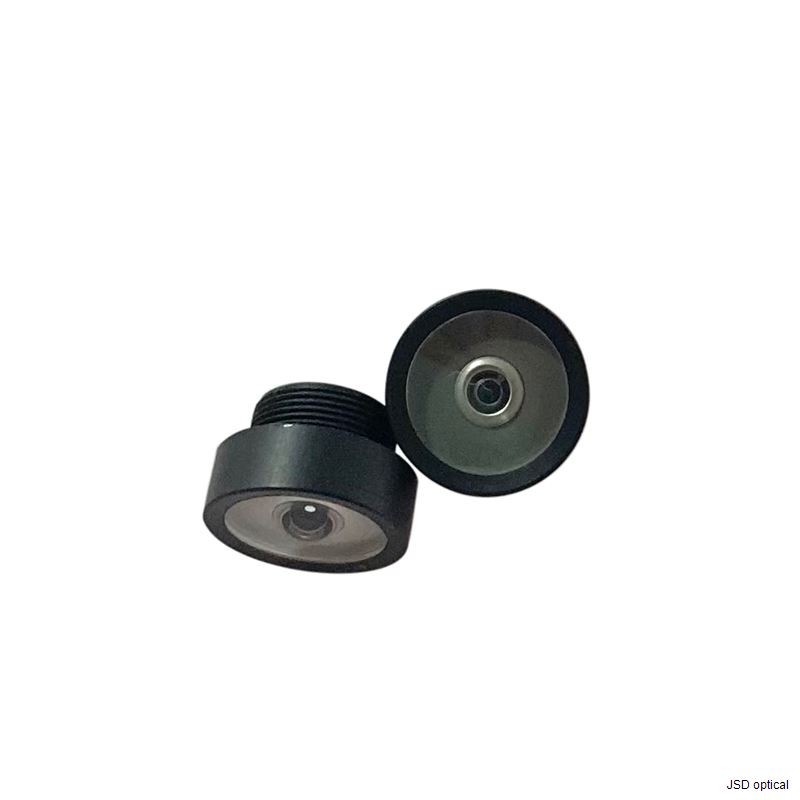

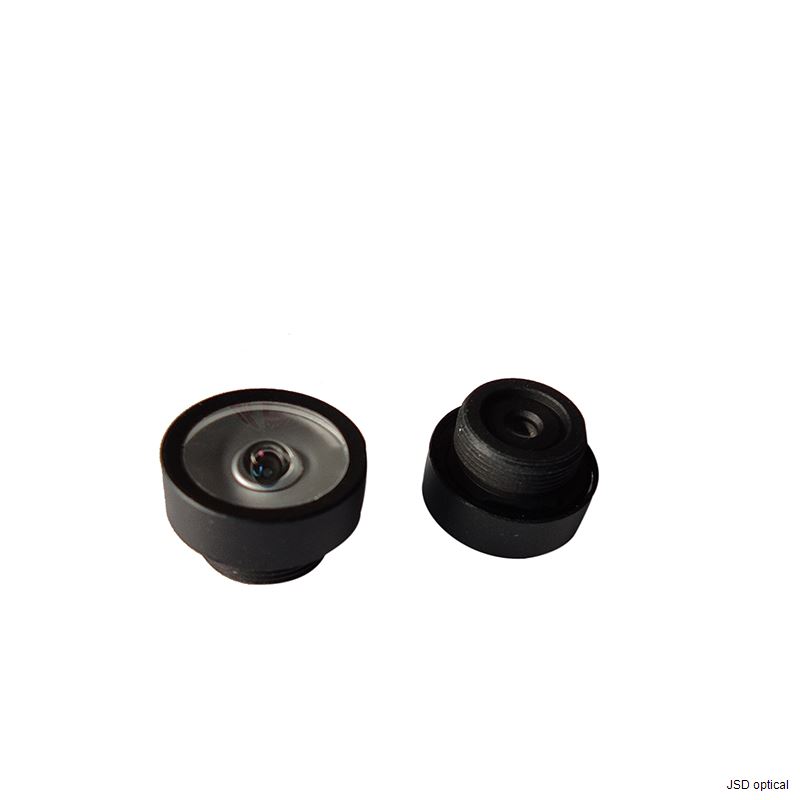

Product Overview

This ultra-miniature M7 mount fixed focal lens (PN: JSD3028) is expertly engineered for compact 1/6.5-inch sensors, delivering massive scene coverage in a tiny form factor. With a short 0.9mm focal length and F2.8 aperture, it provides an impressive 154° ultra-wide field of view, making it ideal for medical endoscopy, micro-inspection, and compact wearable devices. Featuring 2MP resolution and an incredibly short Total Track Length (TTL) of just 7.6mm, this lens ensures high-quality imaging performance in the smallest of spaces.

Key Features & Benefits

2MP HD Resolution:Designed to support 2 Megapixel sensors, ensuring clear and detailed image capture suitable for medical diagnostics and precision inspection tasks.

Ultra-Wide 154° FOV:Offers an expansive 154-degree field of view, maximizing the visible area to capture a comprehensive picture from a very short working distance.

Micro M7 Form Factor:Features a standard M7 thread with an ultra-compact TTL of 7.6mm, specifically designed for seamless integration into space-critical devices like catheters or micro-drones.

Optimized for 1/6.5" Sensors:Precision-engineered to match the 1/6.5-inch image circle, ensuring optimal light projection onto small-format sensors without vignetting.

Broad Area Coverage:The optical design prioritizes field of view (Distortion <25.9%), allowing users to see peripheral details that standard lenses miss, essential for navigation inside tight spaces.

F2.8 Aperture:Provides a balanced aperture for sufficient light intake while maintaining a deep depth of field, keeping objects in focus across a useful range.

Robust & Miniature:Despite its tiny size, the lens is built for durability and reliability in demanding environments ranging from industrial pipes to the human body.

Applications

Medical Endoscopes & Gastroscopes

Dental Intraoral Cameras

Industrial Pipe Inspection (Borescopes)

Micro-UAVs / Nano Drones

Wearable Smart Devices

Miniature Robotics

IoT Compact Sensors

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

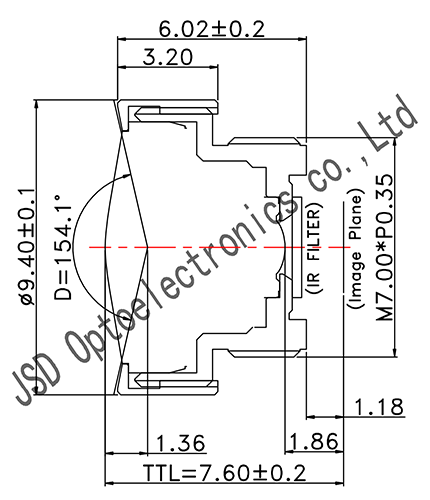

drawing
