JSD5012

Product Overview

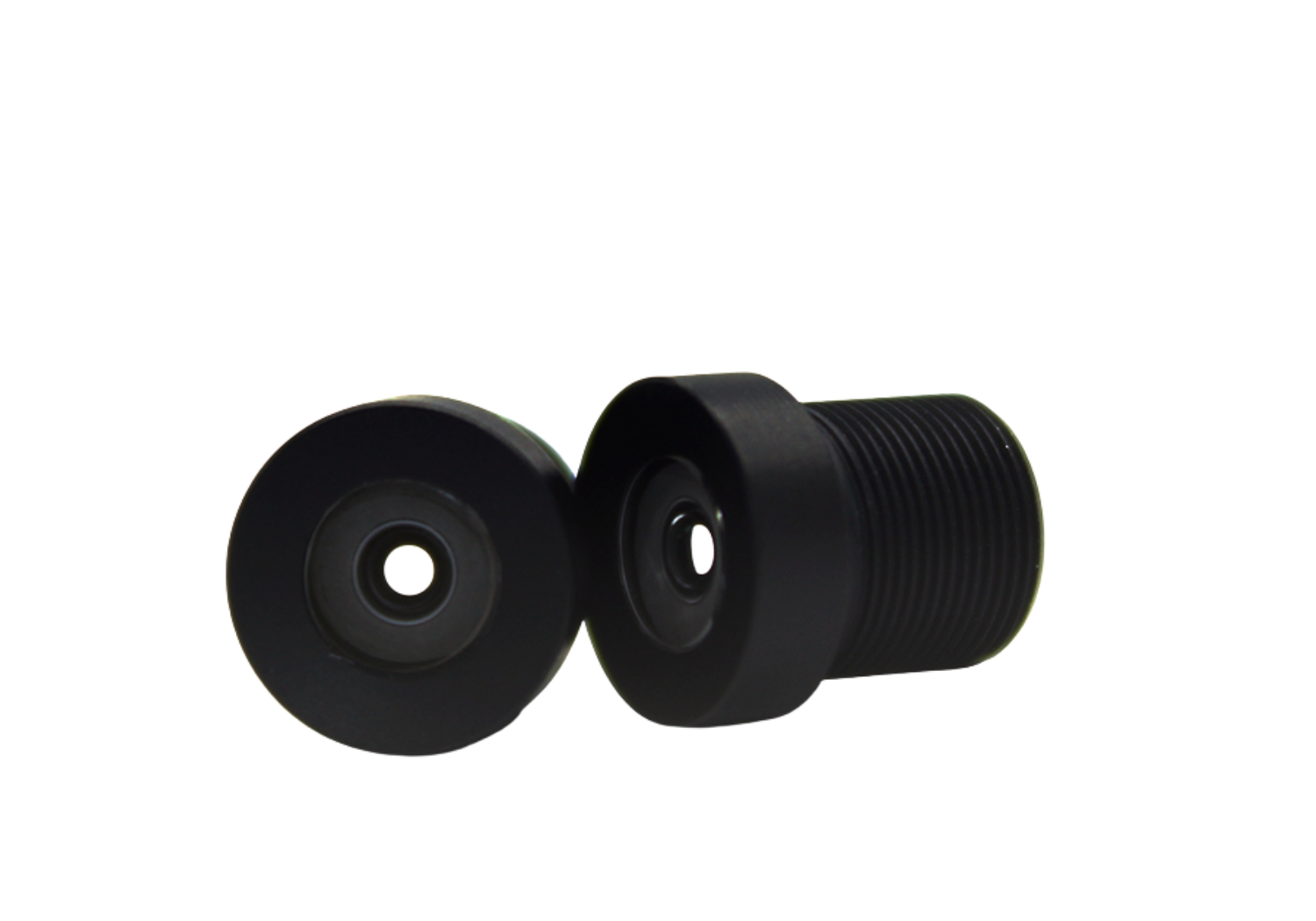

This miniature M7 mount fixed focal lens (PN: JSD5012) is precision-engineered for compact 1/5-inch sensors, offering a powerful combination of small form factor and wide coverage. With a short 0.9mm focal length and a bright F2.0 aperture, it delivers an immersive, ultra-wide 150° field of view, making it ideal for applications where space is limited but maximum scene coverage is required. Featuring 3MP resolution, this lens ensures clear, high-quality imaging for miniature devices, wearables, and embedded vision systems.

Key Features & Benefits

Sharp 3MP Resolution: Optimized to deliver clear 3MP imaging, providing excellent detail for miniature camera systems and ensuring reliable performance in HD applications.

Ultra-Wide 150° FOV:Provides an expansive 150° diagonal field of view, allowing for panoramic scene capture and eliminating blind spots in close-range monitoring or immersive imaging tasks.

Optimized for 1/5" Sensors:specifically designed to cover the image circle of 1/5" sensors, ensuring optimal light distribution and preventing vignetting in compact camera modules.

Miniature M7 Mount Design:Featuring a standard M7 thread and a compact TTL of 10.51mm, this lens is perfect for space-constrained devices where size and weight are critical factors.

Bright F2.0 Aperture: The wide F2.0 aperture allows for sufficient light intake, ensuring good image quality even in challenging or indoor lighting environments.

Immersive Perspective:With a distortion profile of <-20%, this lens offers a wide-angle, fisheye-style perspective ideal for situational awareness and maximizing the viewing area from a single camera point.

Applications

Medical Endoscopy & compact inspection tools

Wearable Cameras (Body Cams, Smart Glasses)

Miniature Drones (FPV)

IoT & Smart Home Devices (Video Doorbells, Pet Monitors)

Automotive In-Cabin Monitoring

Compact Security & Hidden Surveillance

Robotics & Embedded Vision Systems

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

drawing
