JSD1224

Product Overview

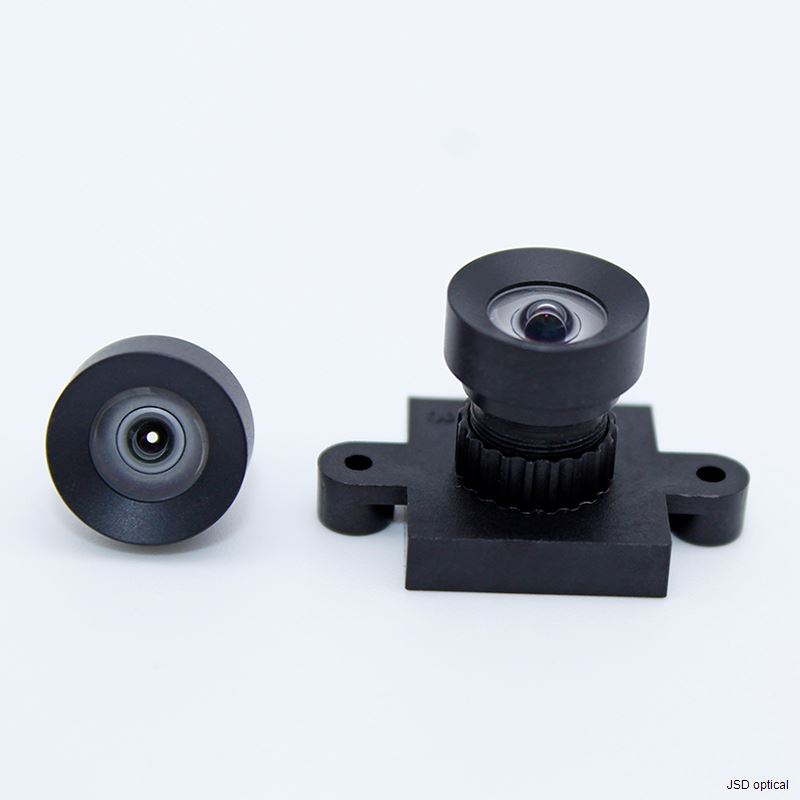

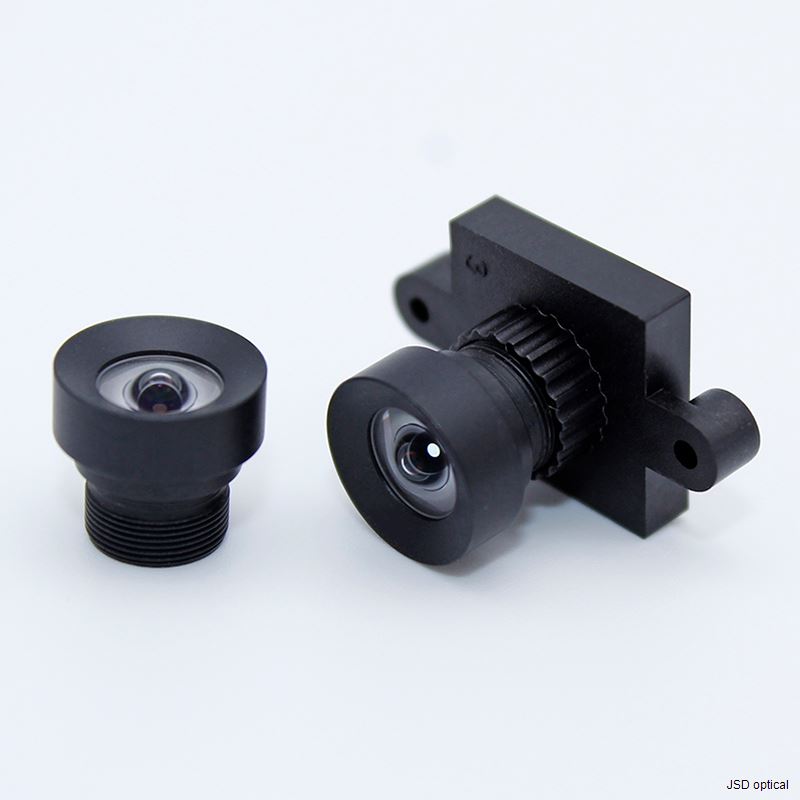

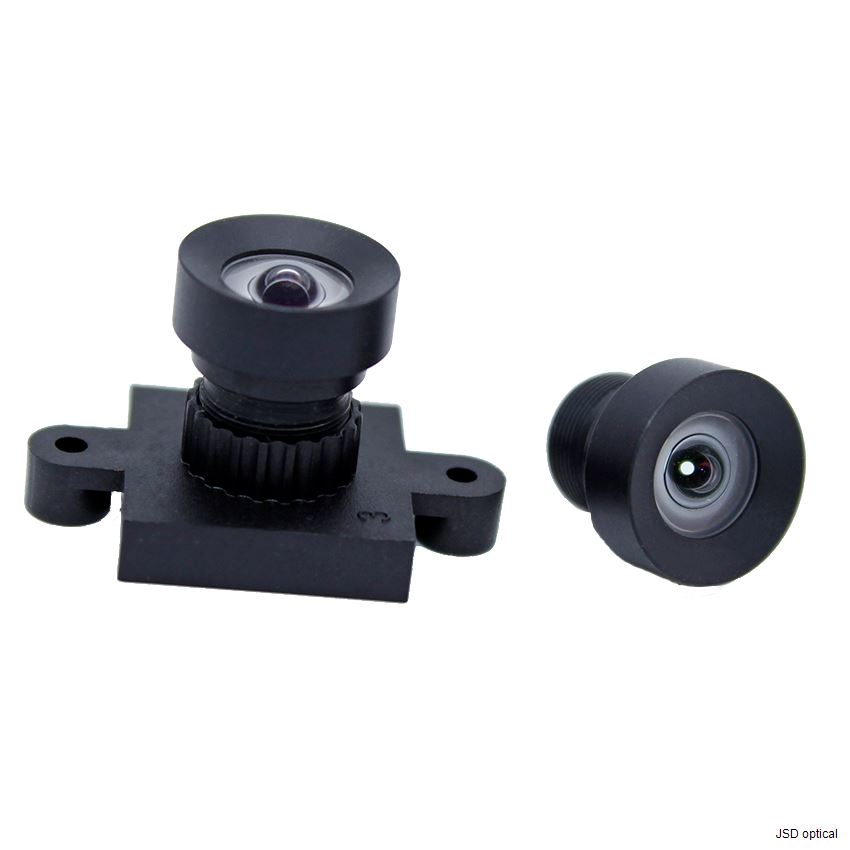

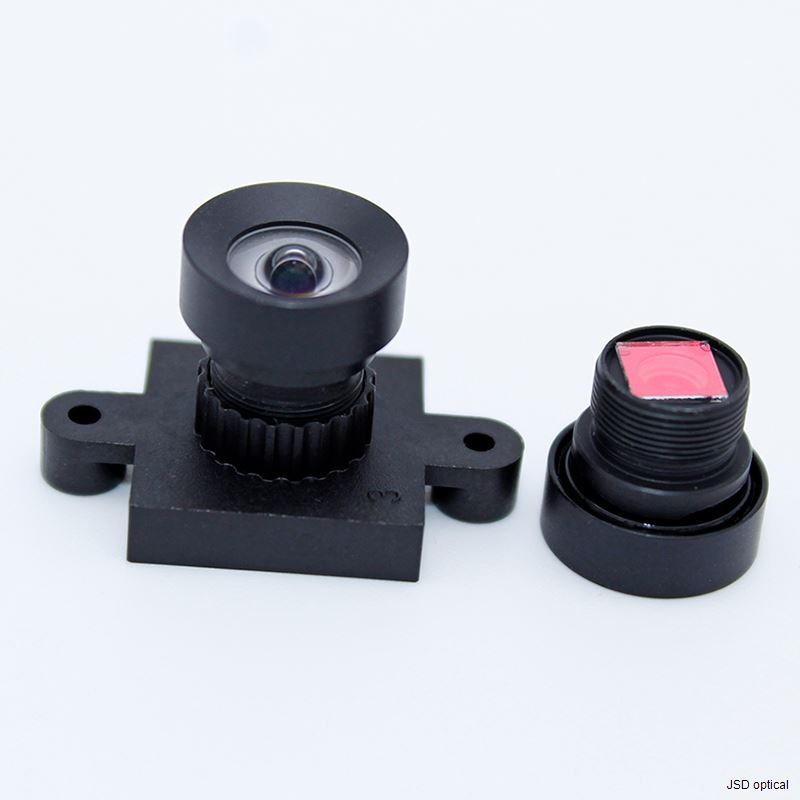

This ultra-miniature M7 mount fixed focal lens (PN: JSD1224) is expertly engineered for tiny 1/6-inch sensors, delivering high-resolution imaging in an incredibly compact form factor. With a short 1.17mm focal length and F2.4 aperture, it provides a broad 120° field of view, making it ideal for medical endoscopy, wearable technology, and embedded vision systems where space is at a premium. Featuring 5MP resolution and a lightweight design, this lens ensures sharp, detailed image capture and reliable performance for next-generation compact devices.

Key Features & Benefits

True 5MP Resolution:Precision-crafted to support high-density 5 Megapixel sensors, delivering exceptional detail and clarity despite its diminutive size, ideal for critical medical and inspection tasks.

Wide 120° FOV:Offers an expansive 120-degree field of view, allowing for comprehensive situational awareness and wide-area capture from a short working distance.

Miniature M7 Design:Features a small-format M7 thread with an ultra-short Total Track Length (TTL) of just 9.74mm, enabling seamless integration into the tightest mechanical constraints.

Optimized for 1/6" Sensors:Engineered specifically for 1/6" image sensors, utilizing the image circle efficiently to prevent vignetting and ensure uniform edge-to-edge sharpness.

Optical Precision:The F2.4 aperture and 1.17mm focal length provide a deep depth of field, ensuring subjects remain in focus across a useful range without the need for complex autofocus mechanisms.

Controlled Distortion:With distortion managed at <-10.52%, the lens provides a wide perspective with predictable optical characteristics, suitable for software correction if required.

Compact & Robust Build:Designed for durability and stability, this lens is perfect for portable and handheld devices that require rugged, high-performance optics.

Applications

Medical Endoscopes & Boroscopes

Miniature Inspection Cameras

Smart Glasses & Wearables

Compact Biometric Devices

Micro-Drones

IoT Vision Sensors

Dental Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

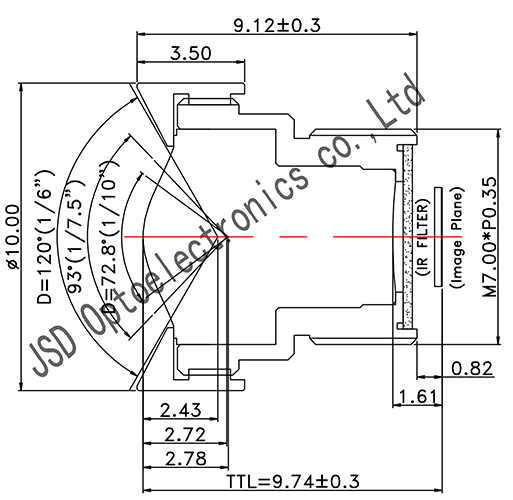

drawing
