Product Overview

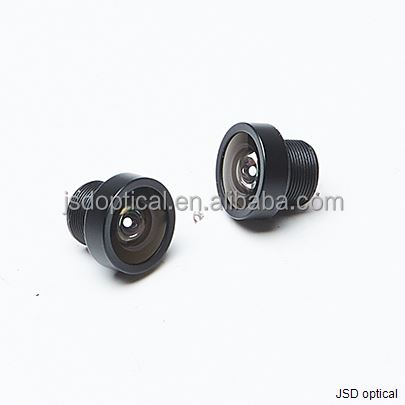

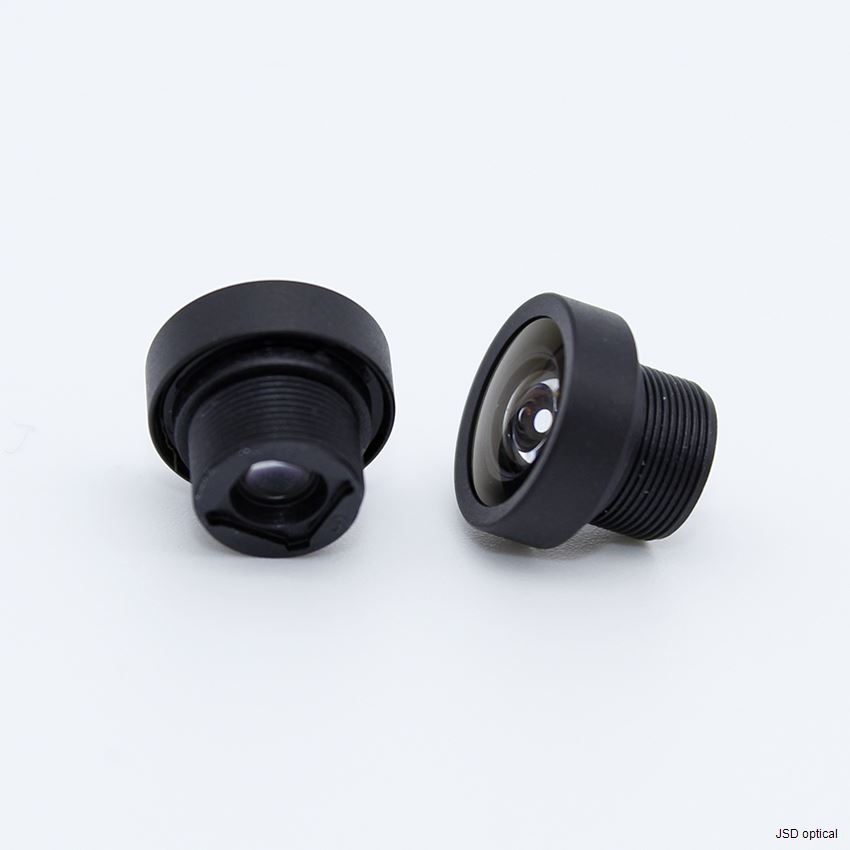

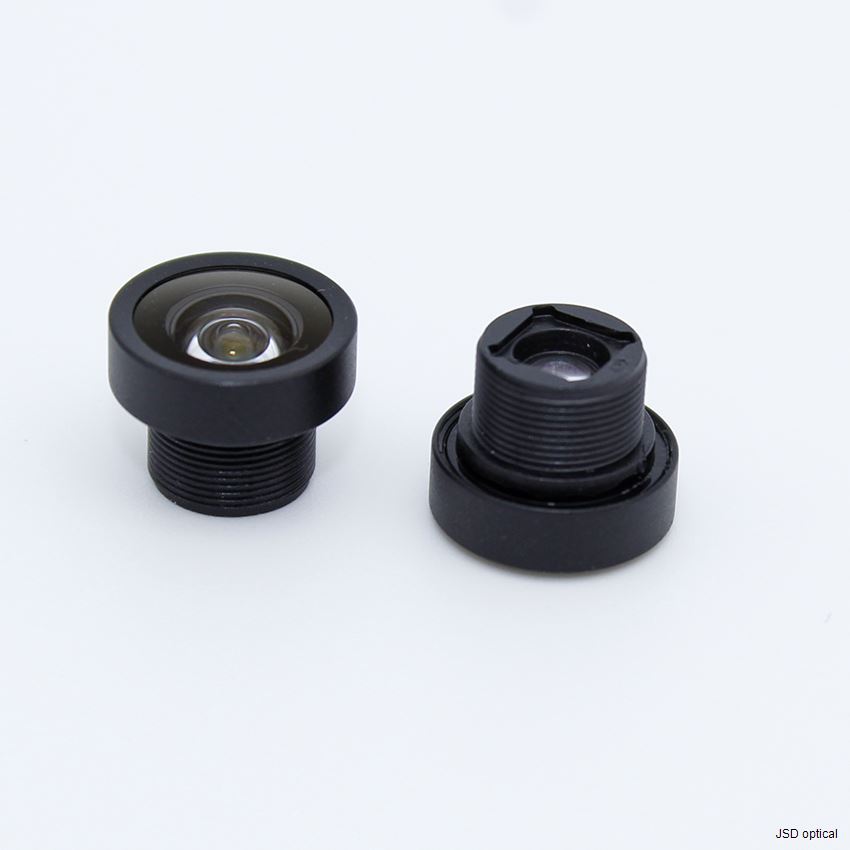

This professional-grade M7 mount fixed focal length lens is precision-engineered for 1/4-inch sensors, delivering high-quality imaging in a compact form factor. With an ultra-wide 144° field of view facilitated by its 1.5mm focal length and F2.4 aperture, it is exceptionally suited for expansive scene coverage in confined spaces. The lens supports True 3MP resolution, ensuring detailed image capture, and features manual focus for precise adjustment to various working distances. Its wide-angle design is optimal for applications requiring maximum coverage from a single vantage point, making it a versatile solution for panoramic monitoring and immersive visual experiences

Key Features & Benefits

Ultra-Wide 144° FOV: With a very short focal length, this lens offers an extensive horizontal field of view, making it highly effective for monitoring large, expansive areas where maximum coverage from a single vantage point is crucial.

Wide-Angle Lens Design: The 144° angle is characteristic of a wide-angle lens, which is ideal for applications requiring a broad perspective, such as immersive monitoring or capturing panoramic scenes in confined spaces

Manual Focus Design (F2.4, 1.5mm): The large F2.4 aperture facilitates better performance in various lighting conditions by allowing more light to reach the sensor. Combined with manual focus, it offers users precise control over the focus distance to achieve optimal sharpness for specific scenarios and working distances

Optimized for 1/4" Sensor: The lens is engineered to be compatible with 1/4" image sensors, ensuring the image circle adequately covers the sensor area to help minimize vignetting and promote even illumination across the frame

Compact M7 Form Factor: Featuring a standard M7 mount, this lens is designed for compact and space-constrained imaging systems, facilitating easy integration into a variety of embedded vision applications and devices

Versatile Application Support: The combination of an ultra-wide 144° field of view and a compact design makes this lens suitable for a range of uses, including general wide-area surveillance, retail observation, and other scenarios where a broad overview is prioritized over extreme detail

Technical Specifications

Applications

Intelligent Traffic Systems (ITS): Applicable for wide-area traffic monitoring at intersections or parking lots. The expansive 144° angle allows for capturing a broad overview of traffic flow and vehicle activity across multiple lanes, facilitating general traffic analysis and monitoring

HD Video Conferencing: Serves as a lens for video conferencing systems where an ultra-wide view is prioritized. The 144° FOV is ideal for small to medium-sized meeting rooms, ensuring all participants can be included in the frame without the need for a pan-tilt-zoom mechanism, promoting a more immersive meeting experience

Machine Vision: The 3MP resolution supports basic machine vision tasks where extreme high detail is not critical. It can be suitable for simpler visual inspections, presence verification, or applications where a wide view of a process or assembly line is more important than fine details . The manual focus allows for adjusting sharpness for specific working distances .

Facial Recognition Devices: Can be used in scenarios requiring a wide field of view for group presence or basic identification in access control or smart terminals. The wide angle is beneficial for capturing a broader area, such as an entrance zone, allowing for the observation of multiple individuals within proximity

Security & Surveillance: Suitable for general monitoring scenarios requiring wide-area coverage. The 144° ultra-wide field of view enables extensive area monitoring with a single lens, significantly reducing blind spots in environments like warehouses or large halls. The F2.4 aperture provides adequate light intake for various lighting conditions

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
