JSD1225

Product Overview

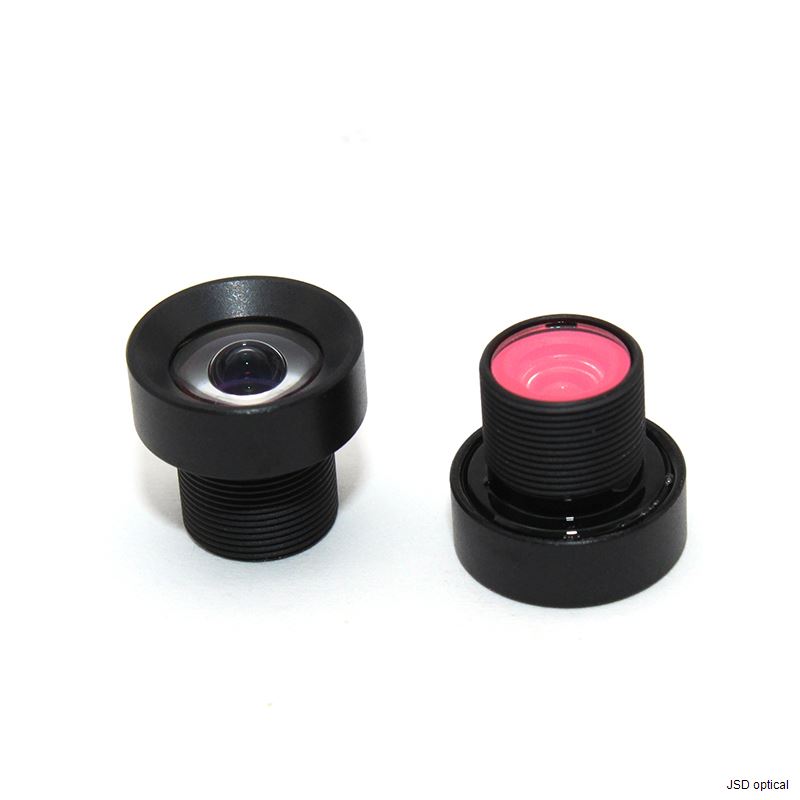

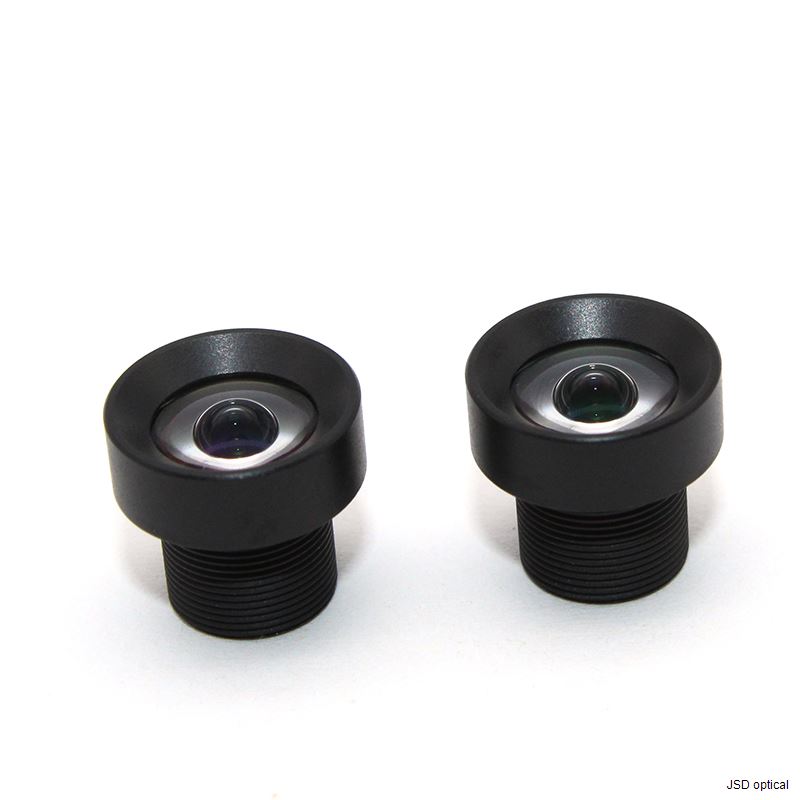

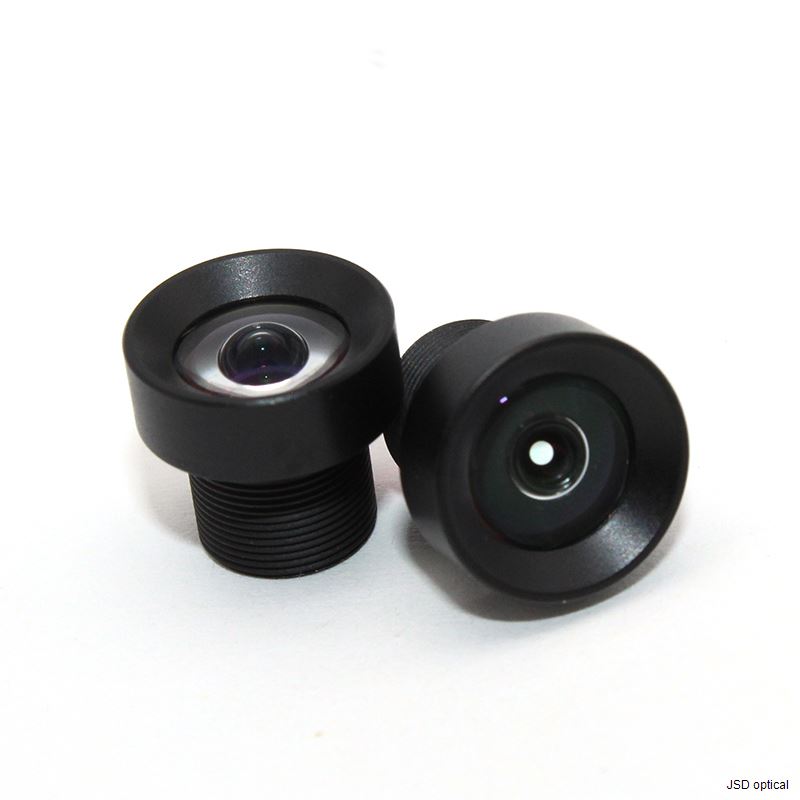

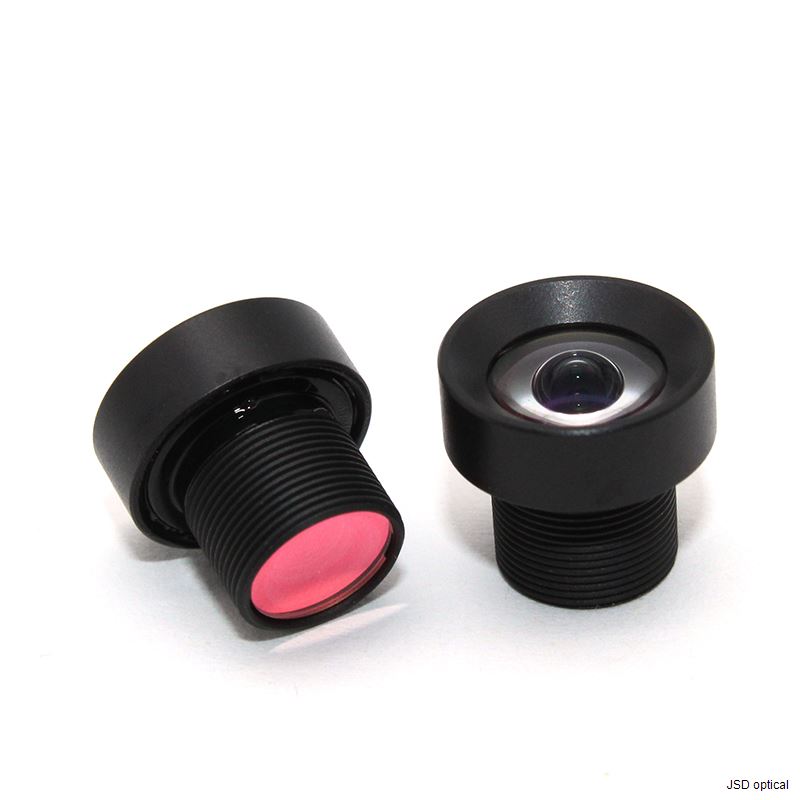

This ultra-compact M7 mount fixed focal lens (PN: JSD1225) is precision-engineered for 1/4-inch image sensors, offering a superior blend of high resolution and geometric accuracy in a miniature package. With a 2.07mm focal length and F2.6 aperture, it delivers a wide 110° field of view while maintaining impressive optical control with distortion <6.4%. Unlike typical miniature wide-angle lenses that produce heavy fisheye effects, this lens provides a natural, flat-field image. Featuring 5MP resolution and a compact TTL of 10.7mm, it is the ideal solution for medical devices, biometrics, and precision compact cameras requiring high-fidelity imaging.

Key Features & Benefits

High-Definition 5MP Resolution:Optimized to deliver sharp 5MP imaging, providing the high pixel density required for detailed inspection, medical diagnostics, and facial recognition on small sensors.

Natural 110° Wide FOV:Offers a broad 110° viewing angle that captures a wide scene without the extreme curvature associated with fisheye lenses, perfect for situational awareness where image realism is key.

Low Distortion Design (<6.4%):Advanced optical engineering keeps distortion below 6.4%, ensuring straight lines remain relatively straight and providing a true-to-life representation of the subject.

Compact M7 Mount Design:Featuring a standard M7 thread and a short TTL of 10.7mm, this lens is designed for space-constrained integrations such as handheld probes, wearables, and thin-profile modules.

Optimized for 1/4" Sensors:Specifically calculated for the 1/4-inch image circle, ensuring consistent brightness and sharpness from the center to the edge of the frame.

Extended Depth of Field:The F2.6 aperture strikes a balance between light intake and depth of field, ensuring that objects at varying distances remain in acceptable focus, which is vital for fixed-focus systems.

Versatile Mini-Optic:A robust solution for applications demanding high resolution and wide coverage without the bulk of larger mount systems.

Applications

Medical Endoscopy & Dental Cameras

Biometric Face Recognition

Wearable Cameras (Smart Glasses)

Industrial Borescopes & Inspection

Compact Barcode & QR Scanners

Miniature IoT Surveillance

Video Conferencing (Huddle Rooms)

Specification
