JSD1228

Product Overview

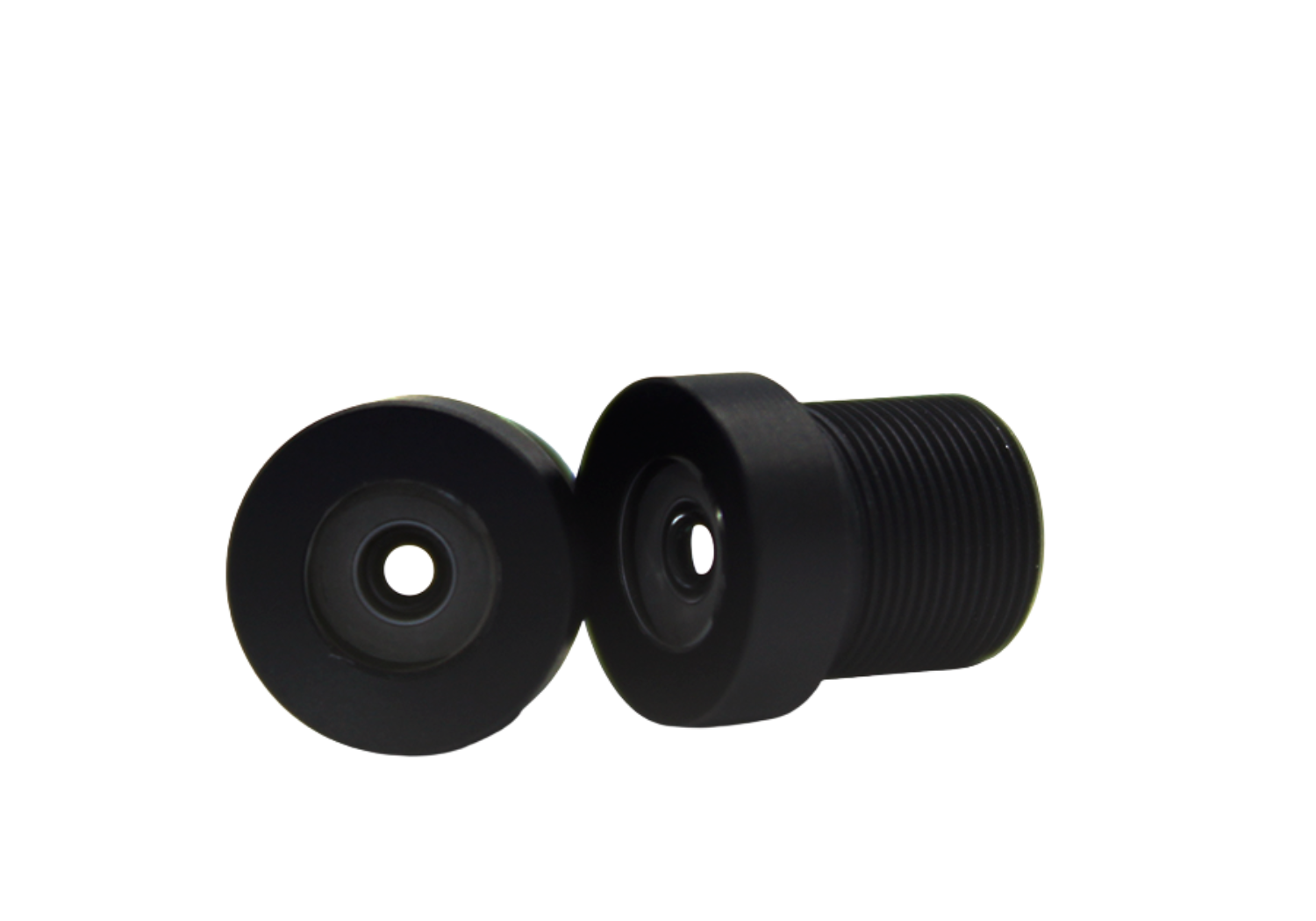

This precision-engineered M7 mount fixed focal lens (PN: JSD1228) is designed specifically for 1/4-inch image sensors, offering a perfect balance of wide coverage and geometrical accuracy. With a 2.33mm focal length and F2.3 aperture, it provides a natural 88.4° field of view. Its standout feature is its ultra-low distortion (< -0.95%), making it virtually distortion-free. Combined with an incredibly compact Total Track Length (TTL) of just 10.53mm, this lens is the ideal solution for slim, space-constrained devices requiring high-precision scanning, biometrics, and accurate image reproduction.

Key Features & Benefits

Ultra-Low Distortion (< -0.95%):Features exceptional optical correction that keeps distortion under 1%, ensuring perfectly straight lines and accurate spatial representation. Ideal for scanning and measurement applications where geometry is critical.

2MP HD Resolution:Supports 2 Megapixel resolution, delivering clear and sharp 1080p imaging suitable for facial recognition, document scanning, and high-quality video capture.

Ultra-Compact Design:With a Total Track Length (TTL) of only 10.53mm, this lens is incredibly low-profile, enabling seamless integration into thin housings, handheld scanners, and compact embedded systems.

Optimized for 1/4" Sensors:Tailored specifically for the 1/4" sensor format, ensuring optimal light coverage and resolution performance across the entire image circle.

Natural 88.4° Field of View:Offers a comfortable wide viewing angle (approx. 88°), providing good scene coverage without the extreme perspective distortion often found in wider lenses.

Standard M7 Connectivity:Despite its small size, it utilizes the industry-standard M7 thread, ensuring compatibility with a vast array of board cameras and mounts.

Applications

Facial Recognition & Biometrics

Document Scanners & OCR (Optical Character Recognition)

Barcode & QR Code Readers

Handheld Medical Devices

Compact Webcams & IoT Devices

Industrial Inspection (where straight lines are essential)

Slim Profile Security Cameras

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
