JSD2226

Product Overview

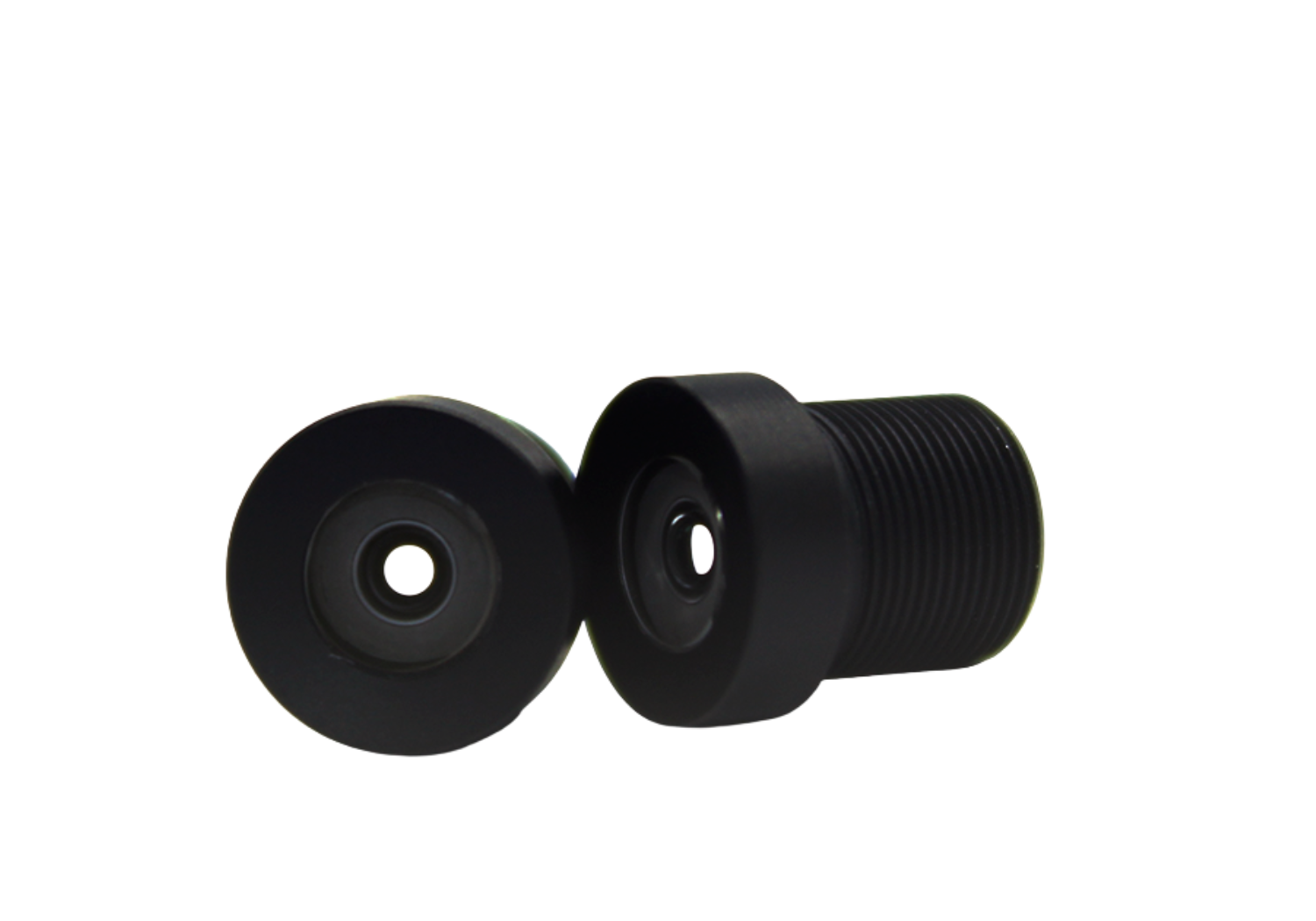

This precision M7 mount fixed focal lens is expertly engineered for 1/4-inch sensors, delivering high-definition clarity and virtually zero distortion for compact imaging applications. With a 2.2mm focal length and F2.6 aperture, it provides a wide 91° field of view, making it ideal for biometric recognition, high-precision scanning, and portable consumer electronics. Featuring 5MP resolution and an advanced low-distortion optical design (<-0.6%), this lens ensures exceptional geometric accuracy and corner-to-corner sharpness within a miniature, space-saving form factor.

Key Features & Benefits

High-Definition 5MP Resolution:Delivers sharp, detailed imaging capabilities suitable for HD video, text recognition, and precision machine vision tasks, ensuring clarity in small-scale devices.

Ultra-Low Distortion (<-0.6%):Features superior optical correction to minimize barrel distortion to less than 0.6%, maintaining perfect straight-line accuracy which is critical for OCR (Optical Character Recognition) and measurement applications.

Perfect Sensor Match:Optimized specifically for 1/4" image sensors, maximizing the active area usage with a precise image circle that eliminates vignetting.

Wide 91° Field of View:Provides a broad viewing angle that captures a significant scene area without the heavy deformation typically associated with wide-angle lenses.

Miniature M7 Architecture:Built with a standard M7 thread and an ultra-compact Total Track Length (TTL) of just 9.84mm, allowing for seamless integration into slim housings, handheld scanners, and wearable devices.

Robust Optical Performance:The F2.6 aperture provides a practical balance between depth of field and light intake, ensuring consistent performance in controlled lighting environments.

Applications

Document Scanners & OCR Devices

Biometric Recognition (Face ID / Iris Scanning)

Handheld Barcode Readers

Medical Endoscopy & Portable Imaging

Compact Webcams & Video Conferencing

Wearable Cameras (Body Cams)

Industrial Inspection Probes

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling
