JSD2540

Product Overview

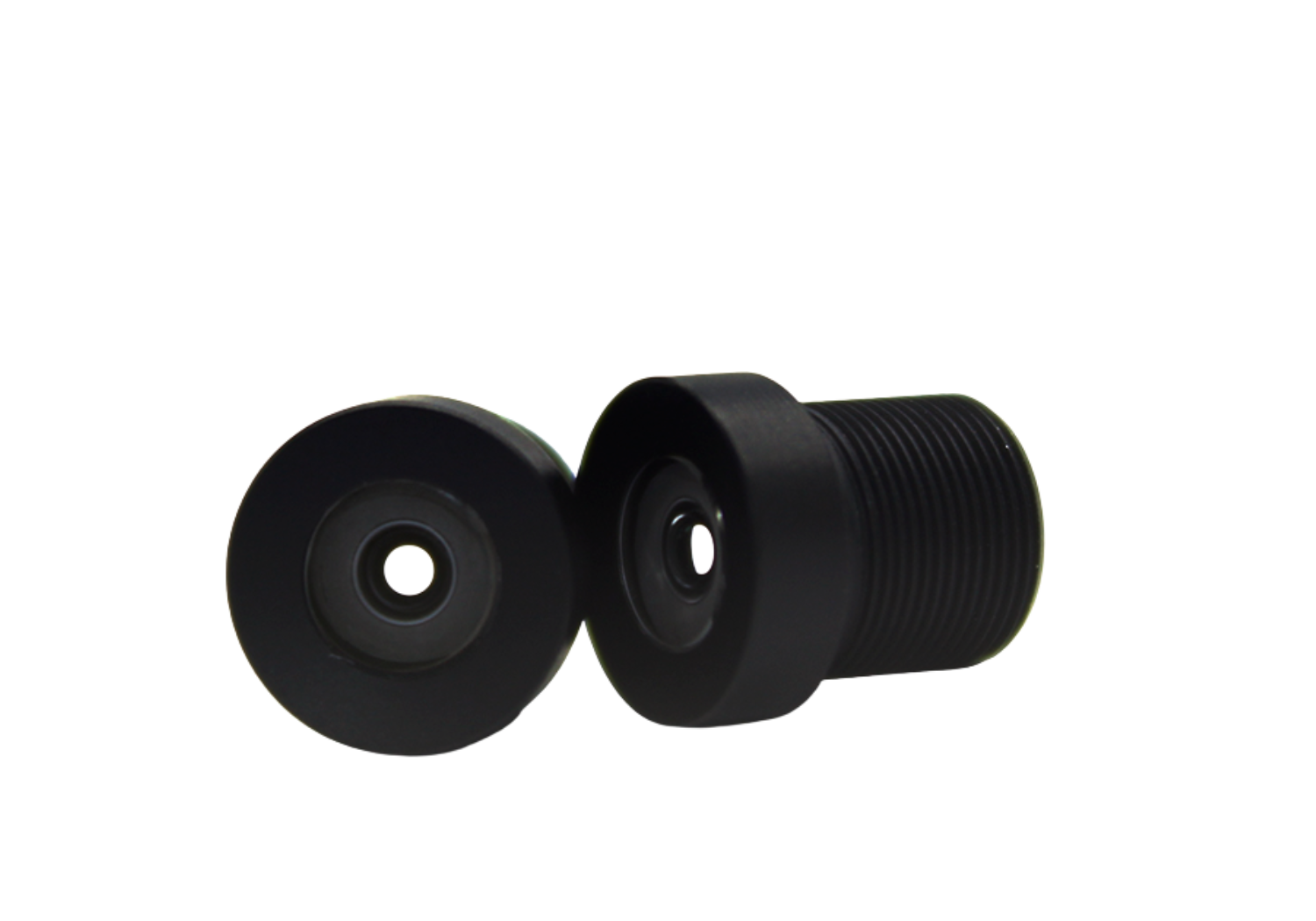

The JSD2628 is a high-performance M12 S-Mount fixed focal lens, expertly engineered for 1/2.5-inch image sensors to deliver expansive scene capture for advanced imaging applications. With a short 2.65mm focal length and F2.8 aperture, it provides an impressive ultra-wide 155° field of view, making it the perfect solution for broad-area surveillance, automotive viewing systems, and immersive panoramic imaging. Featuring 5MP resolution, this lens ensures clear, high-definition video capture, offering superior situational awareness by maximizing the visible area in a single frame.

Key Features & Benefits

High-Definition 5MP Resolution:Optimized to deliver crisp 5MP imaging, ensuring reliable detail retention for video recording and monitoring tasks.

Super-Wide 155° FOV:Offers a massive 155° field of view, enabling comprehensive panoramic surveillance and environmental monitoring with significantly reduced blind spots compared to standard lenses.

Perfect Sensor Match:Engineered specifically for 1/2.5" sensors, featuring a precision image circle that fully utilizes the sensor's active area for optimal performance.

Compact & Robust Build:Features a standard M12 thread and a Total Track Length (TTL) of 22.8mm, ensuring easy integration into compact cameras, smart home devices, and industrial modules.

Broad Area Coverage:The wide-angle optical design allows for maximum scene coverage from a short distance, making it ideal for doorbell cameras, dashcams, and tight indoor spaces.

Reliable F2.8 Aperture：Provides a balanced aperture setting that maintains a good depth of field, keeping both near and far objects in focus for general-purpose wide-angle applications.

Applications

Panoramic Surveillance Cameras

Automotive Dashcams & DVRs

Video Doorbells & Intercoms

VR & 360-degree Imaging

Sports & Action Cameras

Robot Navigation (SLAM)

Wide-Area Environmental Monitoring

Specification

Why Choose JSD Optoelectronics?

Shenzhen JSD Optoelectronics is a leading manufacturer of custom optical lenses, specializing in high-precision solutions since 2009. We offer:

1).ISO 9001 & IATF 16949 Certified Quality

2).Rapid Prototyping (15-day custom sample turnaround)

3).End-to-End Support from design to mass production

4).300+ Standard Designs for immediate sampling

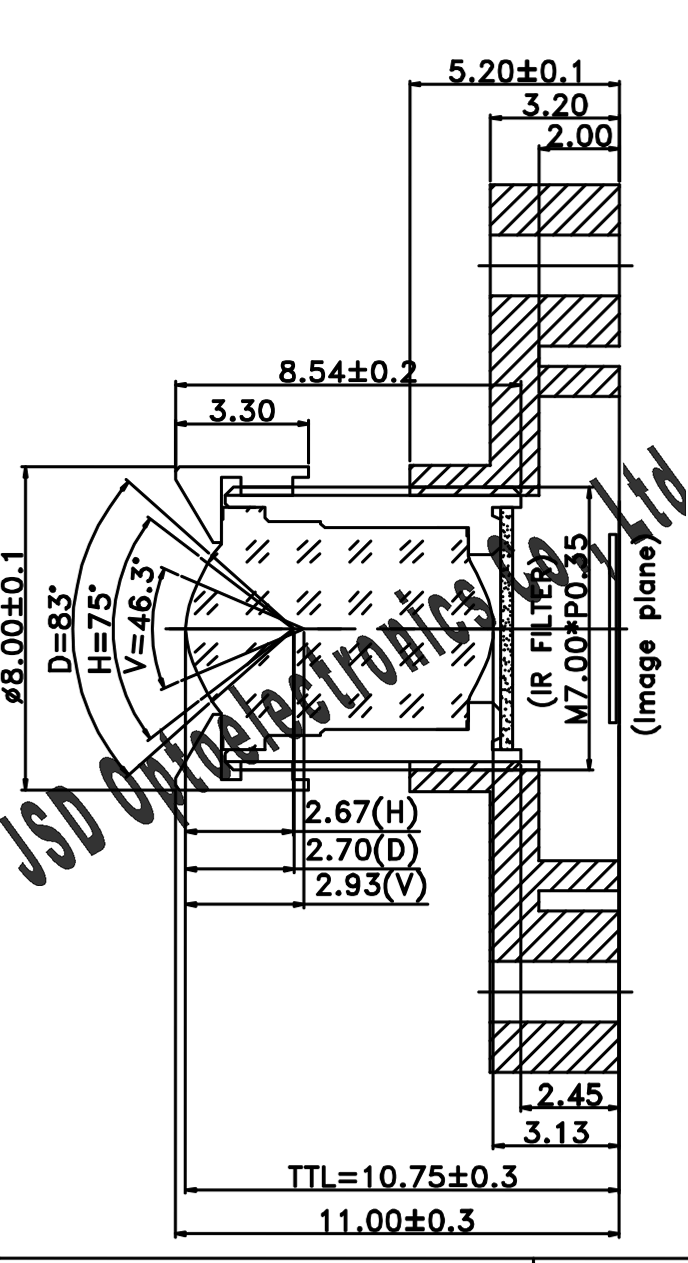

drawing
